Ticket Orchestrator v.1.0.0 Plugin

This document explains how to configure the Cloud Exchange integration with the Cloud Ticket Orchestrator module of the Netskope Cloud Exchange platform.

Prerequisites

To complete this configuration, you need a Netskope tenant (or multiple, for example, production and development/test instances) that is already configured in Cloud Exchange.

CE Version Compatibility

This plugin is compatible with all the supported Netskope CE Versions.

Netskope Ticket Orchestrator Plugin Support

This plugin is used to pull alerts data from the Netskope Tenant and store them in Netskope CE.

Alert Types

Yes

Types of Data Supported

Supported Alert types for notifications

Anomaly, Compromised Credentials, policy, Legal Hold, malsite, Malware, DLP, Security Assessment, watchlist, quarantine, Remediation, uba, ctep, ips, c2

Mappings

Netskope API Fields	Netskope CE Fields
_id	id
alert_name	alertName
alert_type	alertType
app	app
appcategory	appCategory
type	type
user	user
timestamp	time
raw_fields	rawAlert

Permissions

Access to the required permissions is available in the v2 REST API scopes.

API Details

List of APIs used

API Endpoint	Method	Use Case
/api/v2/events/dataexport/alerts/compromisedcredential	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/dlp	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/malware	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/remediation	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/securityassessment	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/ctep	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/malsite	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/policy	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/quarantine	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/uba	GET	Pull the data from Netskope tenant
/api/v2/events/dataexport/alerts/watchlist	GET	Pull the data from Netskope tenant

Pull the Data from Netskope Tenant

This section shows the API parameters for one of the above mentioned APIs. To access the API Response for other APIs, you can use the Swagger API provided by Netskope Tenant.
API Endpoint: /api/v2/events/dataexport/alerts/dlp
Method: GET
Parameters:
Index: <name of iterator index>
operation: <epoch time from where want to fetch the data>
Headers:
Netskope-Api-Token: <V2_Token>
Accept: application/json
Content-Type: application/json
Sample API Response:
To access the API Response view, log in to your Netskope tenant and go to Settings > Tools > REST API v2 and click API Documentation. From there, you will be able to request the API mentioned above and obtain the desired API response.

User Agent

The user-agent added in this plugin is in the following format:
netskope-ce-<ce_version>
For example: netskope-ce-5.0.1

Workflow

Configure the Netskope Ticket Orchestrator plugin.
Create a Ticket Orchestrator Business Rule.
Configure a 3rd-party plugin.
Configure a Queue to create tickets based on the business rules.
Validate the Netskope plugin.

Configure the Netskope Plugin for Ticket Orchestrator

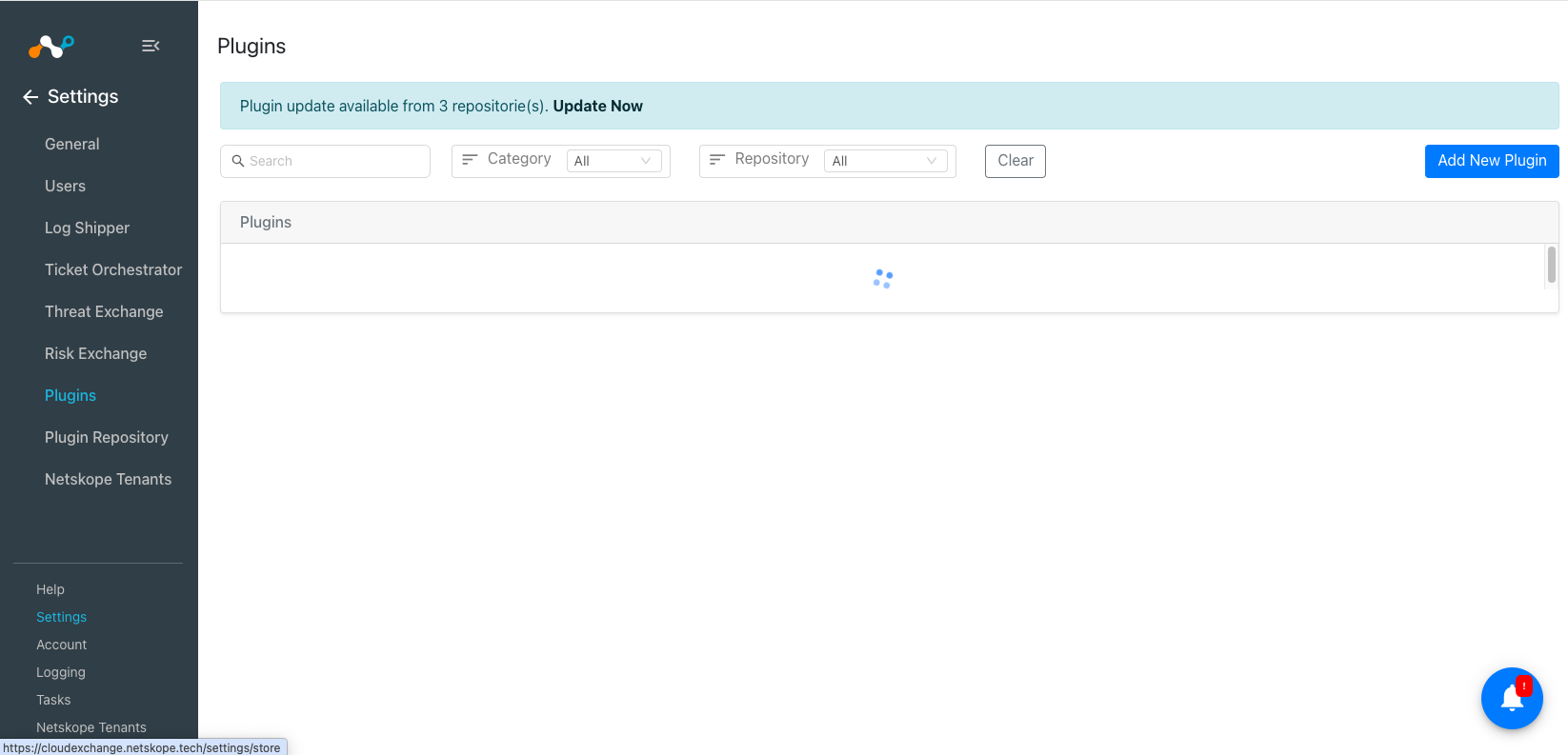

In Cloud Exchange, go to Settings and enable the Ticket Orchestrator Module.
Go to Ticket Orchestrator and click Plugins > Configure New Plugin.

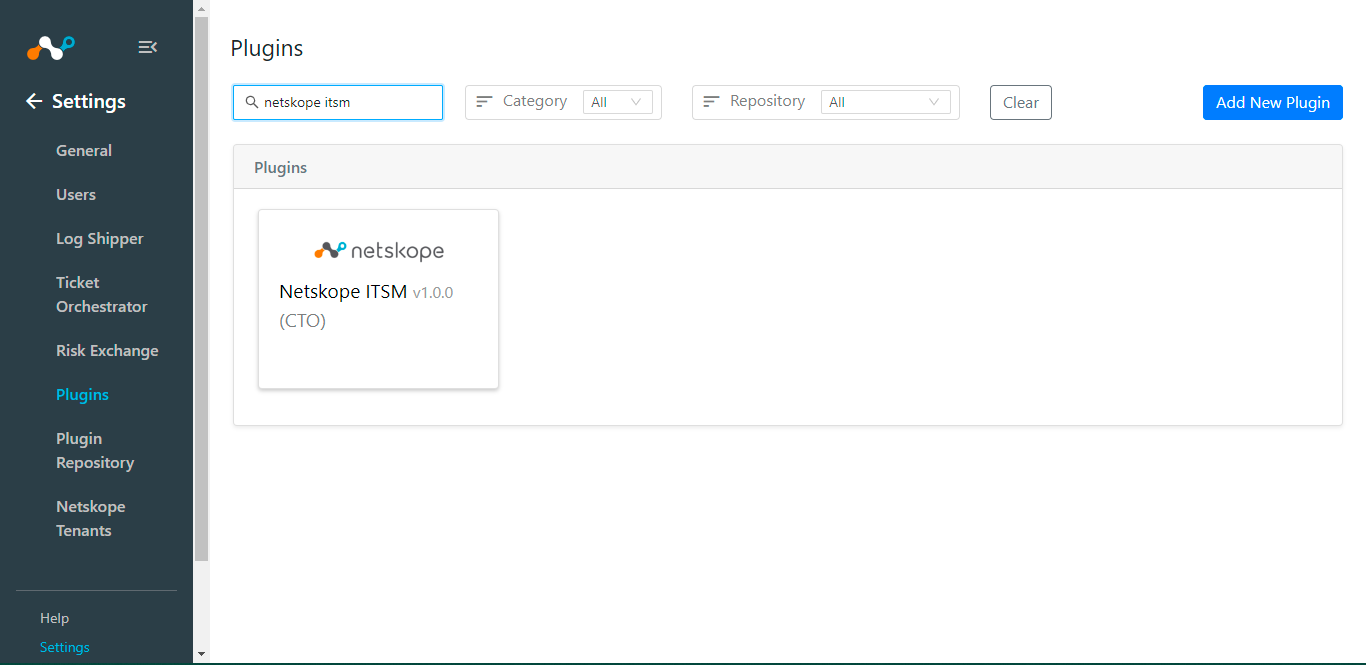

Search for and select the Netskope ITSM plugin box.
On the Basic Information page, enter a Configuration Name.
Adjust the Sync Interval to appropriate value: Suggested is 5+ minutes.
Click the Next to open the Filter Alerts page.
Choose Alert Types. (This will filter alerts based on types you select.)
Click Save.

Create Business Rules for Ticket Orchestrator

In Ticket Orchestrator, click Business Rules > Create New Rule.
Enter an appropriate Rule Name in the text box and build the appropriate filter query condition on the field(s) for the business rule. You can also type the query manually by pressing the Filter Query button.
Click Save.
To test the newly created business rule, click on the icon and enter a time period (in days) and click the Fetch button. This will show the number of alerts that are eligible for incident/ticket creation.

Create a Queue for Ticket Orchestrator

Before you can configure Queues here, you need to create a 3rd-party plugin to connect to. Refer to the documentation for steps to configure a 3rd-party plugin. After you have created a 3rd-party plugin, use the following section to add Queues.

In Ticket Orchestrator, click Queues.
Click Add Queue Configuration.
Select the Business Rule created previously from the dropdown.
Select the 3rd-party plugin you created from the Configuration dropdown.
Select the Queues from the dropdown. This will list the groups available on the configured Target instance. The issues/tickets will be assigned to the selected group.
Add/Map appropriate values between alerts and incidents under the Map Field section. Alert’s attributes can be accessed via “$” in the custom message field. Click on the Add button to add more field mappings.
Click Save.
Based on the business rule(s), issues/tickets for incoming alerts will be created automatically. To create issues/tickets for historical alerts, click on button on the configured queue and enter the time period (in days) and click the Fetch button. This will show the number of alerts that are eligible for issues/tickets creation. Click on the Sync button to create issues/tickets for those alerts.
