Deploying AI Guardrails LLM on Azure - Netskope Technical Documentation

Deploy AI Guardrails LLM on Microsoft Azure to run GPU-based LLM security detection in your Azure environment. This guide uses Azure Container Registry, an Azure Machine Learning managed online endpoint, Microsoft Entra ID, and Azure API Management to build a secure, authenticated inference path that AI Guardrails can call.

Deployment paths

All AI Guardrails GPU deployments use the same GPU base image — only the hosting service differs:

Option A — AWS SageMaker (AWS only): fully managed AWS deployment. See Installing GPU-Based Guardrails.
Option B — Self-hosted VM (any cloud or on-premises): run the GPU container yourself on an AWS EC2 instance, an Azure VM, a Google Compute Engine instance, or an on-premises/ESXi host. See Installing GPU-Based Guardrails.
Option C — Azure Machine Learning managed online endpoint (Azure only, this guide): the Azure-native equivalent to SageMaker.

Prerequisites

An Azure subscription and resource group, with at least Contributor access.
The Azure CLI installed and signed in (az login).
Docker installed locally, with the AI Guardrails LLM image available as a tarball or in an accessible registry.
GPU quota in your target region for an Azure Machine Learning managed online endpoint — see recommended sizes below.
Owner, User Access Administrator, or Role Based Access Control Administrator access on the subscription — Contributor alone can’t grant role assignments.
The Application Developer directory role (or higher) in Microsoft Entra ID, to register applications.

Downloading the GPU/TPU base image

The AI Guardrails LLM image (aisecurityllm-${IMAGE_TAG}.tgz) comes from your Netskope tenant, not from Azure:

Complete VM Onboarding for the AI VM in your tenant, if you haven’t already.

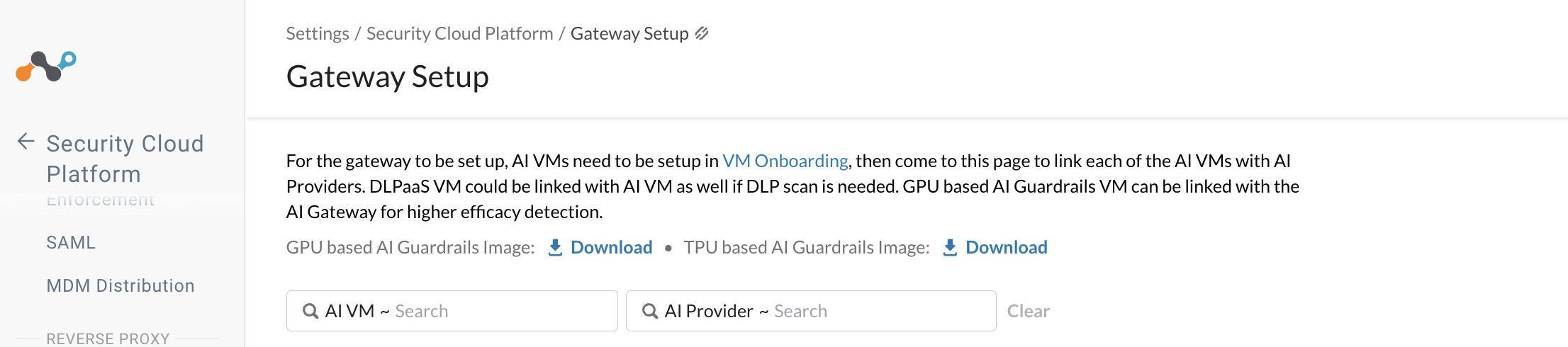

Go to Settings > Security Cloud Platform > Gateway Setup, and link the AI VM to the appropriate AI Provider. Link a DLPaaS VM to the same AI VM if you also need DLP scanning.
Download the GPU based AI Guardrails Image — the same image used for AWS SageMaker and self-hosted VM deployments. Use the TPU based AI Guardrails Image instead for the Google Cloud TPU path.

Recommended GPU instance sizes

Azure has no exact SKU-for-SKU match for AWS SageMaker GPU instances. The A10 family uses fractional GPU partitioning, and Azure has no native equivalent to the newer L4 GPU — the closest option is the previous-generation NVIDIA T4.

If you’re sizing from	Use this Azure SKU	vCPU	Memory	GPU	Quota family to request
A small SageMaker GPU instance (`ml.g5.xlarge`)	`Standard_NV6ads_A10_v5`	6	55 GiB	1/6 A10 (partitioned, 4 GB)	`StandardNVADSA10v5Family`
A mid-size SageMaker GPU instance (`ml.g5.2xlarge`)	`Standard_NV12ads_A10_v5`	12	110 GiB	1/3 A10 (partitioned, 8 GB)	`StandardNVADSA10v5Family`
A full, unpartitioned GPU	`Standard_NV36ads_A10_v5`	36	440 GiB	1 full A10 (24 GB)	`StandardNVADSA10v5Family`
A newer-generation SageMaker instance (`ml.g6.xlarge`)	`Standard_NC4as_T4_v3` (T4, not L4)	4	28 GiB	1 × T4 (16 GB)	`Standard NCASv3_T4 Family`

GPU SKUs require regional availability and quota approval — initial quota is often 0. Confirm availability and the quota family for your subscription and region before committing to a size:

az vm list-skus --location ${REGION} --size <SKU_NAME> --all --output table
az vm list-skus --location ${REGION} --size <SKU_NAME> --query "[0].family" --output tsv

Avoid Standard_NC6s_v3 (V100) — it’s retired in most regions as of September 2025.

Service mapping: AWS → Azure

AWS component	Azure component	Notes
Elastic Container Registry (ECR)	Azure Container Registry (ACR)	Same docker login/tag/push workflow
SageMaker (Model / Endpoint Config / Endpoint)	Azure Machine Learning managed online endpoint (Environment / Deployment / Endpoint)	Azure ML supports blue/green and canary traffic splitting natively
Cognito User Pool + M2M app client	Microsoft Entra ID app registrations (client-credentials flow)	Entra ID issues the token; scopes map to an App Role checked in the `roles` claim
API Gateway + Cognito authorizer	Azure API Management (APIM) + `validate-jwt` policy	APIM validates the Entra ID JWT and forwards the call
IAM execution/invoke roles	Azure RBAC role assignments + managed identity	Online endpoints support key-based or Entra ID token-based scoring authentication

Option C — Deploy on Azure (Managed Online Endpoint)

Use this path if you want Azure to manage the hosting infrastructure. To self-host on an Azure VM instead, use Option B.

Step 1 — Push the LLM image to Azure Container Registry

az login
az account set --subscription "<SUBSCRIPTION_NAME>"
TENANT_ID=$(az account show --query tenantId --output tsv)
SUBSCRIPTION_ID=$(az account show --query id --output tsv)
RESOURCE_GROUP=<RESOURCE_GROUP>
REGION=<REGION>
ACR_NAME=<ACR_NAME>
az group create --name ${RESOURCE_GROUP} --location ${REGION}
az provider register --namespace Microsoft.ContainerRegistry
az acr create --resource-group ${RESOURCE_GROUP} --name ${ACR_NAME} --sku Standard --location ${REGION}
az acr login --name ${ACR_NAME}
ACR_REPOSITORY_URI=${ACR_NAME}.azurecr.io
IMAGE_TAG=<IMAGE_TAG>
REPOSITORY_NAME=<REPOSITORY_NAME>
docker load -i aisecurityllm-${IMAGE_TAG}.tgz
docker tag <source-image>:${IMAGE_TAG} ${ACR_REPOSITORY_URI}/${REPOSITORY_NAME}:${IMAGE_TAG}
docker push ${ACR_REPOSITORY_URI}/${REPOSITORY_NAME}:${IMAGE_TAG}

Pin the image by digest (repository:tag@sha256:digest) rather than a mutable tag such as latest. Check the manifest type before continuing — a multi-architecture image index needs the extra digest-resolution step in Step 2 below, or deployment fails with “unable to download container image”:

az acr manifest list-metadata --registry ${ACR_NAME} --name ${REPOSITORY_NAME} \
  --query "[?tags && contains(tags, '${IMAGE_TAG}')].{digest:digest, mediaType:mediaType}" \
  --output table

Step 2 — Deploy the model to an Azure Machine Learning managed online endpoint

Create the workspace and a managed identity.

WORKSPACE_NAME=<WORKSPACE_NAME>
IDENTITY_NAME=<IDENTITY_NAME>
az ml workspace create --name ${WORKSPACE_NAME} --resource-group ${RESOURCE_GROUP} --location ${REGION}
az identity create --name ${IDENTITY_NAME} --resource-group ${RESOURCE_GROUP}

Resolve the image digest, then create the environment. If the tag resolves to a multi-architecture index, pin the linux/amd64 child digest — pinning the index itself causes the “unable to download container image” error.

ENV_NAME=<ENV_NAME>
ARCH=amd64
ENV_VERSION=${IMAGE_TAG}-${ARCH}
TAG_DIGEST=$(az acr manifest list-metadata --registry ${ACR_NAME} --name ${REPOSITORY_NAME} \
  --query "[?tags && contains(tags, '${IMAGE_TAG}')].digest | [0]" --output tsv)
MEDIA_TYPE=$(az acr manifest list-metadata --registry ${ACR_NAME} --name ${REPOSITORY_NAME} \
  --query "[?tags && contains(tags, '${IMAGE_TAG}')].mediaType | [0]" --output tsv)
IMAGE_DIGEST=${TAG_DIGEST}
if [[ ${MEDIA_TYPE} == *index* || ${MEDIA_TYPE} == *manifest.list* ]]; then
  IMAGE_DIGEST=$(az acr manifest show --registry ${ACR_NAME} --name "${REPOSITORY_NAME}@${TAG_DIGEST}" --output json \
    | jq -r --arg a "${ARCH}" '.manifests[] | select(.platform.os=="linux" and .platform.architecture==$a) | .digest' | head -1)
fi
cat <<EOF > environment.yaml
\$schema: https://azuremlschemas.azureedge.net/latest/environment.schema.json
name: ${ENV_NAME}
version: ${ENV_VERSION}
image: ${ACR_REPOSITORY_URI}/${REPOSITORY_NAME}@${IMAGE_DIGEST}
inference_config:
  liveness_route: {path: /ping, port: 8080}
  readiness_route: {path: /ping, port: 8080}
  scoring_route: {path: /invocations, port: 8080}
EOF
az ml environment create --file environment.yaml --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME}

Environments are immutable — create a new version whenever you change the image. Calls to the container should always target /invocations, not the endpoint’s advertised /score URI.

Create the online endpoint.

ENDPOINT=<ENDPOINT_NAME>
IDENTITY_RESOURCE_ID=$(az identity show --name ${IDENTITY_NAME} --resource-group ${RESOURCE_GROUP} --query id --output tsv)
cat <<EOF > endpoint.yaml
\$schema: https://azuremlschemas.azureedge.net/latest/managedOnlineEndpoint.schema.json
name: ${ENDPOINT}
auth_mode: key
identity:
  type: user_assigned
  user_assigned_identities:
    - resource_id: ${IDENTITY_RESOURCE_ID}
EOF
az ml online-endpoint create --file endpoint.yaml --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME}

Grant the endpoint identity pull access to ACR.

ENDPOINT_IDENTITY_ID=$(az ml online-endpoint show --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} \
  --workspace-name ${WORKSPACE_NAME} --query identity.user_assigned_identities[0].principal_id --output tsv)
ACR_ID=$(az acr show --name ${ACR_NAME} --query id --output tsv)
az role assignment create --assignee-object-id ${ENDPOINT_IDENTITY_ID} --assignee-principal-type ServicePrincipal \
  --role AcrPull --scope ${ACR_ID}

This step requires Owner, User Access Administrator, or Role Based Access Control Administrator — Contributor alone returns AuthorizationFailed, by design.

Check GPU quota, then create the deployment. Azure Machine Learning quota and Azure Compute (VM) quota are separate pools — check both.

az ml compute list-usage --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --output table | grep -i "NV\|NC"
INSTANCE_TYPE=<INSTANCE_TYPE>   # see "Recommended GPU instance sizes" above, e.g. Standard_NV12ads_A10_v5
cat <<EOF > deployment-blue.yaml
\$schema: https://azuremlschemas.azureedge.net/latest/managedOnlineDeployment.schema.json
name: blue
endpoint_name: ${ENDPOINT}
environment: azureml:${ENV_NAME}:${ENV_VERSION}
instance_type: ${INSTANCE_TYPE}
instance_count: 1
liveness_probe:
  initial_delay: 60
  period: 30
  timeout: 30
  failure_threshold: 60
readiness_probe:
  initial_delay: 60
  period: 30
  timeout: 30
  failure_threshold: 60
EOF
az ml online-deployment create --file deployment-blue.yaml --all-traffic \
  --workspace-name ${WORKSPACE_NAME} --resource-group ${RESOURCE_GROUP}

Size the probes above your container’s actual startup time — GPU containers that load or compile a model before binding to the port often need longer than the defaults above.

Optional: blue/green and canary rollout

Create a second deployment (for example, green), shift traffic in steps, then remove the old one:

az ml online-deployment create --file deployment-green.yaml --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME}
az ml online-endpoint update --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --traffic "blue=90 green=10"
az ml online-endpoint update --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --traffic "green=100"
az ml online-deployment delete --name blue --endpoint-name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --yes

Step 3 — Configure JWT authentication with Microsoft Entra ID

Register the resource server app and set its Application ID URI. This requires the Application Developer directory role (or higher) in Entra ID.

RESOURCE_APP_NAME=<RESOURCE_APP_NAME>
RESOURCE_APP_ID=$(az ad app create --display-name ${RESOURCE_APP_NAME} --sign-in-audience AzureADMyOrg --query appId --output tsv)
az ad app update --id ${RESOURCE_APP_ID} --identifier-uris api://${RESOURCE_APP_ID}

Define an app role and create the service principal.

cat <<EOF > app-roles.json
[
  {
    "allowedMemberTypes": ["Application"],
    "description": "Permission to invoke the AI Guardrails LLM inference endpoint",
    "displayName": "Inference.Invoke",
    "id": "$(python3 -c 'import uuid; print(uuid.uuid4())')",
    "isEnabled": true,
    "value": "Inference.Invoke"
  }
]
EOF
az ad app update --id ${RESOURCE_APP_ID} --app-roles @app-roles.json
az ad sp create --id ${RESOURCE_APP_ID}
ROLE_ID=$(az ad app show --id ${RESOURCE_APP_ID} --query "appRoles[?value=='Inference.Invoke'].id" --output tsv)

Register the machine-to-machine (M2M) client app and assign it the role. Save CLIENT_APP_ID and CLIENT_SECRET — you’ll enter these in AI Guardrails as the Client ID and Client secret.

CLIENT_APP_NAME=<CLIENT_APP_NAME>
CLIENT_APP_ID=$(az ad app create --display-name ${CLIENT_APP_NAME} --sign-in-audience AzureADMyOrg --query appId --output tsv)
az ad sp create --id ${CLIENT_APP_ID}
CLIENT_SECRET=$(az ad app credential reset --id ${CLIENT_APP_ID} --years 1 --query password --output tsv)
RESOURCE_SP_ID=$(az ad sp show --id ${RESOURCE_APP_ID} --query id --output tsv)
CLIENT_SP_ID=$(az ad sp show --id ${CLIENT_APP_ID} --query id --output tsv)
az rest --method POST \
  --uri "https://graph.microsoft.com/v1.0/servicePrincipals/${CLIENT_SP_ID}/appRoleAssignments" \
  --body "{\"principalId\":\"${CLIENT_SP_ID}\",\"resourceId\":\"${RESOURCE_SP_ID}\",\"appRoleId\":\"${ROLE_ID}\"}"

Confirm you can request a token.

TOKEN_URL=https://login.microsoftonline.com/${TENANT_ID}/oauth2/v2.0/token
curl -s -X POST ${TOKEN_URL} \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials&client_id=${CLIENT_APP_ID}&client_secret=${CLIENT_SECRET}&scope=api://${RESOURCE_APP_ID}/.default" \
  | jq -r .access_token

Step 4 — Expose the endpoint through Azure API Management (APIM)

Create the APIM instance and store the ML endpoint key as a secret named value.

APIM_NAME=<APIM_NAME>
APIM_NAMED_VALUE=<NAMED_VALUE_NAME>
PUBLISHER_EMAIL=<PUBLISHER_EMAIL>
PUBLISHER_NAME=<PUBLISHER_NAME>
ML_ENDPOINT_KEY=$(az ml online-endpoint get-credentials --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} \
  --workspace-name ${WORKSPACE_NAME} --query primaryKey --output tsv)
az apim create --name ${APIM_NAME} --resource-group ${RESOURCE_GROUP} --location ${REGION} \
  --publisher-email ${PUBLISHER_EMAIL} --publisher-name "${PUBLISHER_NAME}" --sku-name <APIM_SKU>
az apim nv create --service-name ${APIM_NAME} --resource-group ${RESOURCE_GROUP} \
  --named-value-id ${APIM_NAMED_VALUE} --display-name ${APIM_NAMED_VALUE} --value "${ML_ENDPOINT_KEY}" --secret true

Choose <APIM_SKU> based on how this deployment will be used:

Consumption — fastest to provision, but caps requests at 30 seconds and can’t be upgraded in place later.
Developer — cheap and quick for a test, but non-production with no SLA.
Standard (or higher) — the right choice for a production security control.

See Microsoft’s API Management feature comparison by tier before committing to one.

Create the API and the predict operation.

SCORING_URI=$(az ml online-endpoint show --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} \
  --workspace-name ${WORKSPACE_NAME} --query scoring_uri --output tsv)
SERVICE_URL=$(echo "${SCORING_URI}" | sed -E 's#(https?://[^/]+).*#\1#')
APIM_API_ID=<APIM_API_ID>
APIM_API_PATH=<APIM_API_PATH>
az apim api create --resource-group ${RESOURCE_GROUP} --service-name ${APIM_NAME} \
  --api-id ${APIM_API_ID} --path ${APIM_API_PATH} --display-name "AI Guardrails LLM Inference API" \
  --service-url ${SERVICE_URL} --protocols https
az apim api operation create --resource-group ${RESOURCE_GROUP} --service-name ${APIM_NAME} \
  --api-id ${APIM_API_ID} --operation-id predict --display-name predict --method POST --url-template /predict

Attach a policy that validates the JWT, injects the endpoint key, and rewrites the path to /invocations. The az apim CLI has no command for setting an operation policy, so apply it via the APIM REST API directly:

<policies>
  <inbound>
    <base />
    <validate-jwt header-name="Authorization" failed-validation-httpcode="401" failed-validation-error-message="Unauthorized">
      <openid-config url="https://login.microsoftonline.com/${TENANT_ID}/v2.0/.well-known/openid-configuration" />
      <audiences>
        <audience>api://${RESOURCE_APP_ID}</audience>
      </audiences>
      <issuers>
        <issuer>https://sts.windows.net/${TENANT_ID}/</issuer>
        <issuer>https://login.microsoftonline.com/${TENANT_ID}/v2.0</issuer>
      </issuers>
      <required-claims>
        <claim name="roles" match="any">
          <value>Inference.Invoke</value>
        </claim>
      </required-claims>
    </validate-jwt>
    <set-header name="Authorization" exists-action="override">
      <value>@("Bearer " + "{{${APIM_NAMED_VALUE}}}")</value>
    </set-header>
    <rewrite-uri template="/invocations" />
  </inbound>
  <backend><base /></backend>
  <outbound><base /></outbound>
  <on-error><base /></on-error>
</policies>

python3 -c "
import json
xml = open('policy.xml').read()
json.dump({'properties': {'format': 'rawxml', 'value': xml}}, open('policy-body.json', 'w'))
"
az rest --method PUT \
  --uri "https://management.azure.com/subscriptions/${SUBSCRIPTION_ID}/resourceGroups/${RESOURCE_GROUP}/providers/Microsoft.ApiManagement/service/${APIM_NAME}/apis/${APIM_API_ID}/operations/predict/policies/policy?api-version=2022-08-01" \

Final invoke URL: https://${APIM_NAME}.azure-api.net/${APIM_API_PATH}/predict

If an APIM product on your instance requires a subscription key, callers must also send an Ocp-Apim-Subscription-Key header — use an open product, or disable that requirement, for token-only authentication.

Step 5 — Validate the end-to-end flow

TOKEN_URL=https://login.microsoftonline.com/${TENANT_ID}/oauth2/v2.0/token
ACCESS_TOKEN=$(curl -s -X POST ${TOKEN_URL} \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials&client_id=${CLIENT_APP_ID}&client_secret=${CLIENT_SECRET}&scope=api://${RESOURCE_APP_ID}/.default" \
  | jq -r '.access_token')
INVOKE_URL=https://${APIM_NAME}.azure-api.net/${APIM_API_PATH}/predict
curl -s -X POST ${INVOKE_URL} \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  -d '{
    "input_data": "the capital of France",
    "signature": "<base64_signature_for_input_data>",
    "verbose": true
  }' | jq .

The signature is valid only for the exact input_data used to generate it.

Configuration in Netskope (AIG-CLI)

Enter these values in the Configure AI Guardrails LLM Host screen, using OAuth 2.0 as the authentication method:

Field	Value
Host URL	`https://<APIM_NAME>.azure-api.net/<APIM_API_PATH>/predict`
JWT URL	`https://login.microsoftonline.com/<TENANT_ID>/oauth2/v2.0/token`
Client ID	The M2M client app ID you created in Step 3
Client secret	The M2M client secret you created in Step 3
Scope	`api://<RESOURCE_APP_ID>/.default`

See Configure AI Guardrails LLM Host for the full configuration walkthrough.

Troubleshooting

Issue	What to check/fix
`AuthorizationFailed` on `az role assignment create`	Needs Owner, User Access Administrator, or Role Based Access Control Administrator — Contributor alone excludes it.
“Insufficient privileges to complete the operation” on `az ad app create`	Needs the Application Developer directory role (or higher) in Entra ID.
“Unable to download container image” or manifest error at deployment	Resolve the `linux/amd64` child digest as shown in Step 2, and reference that (or re-push a single-architecture image).
`OutOfQuota` when creating the deployment	Check `az ml compute list-usage` in addition to `az vm list-usage` — the two quota pools are separate.
`QuotaNotAvailableForResource` from `az quota update`	Request the increase from the Azure Portal: Quotas > My quotas → Machine Learning provider → your region → Request adjustment.
Deployment stuck as failed and won’t recreate	Delete the failed deployment record, then re-create it from the same YAML file.
404 after deployment, or endpoint not responding as expected	Confirm calls target `/invocations`, not `/score`.
“Invalid signature”	Ensure the signature matches `input_data` exactly.
401 Unauthorized through APIM	Check the token’s audience and `roles` claim, and confirm the client app was assigned the `Inference.Invoke` role.

Deployment paths

All AI Guardrails GPU deployments use the same GPU base image — only the hosting service differs:

Option A — AWS SageMaker (AWS only): fully managed AWS deployment. See Installing GPU-Based Guardrails.
Option B — Self-hosted VM (any cloud or on-premises): run the GPU container yourself on an AWS EC2 instance, an Azure VM, a Google Compute Engine instance, or an on-premises/ESXi host. See Installing GPU-Based Guardrails.
Option C — Azure Machine Learning managed online endpoint (Azure only, this guide): the Azure-native equivalent to SageMaker.

Prerequisites

An Azure subscription and resource group, with at least Contributor access.
The Azure CLI installed and signed in (az login).
Docker installed locally, with the AI Guardrails LLM image available as a tarball or in an accessible registry.
GPU quota in your target region for an Azure Machine Learning managed online endpoint — see recommended sizes below.
Owner, User Access Administrator, or Role Based Access Control Administrator access on the subscription — Contributor alone can’t grant role assignments.
The Application Developer directory role (or higher) in Microsoft Entra ID, to register applications.

Downloading the GPU/TPU base image

The AI Guardrails LLM image (aisecurityllm-${IMAGE_TAG}.tgz) comes from your Netskope tenant, not from Azure:

Complete VM Onboarding for the AI VM in your tenant, if you haven’t already.
Go to Settings > Security Cloud Platform > Gateway Setup, and link the AI VM to the appropriate AI Provider. Link a DLPaaS VM to the same AI VM if you also need DLP scanning.
Download the GPU based AI Guardrails Image — the same image used for AWS SageMaker and self-hosted VM deployments. Use the TPU based AI Guardrails Image instead for the Google Cloud TPU path.

Recommended GPU instance sizes

If you’re sizing from	Use this Azure SKU	vCPU	Memory	GPU	Quota family to request
A small SageMaker GPU instance (`ml.g5.xlarge`)	`Standard_NV6ads_A10_v5`	6	55 GiB	1/6 A10 (partitioned, 4 GB)	`StandardNVADSA10v5Family`
A mid-size SageMaker GPU instance (`ml.g5.2xlarge`)	`Standard_NV12ads_A10_v5`	12	110 GiB	1/3 A10 (partitioned, 8 GB)	`StandardNVADSA10v5Family`
A full, unpartitioned GPU	`Standard_NV36ads_A10_v5`	36	440 GiB	1 full A10 (24 GB)	`StandardNVADSA10v5Family`
A newer-generation SageMaker instance (`ml.g6.xlarge`)	`Standard_NC4as_T4_v3` (T4, not L4)	4	28 GiB	1 × T4 (16 GB)	`Standard NCASv3_T4 Family`

GPU SKUs require regional availability and quota approval — initial quota is often 0. Confirm availability and the quota family for your subscription and region before committing to a size:

az vm list-skus --location ${REGION} --size <SKU_NAME> --all --output table
az vm list-skus --location ${REGION} --size <SKU_NAME> --query "[0].family" --output tsv

Avoid Standard_NC6s_v3 (V100) — it’s retired in most regions as of September 2025.

Service mapping: AWS → Azure

AWS component	Azure component	Notes
Elastic Container Registry (ECR)	Azure Container Registry (ACR)	Same docker login/tag/push workflow
SageMaker (Model / Endpoint Config / Endpoint)	Azure Machine Learning managed online endpoint (Environment / Deployment / Endpoint)	Azure ML supports blue/green and canary traffic splitting natively
Cognito User Pool + M2M app client	Microsoft Entra ID app registrations (client-credentials flow)	Entra ID issues the token; scopes map to an App Role checked in the `roles` claim
API Gateway + Cognito authorizer	Azure API Management (APIM) + `validate-jwt` policy	APIM validates the Entra ID JWT and forwards the call
IAM execution/invoke roles	Azure RBAC role assignments + managed identity	Online endpoints support key-based or Entra ID token-based scoring authentication

Option C — Deploy on Azure (Managed Online Endpoint)

Use this path if you want Azure to manage the hosting infrastructure. To self-host on an Azure VM instead, use Option B.

Step 1 — Push the LLM image to Azure Container Registry

az login
az account set --subscription "<SUBSCRIPTION_NAME>"
TENANT_ID=$(az account show --query tenantId --output tsv)
SUBSCRIPTION_ID=$(az account show --query id --output tsv)
RESOURCE_GROUP=<RESOURCE_GROUP>
REGION=<REGION>
ACR_NAME=<ACR_NAME>
az group create --name ${RESOURCE_GROUP} --location ${REGION}
az provider register --namespace Microsoft.ContainerRegistry
az acr create --resource-group ${RESOURCE_GROUP} --name ${ACR_NAME} --sku Standard --location ${REGION}
az acr login --name ${ACR_NAME}
ACR_REPOSITORY_URI=${ACR_NAME}.azurecr.io
IMAGE_TAG=<IMAGE_TAG>
REPOSITORY_NAME=<REPOSITORY_NAME>
docker load -i aisecurityllm-${IMAGE_TAG}.tgz
docker tag <source-image>:${IMAGE_TAG} ${ACR_REPOSITORY_URI}/${REPOSITORY_NAME}:${IMAGE_TAG}
docker push ${ACR_REPOSITORY_URI}/${REPOSITORY_NAME}:${IMAGE_TAG}

az acr manifest list-metadata --registry ${ACR_NAME} --name ${REPOSITORY_NAME} \
  --query "[?tags && contains(tags, '${IMAGE_TAG}')].{digest:digest, mediaType:mediaType}" \
  --output table

Step 2 — Deploy the model to an Azure Machine Learning managed online endpoint

Create the workspace and a managed identity.

WORKSPACE_NAME=<WORKSPACE_NAME>
IDENTITY_NAME=<IDENTITY_NAME>
az ml workspace create --name ${WORKSPACE_NAME} --resource-group ${RESOURCE_GROUP} --location ${REGION}
az identity create --name ${IDENTITY_NAME} --resource-group ${RESOURCE_GROUP}

Resolve the image digest, then create the environment. If the tag resolves to a multi-architecture index, pin the linux/amd64 child digest — pinning the index itself causes the “unable to download container image” error.

ENV_NAME=<ENV_NAME>
ARCH=amd64
ENV_VERSION=${IMAGE_TAG}-${ARCH}
TAG_DIGEST=$(az acr manifest list-metadata --registry ${ACR_NAME} --name ${REPOSITORY_NAME} \
  --query "[?tags && contains(tags, '${IMAGE_TAG}')].digest | [0]" --output tsv)
MEDIA_TYPE=$(az acr manifest list-metadata --registry ${ACR_NAME} --name ${REPOSITORY_NAME} \
  --query "[?tags && contains(tags, '${IMAGE_TAG}')].mediaType | [0]" --output tsv)
IMAGE_DIGEST=${TAG_DIGEST}
if [[ ${MEDIA_TYPE} == *index* || ${MEDIA_TYPE} == *manifest.list* ]]; then
  IMAGE_DIGEST=$(az acr manifest show --registry ${ACR_NAME} --name "${REPOSITORY_NAME}@${TAG_DIGEST}" --output json \
    | jq -r --arg a "${ARCH}" '.manifests[] | select(.platform.os=="linux" and .platform.architecture==$a) | .digest' | head -1)
fi
cat <<EOF > environment.yaml
\$schema: https://azuremlschemas.azureedge.net/latest/environment.schema.json
name: ${ENV_NAME}
version: ${ENV_VERSION}
image: ${ACR_REPOSITORY_URI}/${REPOSITORY_NAME}@${IMAGE_DIGEST}
inference_config:
  liveness_route: {path: /ping, port: 8080}
  readiness_route: {path: /ping, port: 8080}
  scoring_route: {path: /invocations, port: 8080}
EOF
az ml environment create --file environment.yaml --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME}

Environments are immutable — create a new version whenever you change the image. Calls to the container should always target /invocations, not the endpoint’s advertised /score URI.

Create the online endpoint.

ENDPOINT=<ENDPOINT_NAME>
IDENTITY_RESOURCE_ID=$(az identity show --name ${IDENTITY_NAME} --resource-group ${RESOURCE_GROUP} --query id --output tsv)
cat <<EOF > endpoint.yaml
\$schema: https://azuremlschemas.azureedge.net/latest/managedOnlineEndpoint.schema.json
name: ${ENDPOINT}
auth_mode: key
identity:
  type: user_assigned
  user_assigned_identities:
    - resource_id: ${IDENTITY_RESOURCE_ID}
EOF
az ml online-endpoint create --file endpoint.yaml --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME}

Grant the endpoint identity pull access to ACR.

ENDPOINT_IDENTITY_ID=$(az ml online-endpoint show --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} \
  --workspace-name ${WORKSPACE_NAME} --query identity.user_assigned_identities[0].principal_id --output tsv)
ACR_ID=$(az acr show --name ${ACR_NAME} --query id --output tsv)
az role assignment create --assignee-object-id ${ENDPOINT_IDENTITY_ID} --assignee-principal-type ServicePrincipal \
  --role AcrPull --scope ${ACR_ID}

This step requires Owner, User Access Administrator, or Role Based Access Control Administrator — Contributor alone returns AuthorizationFailed, by design.

Check GPU quota, then create the deployment. Azure Machine Learning quota and Azure Compute (VM) quota are separate pools — check both.

az ml compute list-usage --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --output table | grep -i "NV\|NC"
INSTANCE_TYPE=<INSTANCE_TYPE>   # see "Recommended GPU instance sizes" above, e.g. Standard_NV12ads_A10_v5
cat <<EOF > deployment-blue.yaml
\$schema: https://azuremlschemas.azureedge.net/latest/managedOnlineDeployment.schema.json
name: blue
endpoint_name: ${ENDPOINT}
environment: azureml:${ENV_NAME}:${ENV_VERSION}
instance_type: ${INSTANCE_TYPE}
instance_count: 1
liveness_probe:
  initial_delay: 60
  period: 30
  timeout: 30
  failure_threshold: 60
readiness_probe:
  initial_delay: 60
  period: 30
  timeout: 30
  failure_threshold: 60
EOF
az ml online-deployment create --file deployment-blue.yaml --all-traffic \
  --workspace-name ${WORKSPACE_NAME} --resource-group ${RESOURCE_GROUP}

Size the probes above your container’s actual startup time — GPU containers that load or compile a model before binding to the port often need longer than the defaults above.

Optional: blue/green and canary rollout

Create a second deployment (for example, green), shift traffic in steps, then remove the old one:

az ml online-deployment create --file deployment-green.yaml --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME}
az ml online-endpoint update --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --traffic "blue=90 green=10"
az ml online-endpoint update --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --traffic "green=100"
az ml online-deployment delete --name blue --endpoint-name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} --workspace-name ${WORKSPACE_NAME} --yes

Step 3 — Configure JWT authentication with Microsoft Entra ID

Register the resource server app and set its Application ID URI. This requires the Application Developer directory role (or higher) in Entra ID.

RESOURCE_APP_NAME=<RESOURCE_APP_NAME>
RESOURCE_APP_ID=$(az ad app create --display-name ${RESOURCE_APP_NAME} --sign-in-audience AzureADMyOrg --query appId --output tsv)
az ad app update --id ${RESOURCE_APP_ID} --identifier-uris api://${RESOURCE_APP_ID}

Define an app role and create the service principal.

cat <<EOF > app-roles.json
[
  {
    "allowedMemberTypes": ["Application"],
    "description": "Permission to invoke the AI Guardrails LLM inference endpoint",
    "displayName": "Inference.Invoke",
    "id": "$(python3 -c 'import uuid; print(uuid.uuid4())')",
    "isEnabled": true,
    "value": "Inference.Invoke"
  }
]
EOF
az ad app update --id ${RESOURCE_APP_ID} --app-roles @app-roles.json
az ad sp create --id ${RESOURCE_APP_ID}
ROLE_ID=$(az ad app show --id ${RESOURCE_APP_ID} --query "appRoles[?value=='Inference.Invoke'].id" --output tsv)

Register the machine-to-machine (M2M) client app and assign it the role. Save CLIENT_APP_ID and CLIENT_SECRET — you’ll enter these in AI Guardrails as the Client ID and Client secret.

CLIENT_APP_NAME=<CLIENT_APP_NAME>
CLIENT_APP_ID=$(az ad app create --display-name ${CLIENT_APP_NAME} --sign-in-audience AzureADMyOrg --query appId --output tsv)
az ad sp create --id ${CLIENT_APP_ID}
CLIENT_SECRET=$(az ad app credential reset --id ${CLIENT_APP_ID} --years 1 --query password --output tsv)
RESOURCE_SP_ID=$(az ad sp show --id ${RESOURCE_APP_ID} --query id --output tsv)
CLIENT_SP_ID=$(az ad sp show --id ${CLIENT_APP_ID} --query id --output tsv)
az rest --method POST \
  --uri "https://graph.microsoft.com/v1.0/servicePrincipals/${CLIENT_SP_ID}/appRoleAssignments" \
  --body "{\"principalId\":\"${CLIENT_SP_ID}\",\"resourceId\":\"${RESOURCE_SP_ID}\",\"appRoleId\":\"${ROLE_ID}\"}"

Confirm you can request a token.

TOKEN_URL=https://login.microsoftonline.com/${TENANT_ID}/oauth2/v2.0/token
curl -s -X POST ${TOKEN_URL} \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials&client_id=${CLIENT_APP_ID}&client_secret=${CLIENT_SECRET}&scope=api://${RESOURCE_APP_ID}/.default" \
  | jq -r .access_token

Step 4 — Expose the endpoint through Azure API Management (APIM)

Create the APIM instance and store the ML endpoint key as a secret named value.

APIM_NAME=<APIM_NAME>
APIM_NAMED_VALUE=<NAMED_VALUE_NAME>
PUBLISHER_EMAIL=<PUBLISHER_EMAIL>
PUBLISHER_NAME=<PUBLISHER_NAME>
ML_ENDPOINT_KEY=$(az ml online-endpoint get-credentials --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} \
  --workspace-name ${WORKSPACE_NAME} --query primaryKey --output tsv)
az apim create --name ${APIM_NAME} --resource-group ${RESOURCE_GROUP} --location ${REGION} \
  --publisher-email ${PUBLISHER_EMAIL} --publisher-name "${PUBLISHER_NAME}" --sku-name <APIM_SKU>
az apim nv create --service-name ${APIM_NAME} --resource-group ${RESOURCE_GROUP} \
  --named-value-id ${APIM_NAMED_VALUE} --display-name ${APIM_NAMED_VALUE} --value "${ML_ENDPOINT_KEY}" --secret true

Choose <APIM_SKU> based on how this deployment will be used:

Consumption — fastest to provision, but caps requests at 30 seconds and can’t be upgraded in place later.
Developer — cheap and quick for a test, but non-production with no SLA.
Standard (or higher) — the right choice for a production security control.

See Microsoft’s API Management feature comparison by tier before committing to one.

Create the API and the predict operation.

SCORING_URI=$(az ml online-endpoint show --name ${ENDPOINT} --resource-group ${RESOURCE_GROUP} \
  --workspace-name ${WORKSPACE_NAME} --query scoring_uri --output tsv)
SERVICE_URL=$(echo "${SCORING_URI}" | sed -E 's#(https?://[^/]+).*#\1#')
APIM_API_ID=<APIM_API_ID>
APIM_API_PATH=<APIM_API_PATH>
az apim api create --resource-group ${RESOURCE_GROUP} --service-name ${APIM_NAME} \
  --api-id ${APIM_API_ID} --path ${APIM_API_PATH} --display-name "AI Guardrails LLM Inference API" \
  --service-url ${SERVICE_URL} --protocols https
az apim api operation create --resource-group ${RESOURCE_GROUP} --service-name ${APIM_NAME} \
  --api-id ${APIM_API_ID} --operation-id predict --display-name predict --method POST --url-template /predict

Attach a policy that validates the JWT, injects the endpoint key, and rewrites the path to /invocations. The az apim CLI has no command for setting an operation policy, so apply it via the APIM REST API directly:

<policies>
  <inbound>
    <base />
    <validate-jwt header-name="Authorization" failed-validation-httpcode="401" failed-validation-error-message="Unauthorized">
      <openid-config url="https://login.microsoftonline.com/${TENANT_ID}/v2.0/.well-known/openid-configuration" />
      <audiences>
        <audience>api://${RESOURCE_APP_ID}</audience>
      </audiences>
      <issuers>
        <issuer>https://sts.windows.net/${TENANT_ID}/</issuer>
        <issuer>https://login.microsoftonline.com/${TENANT_ID}/v2.0</issuer>
      </issuers>
      <required-claims>
        <claim name="roles" match="any">
          <value>Inference.Invoke</value>
        </claim>
      </required-claims>
    </validate-jwt>
    <set-header name="Authorization" exists-action="override">
      <value>@("Bearer " + "{{${APIM_NAMED_VALUE}}}")</value>
    </set-header>
    <rewrite-uri template="/invocations" />
  </inbound>
  <backend><base /></backend>
  <outbound><base /></outbound>
  <on-error><base /></on-error>
</policies>

python3 -c "
import json
xml = open('policy.xml').read()
json.dump({'properties': {'format': 'rawxml', 'value': xml}}, open('policy-body.json', 'w'))
"
az rest --method PUT \
  --uri "https://management.azure.com/subscriptions/${SUBSCRIPTION_ID}/resourceGroups/${RESOURCE_GROUP}/providers/Microsoft.ApiManagement/service/${APIM_NAME}/apis/${APIM_API_ID}/operations/predict/policies/policy?api-version=2022-08-01" \

Final invoke URL: https://${APIM_NAME}.azure-api.net/${APIM_API_PATH}/predict

Step 5 — Validate the end-to-end flow

TOKEN_URL=https://login.microsoftonline.com/${TENANT_ID}/oauth2/v2.0/token
ACCESS_TOKEN=$(curl -s -X POST ${TOKEN_URL} \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials&client_id=${CLIENT_APP_ID}&client_secret=${CLIENT_SECRET}&scope=api://${RESOURCE_APP_ID}/.default" \
  | jq -r '.access_token')
INVOKE_URL=https://${APIM_NAME}.azure-api.net/${APIM_API_PATH}/predict
curl -s -X POST ${INVOKE_URL} \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer ${ACCESS_TOKEN}" \
  -d '{
    "input_data": "the capital of France",
    "signature": "<base64_signature_for_input_data>",
    "verbose": true
  }' | jq .

The signature is valid only for the exact input_data used to generate it.

Configuration in Netskope (AIG-CLI)

Enter these values in the Configure AI Guardrails LLM Host screen, using OAuth 2.0 as the authentication method:

Field	Value
Host URL	`https://<APIM_NAME>.azure-api.net/<APIM_API_PATH>/predict`
JWT URL	`https://login.microsoftonline.com/<TENANT_ID>/oauth2/v2.0/token`
Client ID	The M2M client app ID you created in Step 3
Client secret	The M2M client secret you created in Step 3
Scope	`api://<RESOURCE_APP_ID>/.default`

See Configure AI Guardrails LLM Host for the full configuration walkthrough.

Troubleshooting

Issue	What to check/fix
`AuthorizationFailed` on `az role assignment create`	Needs Owner, User Access Administrator, or Role Based Access Control Administrator — Contributor alone excludes it.
“Insufficient privileges to complete the operation” on `az ad app create`	Needs the Application Developer directory role (or higher) in Entra ID.
“Unable to download container image” or manifest error at deployment	Resolve the `linux/amd64` child digest as shown in Step 2, and reference that (or re-push a single-architecture image).
`OutOfQuota` when creating the deployment	Check `az ml compute list-usage` in addition to `az vm list-usage` — the two quota pools are separate.
`QuotaNotAvailableForResource` from `az quota update`	Request the increase from the Azure Portal: Quotas > My quotas → Machine Learning provider → your region → Request adjustment.
Deployment stuck as failed and won’t recreate	Delete the failed deployment record, then re-create it from the same YAML file.
404 after deployment, or endpoint not responding as expected	Confirm calls target `/invocations`, not `/score`.
“Invalid signature”	Ensure the signature matches `input_data` exactly.
401 Unauthorized through APIM	Check the token’s audience and `roles` claim, and confirm the client app was assigned the `Inference.Invoke` role.
