ExtraHop Reveal(x) 360 v1.0.0 Plugin for Risk Exchange

This document explains how to configure the AWS Verified Access v1.0.0 plugin with the Risk Exchange module of the Netskope Cloud Exchange platform. Use this plugin to fetch Cloud Workloads (Devices) from the Detections of the ExtraHop Reveal(x) 360 platform. It does not support performing any actions on Cloud Workloads (Devices) in ExtraHop Reveal(x) 360.

Netskope normalization score calculation = (100 – ExtraHop’s Current Detection Risk Score) x 10.

Prerequisites

A Netskope tenant (or multiple, for example, production and development/test instances).
A Netskope Cloud Exchange tenant with the Tenant plugin and Risk Exchange module already configured.
Your Base URL, Client ID and Client Secret for ExtraHop.
An ExtraHop license that has access to Detection and Devices services. Refer to this document for more details: License FAQ.
Connectivity to the following host: https://extrahop-bd.api.cloud.extrahop.com

CE Version Compatibility

Netskope CE v5.1.0

ExtraHop Reveal(x) 360 Plugin Support

This plugin is used to fetch Cloud Workloads (Devices) from the Detections of the ExtraHop Reveal(x) 360 platform. It does not support performing any actions on Cloud Workloads (Devices) in ExtraHop Reveal(x) 360.

Type of data pulled	Devices
Actions	No actions

Mappings

Mappings are used to view the pulled devices and their respective details. Fields mapped during plugin configuration are visible on the Records page after the data is pulled. Here are the suggested mappings that should be used while configuring the plugin.

Pull Mapping for Devices

Plugin Field	Expected Datatype	Suggested Field Name	Suggested Aggregate Strategy
Detection ID	Number	Detection ID	Unique
Detection Title	String	Detection Title	Overwrite
Detection Risk Score	Number	Detection Risk Score	Overwrite
Netskope Normalized Score	Number	Netskope Normalized Score	Overwrite
Detection Type	String	Detection Type	Overwrite
Role	String	Role	Overwrite
Is External	String	Is External	Overwrite
User Names	List	User Names	Overwrite
Hostname	String	Hostname	Overwrite
Detection Status	String	Detection Status	Overwrite
URL	String	URL	Overwrite
Device ID	Number	Device ID	Unique
VPC ID	String	VPC ID	Overwrite
Default Name	String	Default Name	Overwrite
Subnet ID	String	Subnet ID	Overwrite
DHCP Name	String	DHCP Name	Overwrite
VLAN ID	Number	VLAN ID	Overwrite
Vendor	String	Vendor	Overwrite
MAC Address	String	MAC Address	Overwrite
DNS Name	String	DNS Name	Overwrite
IPv4 Address	String	IPv4 Address	Overwrite
IPv6 Address	String	IPv6 Address	Overwrite
Custom Type	String	Custom Type	Overwrite
Custom Name	String	Custom Name	Overwrite
Display Name	String	Display Name	Overwrite
Critical	String	Critical	Overwrite
Discovery ID	String	Discovery ID	Overwrite
ExtraHop ID	String	ExtraHop ID	Overwrite
Cloud Instance Name	String	Cloud Instance Name	Overwrite
Cloud Instance Type	String	Cloud Instance Type	Overwrite
Cloud Instance ID	String	Cloud Instance ID	Overwrite
Cloud Account	String	Cloud Account	Overwrite
NetBIOS Name	String	NetBIOS Name	Overwrite
Device Class	String	Device Class	Overwrite
Analysis	String	Analysis	Overwrite
Analysis Level	String	Analysis Level	Overwrite

Normalized Score Calculation

Netskope normalization score calculation = (100 – ExtraHop’s Current Detection Risk Score) x 10.

Permissions

User should have these minimum permissions:

System Access: Full read-only.
NDR Module Access: No access.
NPM Module Access: No access.
Packet And Session Key Access: No access.

API Details

List of APIs used

API Endpoint	Method	Use Case
/oauth2/token	POST	Fetch auth token
/api/v1/detections/search	POST	Fetch detections
/api/v1/devices/search	POST	Fetch devices

Fetch Auth Token

API Endpoint: /oauth2/token

Method: POST

Headers

Key	Value
Authorization	Basic <Client ID>:{Client Secret>
Content-Type	application/x-www-form-urlencoded
User-Agent	netskope-ce-5.1.0-cre-extrahop-reveal(x)-360-v1.0.0

Params

Key	Value
grant_type	client_credentials

Sample API Response

{
    "access_token": "eyJraWQiOiJkbndoem42RUNpaW9mSDRSTWdVV0FlZ1lhRHMrVlRDeDhXN1dJZnpVYjZjPSIsImFsZyI6IlJTMjU2In0.eyJzdWIiOiIyYTFsN2ZkaGRxdHR1YzlpcXBzamd1bHNpcSIsInRva2VuX3VzZSI6ImFjY2VzcyIsInNjb3BlIjoiY2NwXC9kZXRlY3Rpb25fYWNjZXNzX2xldmVsLmZ1bGwgY2NwXC9ucG1fYWNjZXNzX2xldmVsLm5vbmUgY2NwXC9wYWNrZXRzX2xldmVsLm5vbmUgY2NwXC93cml0ZV9sZXZlbC5mdWxsX3JlYWRvbmx5IiwiYXV0aF90aW1lIjoxNjk3OTgzNzAxLCJpc3MiOiJodHRwczpcL1wvY29nbml0by1pZHAudXMtd2VzdC0yLmFtYXpvbmF3cy5jb21cL3VzLXdlc3QtMl85YU9FMWltMXIiLCJleHAiOjE2OTc5ODQzMDEsImlhdCI6MTY5Nzk4MzcwMSwidmVyc2lvbiI6MiwianRpIjoiNTllMjc0ZGItMTYxMS00MDRjLTk1NzgtZWJiNDQwZmE5ZTU3IiwiY2xpZW50X2lkIjoiMmExbDdmZGhkcXR0dWM5aXFwc2pndWxzaXEifQ.pw-cbQTSVC1HlRdl_v63s3wbHnqsDNfVJ1Ln9H0GsJvHENKG5borLHIPTsquhov6rEmmzzs6NxMhX5VFY0dH0XWgmrV5BFN4Q5vASQ2lZVY_1NjEqYsJAcVLrzmxy7TqMN_L7kuoX5ijN_mAezxwfnj4hQfrd1ojUVt7_wzSUIVpZy6dDARs1EdrrFAZw70zXW7vTUlzhkiqMthAwD2TaoxOcewHFlC3lgvIjz_DoEYUB09qsP0EJ4oQNaCxetJjPkddN2DqVXEnAi5Jvz6fILbT-wFWua-AEBvk-GXGMXBUKCYs4g-ZvnWnSpcfsMAJZTTOO-05qpbnYE-K3N7qOQ",
    "expires_in": 600,
    "token_type": "Bearer"
}

Fetch Detections

API endpoint: /api/v1/detections/search

Method: POST

Headers

Key	Value
Authorization	Bearer <Bearer Token>
User-Agent	netskope-ce-5.1.0-cre-extrahop-reveal(x)-360-v1.0.0

Parameters

Key	Value
limit	10000
offset	0
mod_time	1725987480001
sort	{“direction”: “asc”, “field”: “mod_time”}

Sample API Response

[{
        "id": 12884903439,
        "start_time": 1725987480001,
        "update_time": 1725991200000,
        "end_time": 1725987570000,
        "title": "LDAP Invalid Credentials Error",
        "description": "[jump\\.i\\.rx\\.tours](https://extrahop-bd.cloud.extrahop.com#/metrics/devices/fa60fb84b3594c9bb8262f88e90a2c8b.0ea3bf8493e10000/overview?from=1725987480&interval_type=DT&until=1725987570) received an unusually high number of LDAP errors for invalid credentials. This behavior indicates that the user is repeatedly trying to authenticate, or bind, with a wrong distinguished name (DN) or password, an expired password, or credentials for a locked account. Confirm if [jump\\.i\\.rx\\.tours](https://extrahop-bd.cloud.extrahop.com#/metrics/devices/fa60fb84b3594c9bb8262f88e90a2c8b.0ea3bf8493e10000/overview?from=1725987480&interval_type=DT&until=1725987570) is compromised and attempting a brute force attack.",
        "risk_score": 60,
        "type": "ldap_invalid_credentials_error",
        "recommended_factors": [
            "critical_asset",
            "top_offender"
        ],
        "recommended": true,
        "categories": [
            "sec.lateral",
            "perf.auth",
            "perf",
            "sec",
            "sec.attack"
        ],
        "properties": {},
        "participants": [
            {
                "role": "offender",
                "scanner_service": null,
                "endpoint": null,
                "external": false,
                "object_id": 12884901938,
                "object_type": "device",
                "id": 6897
            },
            {
                "role": "victim",
                "scanner_service": null,
                "endpoint": null,
                "external": false,
                "object_id": 12884901891,
                "object_type": "device",
                "object_value": "10.1.1.10",
                "id": 2258
            }
        ],
        "ticket_id": null,
        "assignee": null,
        "status": null,
        "resolution": null,
        "mitre_tactics": [
            {
                "id": "TA0006",
                "name": "Credential Access",
                "url": "https://attack.mitre.org/tactics/TA0006"
            },
            {
                "id": "TA0040",
                "name": "Impact",
                "url": "https://attack.mitre.org/tactics/TA0040"
            }
        ],
        "mitre_techniques": [
            {
                "id": "T1110",
                "name": "Brute Force",
                "url": "https://attack.mitre.org/techniques/T1110",
                "legacy_ids": [
                    "T1110"
                ]
            },
            {
                "id": "T1531",
                "name": "Account Access Removal",
                "url": "https://attack.mitre.org/techniques/T1531",
                "legacy_ids": [
                    "T1531"
                ]
            }
        ],
        "appliance_id": 3,
        "is_user_created": false,
        "mod_time": 1725991298714,
        "create_time": 1725987562417,
        "url": "https://extrahop-bd.cloud.extrahop.com/extrahop/#/detections/detail/12884903439/?from=1725986580&until=1725988470&interval_type=DT"
    }
]

Fetch Devices

API endpoint: /api/v1/devices/search

Method: POST

Headers:

Key	Value
Authorization	Bearer <Bearer Token>
User-Agent	netskope-ce-5.1.0-cre-extrahop-reveal(x)-360-v1.0.0

Payload:

Key	Value
filter	field	id
	operand	[12884901926]
	operator	in
limit	10000
offset	0

Sample API Response:

[{
    "vpc_id": "vpc-0788ce1ab062ee642",
    "cdp_name": "",
    "custom_model": null,
    "analysis_level": 1,
    "custom_make": null,
    "default_name": "Device 0e257a0641670000",
    "mod_time": 1726707648876,
    "subnet_id": "subnet-0aada065085d74814",
    "dhcp_name": "ip-10-1-100-248",
    "custom_criticality": null,
    "vlanid": 0,
    "discover_time": 1713979140000,
    "vendor": null,
    "macaddr": "0E:25:7A:06:41:67",
    "dns_name": "",
    "user_mod_time": 1713979265453,
    "ipaddr4": null,
    "ipaddr6": null,
    "custom_type": "file_server",
    "custom_name": "ftp1.i.rx.tours",
    "cloud_account": "423411706765",
    "auto_role": "other",
    "role": "file_server",
    "display_name": "ftp1.i.rx.tours",
    "last_seen_time": 1724960970000,
    "on_watchlist": false,
    "critical": false,
    "discovery_id": "0e257a0641670000",
    "node_id": 3,
    "extrahop_id": "0e257a0641670000",
    "cloud_instance_name": null,
    "cloud_instance_description": null,
    "cloud_instance_type": null,
    "cloud_instance_id": "i-099c43de3a51df856",
    "model_override": null,
    "model": null,
    "netbios_name": "",
    "device_class": "node",
    "is_l3": false,
    "parent_id": null,
    "description": "FTP Service",
    "id": 12884901926,
    "analysis": "advanced"
  }
]

Performance Matrix

Below performance readings are conducted on a Large CE Stack with below-mentioned VM specifications by pulling 500k Devices records from ExtraHop plugin.

Stack details	Size: Large RAM: 32 GB CPU: 16 Cores
Time take to store the pulled Device records with the Risk Scores	~ 19 minutes

User Agent

netskope-ce-5.1.0-cre-extrahop-reveal(x)-360-v1.0.0

Workflow

Get your Base URL, Client ID and Client Secret on ExtraHop.
Configure the ExtraHop plugin.
Add a Business Rule for ExtraHop.
Add an Action for ExtraHop.
Validate the ExtraHop plugin.

Click play to watch a video.

Get your Base URL, Client ID, and Client Secret

Log in to ExtraHop.

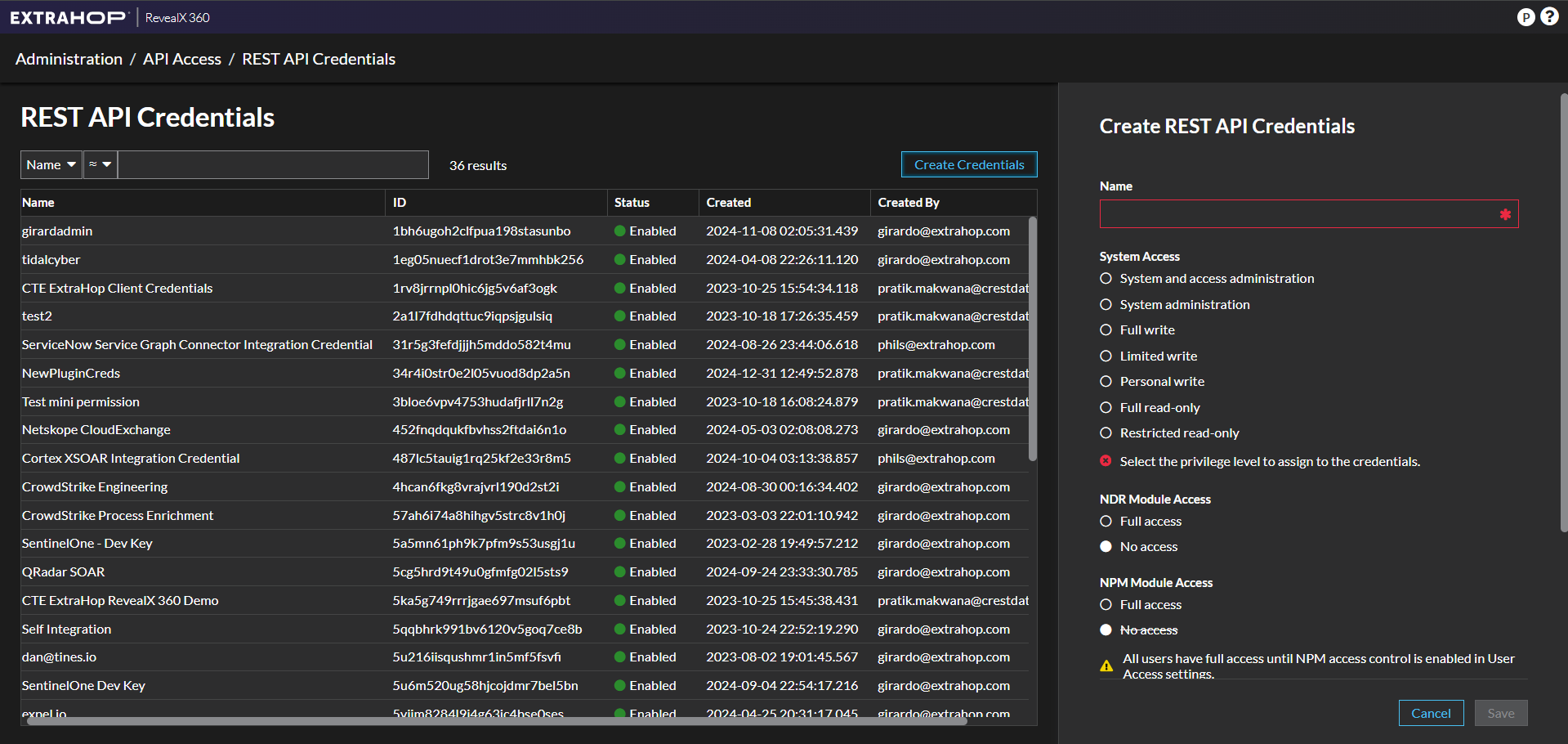

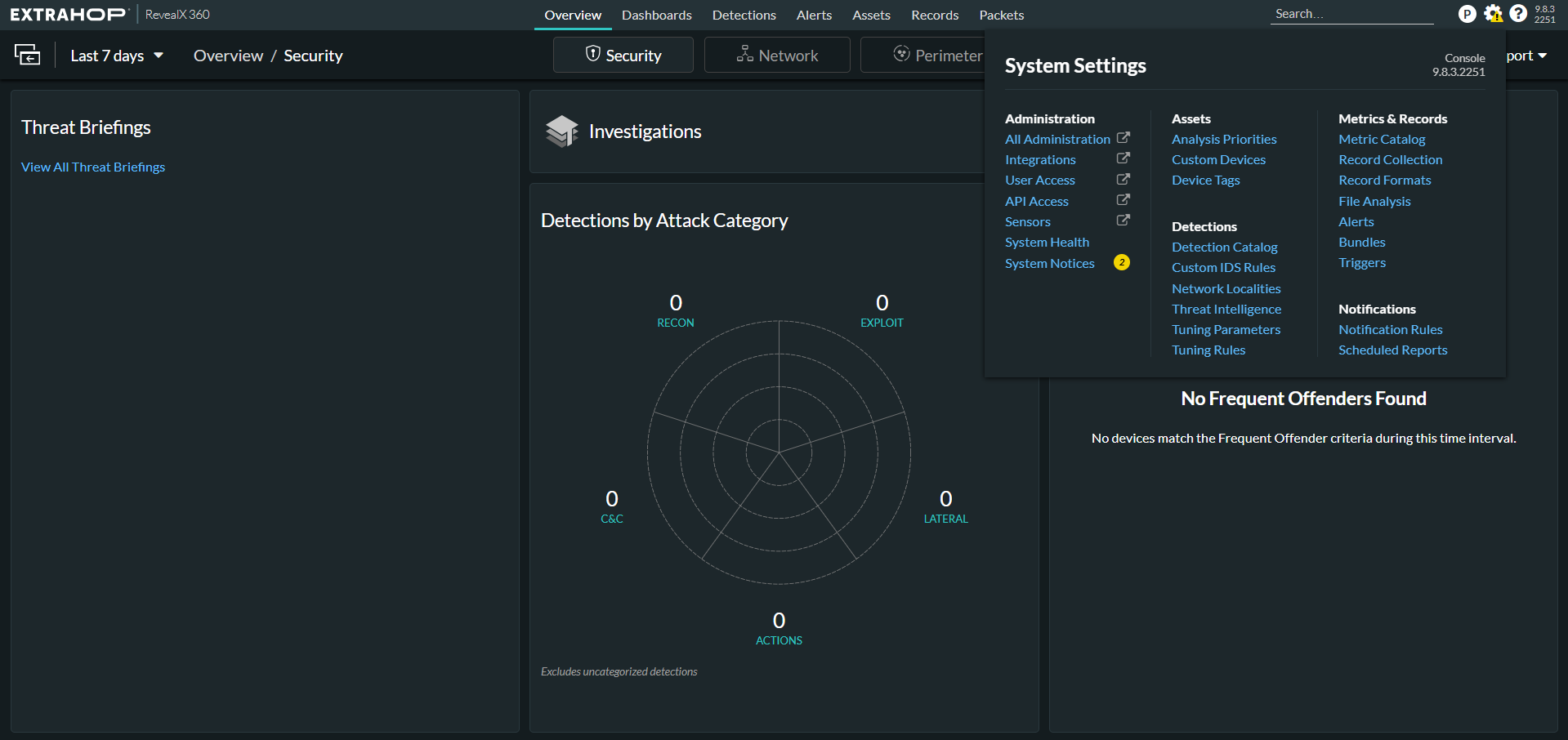

Go to System Settings > Administration > API Access.
Click on Create Credentials and provide a name, and select the minimum permissions for the credentials.
Click Save. Copy the API Endpoint, ID, and Secret; the Secret cannot be viewed or retrieved later.

Configure the ExtraHop Plugin

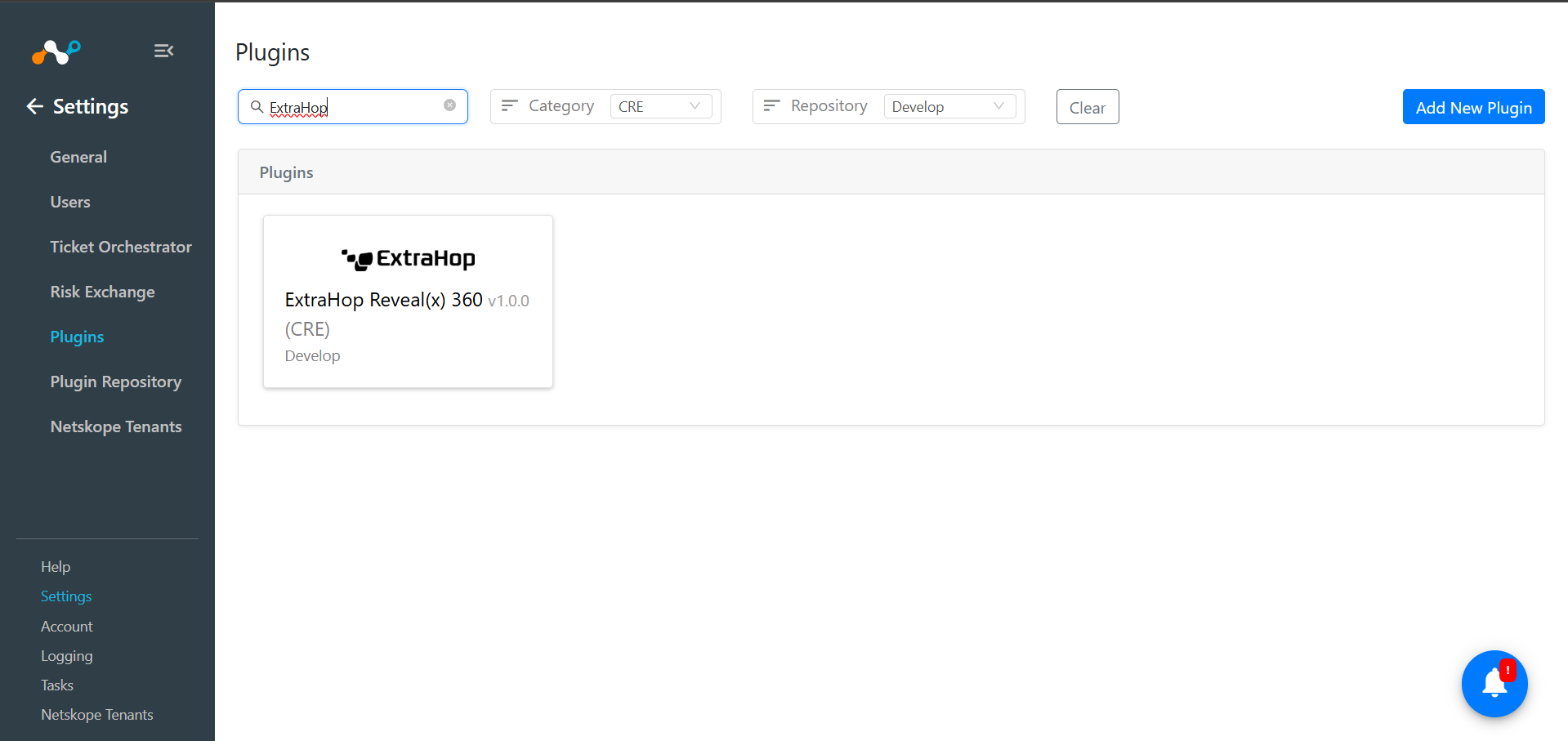

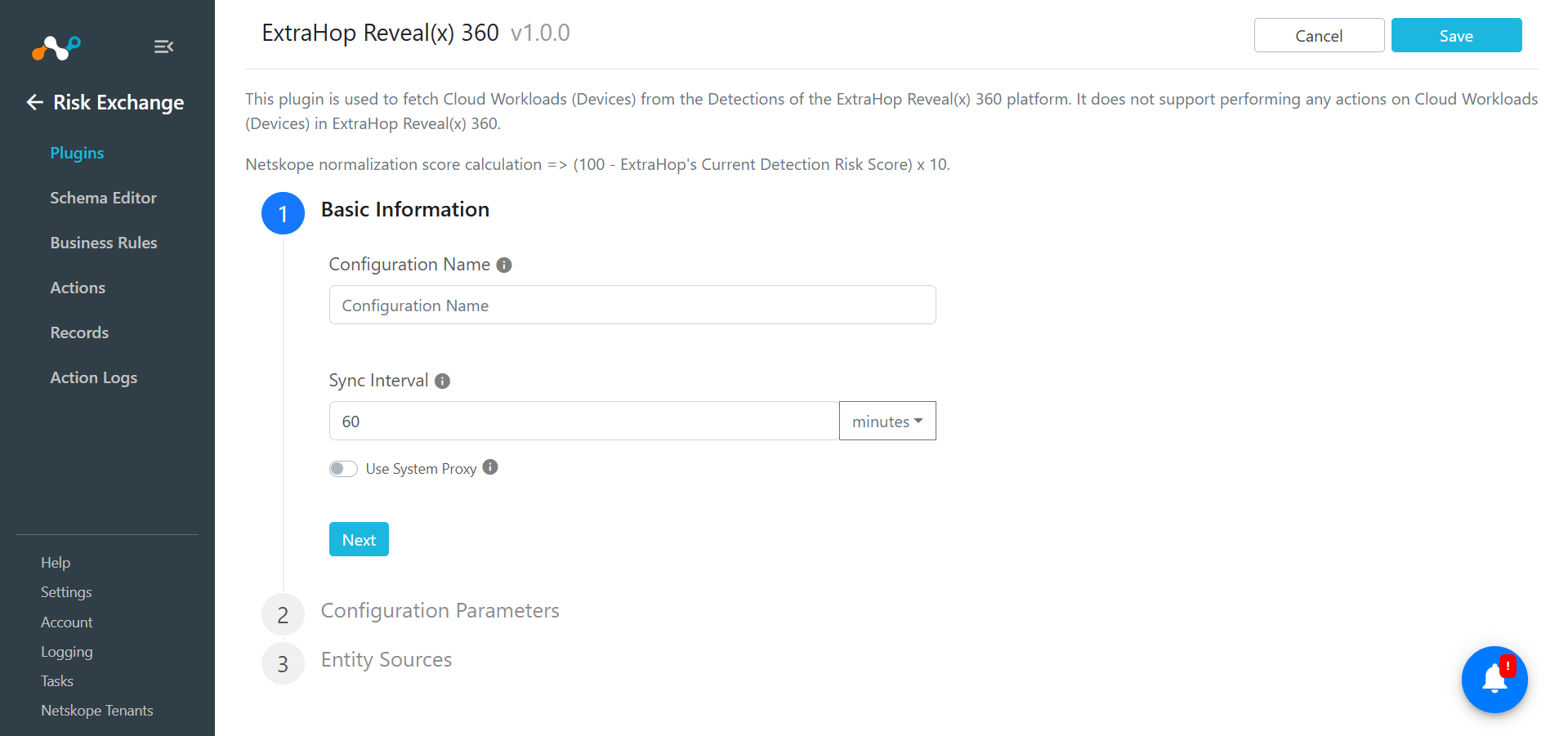

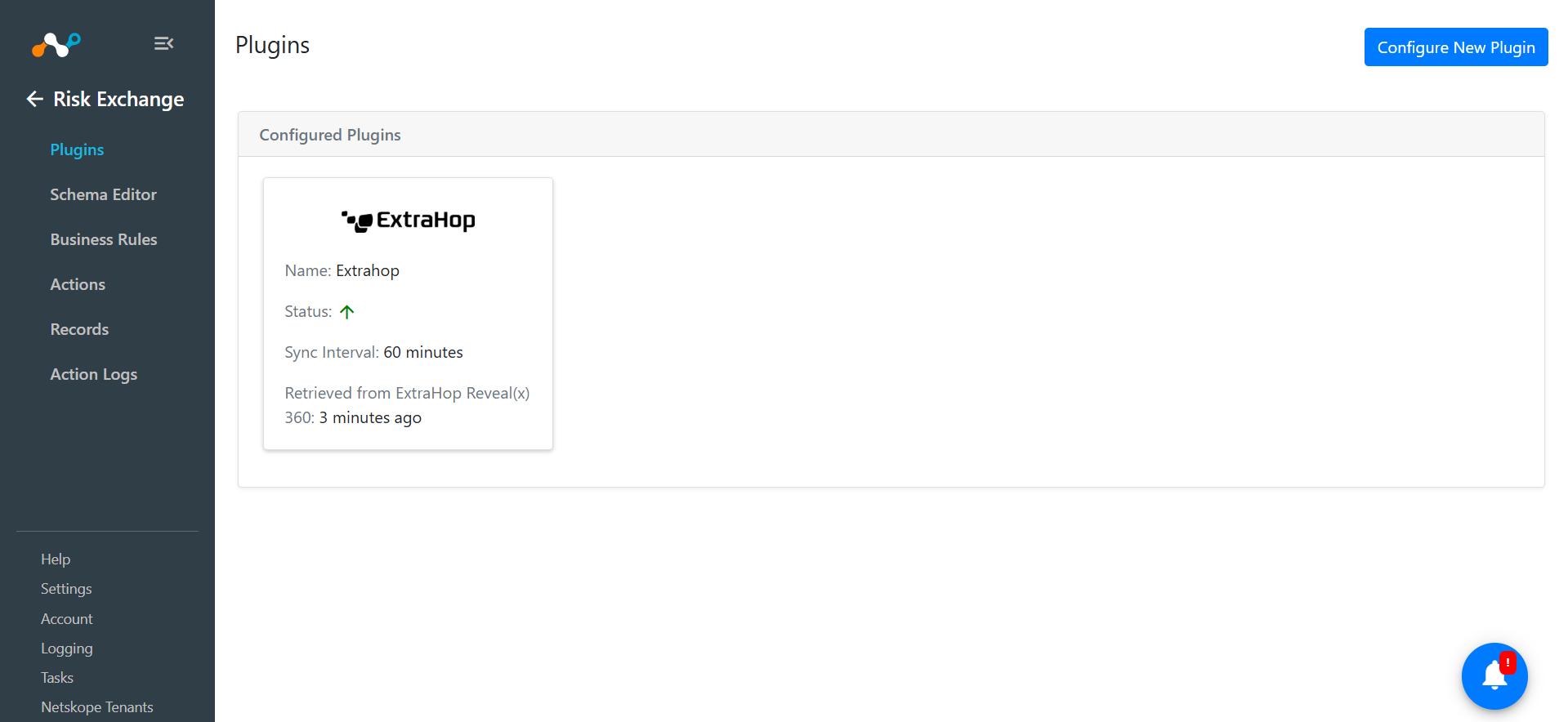

In Cloud Exchange, go to Settings > Plugins. Search for and select the ExtraHop Reveal(x) 360 (CRE) plugin box.
Enter the Basic Information:
- Configuration Name: Enter a name for the configuration.
- Sync Interval: Interval to fetch data from this plugin source.

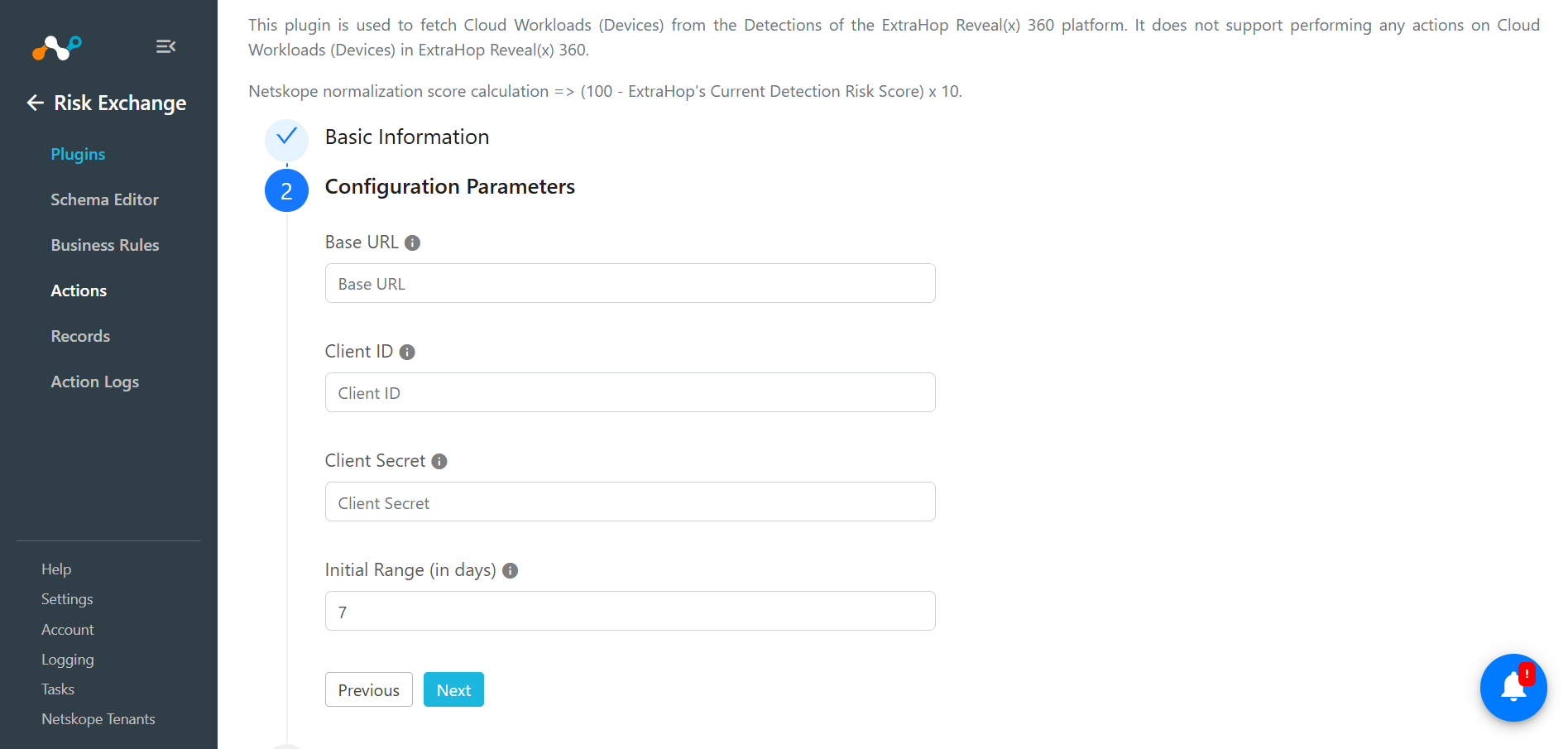

Click Next. Enter the plugin Configuration Parameters for authenticating:
- Base URL: The ExtraHop Reveal(x) 360 API Base URL. This Base URL is displayed in the Reveal(x) 360 API Access page under API Endpoint. The Base URL should not include the /oauth/token.
- Client ID: The ExtraHop Reveal(x) 360 API Client ID.
- Client Secret: The ExtraHop Reveal(x) 360 API Client Secret.
- Initial Range (in days): Number of days to pull the data for the initial run.

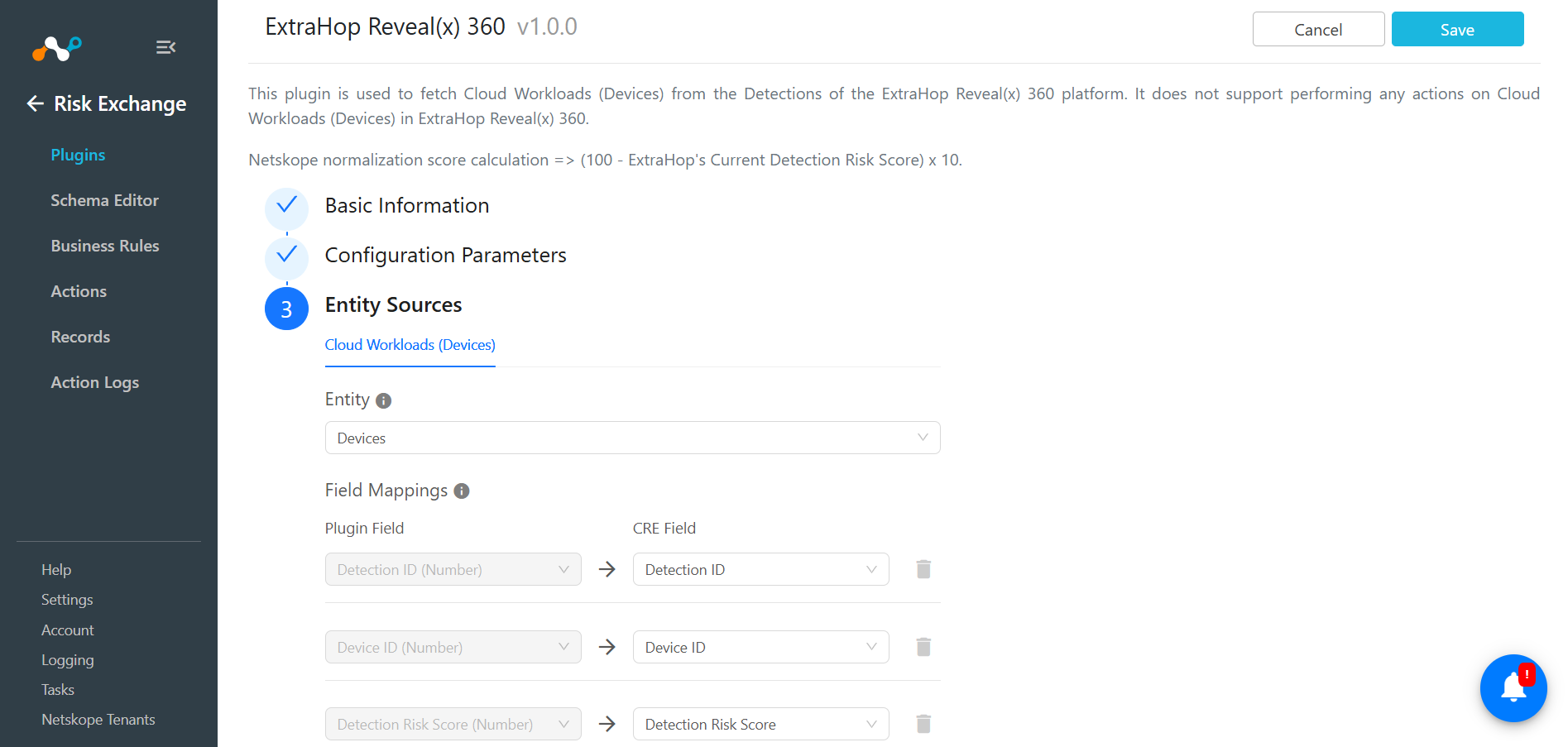

Click Next. Select the Entity from the Entity dropdown.
The Entity fields can be created from the Schema editor page, or using the + Add Field option from the field dropdown.

Provide the field mappings. For the suggested mapping please refer to the Mappings section.
Click Save.

Add a Risk Exchange Business Rule for ExtraHop

Use a Business Rule to filter out the devices.

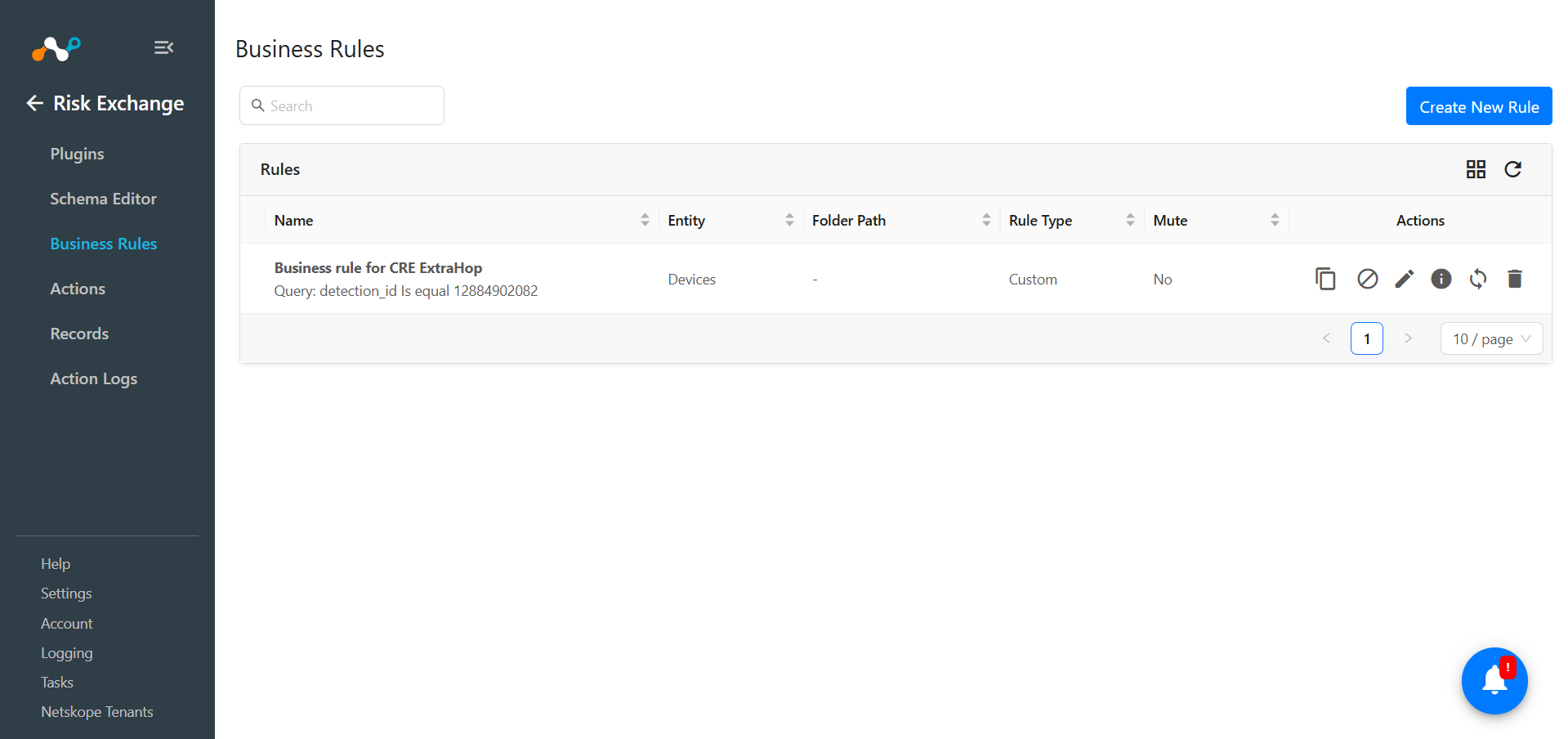

Go to Risk Exchange > Business Rule and click Create New Rule.
Select the business rule, Entity and provide the filter as per your requirement to perform Actions.
Click Save.

Add a Risk Exchange Actions for ExtraHop

ExtraHop only supports the No Action action.

No Action

This action will not perform any kind of action. You can use this action to generate the UBA alerts in the Netskope Ticket Orchestrator module.

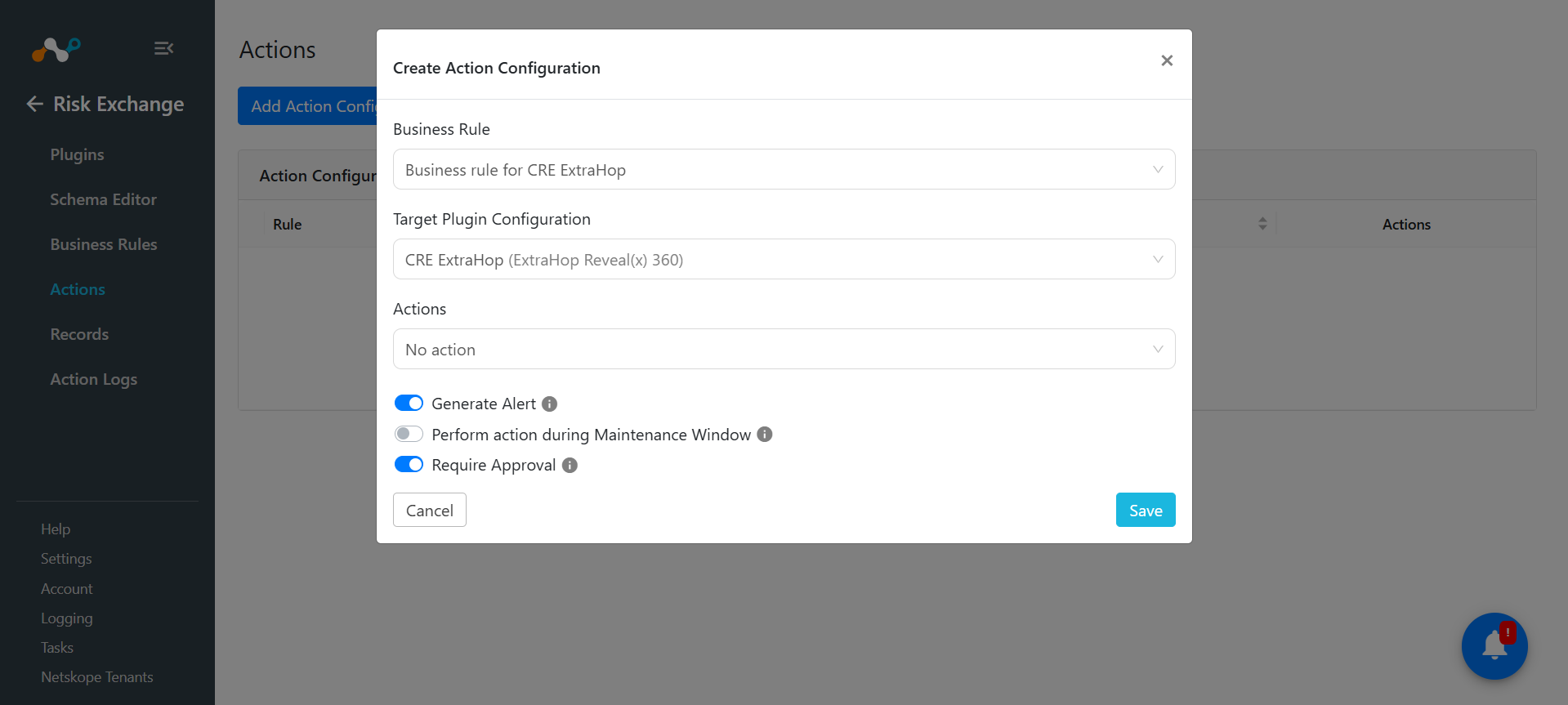

Go to Risk Exchange > Actions and click Add Action Configuration.
Select a Business Rule, plugin Configuration, and Action (No action).
The Generate Alert toggle must be enabled while creating the Action to generate Alerts in Ticket Orchestrator > Alerts. Also, the CTO module must be enabled.
Click Save.

You can perform other actions on the devices pulled from ExtraHop on the Netskope Tenant.

Validate the ExtraHop Plugin

Validate on Cloud Exchange

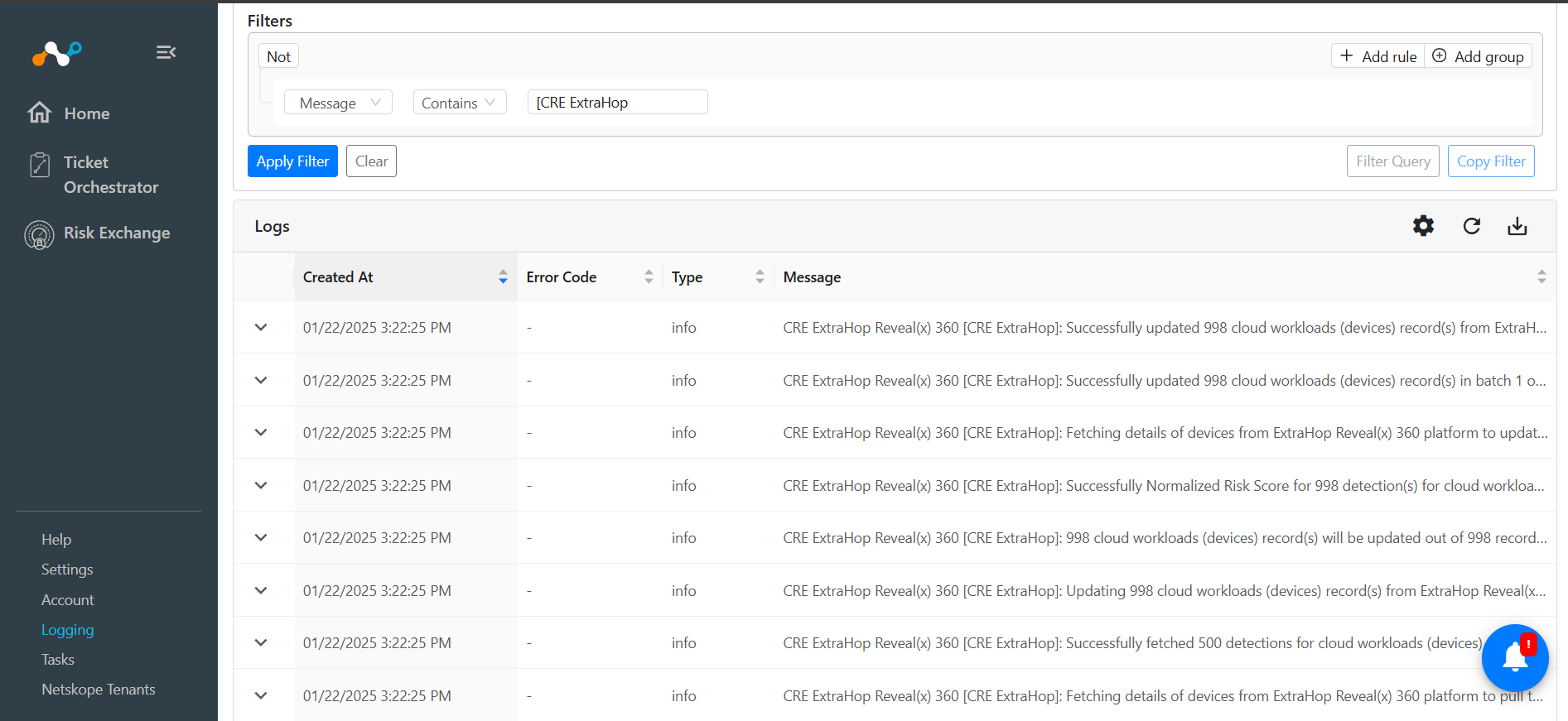

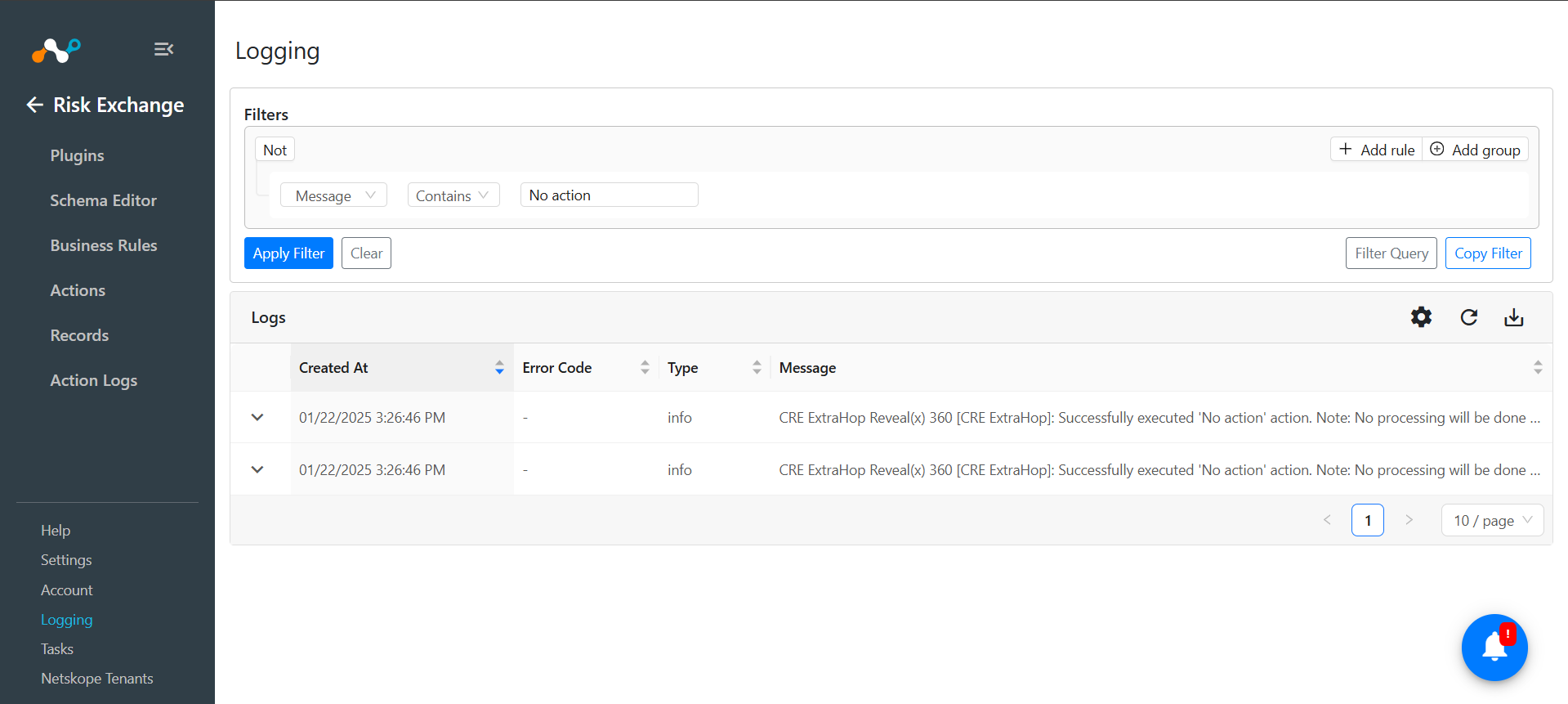

To validate the Device records pulled from ExtraHop, go to Logging and search for logs pulled from the ExtraHop plugin.

Example: message Like “[CRE ExtraHop]”

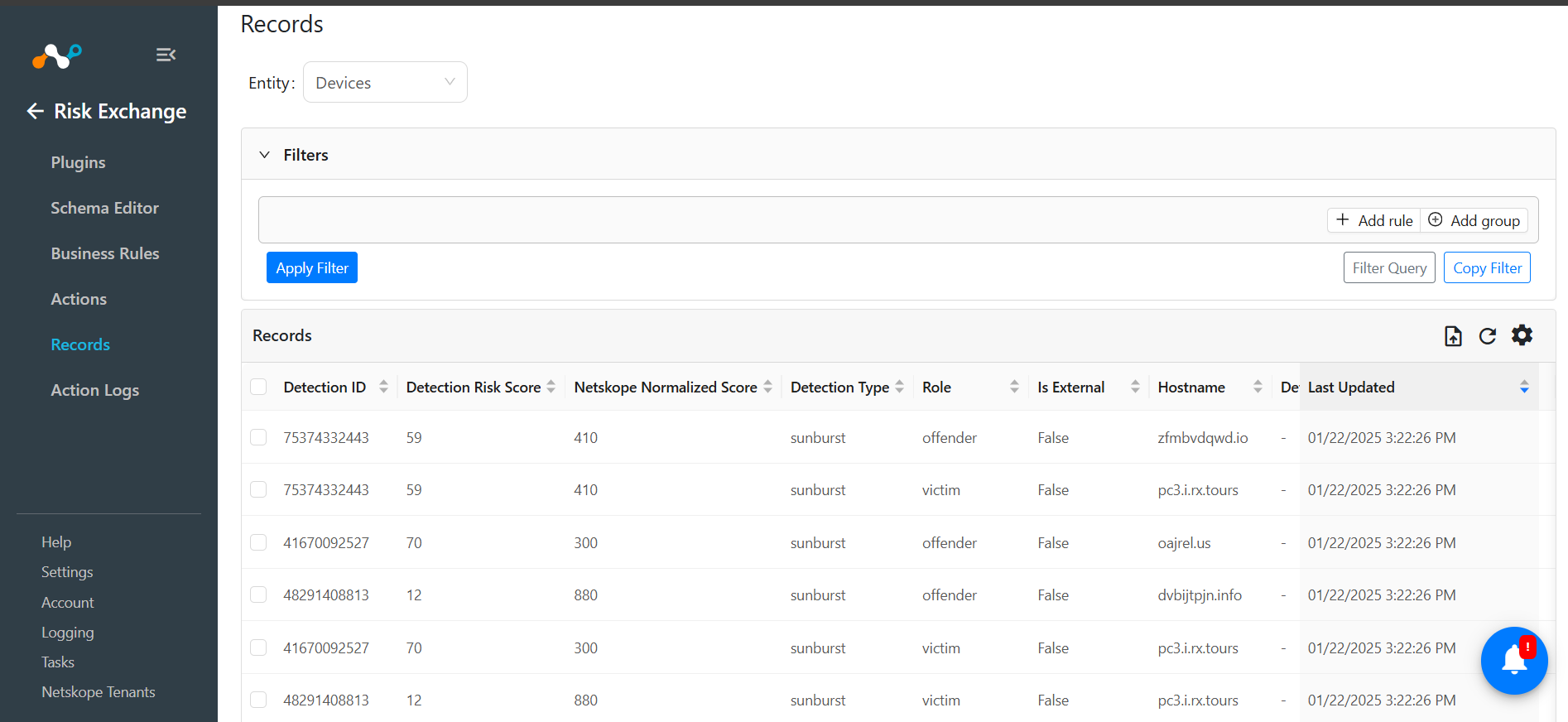

To check the pulled data, go to Records, and select the type of Entity you used while configuring the ExtraHop plugin. Check the pulled records.

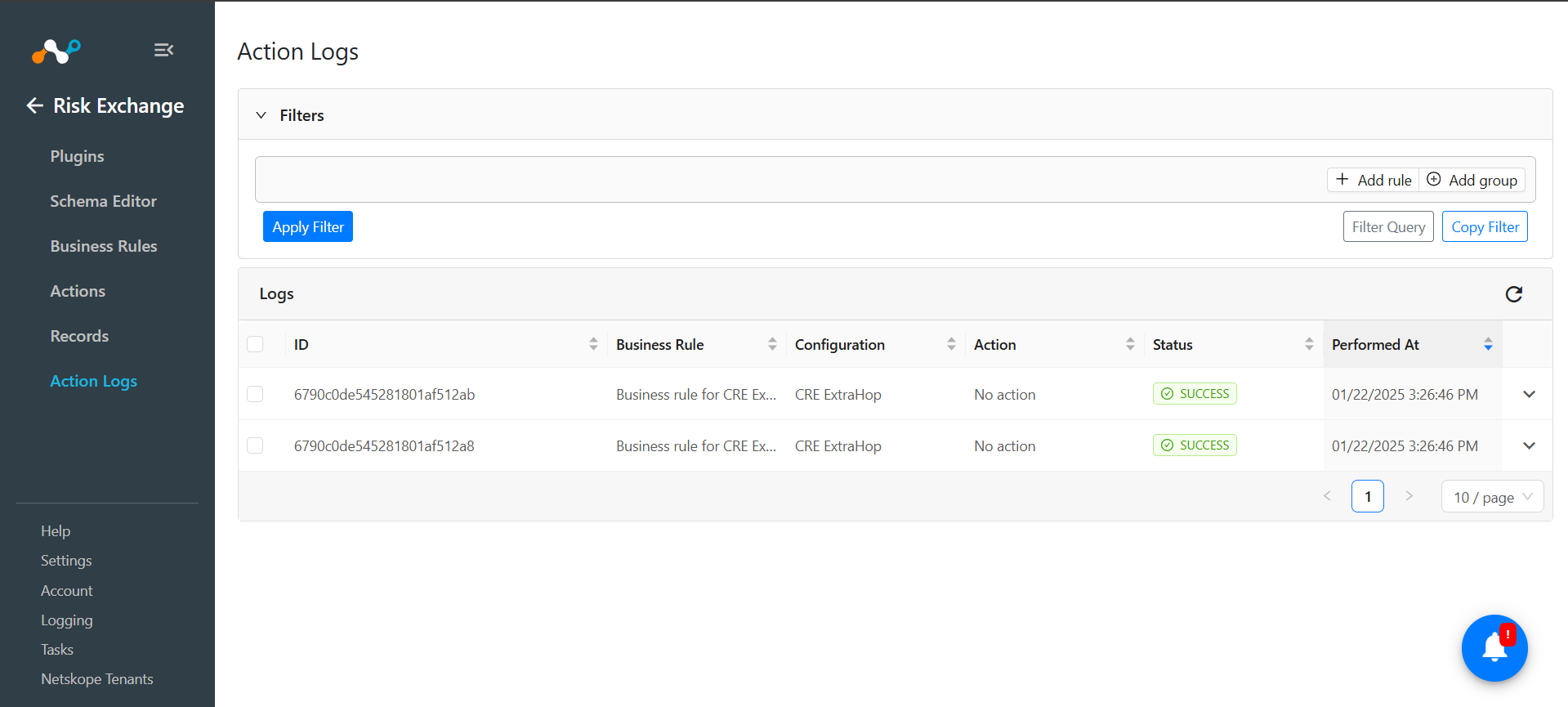

Check for the logs from Logging for the ExtraHop plugin for the actions performed.

If the Require Approval toggle is enabled while configuring the action, make sure to provide the approval from the Action Log page by selecting the pending approval entries, and enabling the Approval option.

Validate on ExtraHop

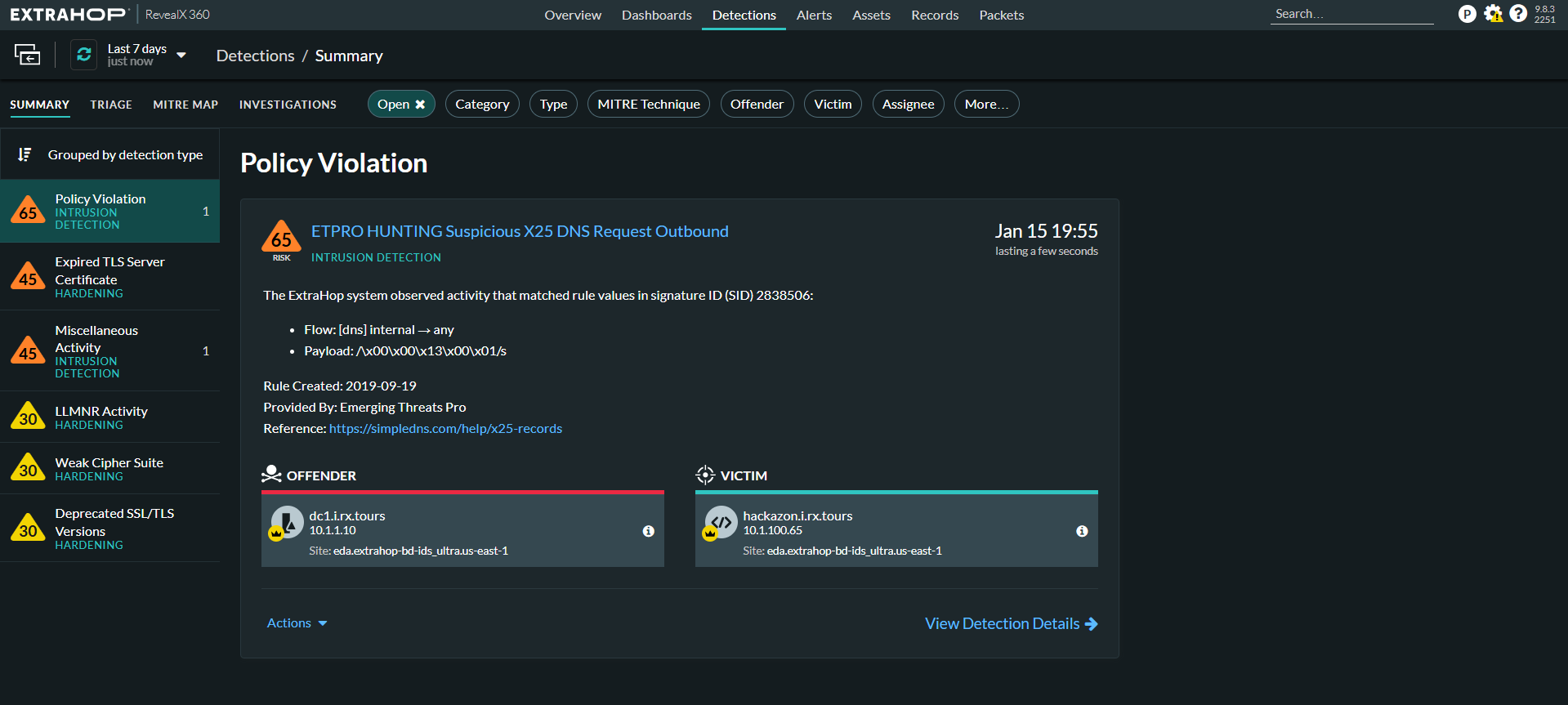

The plugin pulls Cloud Workloads (Devices) from the Detections page of the ExtraHop Reveal(x) 360 platform.

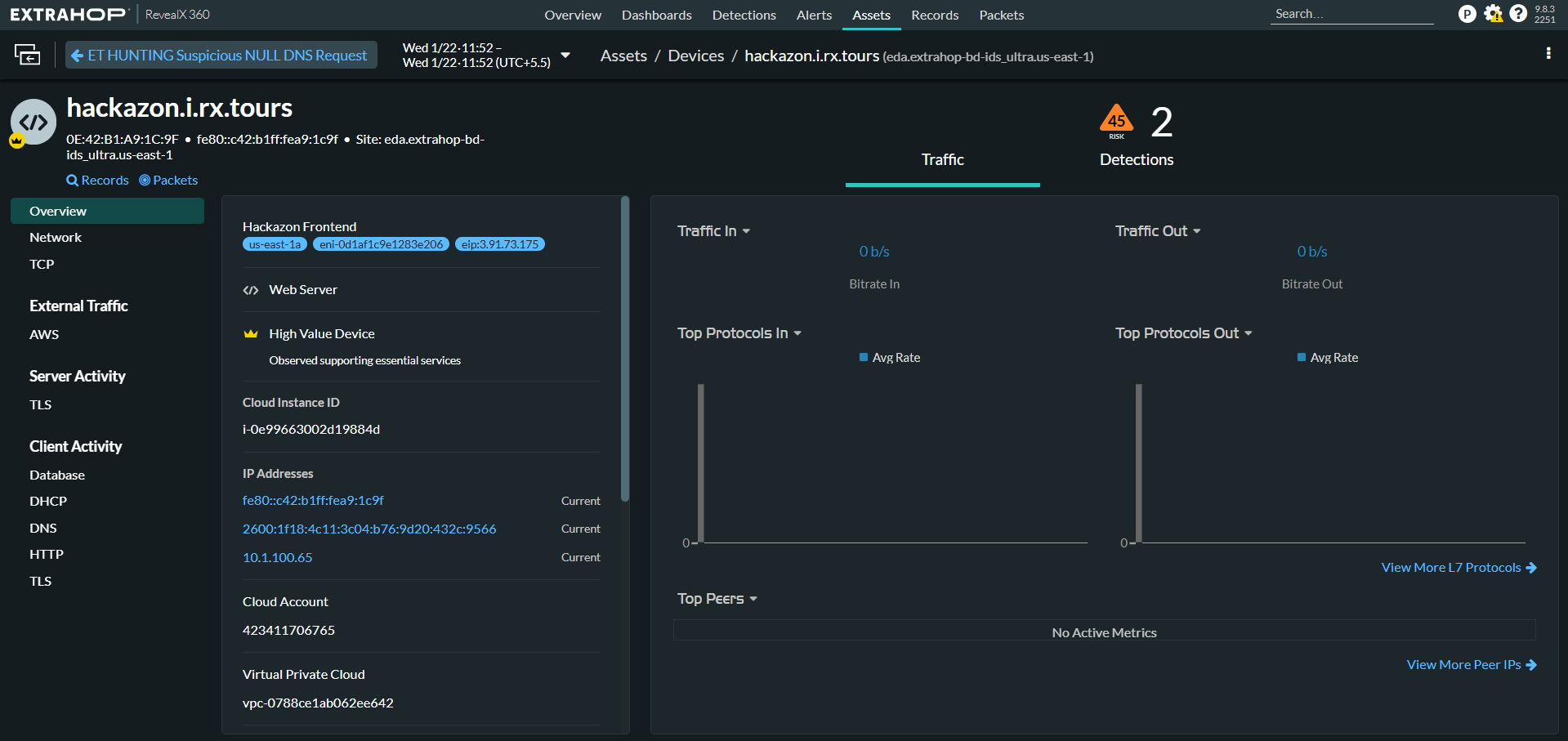

You can validate the details of any device by clicking on any of the devices, and then clicking Go to Device Overview.

Troubleshooting the ExtraHop Plugin

Receiving this error in the plugin workflow

CRE ExtraHop Reveal(x) 360 [configuration_name]: Invalid client error occurred, Verify the Client ID and Secret provided in the configuration parameters while generating auth token for authenticating credentials.

What to do: Verify the Client ID and Secret for ExtraHop.

Devices are not pulled from ExtraHop

If no data for the Device is pulled, it might be due to either:

No device is available on the platform to pull.
Mapping is not added in the plugin.

What to do:

Go to ExtraHop and check if the devices are available to pull from the Detections page.
Edit the plugin configuration, and check the Entity Source page. There should be some fields mapped in order to pull the same.
