Release Notes
1.0.0
Added
- Initial Release.
- The Forescout plugin fetches hosts and their risk information from All Hosts page of Forescout. It does not support any actions on Forescout. Netskope normalization score calculation for OT Security Risk Score and CYSIV Risk Score => ((Forescout Score – Min Forescout) / (Max Forescout – Min Forescout)) * (Max Netskope – Min Netskope) + Min Netskope
This document explains how to configure the Forescout v1.0.0 plugin with the Risk Exchange module of the Netskope Cloud Exchange platform. The Forescout plugin fetches hosts and their risk information from All Hosts page of Forescout. It does not support any actions on Forescout.
Prerequisites
To complete this integration, you need:
- A Netskope tenant (or multiple, for example, production and development/test instances).
- A Netskope Cloud Exchange tenant with the Tenant plugin and Risk Exchange plugin already configured.
- A Forescout Username and Password.
- Connectivity to Forescout platform:
https://<Instance IP\>
Forescout Plugin Support
The Forescout plugin fetches hosts and their risk information from All Hosts page of Forescout. It does not support any actions on Forescout. Netskope normalization score calculation for OT Security Risk Score and CYSIV Risk Score => ((Forescout Score – Min Forescout) / (Max Forescout – Min Forescout)) * (Max Netskope – Min Netskope) + Min Netskope
| Type of Data Pulled | Actions Supported |
|---|---|
| Hosts | Not Supported |

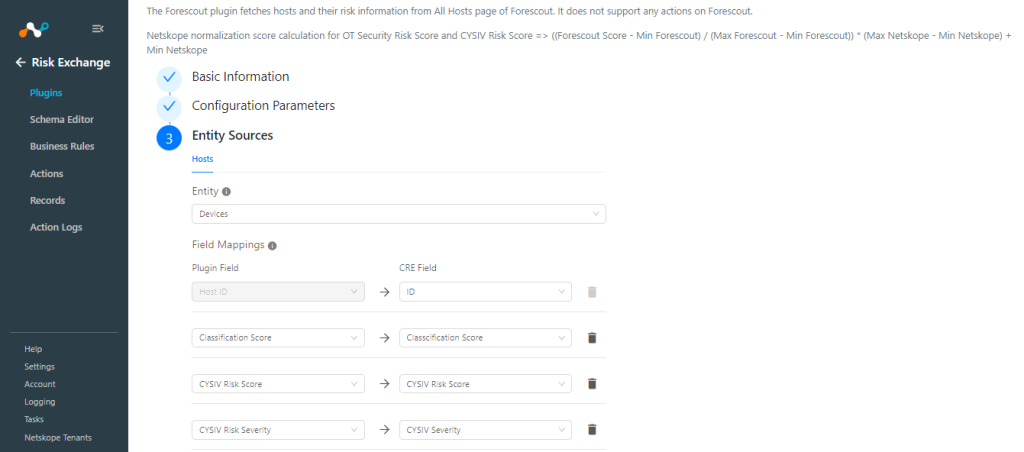

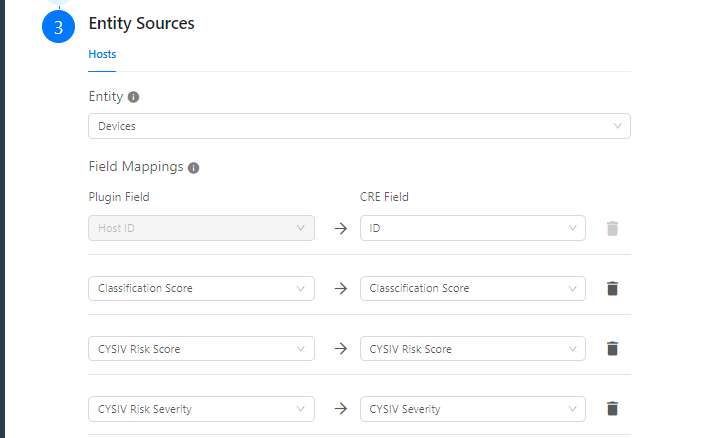

Mappings
The below mapping can be used to pull the Hosts and their respective details. Mapped fields during plugin configuration will be visible on the Records page once the data is pulled. Below is the suggested mapping that should be used while configuring the plugin.
Pull Mapping
| Plugin Field Label | Expected Data Type | Suggested Field Label | Suggested Aggregate Strategy |
|---|---|---|---|
| Host ID | String | Host ID | Unique |
| Classification Score | String | Classification Score | Overwrite |
| CYSIV Risk Device Criticality | String | CYSIV Device Criticality | Overwrite |
| CYSIV Risk Score | String | CYSIV Score | Overwrite |
| CYSIV Risk Severity | String | CYSIV Severity | Overwrite |
| Discovery Score | String | Discovery Score | Overwrite |
| Firmware Classification Score | String | Firmware Classification Score | Overwrite |
| Host Mac Address | String | Host Mac Address | Overwrite |
| Model Classification Score | String | Model Classification Score | Overwrite |
| OS Discovery Score | String | OS Discovery Score | Overwrite |
| OT Criticality | String | OT Criticality | Overwrite |
| OT Operational Risk | String | OT Operational Risk | Overwrite |
| OT Security Risk | String | OT Security Risk | Overwrite |
| Prim Discovery Score | String | Prim Discovery Score | Overwrite |
| Vendor Classification Score | String | Vendor Classification Score | Overwrite |
| Netskope Normalized Score | String | Netskope Normalized Score | Overwrite |
API Details
List of APIs used
| API Endpoint | Method | Use Case |
|---|---|---|
| /api/login | POST | Get auth token |
| /api/hosts | GET | Pull host IDs |
| /api/hosts/<Host ID> | GET | Pull host risk details |
Get auth token
Endpoint: /api/login
Method: POST
Headers
| Key | Value |
|---|---|
| User-Agent | netskope-ce-5.1.0-cre-forescout-v1.0.0 |
| Content-Type | application/x-www-form-urlencoded |
Parameters
| Key | Value |
|---|---|
| username | <UserName\> |
| password | <Password\> |
Sample API Response
eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiLim6TpurPlpZXpgJvmv6fotJ3njJ7iiLLqi7zuspPkl6Lnj7npkb3vvJvktpjrl7Hsv6npgorquITqrr3hhrjku4vjoZHptbLugYDsp4Tni5HnvpHph4zug5_sg5rinpzit4XQq-6jgs2K65yB5Lym5ZiD5qGg6LSy4oyg6ZWy44yl642w6J2F6qag4KW57qev45C-75Wc46KL6qOE7YW86amH7Iyu4qeZ6Kib5Kaf7Z7J-X5aaR27rtm6LuroDmmY7nhZXtgKfmtprskorioobkkaIiLCJleHAiOjE3MjU1Mjg5NTF9.AeuUS69vof-Iq9kpaEdJMol5EQNadbw_zW4EcBJa088
Pull Host IDs
Endpoint: /api/hosts
Method: POST
Headers
| Key | Value |
|---|---|
| User-Agent | netskope-ce-5.1.0-cre-forescout-v1.0.0 |
| Content-Type | application/x-www-form-urlencoded |
| If-None-Match | Initially it is not set, but in the 2nd request onwards, the <Response Headers.ETag> ETag received from the response headers will be added. |
Sample API Response
{
"hosts": [
{
"hostId": 167838209,
"ip": "10.1.2.1",
"mac": null,
"links": [
{
"rel": "self",
"href": "https://10.0.1.15/api/hosts/167838209"
}
]
},
]
}
Pull host risk detail
Endpoint: /api/hosts/<Host ID>
Method: GET
Headers
| Key | Value |
|---|---|
| User-Agent | netskope-ce-5.1.0-cre-forescout-v1.0.0 |
| Authorization | <Auth Token\> |
Sample API Response
{
"host": {
"ip": "10.5.0.22",
"mac": "0022e51f9018",
"fields": {
"rem_category": {
"timestamp": 1724755548,
"value": "OT"
},
"model_classification_source": {
"timestamp": 1724839679,
"value": "otsm"
},
"is_behind_nat": {
"timestamp": 1724753946,
"value": "false"
},
"cysiv_risk_severity": {
"timestamp": 1724755548,
"value": "low"
},
"onsite": {
"timestamp": 1724395424,
"value": "true"
},
"classification_source_os": {
"timestamp": 1724839679,
"value": "dpl"
},
"linux_manage": {
"timestamp": 1724753946,
"value": "false"
},
"access_ip": {
"timestamp": 1724839650,
"value": "10.5.0.22"
},
"openports": [
{
"timestamp": 1724398100,
"value": "18507/UDP"
}
],
"cc_last_saved_value": {
"timestamp": 1724395455,
"value": "{\"raw_data_value\":\"{\\\"db_creation_date\\\":\\\"2024-07-30 10:41:16.407\\\",\\\"os\\\":\\\"NA\\\",\\\"os_version\\\":\\\"NA\\\",\\\"caption\\\":\\\"NA\\\",\\\"type\\\":\\\"NA\\\",\\\"db_version\\\":\\\"2.0\\\",\\\"has_data\\\":\\\"false\\\",\\\"os_build\\\":\\\"NA\\\",\\\"vendor\\\":\\\"NA\\\",\\\"rank\\\":\\\"NA\\\",\\\"model\\\":\\\"NA\\\",\\\"make\\\":\\\"NA\\\",\\\"group\\\":\\\"NA\\\"}\",\"request_parameters\":[{\"property_value\":\"0022e51f9018\",\"property_name\":\"mac\"}]}"
},
"otsm_details_firmware_version": {
"timestamp": 1724826201,
"value": "12.3.0.4972.xr"
},
"segment_path_calculated": [
{
"timestamp": 1724395424,
"value": "5305124740861699347/-8087060916317949182/-2438220170031211496/"
}
],
"otsm_details_server_protos": [
{
"timestamp": 1724826201,
"value": "DELTAV_IO (UDP 18507)"
},
{
"timestamp": 1724826201,
"value": "DELTAV_MGMT (TCP 18519)"
}
],
"agent_install_mode": {
"timestamp": 1724839650,
"value": "None"
},
"otsm_details_manufacturer": {
"timestamp": 1724826201,
"value": "Emerson"
},
"in-group": [
{
"timestamp": 0,
"value": "Purdue0HostVulnerability"
},
{
"timestamp": 0,
"value": "Purdue0Host"
},
{
"timestamp": 0,
"value": "HostCriticality4"
},
{
"timestamp": 0,
"value": "ICS Client Protocols"
},
{
"timestamp": 0,
"value": "HighHostwithVulnerability"
},
{
"timestamp": 0,
"value": "CVSS-8andHigher"
},
{
"timestamp": 0,
"value": "IoT Devices"
},
{
"timestamp": 0,
"value": "Properties - Passive Learning"
},
{
"timestamp": 0,
"value": "IOOffline"
},
{
"timestamp": 0,
"value": "CVSS-High Matching Confidence"
},
{
"timestamp": 0,
"value": "ICS Server Protocols"
},
{
"timestamp": 0,
"value": "Campus Network"
}
],
"rem_firmware": {
"timestamp": 1724755548,
"value": "12.3.0.4972.xr"
},
"agent_visible_mode": {
"timestamp": 1724839650,
"value": "None"
},
"classification_source_func": {
"timestamp": 1724839679,
"value": "otsm"
},
"otsm_details_cves": [
{
"timestamp": 1724826201,
"value": {
"cvss_score": "7.5",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "Emerson DeltaV 10.3.1, 11.3, 11.3.1, and 12.3 uses hardcoded credentials for diagnostic services",
"matching_confidence": "product",
"cvss_access_complexity": "LOW",
"cvss_exploitability": "UNDEFINED",
"cvss_remediation_level": "OFFICIAL_FIX",
"cvss_authentication": "NONE",
"icsa_id": "ICSA-14-133-02",
"cvss_confidentiality_impact": "PARTIAL",
"cve_id": "CVE-2014-2350",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "PARTIAL",
"id": "CVE-2014-2350",
"suppressed": "false",
"cvss_access_vector": "NETWORK",
"cvss_integrity_impact": "PARTIAL"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "4.2",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Use of hard-coded credentials vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "LOW",
"cve_id": "CVE-2022-29962",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "LOW",
"id": "CVE-2022-29962",
"suppressed": "false",
"cvss_integrity_impact": "LOW"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "6.8",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Missing authentication for critical function vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "NONE",
"cve_id": "CVE-2022-29957",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "HIGH",
"id": "CVE-2022-29957",
"suppressed": "false",
"cvss_integrity_impact": "HIGH"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "6.3",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Insufficient verification of data authenticity vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "HIGH",
"cve_id": "CVE-2022-30620",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "HIGH",
"id": "CVE-2022-30620",
"suppressed": "false",
"cvss_integrity_impact": "HIGH"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "8.8",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Broken cryptographic algorithm vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "UNAVAILABLE",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "HIGH",
"cve_id": "CVE-2022-29965",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "HIGH",
"id": "CVE-2022-29965",
"suppressed": "false",
"cvss_integrity_impact": "HIGH"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "4.2",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Use of hard-coded credentials vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "LOW",
"cve_id": "CVE-2022-29964",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "LOW",
"id": "CVE-2022-29964",
"suppressed": "false",
"cvss_integrity_impact": "LOW"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "1.8",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Use of hard-coded credentials vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "LOW",
"cve_id": "CVE-2022-29963",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "NONE",
"id": "CVE-2022-29963",
"suppressed": "false",
"cvss_integrity_impact": "NONE"
}
}
],
"mac_prefix32": {
"timestamp": 1724839643,
"value": "0022e51f"
},
"samba_open_ports": {
"timestamp": 1724753951,
"value": "0"
},
"model_classification_score": {
"timestamp": 1724839679,
"value": "95"
},
"otsm_details_last_seen": {
"timestamp": 1724826201,
"value": "1724826194"
},
"model_classification": {
"timestamp": 1724839679,
"value": "Wireless I/O Card"
},
"otsm_details_host_name": {
"timestamp": 1724826201,
"value": "wioc-1f903a"
},
"macs": [
{
"timestamp": 1724839650,
"value": "0022e51f9018"
}
],
"dpl_model_classification": {
"timestamp": 1724839679,
"value": ""
},
"cysiv_risk_device_criticality": {
"timestamp": 1724755548,
"value": "high"
},
"os_discovery_score": {
"timestamp": 1724839675,
"value": "64"
},
"prim_discovery_score": {
"timestamp": 1724839675,
"value": "83"
},
"otsm_details_host_mac_addresses": [
{
"timestamp": 1724826201,
"value": "00:22:E5:1F:90:18"
}
],
"mediator_otsm_prim_classification": {
"timestamp": 1724839649,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"vendor_classification_score": {
"timestamp": 1724839675,
"value": "46"
},
"rem_equipment_function": {
"timestamp": 1724755548,
"value": "Unknown"
},
"mac": {
"timestamp": 1724839650,
"value": "0022e51f9018"
},
"otsm_details_security_risk": {
"timestamp": 1724839643,
"value": "8.2"
},
"manufacturer_classification": {
"timestamp": 1724839679,
"value": "Emerson"
},
"vendor": {
"timestamp": 1724839643,
"value": "fisher-rosemount systems inc."
},
"segment_name_calculated": {
"timestamp": 1724395424,
"value": "Operational Technology"
},
"hostname_calculated": {
"timestamp": 1724395424,
"value": "wioc-1f903a"
},
"mediator_otsm_vendor_classification": {
"timestamp": 1724839649,
"value": "Emerson"
},
"dex_Forescout_Risk_Score": {
"timestamp": 1724839648,
"value": "0"
},
"gst_signed_in_stat": {
"timestamp": 1724753946,
"value": "na"
},
"vendor_discovery_score": {
"timestamp": 1724839675,
"value": "93"
},
"vpn_login": {
"timestamp": 1724821286,
"value": "false"
},
"groups_path_calculated": [
{
"timestamp": 1724818528,
"value": "5483371701762015725/"
},
{
"timestamp": 1724818528,
"value": "5006884535761276673/6881123241563699922/-774523594407371799/-7432780537313919341/"
},
{
"timestamp": 1724818528,
"value": "5006884535761276673/6881123241563699922/-774523594407371799/8677054046804567500/"
}
],
"eds_empty_results": [
{
"timestamp": 1724839648,
"value": "dex_Forescout_Risk_Score"
}
],
"cysiv_risk_score_last_updated": {
"timestamp": 1724755548,
"value": "1724755324"
},
"mac_calculated": {
"timestamp": 1724395424,
"value": "0022e51f9018"
},
"dpl_vendor_classification": {
"timestamp": 1724839675,
"value": "Emerson"
},
"cysiv_risk_cve_list": [
{
"timestamp": 1724755548,
"value": {
"cysiv_cve_reported_time": "1400792106",
"cysiv_cve_cisa": "false",
"cysiv_cve_cvss_score": "7.5",
"cysiv_cve_exploitability_level": "Low",
"cysiv_cve_id": "CVE-2014-2350",
"cysiv_cve_exploitability_percentile": "0.754"
}
},
{
"timestamp": 1724755548,
"value": {
"cysiv_cve_reported_time": "1672035310",
"cysiv_cve_cisa": "false",
"cysiv_cve_cvss_score": "7.8",
"cysiv_cve_exploitability_level": "Low",
"cysiv_cve_id": "CVE-2022-30260",
"cysiv_cve_exploitability_percentile": "0.268"
}
}
],
"classification_score": {
"timestamp": 1724839675,
"value": "32"
},
"firmware_classification": {
"timestamp": 1724839651,
"value": "12.3.0.4972.xr"
},
"otsm_details_module_identities": [
{
"timestamp": 1724826201,
"value": {
"vendor": "Rosemount",
"name": "",
"model": "781 RL",
"serial_number": "",
"firmware_version": "",
"state": "UNDEFINED",
"type": "Wireless Access Point",
"hardware_version": "",
"slot_number": "WAP01"
}
},
{
"timestamp": 1724826201,
"value": {
"vendor": "Emerson",
"name": "WIOC-1F903A",
"model": "12P5030X032",
"serial_number": "",
"firmware_version": "12.3.0.4972.xr",
"state": "UNDEFINED",
"type": "Wireless I/O Card",
"hardware_version": "9.3",
"slot_number": "0"
}
}
],
"manage_agent": {
"timestamp": 1724839650,
"value": "false"
},
"dpl_os_classification": {
"timestamp": 1724839675,
"value": "Unknown"
},
"ipv4_report_time": {
"timestamp": 1724826081,
"value": "true"
},
"manufacturer_classification_score": {
"timestamp": 1724839679,
"value": "-1"
},
"otsm_details_first_seen": {
"timestamp": 1724826201,
"value": "1635282777"
},
"firmware_classification_source": {
"timestamp": 1724839651,
"value": "otsm"
},
"otsm_details_cc_ip": {
"timestamp": 1724826201,
"value": "10.0.1.60"
},
"otsm_details_hardware_version": {
"timestamp": 1724826201,
"value": "9.3"
},
"classification_source_vendor": {
"timestamp": 1724839679,
"value": "dpl"
},
"mac_vendor_string": {
"timestamp": 1724839643,
"value": "FISHER-ROSEMOUNT SYSTEMS INC."
},
"rem_function": {
"timestamp": 1724755548,
"value": "IO Module"
},
"mediator_otsm_model_classification": {
"timestamp": 1724839649,
"value": "Wireless I/O Card"
},
"prim_classification_source": {
"timestamp": 1724839679,
"value": "otsm"
},
"otsm_details_client_protos": [
{
"timestamp": 1724826201,
"value": "DELTAV_IO (UDP 18507)"
}
],
"firmware_classification_score": {
"timestamp": 1724839651,
"value": "60"
},
"ccg_prim_classification": {
"timestamp": 1724395455,
"value": "Unknown"
},
"os_classification_score": {
"timestamp": 1724839679,
"value": "-1"
},
"prim_classification_score": {
"timestamp": 1724839679,
"value": "-1"
},
"mediator_otsm_firmware_classification": {
"timestamp": 1724839649,
"value": "12.3.0.4972.xr"
},
"otsm_details_sensor_names": [
{
"timestamp": 1724839643,
"value": "Sensor1 at 10.0.1.60"
}
],
"adm": [
{
"timestamp": 1724395388,
"value": "new"
},
{
"timestamp": 1724839643,
"value": "online_again"
}
],
"snow_mac_exist": {
"timestamp": 1724839650,
"value": "snow_mac_exist_true"
},
"otsm_details_model": {
"timestamp": 1724826201,
"value": "Wireless I/O Card"
},
"wifi_client_login": {
"timestamp": 1724817697,
"value": "false"
},
"rem_vendor": {
"timestamp": 1724755548,
"value": "Emerson"
},
"matched_fingerprints": [
{
"timestamp": 1724839675,
"value": "SM-Vendor-Emerson"
},
{
"timestamp": 1724839675,
"value": "SM-IO module"
}
],
"otsm_details_criticality": {
"timestamp": 1724826201,
"value": "4"
},
"os_classification_source": {
"timestamp": 1724839679,
"value": "dpl"
},
"discovery_score": {
"timestamp": 1724839675,
"value": "80"
},
"compliance_state": {
"timestamp": 1724839680,
"value": "COMPLY"
},
"device_role": {
"timestamp": 1724839675,
"value": "false"
},
"dpl_prim_classification": {
"timestamp": 1724839675,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"manufacturer_classification_source": {
"timestamp": 1724839679,
"value": "dpl"
},
"os_classification": {
"timestamp": 1724839679,
"value": "Unknown"
},
"cc_host_classifier": {
"timestamp": 1724395455,
"value": "{\"db_creation_date\":\"2024-07-30 10:41:16.407\",\"os\":\"NA\",\"os_version\":\"NA\",\"caption\":\"NA\",\"type\":\"NA\",\"db_version\":\"2.0\",\"has_data\":\"false\",\"os_build\":\"NA\",\"vendor\":\"NA\",\"rank\":\"NA\",\"model\":\"NA\",\"make\":\"NA\",\"group\":\"NA\"}"
},
"snow_add_update_status": {
"timestamp": 1724817882,
"value": "2"
},
"cact_script_result.2a1b2d019d0fb891a7c8d7c32d3f8a6c": {
"timestamp": 1724752766,
"value": "Sending ICMP MS_SYNC_REQ\nSending ICMP ECHO"
},
"rem_function_taxonomy": {
"timestamp": 1724755548,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"otsm_details_role": {
"timestamp": 1724826201,
"value": "io_module"
},
"cysiv_risk_score": {
"timestamp": 1724755548,
"value": "2.0"
},
"is_iot": {
"timestamp": 1724839675,
"value": "false"
},
"manage_domain_strict": {
"timestamp": 1724753951,
"value": "false"
},
"ipv4_calculated": {
"timestamp": 1724395424,
"value": "10.5.0.22"
},
"misc": {
"timestamp": 1724839658,
"value": "3* cysiv_risk_internet_exposure_indication 1724755548 mac_manage 1724817902 p2p_running 1724839650 aws_resource_tag 1724817902 nbthost 1724839650 aws_instance_id 1724817808 va_netfunc 1724839650 ad_memberof 1724755633 ad_departmenp 0 1 1724752155 0 0 cloud_application_running 0 1 1724752155 0 0 service 0 1 1724752155 0 0 device_interfaces 0 1 1724752155 0 0 nmap_def_fp7 0 1 1724752155 0 0 p2p_running 0 1 1724752155 0 0 nmap_def_fp5 0 1 1724752155 0 0 va_netfunc 0 1 1724752155 0 0 snmp2 0 1 1724752155 0 0 user 0 1 1724752155 0 0 comp_application 0 1 1724752155 0 0 registry_1 0 1 1724752155 0 0 * cysiv_risk_last_vulnerability_scans 1724755548 suggested_prim_classification 1724817903 suggested_vendor_classification 1724817903 atc_ioc_scan_stats 1724752053 cysiv_risk_exposed_services 1724755548 "
},
"prim_classification": {
"timestamp": 1724839679,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"vendor_classification": {
"timestamp": 1724839675,
"value": "Emerson"
},
"rem_model": {
"timestamp": 1724755548,
"value": "Wireless I/O Card"
},
"rem_os": {
"timestamp": 1724755548,
"value": "Unknown"
},
"otsm_details_operational_risk": {
"timestamp": 1724839643,
"value": "0.0"
},
"last_nbt_report_time": {
"timestamp": 1724753947,
"value": "1724753947"
},
"otsm_details_purdue_level": {
"timestamp": 1724826201,
"value": "LEVEL0"
},
"agent_version": {
"timestamp": 1724753946,
"value": "None"
},
"rem_os_taxonomy": {
"timestamp": 1724755548,
"value": "Unknown"
},
"local-credentials-OK": {
"timestamp": 1724753946,
"value": "false"
},
"_times": [
{
"timestamp": 1724839643,
"value": "last_onsite"
}
],
"online": {
"timestamp": 1724839643,
"value": "true"
},
"engine_seen_packet": {
"timestamp": 1724839643,
"value": "true"
}
},
"id": 168099862
},
"links": [
{
"rel": "self",
"href": "https://10.0.1.15/api/hosts/168099862"
}
]
}
User Agent
netskope-ce-5.1.0-cre-forescout-v1.0.0
Workflow
- Get your Forescout Base URL, Username, and Password.
- Configure the Forescout plugin.
Get your Forescout Credentials
Follow the steps provided in the Forescout documentation in order to generate the plugin configuration parameters. The Username and Password can be generated from the Settings > Web API > User Settings page. These and the Base URL are need to configure the plugin.
Configure the Forescout Plugin
-

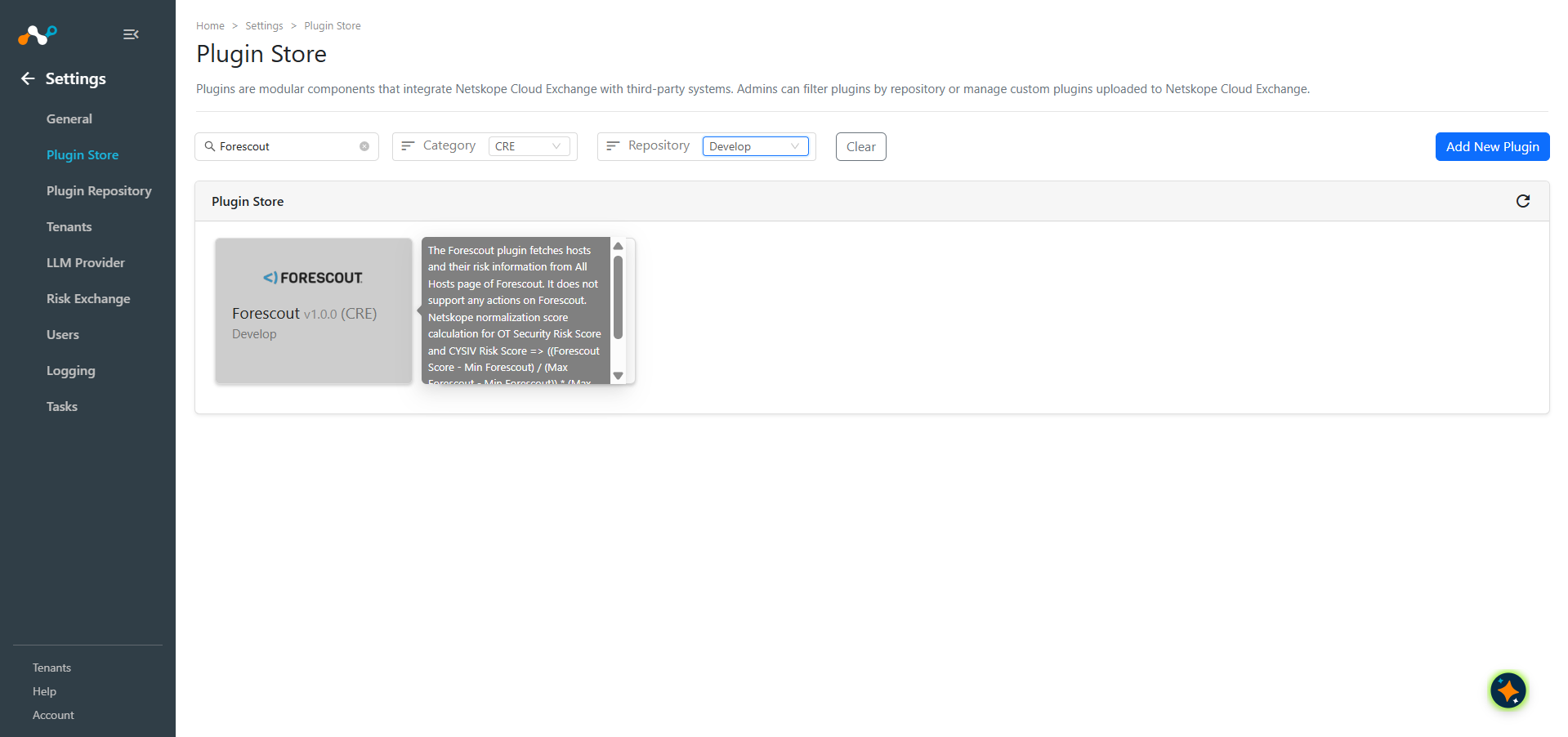

In Cloud Exchange, go to Settings > Plugin Store. Search for and select the Forescout v1.0.0 (CRE) plugin.
-

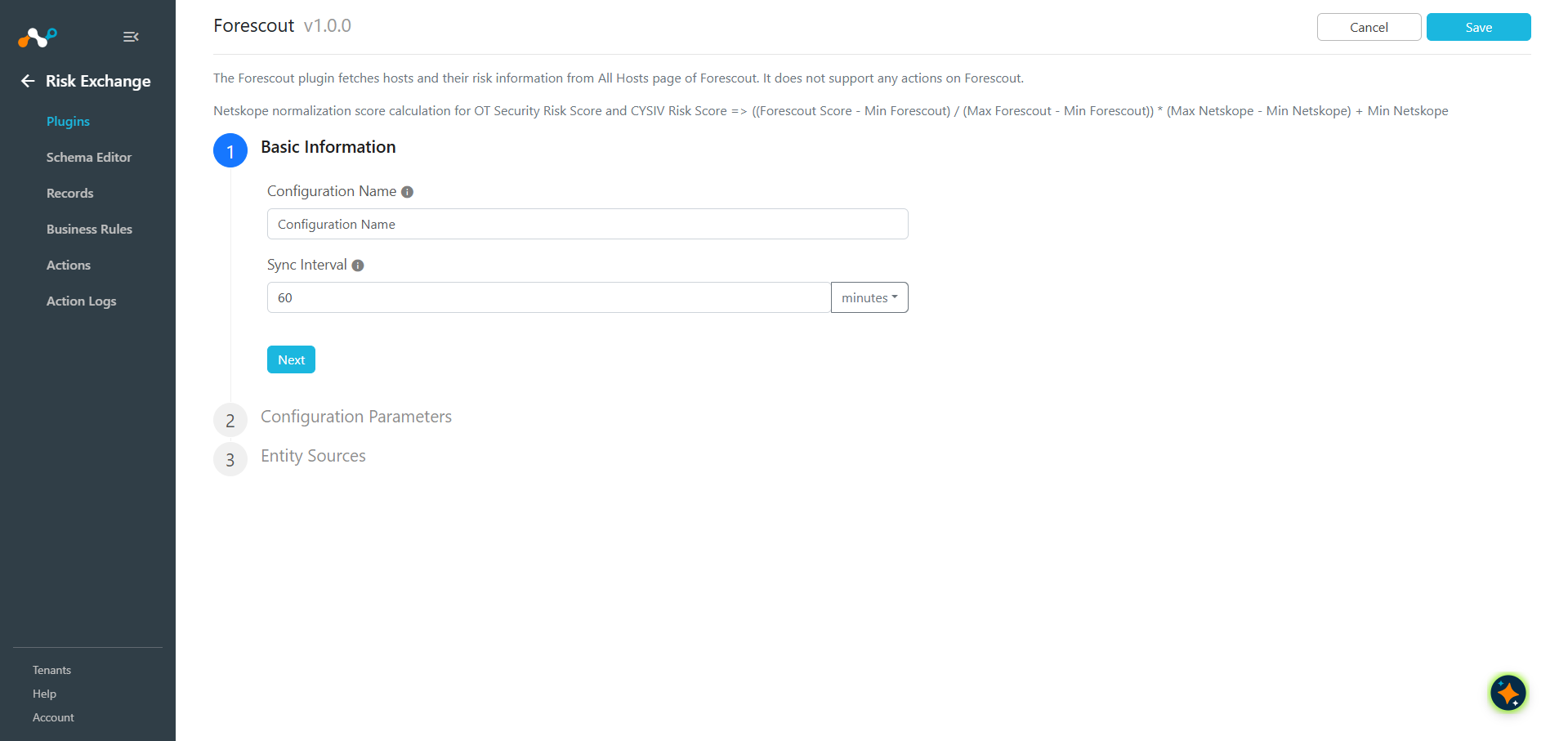

Enter the Basic Information:
- Configuration Name: Unique name for the configuration.
- Sync Interval: Leave the default.
-

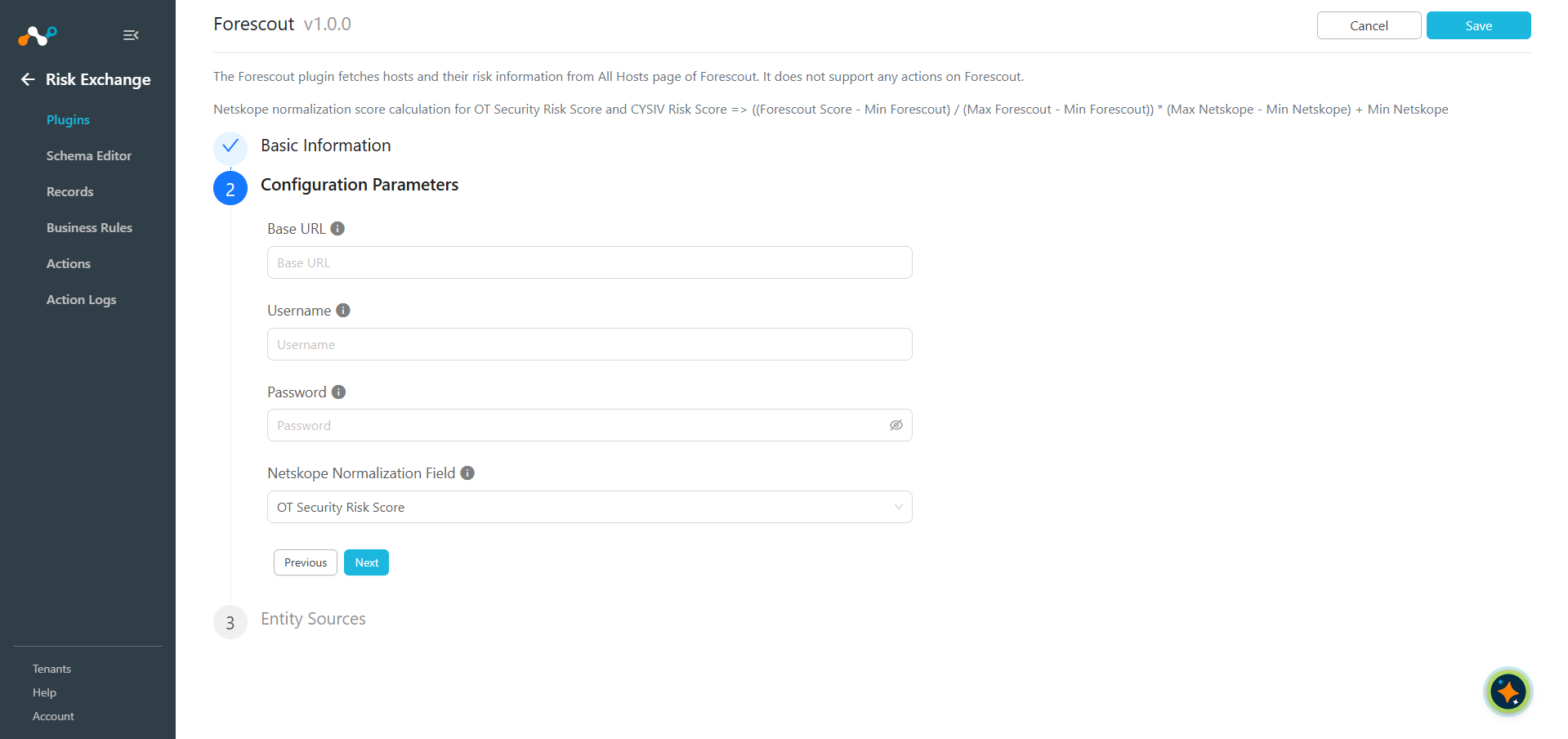

Click Next and enter the Configuration Parameters:
- Base URL: Base URL of Forescout instance, like
https://<Instance IP>. - Username: Username of Forescout account.
- Password: Password of Forescout account.
- Netskope Normalization Field: Select the field to be used for normalization in the Netskope Score Range.
- Base URL: Base URL of Forescout instance, like
-
Click Next and select the Entity and provide the mapping for the plugin.
-
Click Save.
