    ServiceNow Plugin for Risk Exchange

    Release Notes

    2.0.0 (Requires minimum Cloud Exchange version 6.1.0)
    Added

    • Added fetching of Users, Devices, and Applications entities from ServiceNow.
    • Added the following actions: Add/Remove User from Group, Add/Remove User from Role, Update User Delegation, Manage Device Tags, Manage Application Tags, and Share Application Data (To either the Core Company or Business Application table).

    1.0.0
    Added

    • Initial Release.

    This document explains how to configure the Servicenow v2.0.0 plugin with the Risk Exchange module of the Netskope Cloud Exchange platform. This plugin fetches Users from the sys_user table (System Security > Users and Groups > Users), Devices from the cmdb_ci_computer table (Configuration > Base Item > Computers), and Applications from the cmdb_ci_business_app table (Organization > Business Applications) of the ServiceNow platform. It supports the Add/Remove User from Group, Add/Remove User from Role, Update User Delegation, Manage Device Tags, Manage Application Tags, and Share Application Data actions.

    Prerequisites

    To complete this integration, you need:

    • A Netskope tenant (or multiple, for example, production and development/test instances).
    • A Netskope Cloud Exchange tenant with the Tenant plugin and Risk Exchange plugin already configured.
    • Connectivity to a ServiceNow instance: https://<instanceid>.service-now.com/
    ServiceNow Plugin Support

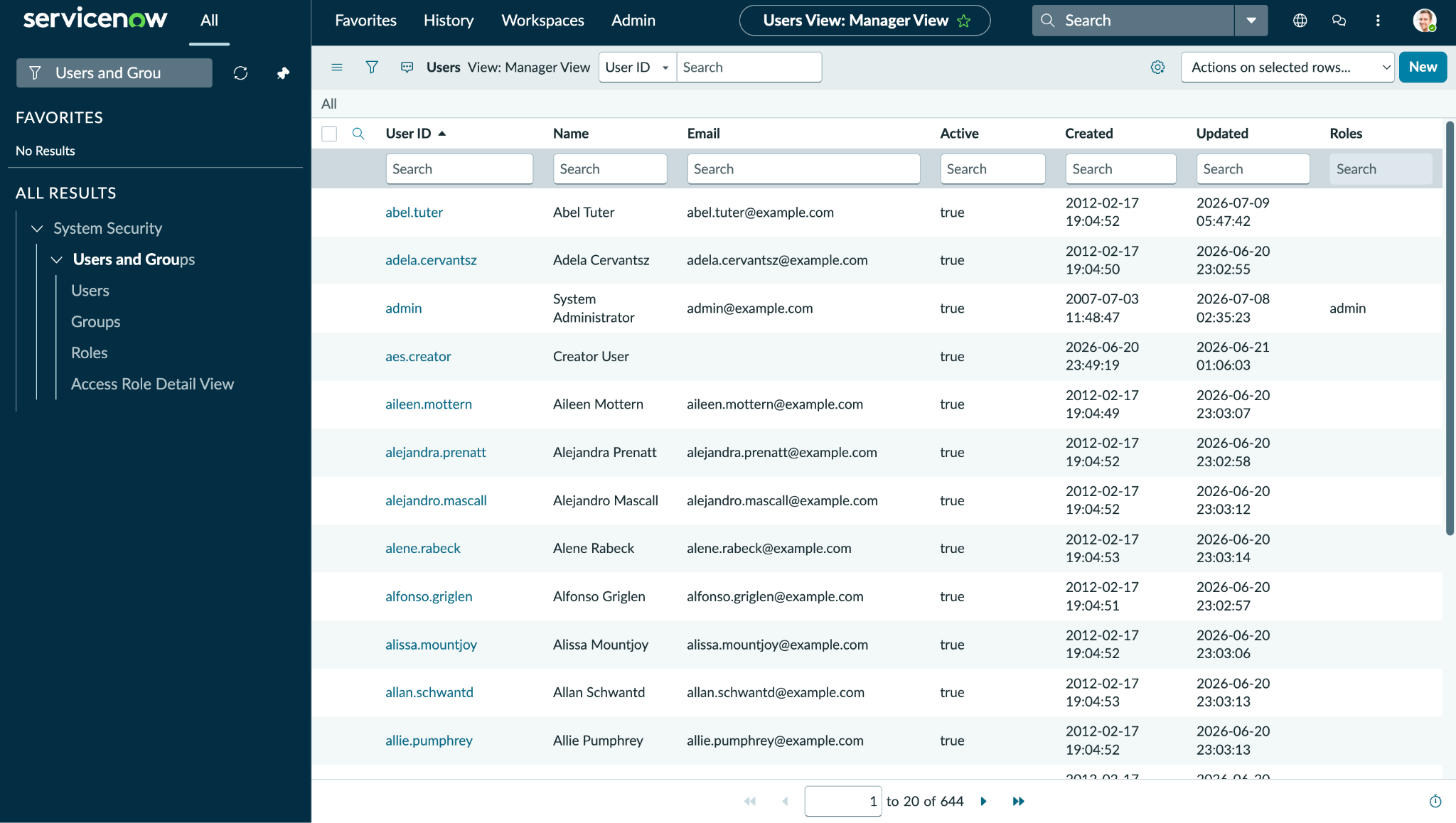

    This plugin fetches Users from the sys_user table (System Security > Users and Groups > Users), Devices from the cmdb_ci_computer table (Configuration > Base Item > Computers), and Applications from the cmdb_ci_business_app table (Organization > Business Applications) of the ServiceNow platform. It supports the Add/Remove User from Group, Add/Remove User from Role, Update User Delegation, Manage Device Tags, Manage Application Tags, and Share Application Data actions.

    Type of Data PulledActions Supported

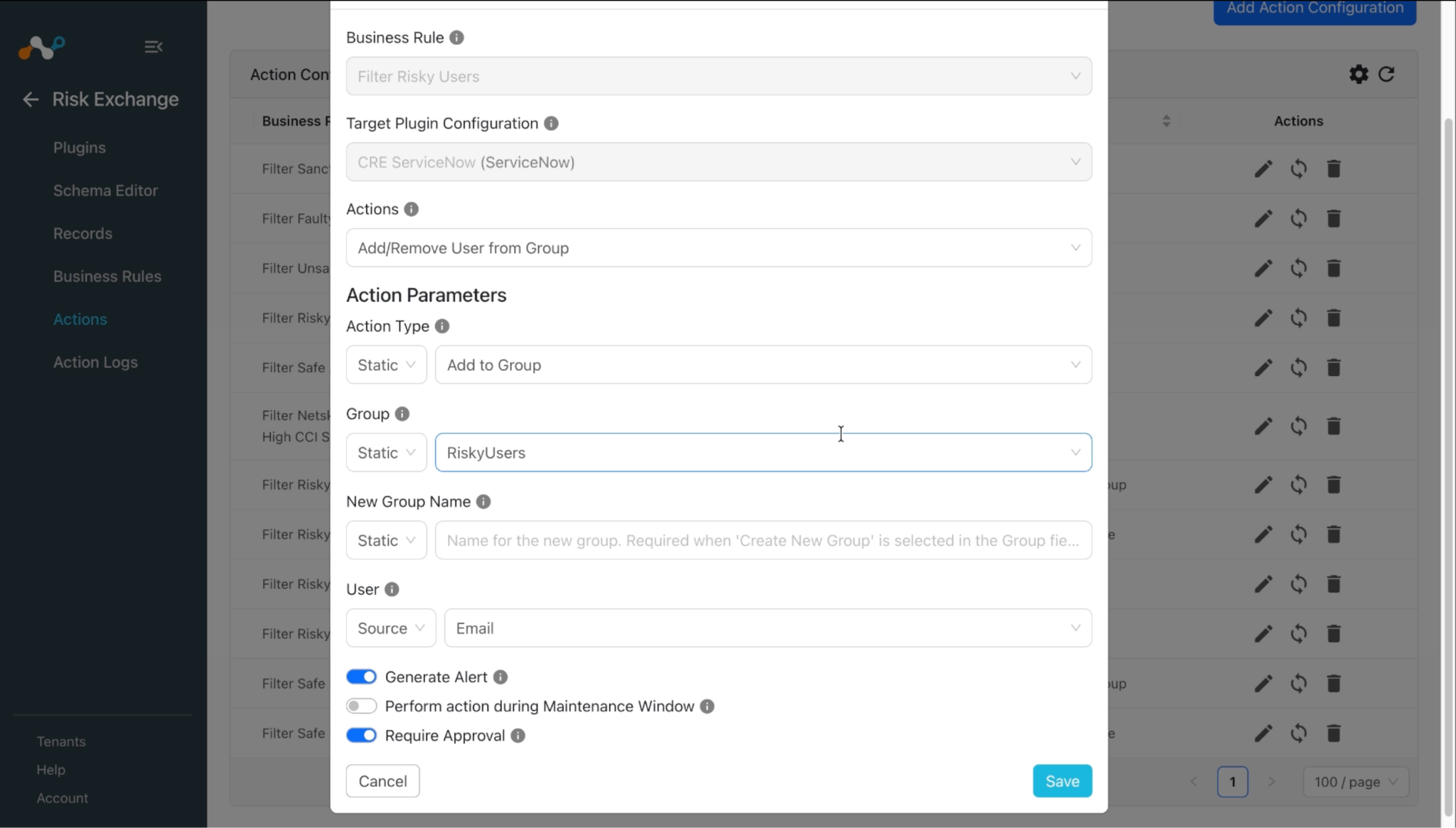

    Users, Devices, ApplicationsAdd/Remove User from Group

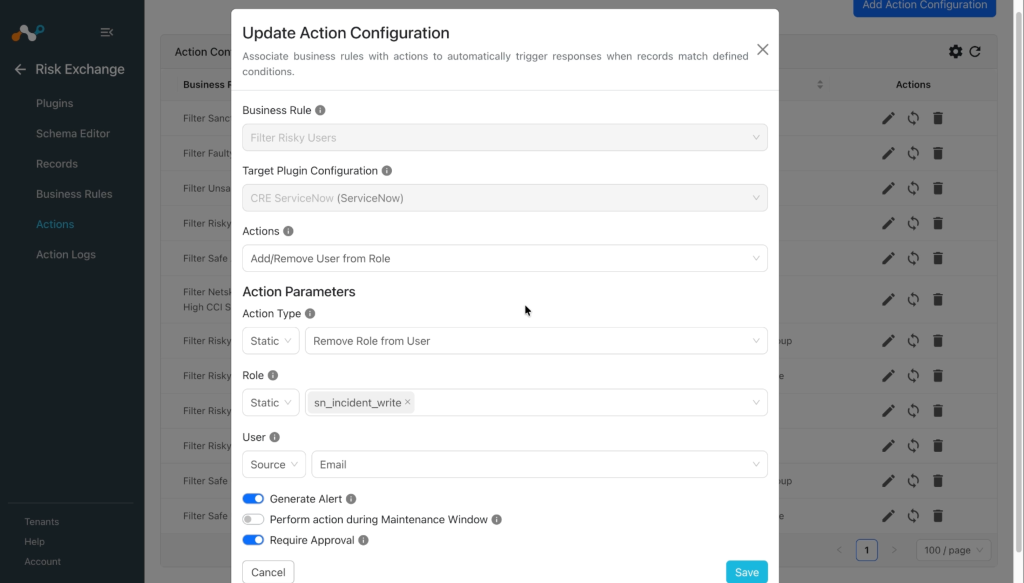

    Add/Remove User from Role

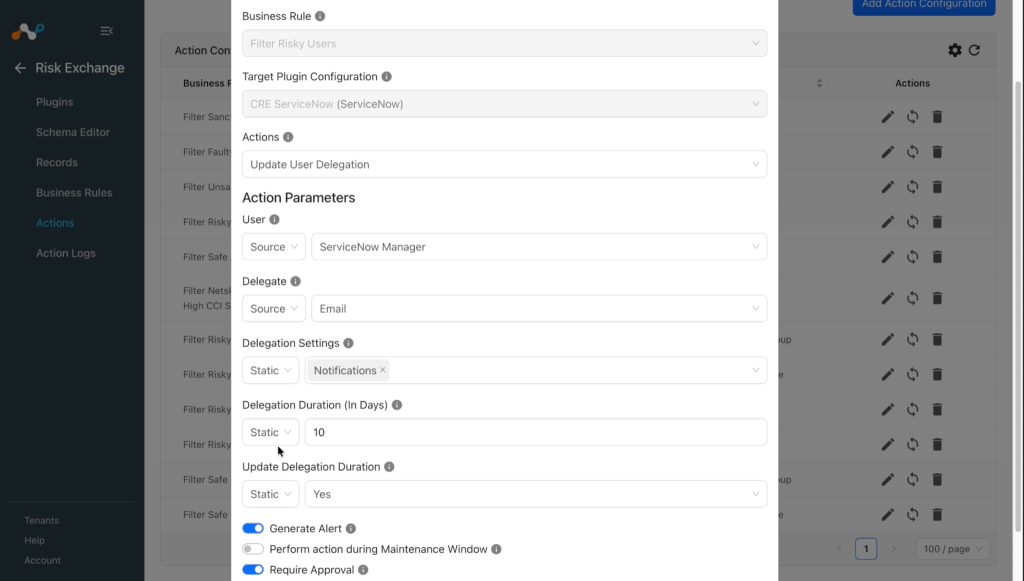

    Update User Delegation

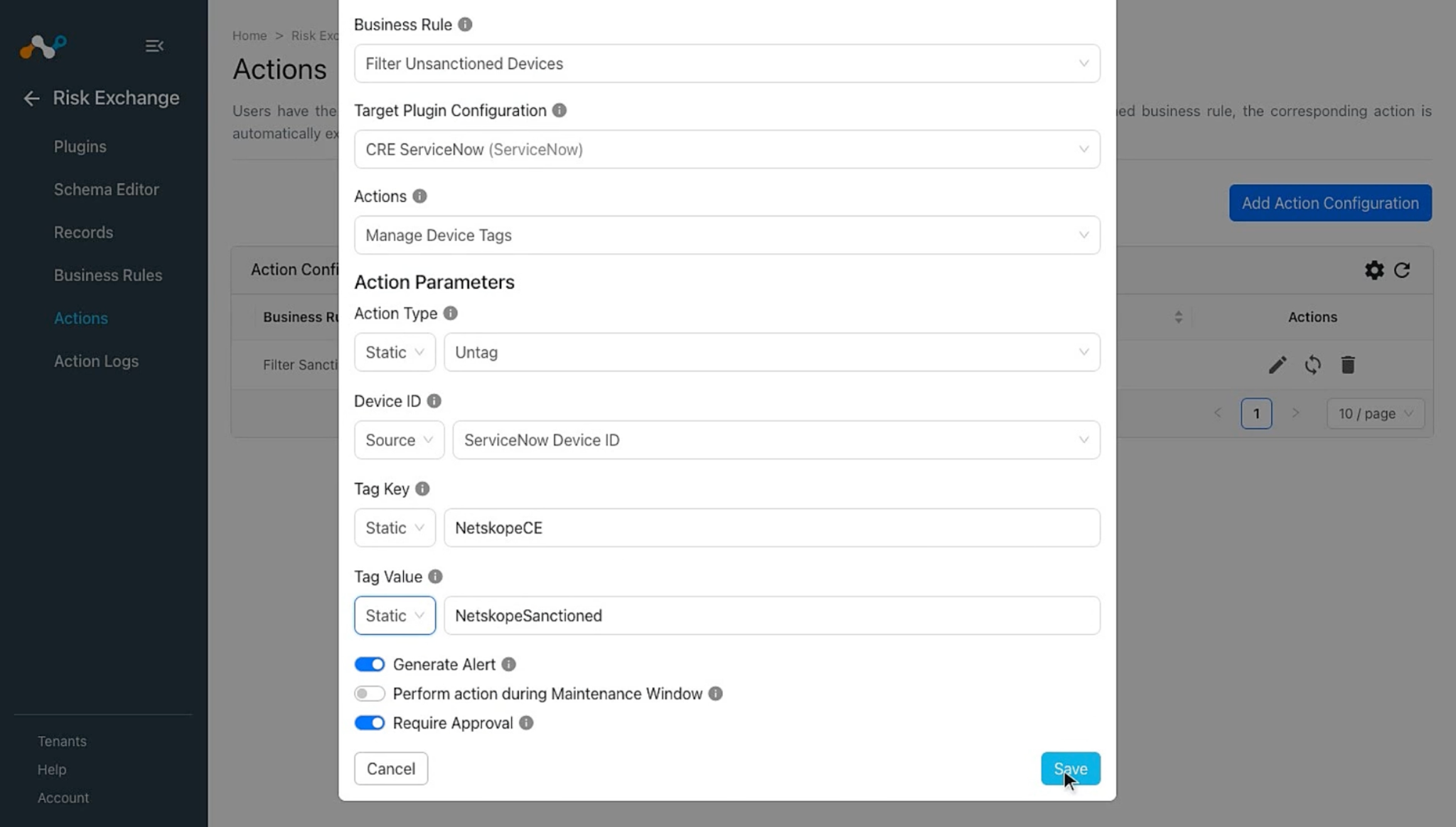

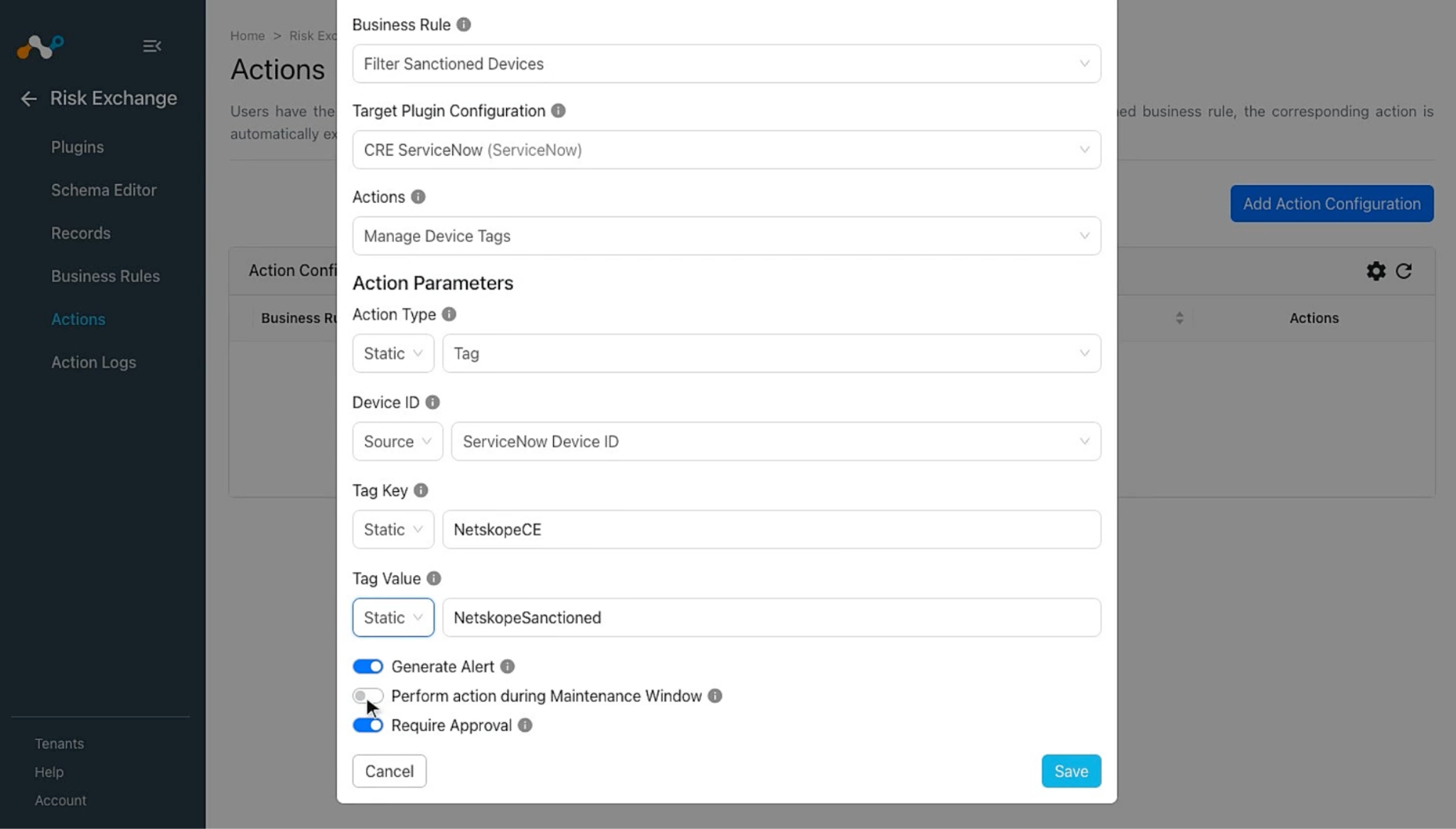

    Manage Device Tags
    Manage Application Tags
    Share Application Data
    No Action

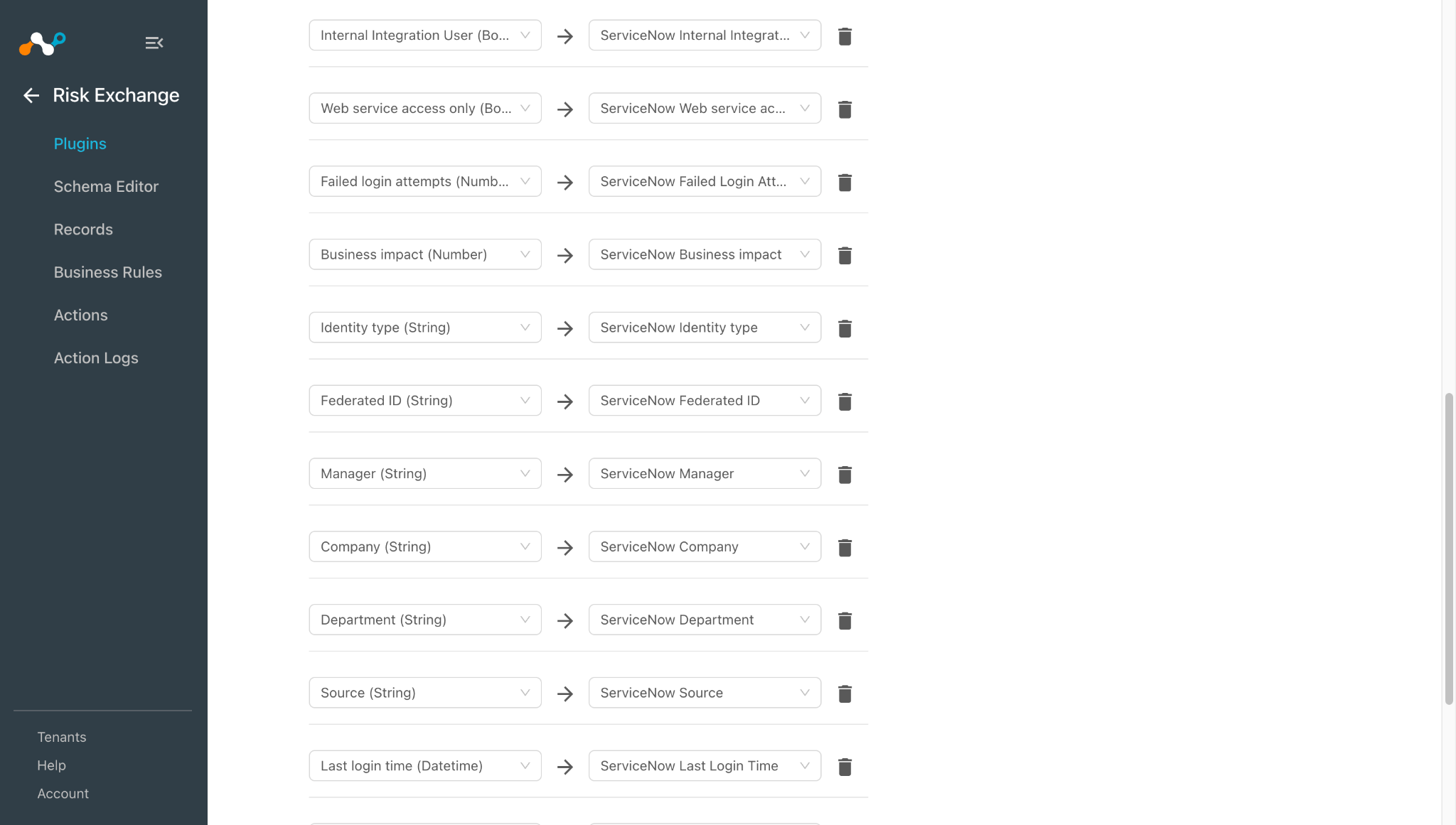

    Mappings

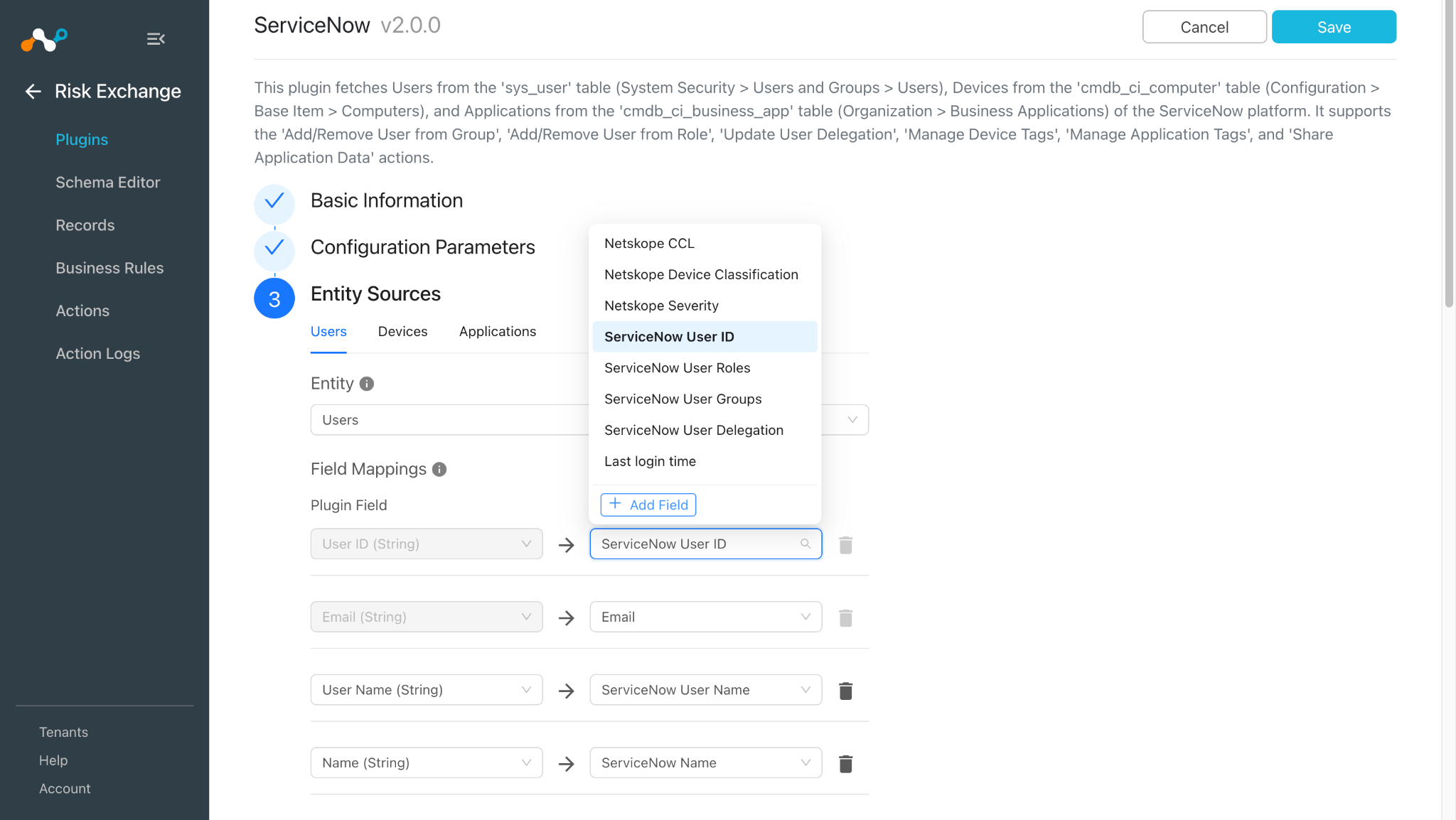

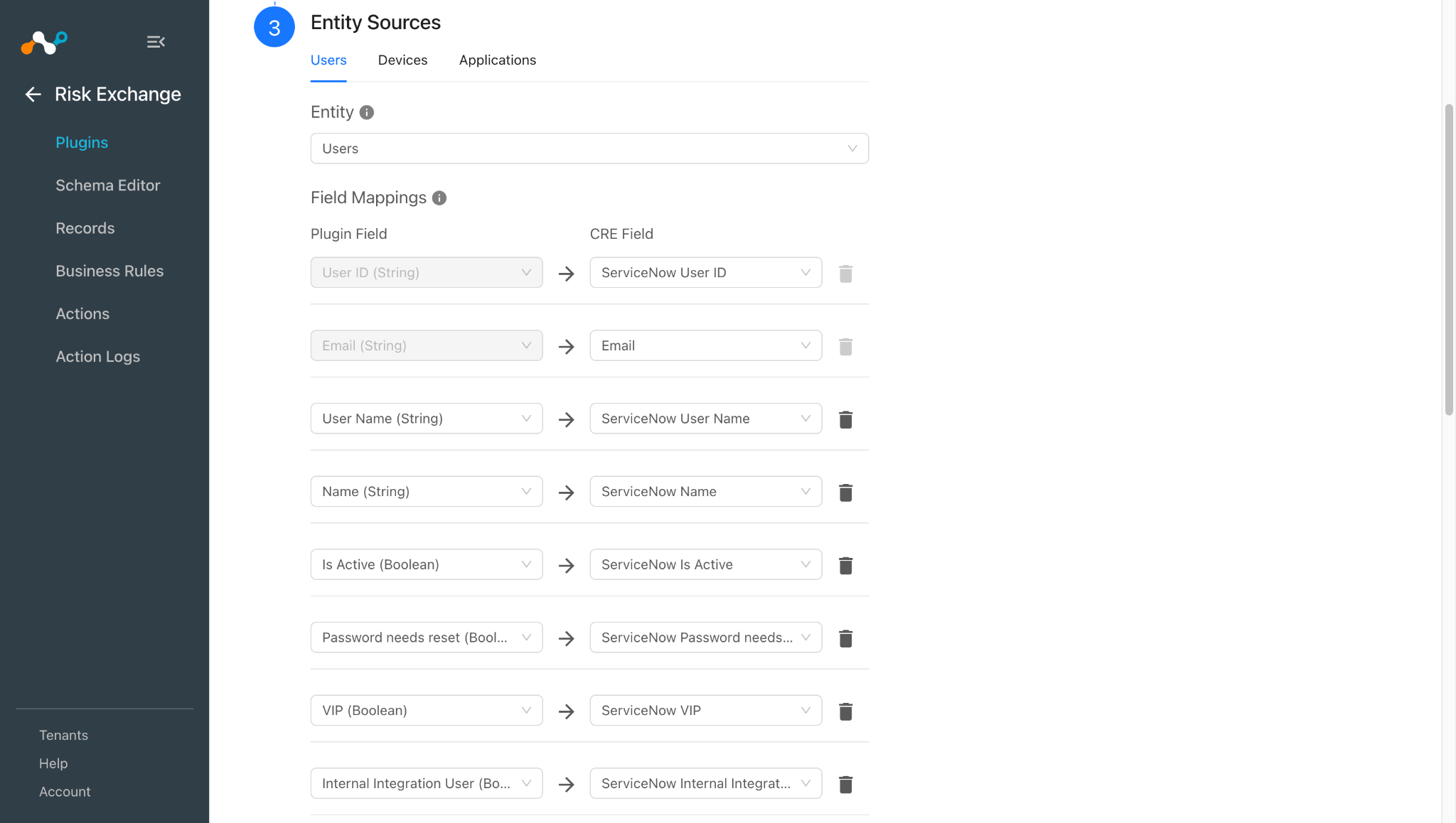

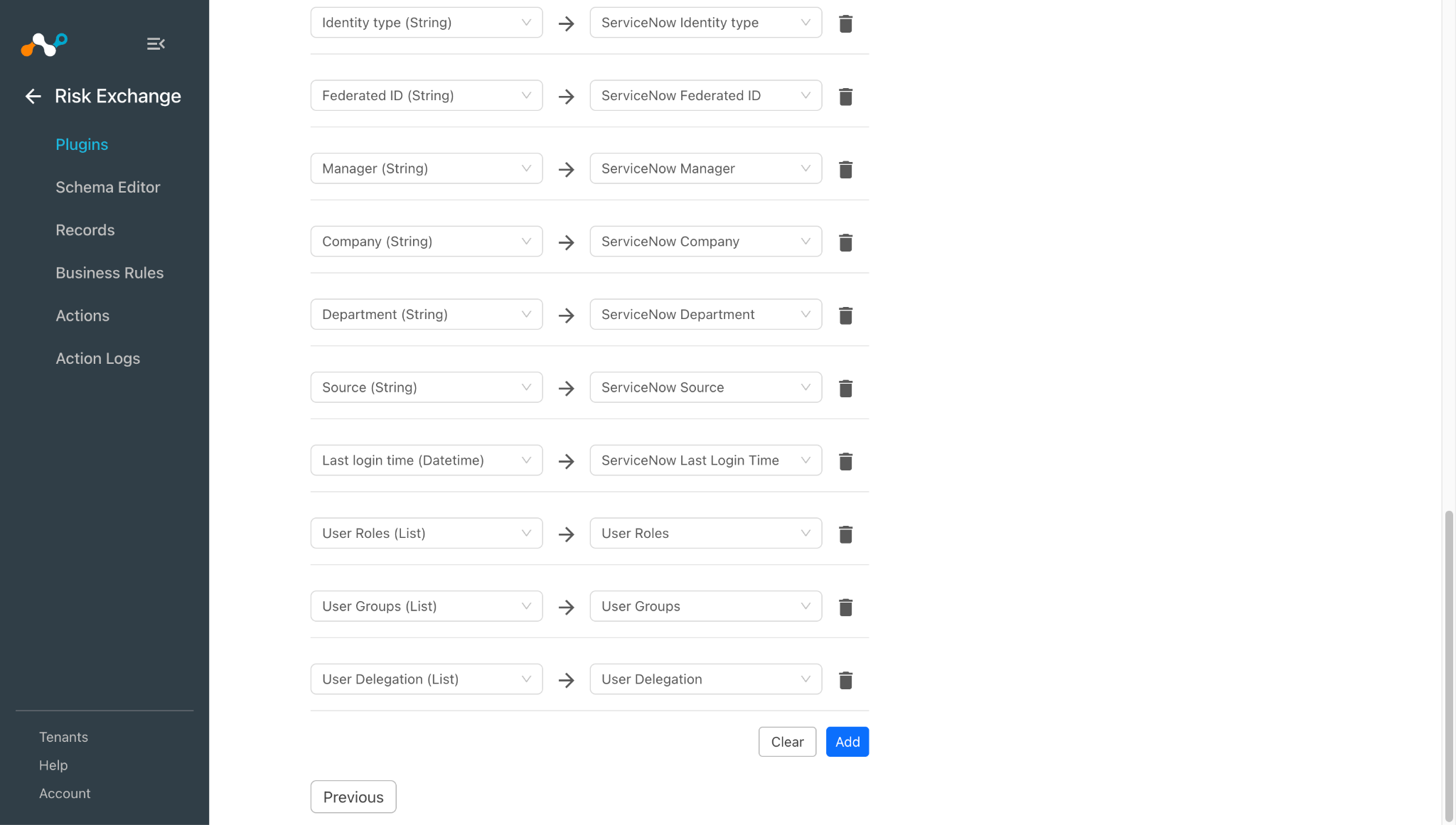

    Pull Mappings for Users
    Plugin Field LabelExpected Data TypeSuggested Field LabelAggregate StrategyExample
    User IDStringServiceNow_user_idOverwrite005d500b536073005e0addeeff7b12f4
    EmailStringEmailUniquesurvey.user@email.com
    User NameStringServiceNow_user_nameOverwritesurvey.user
    NameStringServiceNow_nameOverwritesurvey user
    Failed Login AttemptsIntegerServiceNow_failed_attemptsOverwrite0
    Password Needs ResetBooleanServiceNow_password_needs_resetOverwritefalse
    Is ActiveBooleanServiceNow_activeOverwritetrue
    Last Login TimeDatetimeServiceNow_last_login_timeOverwrite2019-04-05 15:16:30
    User RolesListServiceNow_user_rolesOverwriterole_delegator
    User GroupsListServiceNow_user_groupsOverwriteAnalytics Settings Managers
    User DelegationListServiceNow_user_delegationOverwriteuser1@example.com, user2@example.com
    VIPBooleanServiceNow_vipOverwritefalse
    Business ImpactIntegerServiceNow_business_criticalityOverwrite3
    Internal Integration UserBooleanServiceNow_internal_integration_userOverwritefalse
    Web Service Access OnlyBooleanServiceNow_web_service_access_onlyOverwritefalse
    Identity TypeStringServiceNow_identity_typeOverwriteunclassified
    Federated IDStringServiceNow_federated_idOverwriteUU/OJDA/H2viaQb8VqlJIYSYKwmbkOCLoFDQkTPv7XM=
    ManagerStringServiceNow_managerOverwritejane.doe@example.com
    CompanyStringServiceNow_companyOverwriteGenuineIntel
    DepartmentStringServiceNow_departmentOverwriteIT
    SourceStringServiceNow_sourceOverwriteLDAP
    To merge users records between Netskope Tenant and ServiceNow, you can keep Email as a unique and common field.

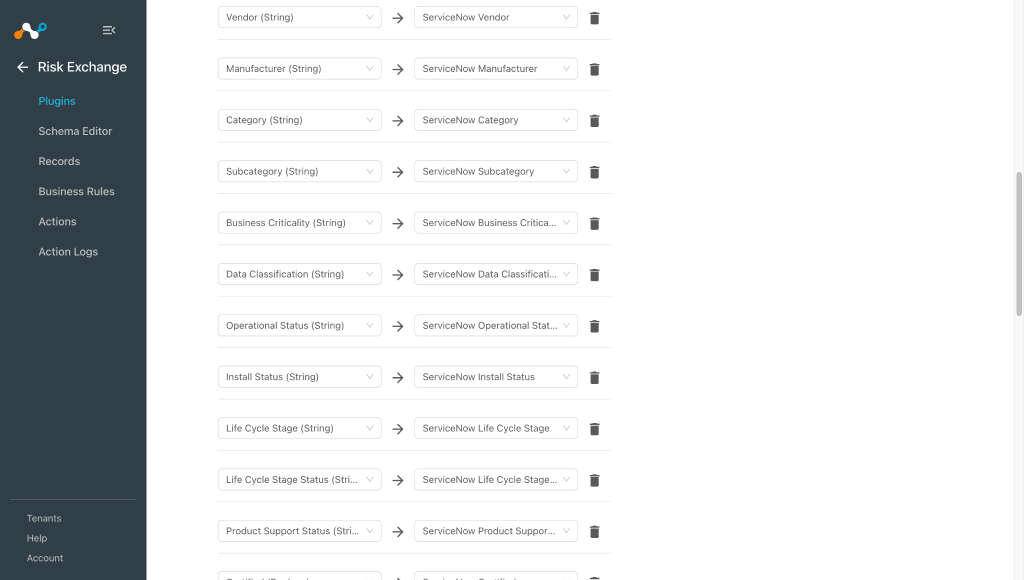

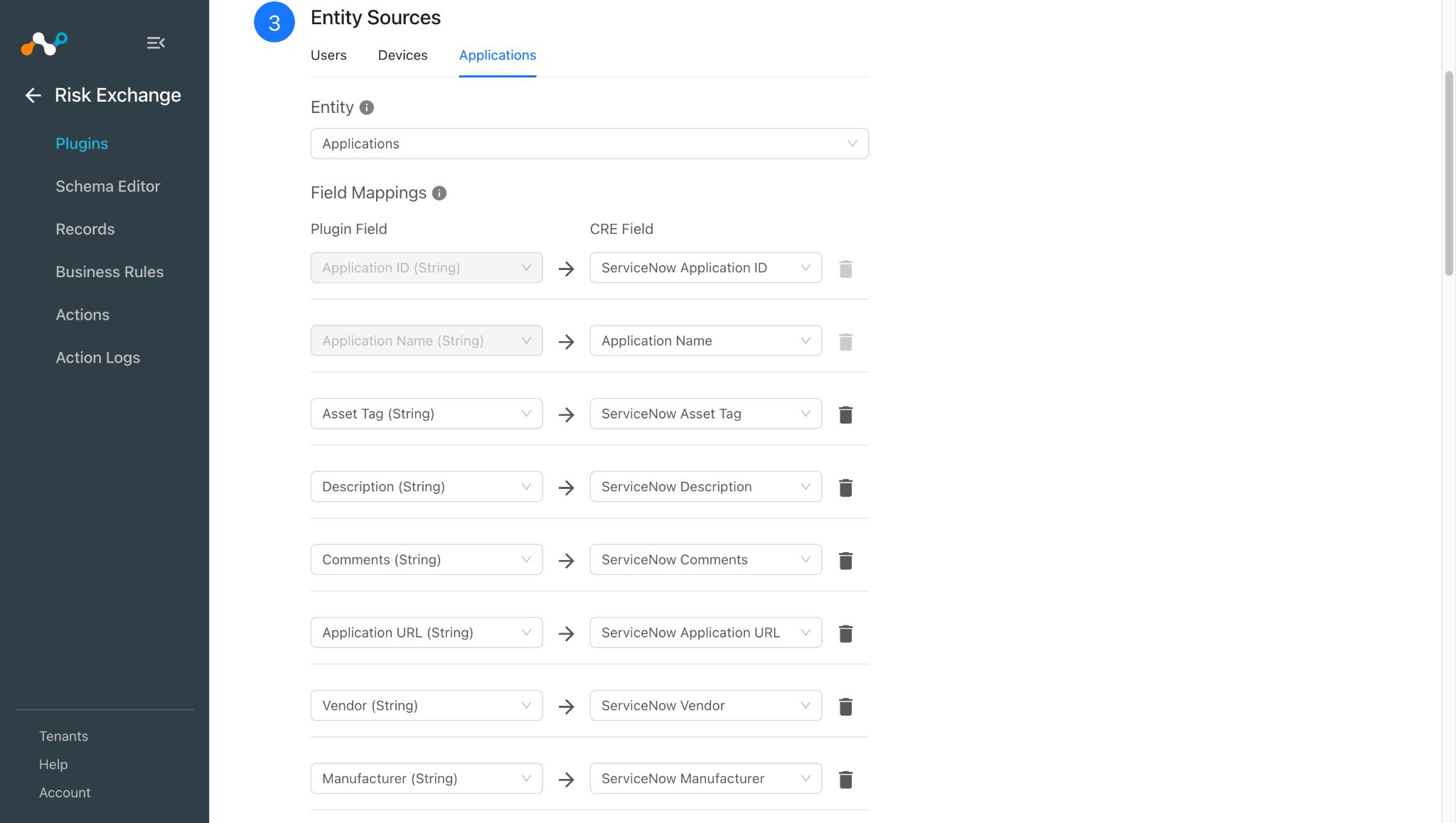

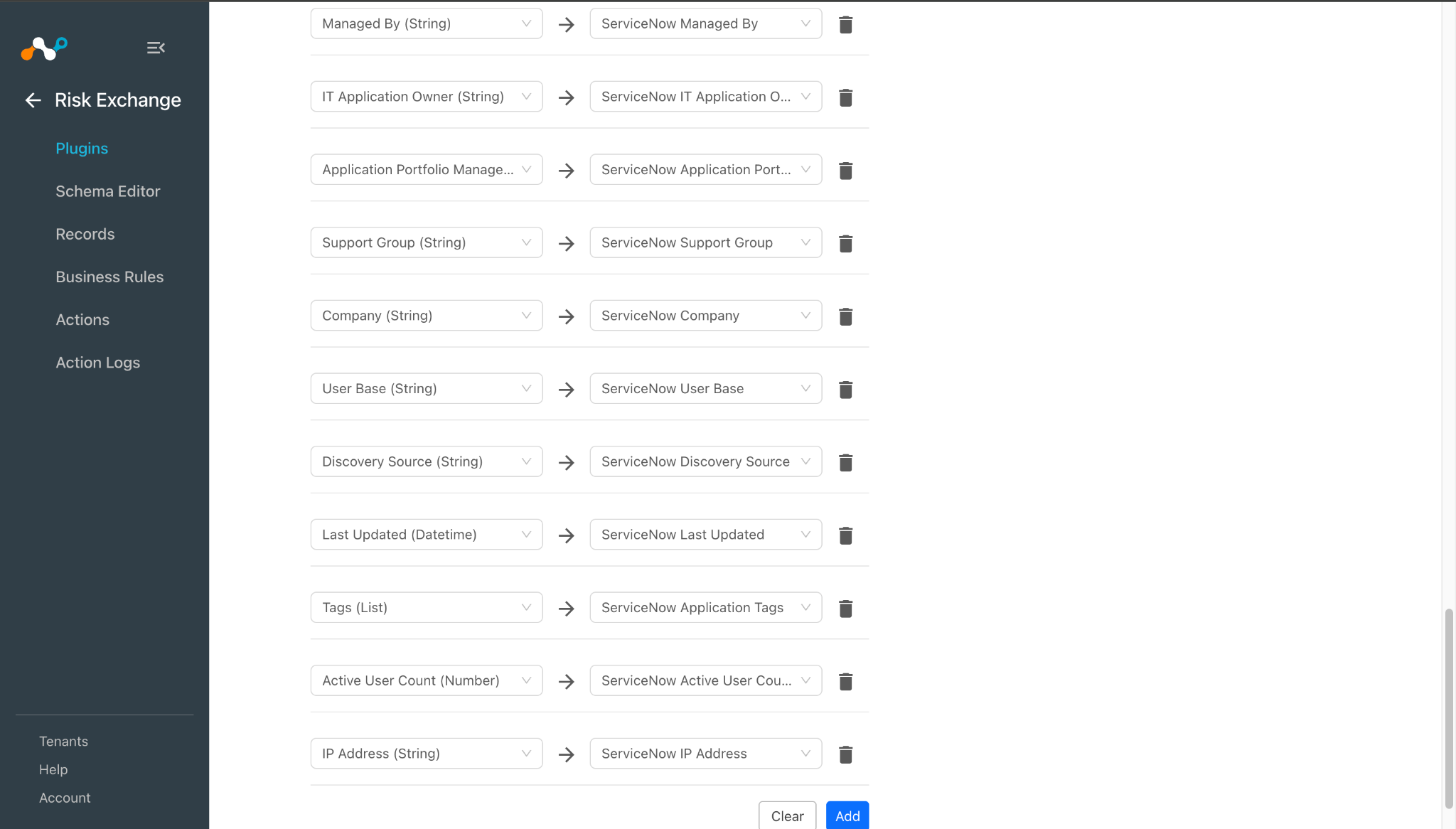

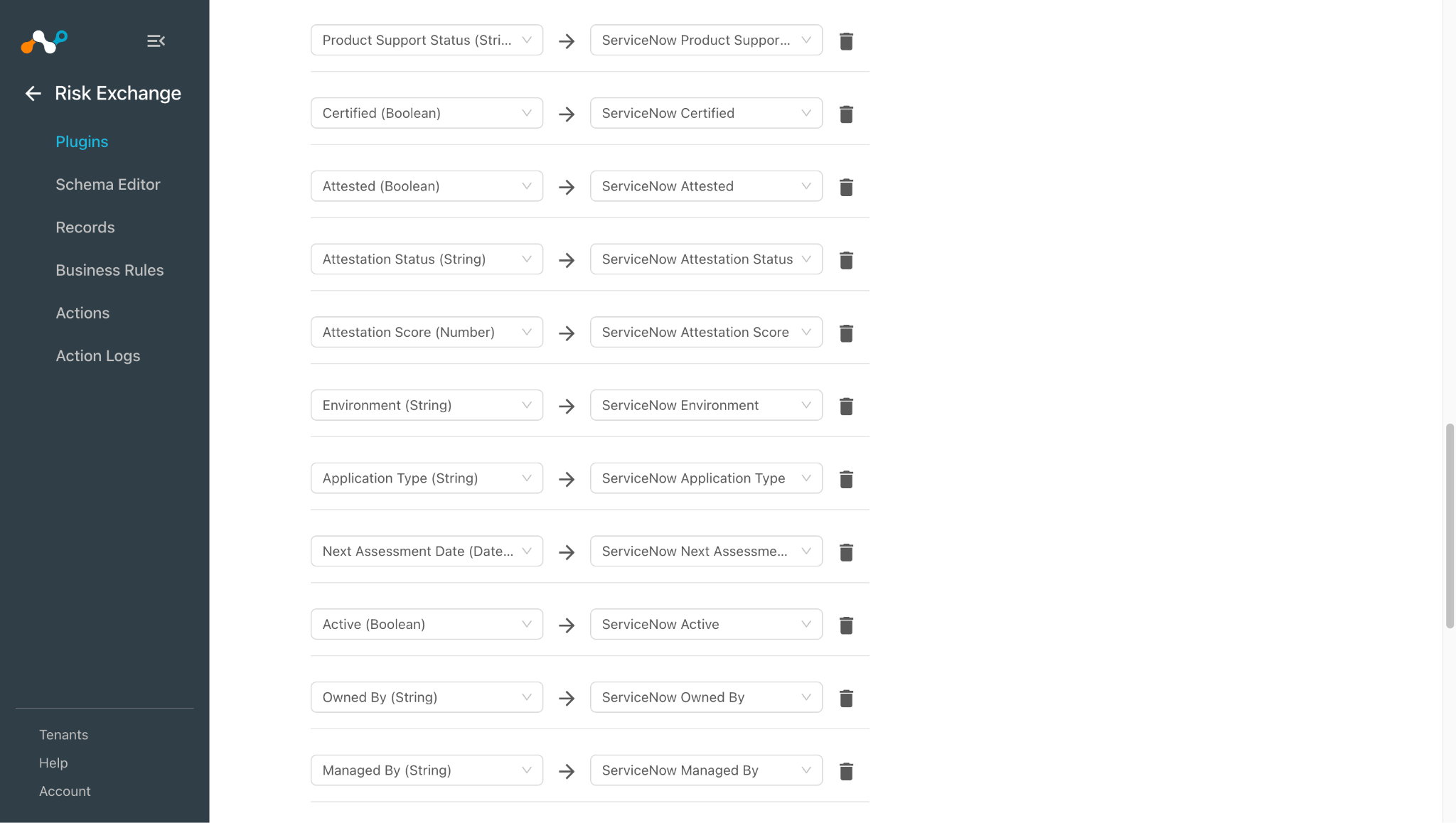

    Pull Mappings for Applications
    Plugin Field LabelExpected Data TypeSuggested Field LabelAggregate StrategyExample
    Application IDStringServiceNow_application_idUnique
    (Keep this Overwrite if you want to merge records with Netskope Tenant)
    5d935f86835e8b104f7556a6feaad35b
    Application NameStringApplication NameOverwrite (Keep this unique if you want to merge records with Netskope Tenant)CrowdStrike
    Asset TagStringServiceNow_asset_tagOverwriteAPP-00231
    DescriptionStringServiceNow_short_descriptionOverwriteEndpoint detection and response platform
    NotesStringServiceNow_commentsOverwrite[Netskope CE] Last shared at: 2026-07-27 07:22:09Z\nApplication Name: CrowdStrike, Cloud Confidence Index: 1, CCL: low, Category Name: NetskopeAPP, Deep Link: netskope.com
    Application URLStringServiceNow_urlOverwritehttps://app.netskope.example/app/CrowdStrike
    IP AddressStringServiceNowip_addressOverwrite10.50.1.3
    TagsListServiceNoe_tagsOverwriteTag1, tag2
    VendorStringServiceNow_vendorOverwriteCrowdStrike Inc.
    ManufacturerStringServiceNow_manufacturerOverwriteCrowdStrike Inc.
    CategoryStringServiceNow_categoryOverwriteXDR
    SubcategoryStringServiceNow_subcategoryOverwriteEndpoint Security
    Business CriticalityStringServiceNow_business_criticalityOverwrite3 – Non-critical
    Data ClassificationStringServiceNow_data_classificationOverwriteInternal
    Operational StatusIntegerServiceNow_operational_statusOverwrite1
    Install StatusIntegerServiceNow_install_statusOverwrite1
    Life Cycle StageStringServiceNow_life_cycle_stageOverwriteOperate
    Life Cycle Stage StatusStringServiceNow_life_cycle_stage_statusOverwriteIn Use
    Product Support StatusStringServiceNow_product_support_statusOverwriteFull Support
    CertifiedBooleanServiceNow_certifiedOverwritefalse
    AttestedBooleanServiceNow_attestedOverwritefalse
    Attestation StatusStringServiceNow_attestation_statusOverwriteNot Yet Reviewed
    Attestation ScoreIntegerServiceNow_attestation_scoreOverwrite85
    EnvironmentStringServiceNow_environmentOverwriteProduction
    Application TypeStringServiceNow_application_typeOverwriteSaaS
    Next Assessment DateDateServiceNow_next_assessment_dateOverwrite2026-12-31
    ActiveBooleanServiceNow_activeOverwritetrue
    Owned ByStringServiceNow_owned_byOverwritejane.doe@example.com
    Managed ByStringServiceNow_managed_byOverwritejohn.smith@example.com
    IT Application OwnerStringServiceNow_it_application_ownerOverwritealex.jones@example.com
    Application Portfolio ManagerStringServiceNow_application_managerOverwritemorgan.lee@example.com
    Support GroupStringServiceNow_support_groupOverwriteIT Application Support
    CompanyStringServiceNow_companyOverwriteGenuineIntel
    User BaseStringServiceNow_user_baseOverwriteEnterprise
    Active User CountIntegerServiceNow_active_user_countOverwrite1250
    Discovery SourceStringServiceNow_discovery_sourceOverwriteNetskopeCloudExchange
    Last UpdatedDatetimeServiceNow_sys_updated_onOverwrite2026-07-28 01:49:06
    To merge application records between Netskope Tenant and ServiceNow, you can keep Application name as unique and common field.

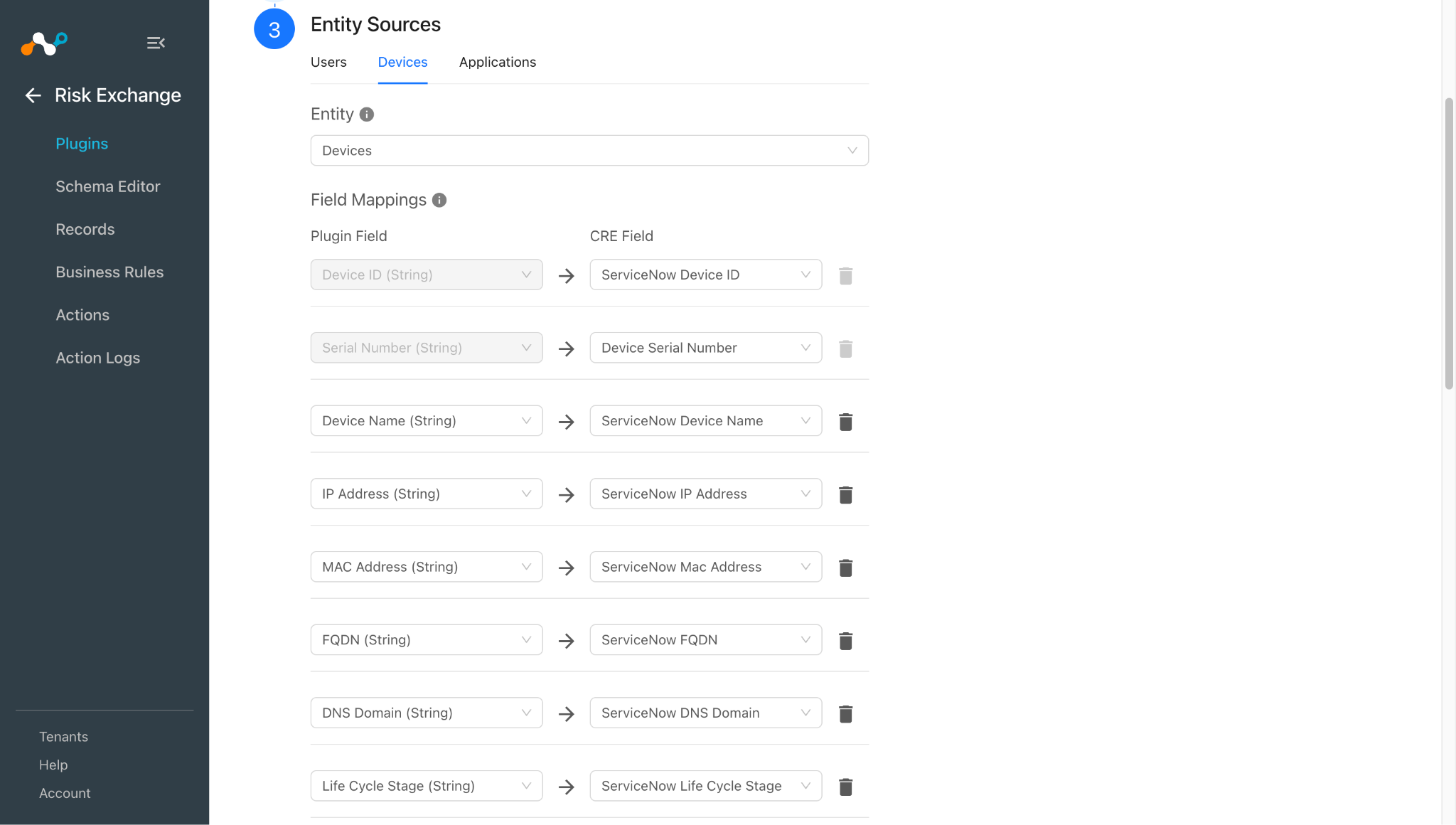

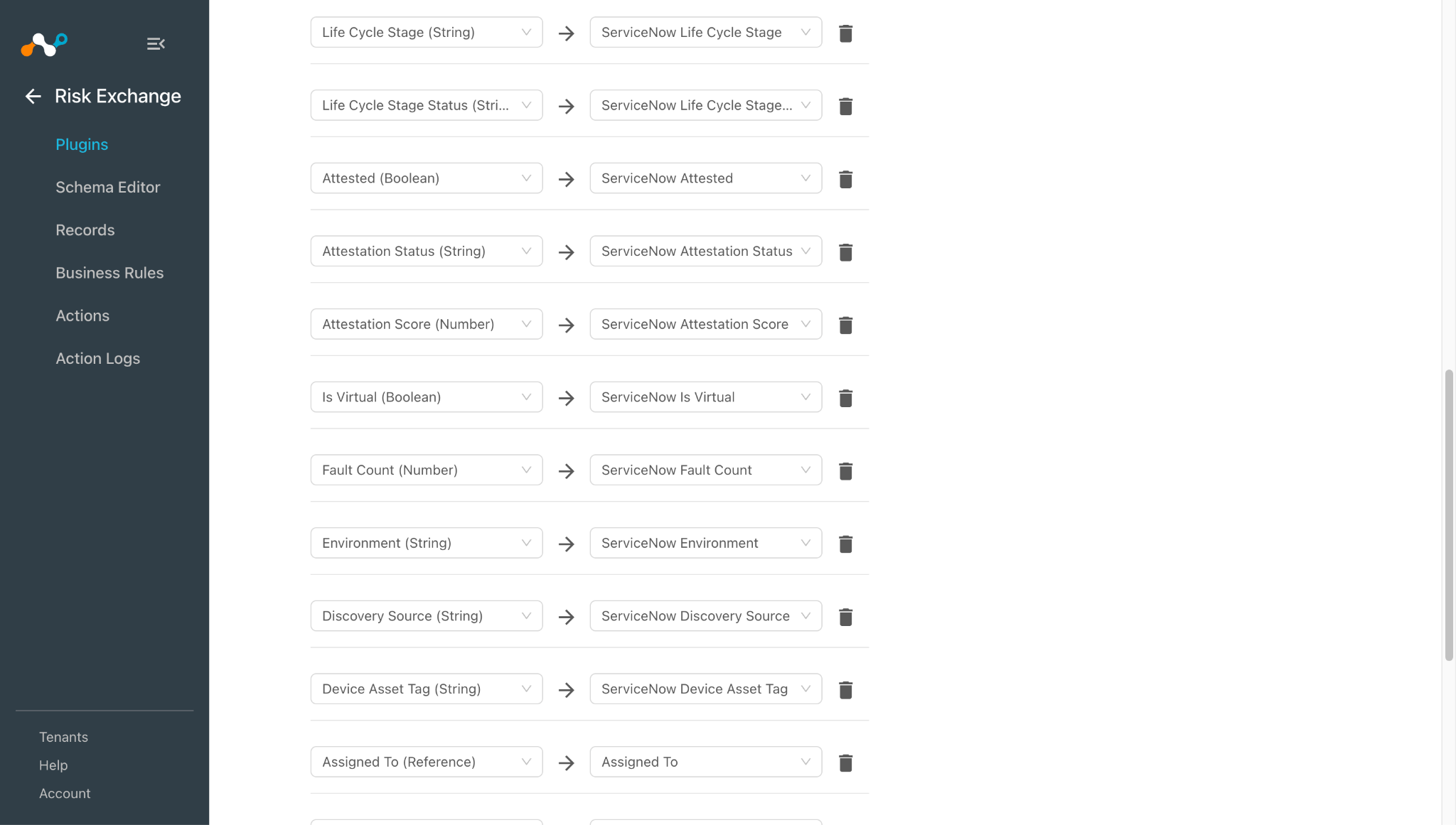

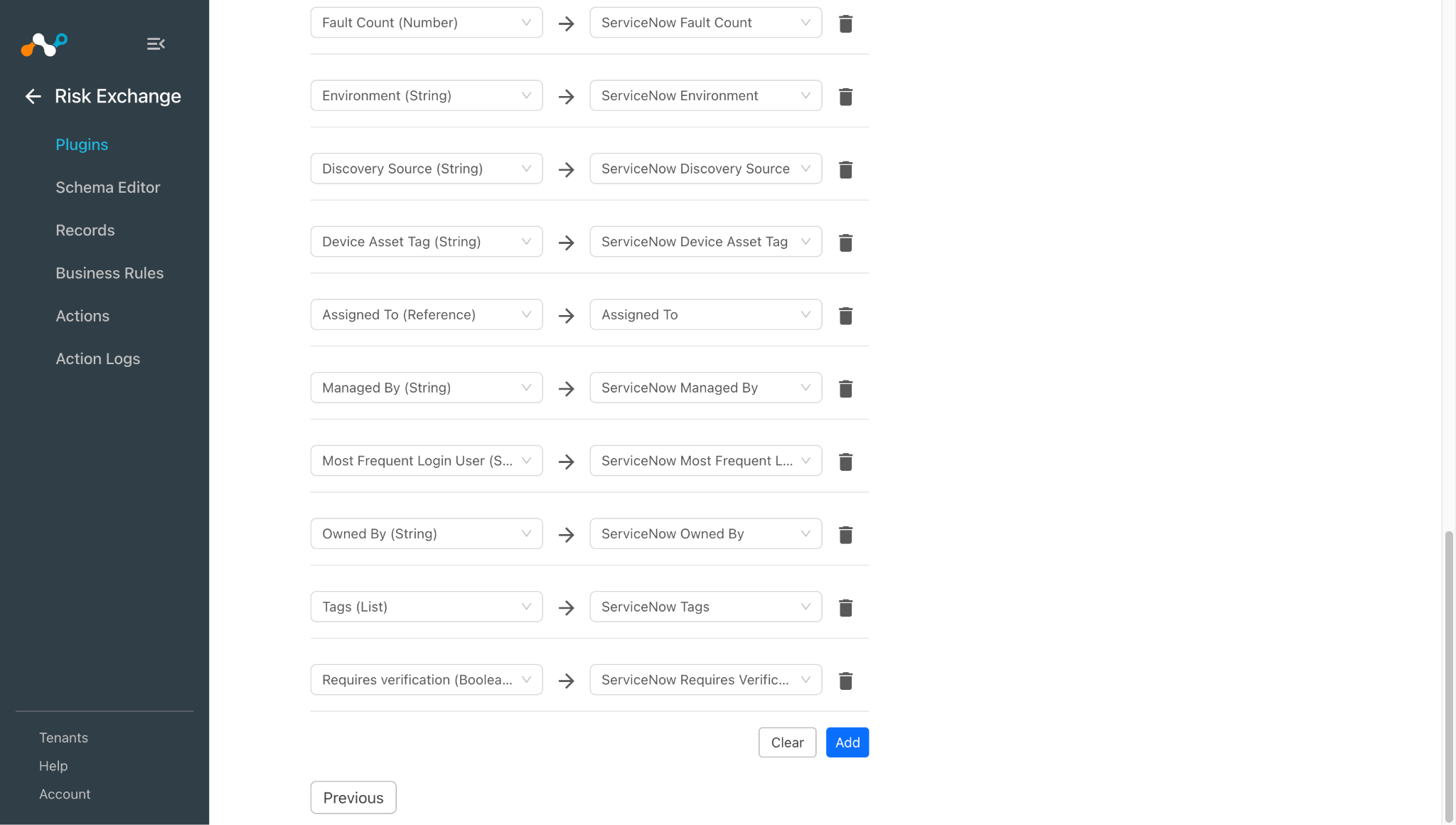

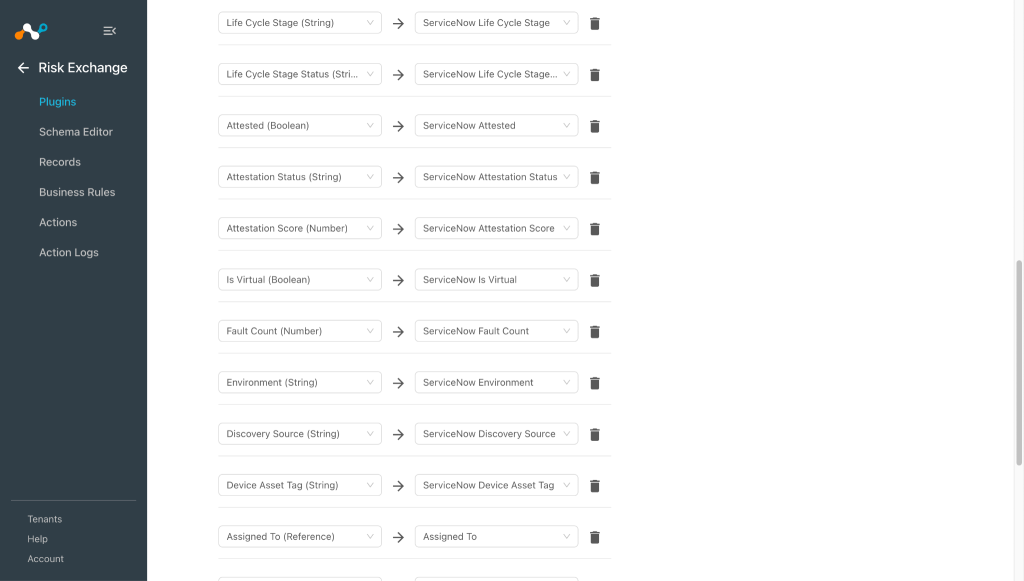

    Pull Mappings for Devices
    Plugin Field LabelExpected Data TypeSuggested Field LabelAggregate StrategyExample
    Device IDStringServiceNow_device_idOverwrite00a96c0d3790200044e0bfc8bcbe5db4
    Device NameStringServiceNow_device_nameOverwriteMacBook Pro 15″
    Serial NumberStringDevice Serial NumberUniqueABE-486-V17263-DO
    IP AddressStringServiceNow_ip_addressOverwrite10.0.12.44
    MAC AddressStringServiceNow_mac_addressOverwrite00:1B:44:11:3A:B7
    FQDNStringServiceNow_fqdnOverwritemacbook-15.corp.example.com
    DNS DomainStringServiceNow_dns_domainOverwritecorp.example.com
    TagsListServiceNow_tagsOverwriteTag1, tag2
    Life Cycle StageStringServiceNow_life_cycle_stageOverwriteOperate
    Life Cycle Stage StatusStringServiceNow_life_cycle_stage_statusOverwriteIn Use
    Warranty ExpirationDateServiceNow_warranty_expirationOverwrite2027-01-15
    AttestedBooleanServiceNow_attestedOverwritefalse
    Attestation StatusStringServiceNow_attestation_statusOverwriteNot Yet Reviewed
    Attestation ScoreStringServiceNow_attestation_scoreOverwrite90
    Requires VerificationBooleanServiceNow_unverifiedOverwritefalse
    Is VirtualBooleanServiceNow_virtualOverwritefalse
    Fault CountIntegerServiceNow_fault_countOverwrite0
    EnvironmentStringServiceNow_environmentOverwriteProduction
    Discovery SourceStringServiceNow_discovery_sourceOverwriteDiscovery
    Device Asset TagStringServiceNow_asset_tagOverwriteP1000503
    Assigned ToStringServiceNow_assigned_toOverwriteeduardo.bellendir@example.com
    Managed ByStringServiceNow_managed_byOverwritejohn.smith@example.com
    Most Frequent Login UserStringServiceNow_most_frequent_userOverwritemaria.garcia@example.com
    Owned ByStringServiceNow_owned_byOverwritejane.doe@example.com
    To merge device records between Netskope Tenant and ServiceNow, you can keep Device Serial Number as a unique and common field.
    Push Mapping

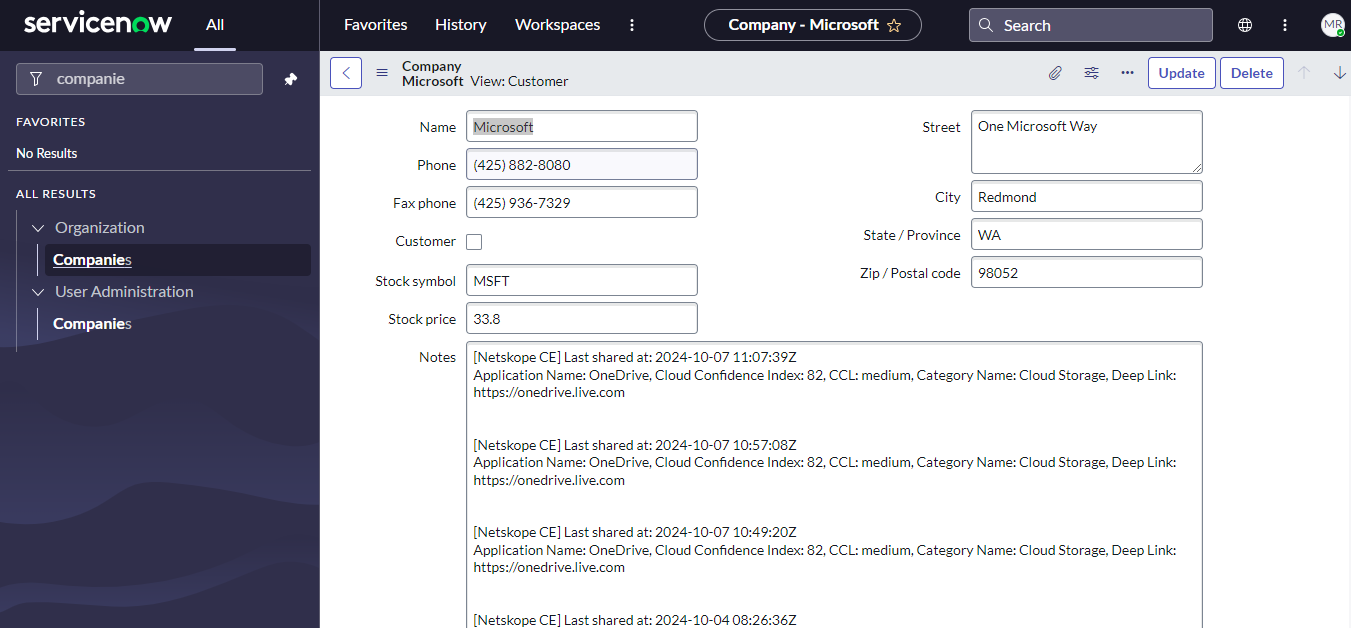

    The following message will be added to the ‘notes’ field of the ‘core_company’ table on the ServiceNow platform.

    [Netskope CE] Last shared at: <sharing_time>Application Name: <application_name>, Cloud Confidence Index: <cci>, CCL: <ccl>, Category Name: <category_name>, Deep Link: <deep_link>

    The following Application Fields are shared:

    Applications Fields
    Application Name
    CCI
    CCL
    Category Name
    Deep Link
    Permissions

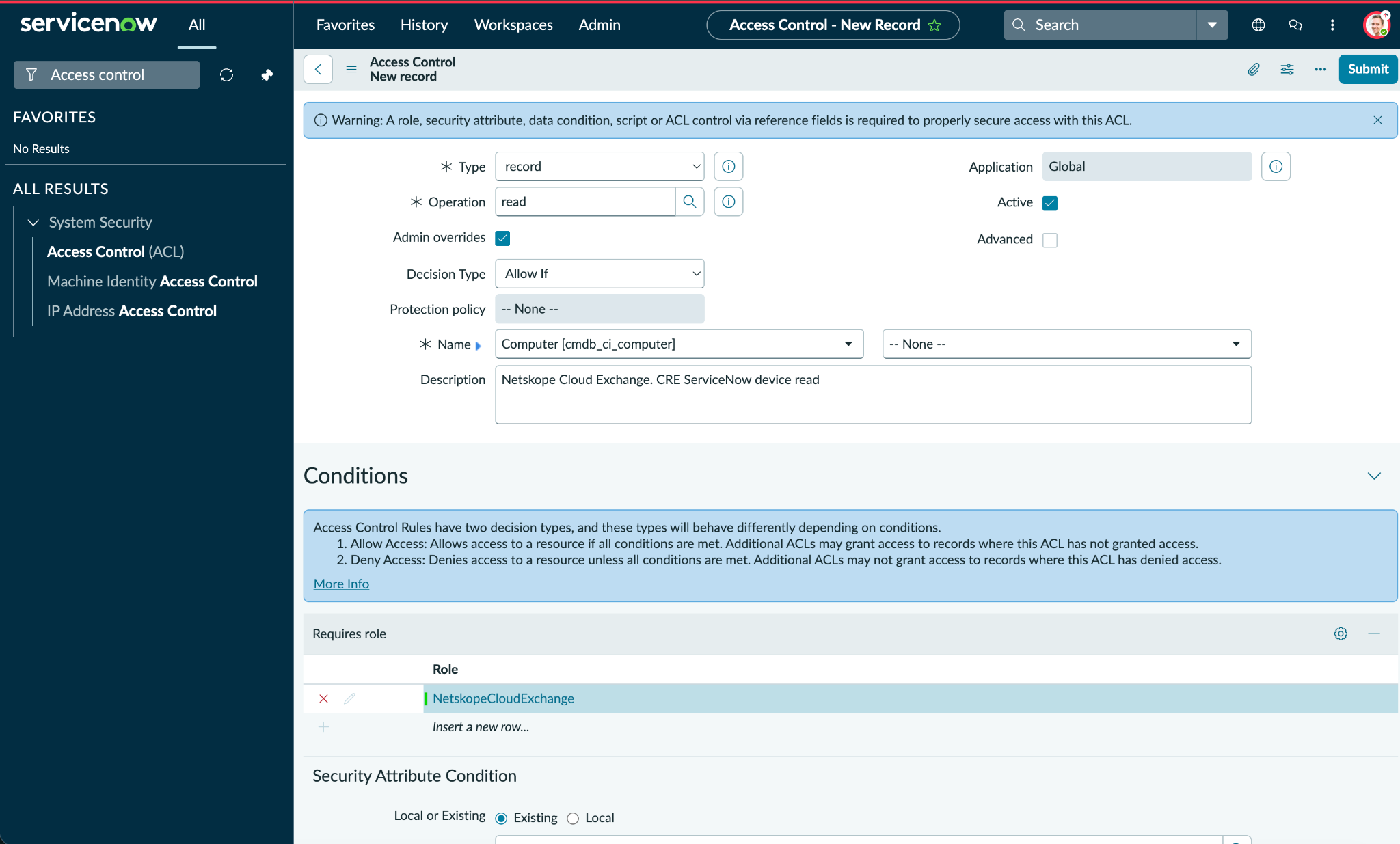

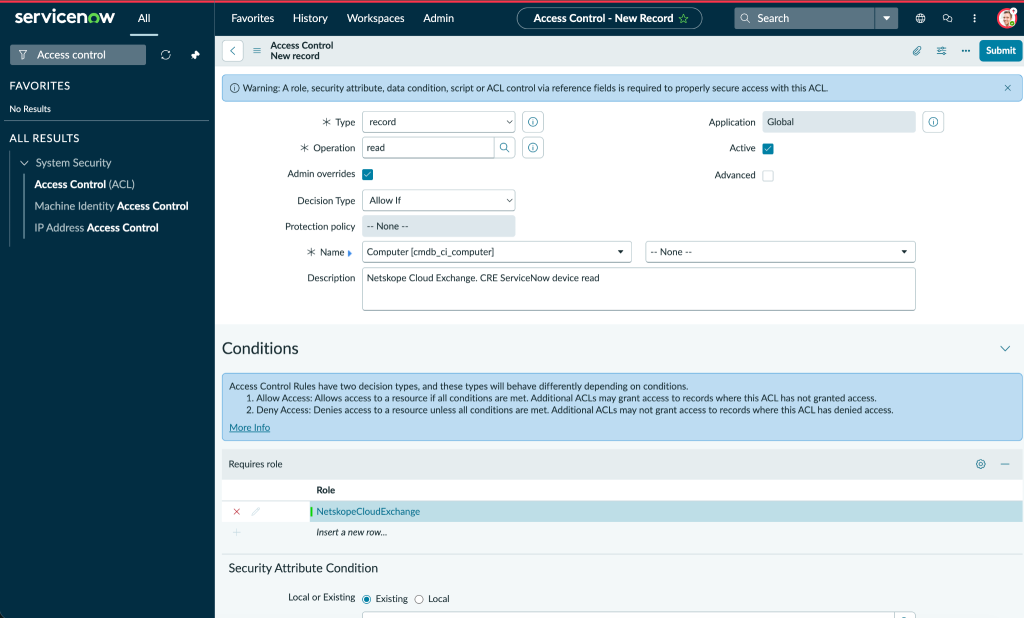

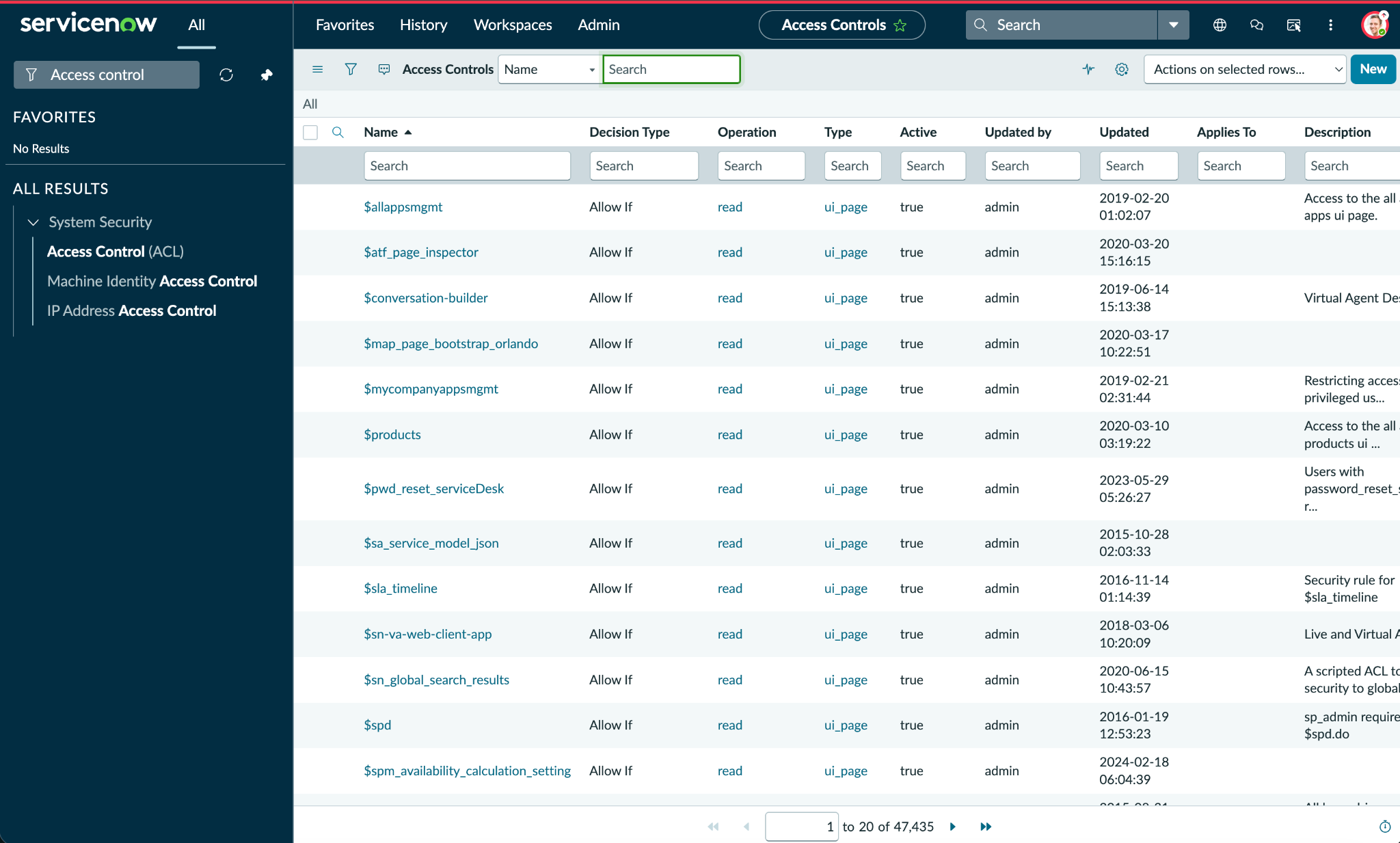

    Below is the list of required ACLs to use the ServiceNow plugin:

    TableReadCreateWrite (update)Delete
    cmdb_ciYes–––
    sys_userYes–––
    cmdb_ci_computerYes–––
    cmdb_ci_business_appYesYesYes–
    sys_user_roleYes–––
    sys_user_has_roleYesYes–Yes
    sys_user_grmemberYesYes–Yes
    sys_user_delegateYesYesYesYes
    cmdb_key_valueYesYes–Yes
    sys_user_groupYesYes––
    core_companyYes–Yes–

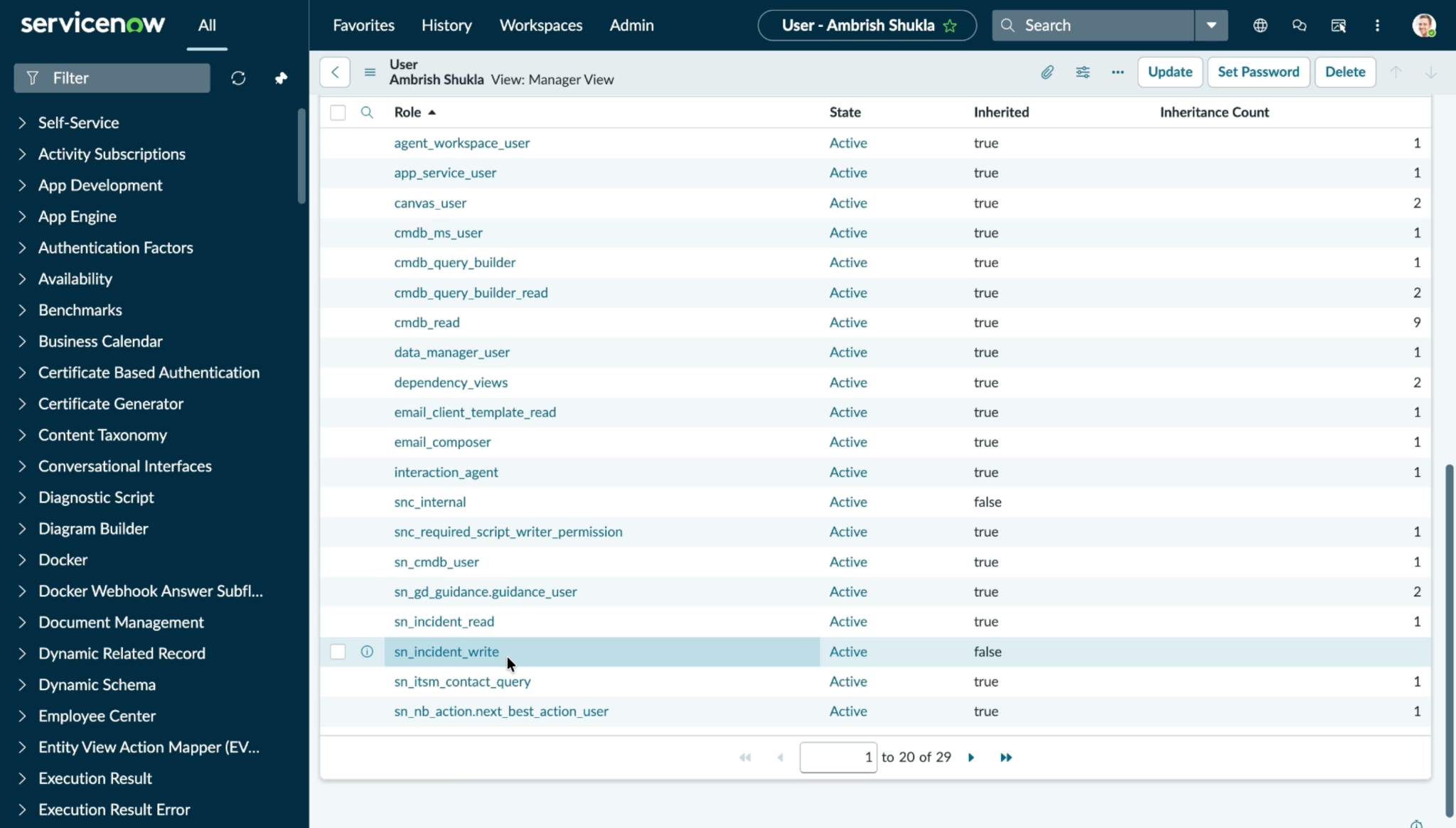

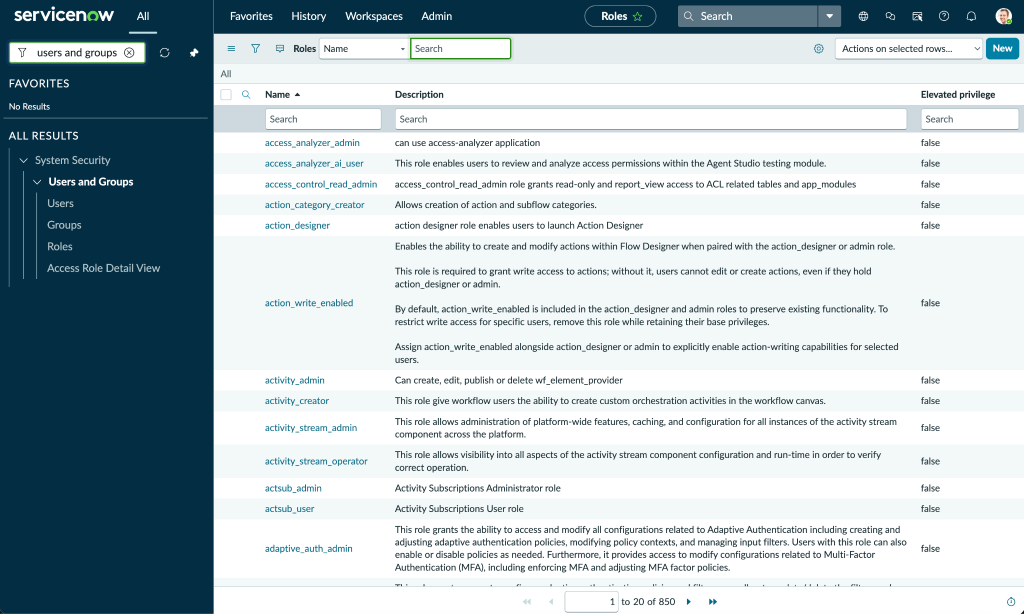

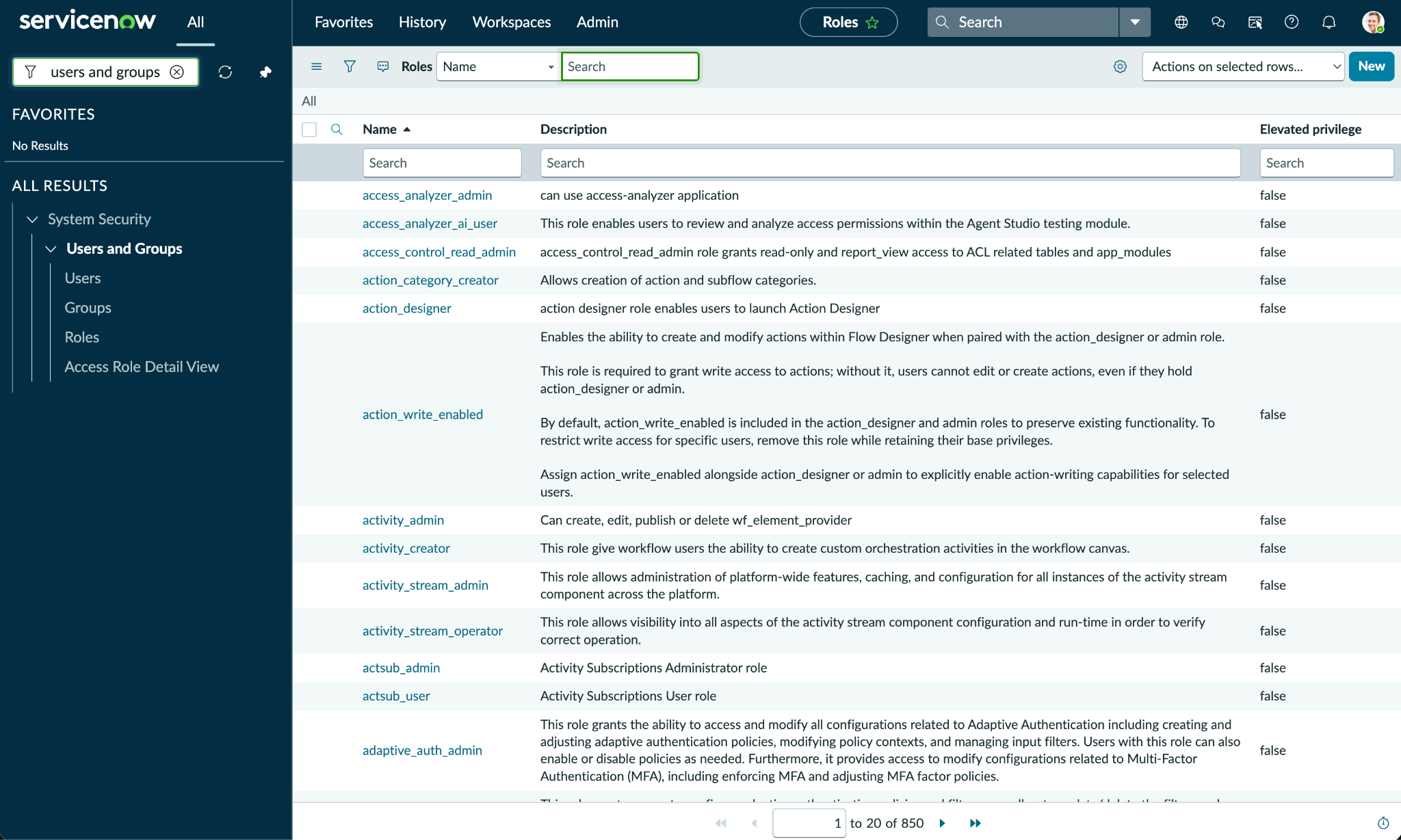

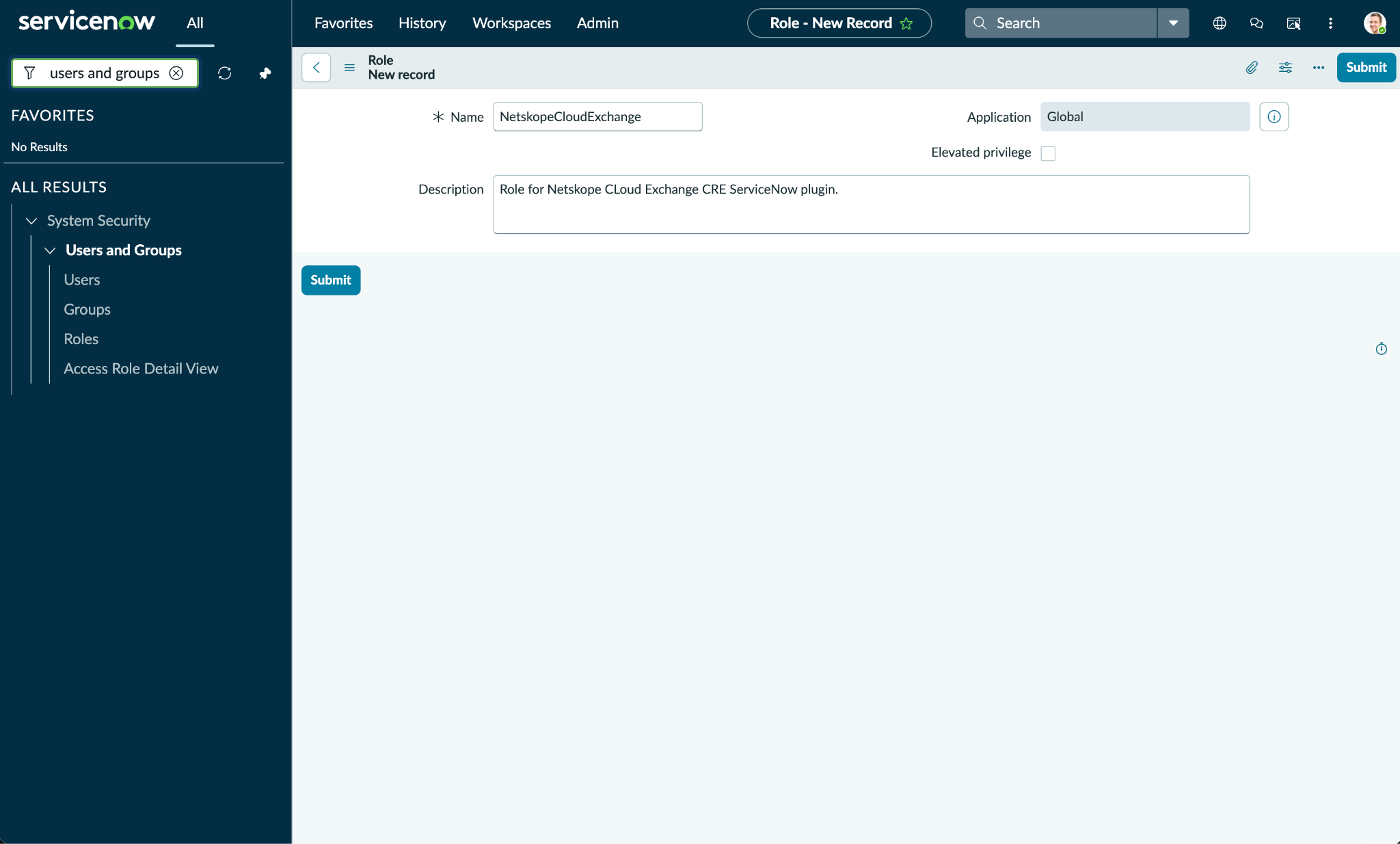

    Required Roles:

    • cmdb_read
    • snc_internal
    • sn_cmdb_editor
    • user_admin
    • custom role with above listed ACL permissions

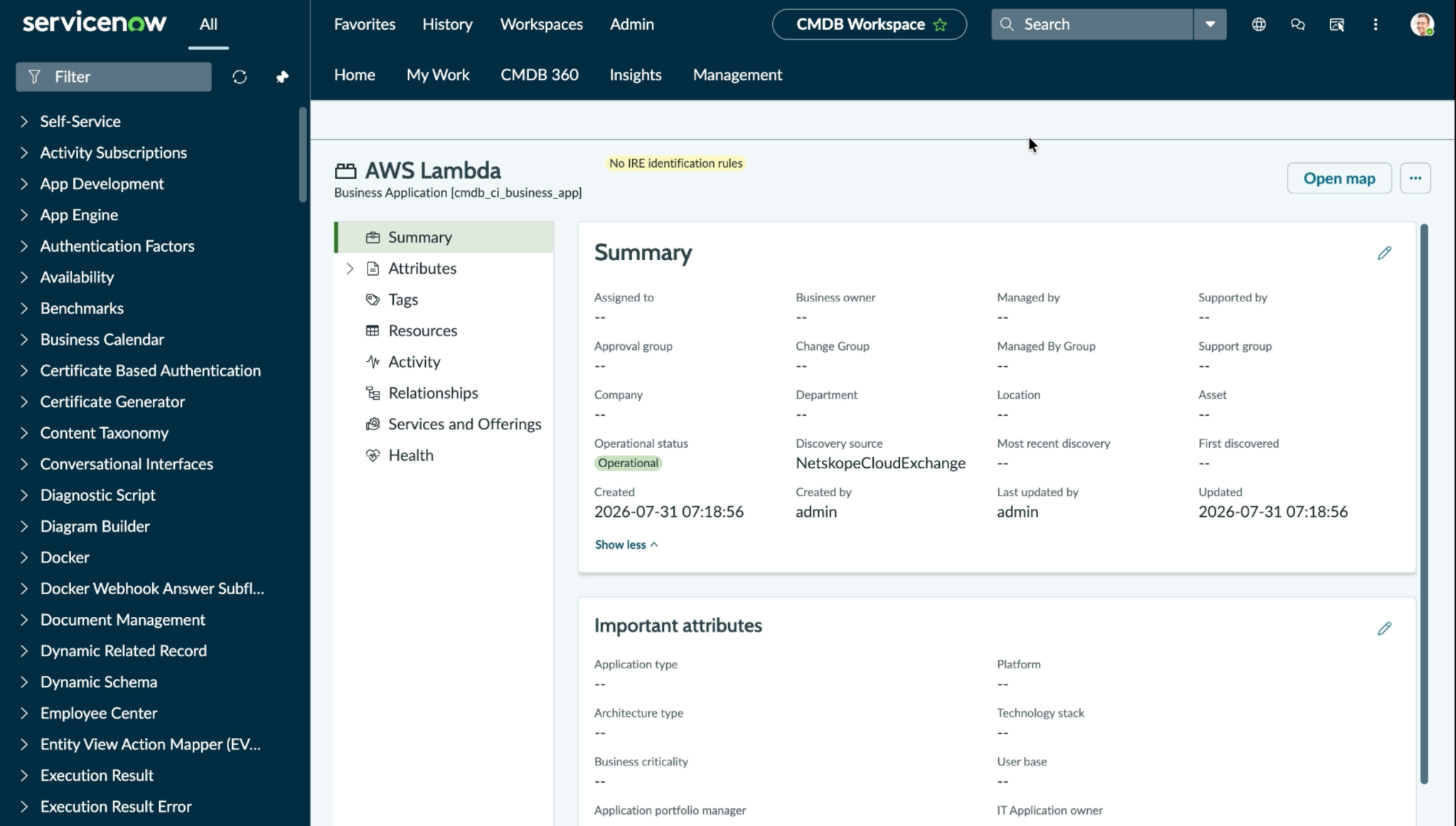

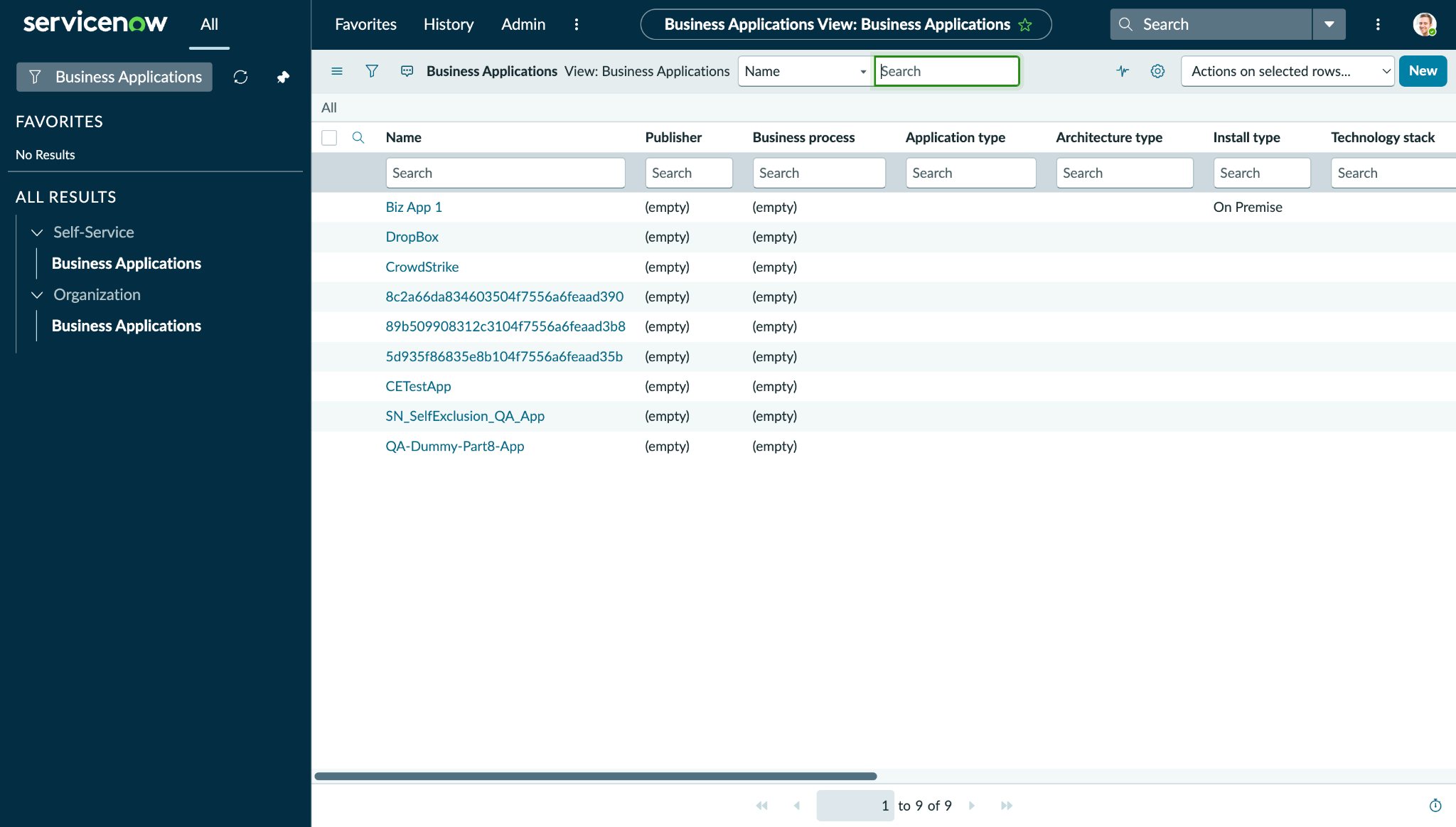

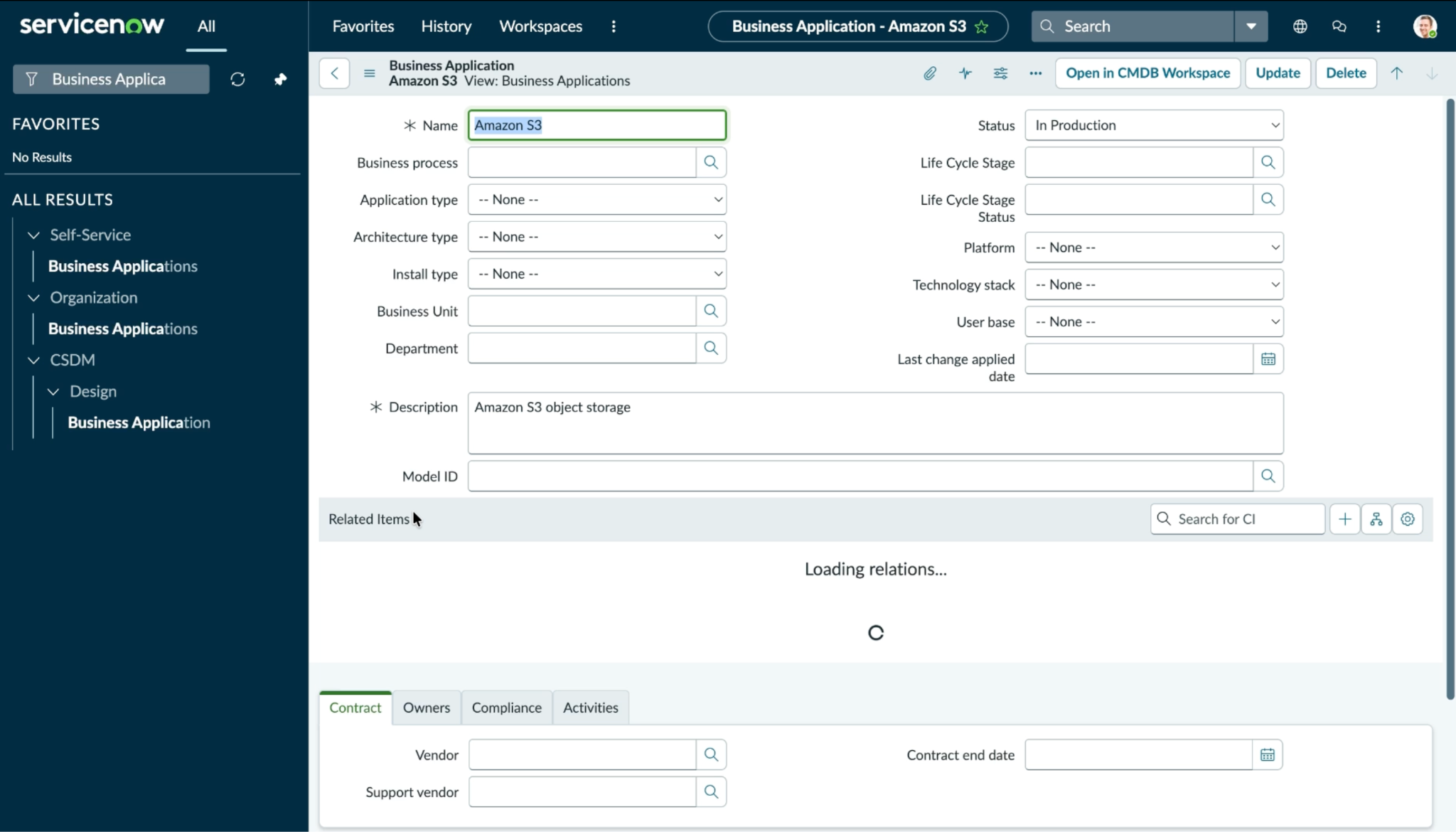

    If you want to pull and share application data to the cmdb_ci_business_app table via the ServiceNow plugin, then you will need to create a Discovery Source on your ServiceNow instance. This discovery source ensures that the application you shared from Cloud Exchange is not pulled back into Cloud Exchange. Since in some cases this can cause an infinite cyclic pulling and sharing of the same application. Refer to the Create Discovery Source section.
    API Details
    List of APIs used
    API EndpointMethodUse Case
    /api/now/table/sys_userGETPull user details
    /api/now/table/cmdb_ci_computerGETPull device details
    /api/now/table/cmdb_ci_business_appGETPull application details
    /api/now/table/sys_user_groupGETPull user group details
    /api/now/table/sys_user_roleGETPull user role details
    /api/now/table/sys_userGETResolve email/username to sys_id
    /api/now/table/sys_user_groupGETCheck if user group exists
    /api/now/table/sys_user_groupPOSTCreate user group
    /api/now/table/sys_user_grmemberGETCheck user group membership
    /api/now/table/sys_user_grmemberPOSTAdd user to group
    /api/now/table/sys_user_grmember/{sys_id}DELETERemove user from group
    /api/now/table/sys_user_has_roleGETCheck if role is assigned to user
    /api/now/table/sys_user_has_rolePOSTAdd role to user
    /api/now/table/sys_user_has_role/{sys_id}DELETERemove role from user
    /api/now/table/sys_user_delegateGETCheck if user delegation exists
    /api/now/table/sys_user_delegatePOSTCreate user delegation record
    /api/now/table/sys_user_delegate/{sys_id}PATCHUpdate user delegation record
    /api/now/table/sys_user_delegate/{sys_id}DELETEDelete user delegation record
    /api/now/table/cmdb_key_valueGETCheck if device or application tag record already exists
    /api/now/table/cmdb_key_valuePOSTTag device/application
    /api/now/table/cmdb_key_value/{sys_id}DELETEUntag device/application
    /api/now/table/cmdb_ci_business_appGETSearch for existing application on cmdb_ci_business_app table
    /api/now/table/cmdb_ci_business_appPOSTCreate application record on cmdb_ci_business_app table
    /api/now/table/cmdb_ci_business_app/{sys_id}PATCHUpdate application record on cmdb_ci_business_app table
    /api/now/table/core_companyGETSearch for existing company on core_company table
    /api/now/table/core_company/{sys_id}PATCHUpdate company record on core_company table
    /api/now/v1/batchPOSTBulk execute group, role, delegation, tag, and application/company share requests in a single call
    Users Pull

    Endpoint: GET /api/now/table/sys_user

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_limit10000
    sysparm_offsetPagination offset
    sysparm_fieldsComma-separated list of fields to return
    sysparm_exclude_reference_linktrue
    sysparm_display_valueall
    sysparm_queryactive=true — included only when Pull Inactive Users is not selected

    Sample Response:

    {
      "result": [
        {
          "sys_id": {
            "display_value": "005d500b536073005e0addeeff7b12f4",
            "value": "005d500b536073005e0addeeff7b12f4"
          },
          "email": {
            "display_value": "survey.user@email.com",
            "value": "survey.user@email.com"
          },
          "user_name": {
            "display_value": "survey.user",
            "value": "survey.user"
          },
          "name": {
            "display_value": "survey user",
            "value": "survey user"
          },
          "failed_attempts": {
            "display_value": "0",
            "value": "0"
          },
          "password_needs_reset": {
            "display_value": "false",
            "value": "false"
          },
          "active": {
            "display_value": "true",
            "value": "true"
          },
          "last_login_time": {
            "display_value": "2019-04-05 15:16:30",
            "value": "2019-04-05 22:16:30"
          },
          "vip": {
            "display_value": "false",
            "value": "false"
          },
          "business_criticality": {
            "display_value": "3 - Non-critical",
            "value": "3"
          },
          "internal_integration_user": {
            "display_value": "false",
            "value": "false"
          },
          "web_service_access_only": {
            "display_value": "false",
            "value": "false"
          },
          "identity_type": {
            "display_value": "-",
            "value": "unclassified"
          },
          "federated_id": {
            "display_value": "UU/OJDA/H2viaQb8VqlJIYSYKwmbkOCLoFDQkTPv7XM=",
            "value": "UU/OJDA/H2viaQb8VqlJIYSYKwmbkOCLoFDQkTPv7XM="
          },
          "manager.email": {
            "display_value": "",
            "value": ""
          },
          "company.name": {
            "display_value": "",
            "value": ""
          },
          "department.name": {
            "display_value": "",
            "value": ""
          },
          "source": {
            "display_value": "",
            "value": ""
          }
        }
      ]
    }
    Devices Pull

    Endpoint: GET /api/now/table/cmdb_ci_computer

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_limit10000
    sysparm_offsetPagination offset
    sysparm_fieldsComma-separated list of fields to return
    sysparm_exclude_reference_linktrue
    sysparm_display_valueall

    Sample Response:

    {
      "result": [
        {
          "sys_id": {
            "display_value": "00a96c0d3790200044e0bfc8bcbe5db4",
            "value": "00a96c0d3790200044e0bfc8bcbe5db4"
          },
          "name": {
            "display_value": "MacBook Pro 15\"",
            "value": "MacBook Pro 15\""
          },
          "serial_number": {
            "display_value": "ABE-486-V17263-DO",
            "value": "ABE-486-V17263-DO"
          },
          "ip_address": {
            "display_value": "",
            "value": ""
          },
          "mac_address": {
            "display_value": "",
            "value": ""
          },
          "fqdn": {
            "display_value": "",
            "value": ""
          },
          "dns_domain": {
            "display_value": "",
            "value": ""
          },
          "life_cycle_stage": {
            "display_value": "",
            "value": ""
          },
          "life_cycle_stage_status": {
            "display_value": "",
            "value": ""
          },
          "warranty_expiration": {
            "display_value": "",
            "value": ""
          },
          "attested": {
            "display_value": "false",
            "value": "false"
          },
          "attestation_status": {
            "display_value": null,
            "value": ""
          },
          "attestation_score": {
            "display_value": "",
            "value": ""
          },
          "unverified": {
            "display_value": "false",
            "value": "false"
          },
          "virtual": {
            "display_value": "false",
            "value": "false"
          },
          "fault_count": {
            "display_value": "0",
            "value": "0"
          },
          "environment": {
            "display_value": null,
            "value": ""
          },
          "discovery_source": {
            "display_value": null,
            "value": ""
          },
          "asset_tag": {
            "display_value": "P1000503",
            "value": "P1000503"
          },
          "assigned_to.email": {
            "display_value": "eduardo.bellendir@example.com",
            "value": "eduardo.bellendir@example.com"
          },
          "managed_by": {
            "display_value": "",
            "value": ""
          },
          "most_frequent_user": {
            "display_value": "",
            "value": ""
          },
          "owned_by": {
            "display_value": "",
            "value": ""
          }
        }
      ]
    }
    Applications Pull

    Endpoint: GET /api/now/table/cmdb_ci_business_app

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_limit10000
    sysparm_offsetPagination offset
    sysparm_fieldsComma-separated list of fields to return (a discovery_source field is appended for client-side echo filtering)
    sysparm_exclude_reference_linktrue
    sysparm_display_valueall

    Sample Response:

    {
      "result": [
        {
          "sys_id": {
            "display_value": "5d935f86835e8b104f7556a6feaad35b",
            "value": "5d935f86835e8b104f7556a6feaad35b"
          },
          "name": {
            "display_value": "CrowdStrike",
            "value": "CrowdStrike"
          },
          "asset_tag": {
            "display_value": "",
            "value": ""
          },
          "short_description": {
            "display_value": "",
            "value": ""
          },
          "comments": {
            "display_value": "[Netskope CE] Last shared at: 2026-07-27 07:22:09Z\nApplication Name: CrowdStrike, Cloud Confidence Index: 1, CCL: low, Category Name: NetskopeAPP, Deep Link: netskope.com\n",
            "value": "[Netskope CE] Last shared at: 2026-07-27 07:22:09Z\nApplication Name: CrowdStrike, Cloud Confidence Index: 1, CCL: low, Category Name: NetskopeAPP, Deep Link: netskope.com\n"
          },
          "url": {
            "display_value": "https://app.netskope.example/app/CrowdStrike",
            "value": "https://app.netskope.example/app/CrowdStrike"
          },
          "vendor.name": {
            "display_value": "",
            "value": ""
          },
          "manufacturer.name": {
            "display_value": "",
            "value": ""
          },
          "category": {
            "display_value": "XDR",
            "value": "XDR"
          },
          "subcategory": {
            "display_value": "",
            "value": ""
          },
          "business_criticality": {
            "display_value": null,
            "value": ""
          },
          "data_classification": {
            "display_value": null,
            "value": ""
          },
          "operational_status": {
            "display_value": "Operational",
            "value": "1"
          },
          "install_status": {
            "display_value": "In Production",
            "value": "1"
          },
          "life_cycle_stage.name": {
            "display_value": null,
            "value": ""
          },
          "life_cycle_stage_status.name": {
            "display_value": null,
            "value": ""
          },
          "product_support_status": {
            "display_value": null,
            "value": ""
          },
          "certified": {
            "display_value": "false",
            "value": "false"
          },
          "attested": {
            "display_value": "false",
            "value": "false"
          },
          "attestation_status": {
            "display_value": "Not Yet Reviewed",
            "value": "Not Yet Reviewed"
          },
          "attestation_score": {
            "display_value": "",
            "value": ""
          },
          "environment": {
            "display_value": null,
            "value": ""
          },
          "application_type": {
            "display_value": null,
            "value": ""
          },
          "next_assessment_date": {
            "display_value": "",
            "value": ""
          },
          "active": {
            "display_value": "true",
            "value": "true"
          },
          "owned_by.email": {
            "display_value": "",
            "value": ""
          },
          "managed_by.email": {
            "display_value": "",
            "value": ""
          },
          "it_application_owner.email": {
            "display_value": "",
            "value": ""
          },
          "application_manager.email": {
            "display_value": "",
            "value": ""
          },
          "support_group.name": {
            "display_value": "",
            "value": ""
          },
          "company.name": {
            "display_value": "",
            "value": ""
          },
          "user_base": {
            "display_value": null,
            "value": ""
          },
          "active_user_count": {
            "display_value": "",
            "value": ""
          },
          "discovery_source": {
            "display_value": null,
            "value": ""
          },
          "sys_updated_on": {
            "display_value": "2026-07-28 01:49:06",
            "value": "2026-07-28 08:49:06"
          }
        }
      ]
    }
    Get Groups

    Endpoint: GET /api/now/table/sys_user_group

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_fieldssys_id,name
    sysparm_limit10000
    sysparm_offsetPagination offset
    sysparm_exclude_reference_linktrue

    Sample Response:

    {
      "result": [
        { "sys_id": "019ad92ec7230010393d265c95c260dd", "name": "Analytics Settings Managers" }
      ]
    }
    Get Roles

    Endpoint: GET /api/now/table/sys_user_role

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_fieldssys_id,name
    sysparm_limit10000
    sysparm_offsetPagination offset
    sysparm_exclude_reference_linktrue

    Sample Response:

    {
      "result": [
        { "sys_id": "011ba5aa0a0a0b3001a439c580549134", "name": "role_delegator" }
      ]
    }
    Resolve email/username Values to Sys IDs

    Endpoint: GET /api/now/table/sys_user

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryemailIN\<v1,v2,…\>^ORuser_nameIN\<v1,v2,…\>
    sysparm_fieldssys_id,email,user_name
    sysparm_limit10000

    Sample Response:

    {
      "result": [
        {
          "sys_id": "005d500b536073005e0addeeff7b12f4",
          "user_name": "survey.user",
          "email": "survey.user@email.com"
        },
        {
          "sys_id": "02826bf03710200044e0bfc8bcbe5d55",
          "user_name": "jimmie.barninger",
          "email": "jimmie.barninger@example.com"
        }
      ]
    }

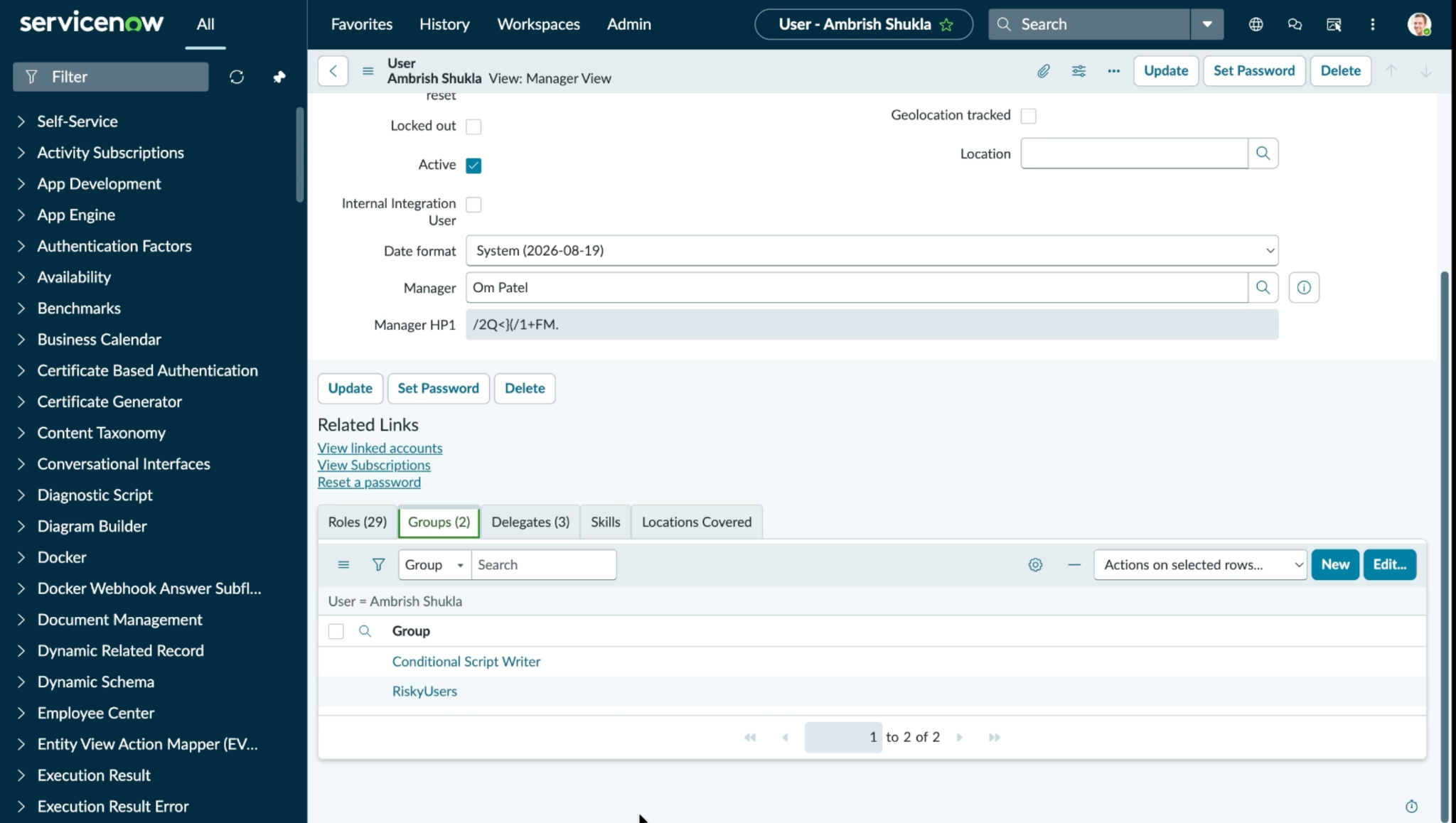

    User Group

    Check if Group exists

    Endpoint: GET /api/now/table/sys_user_group?sysparm_query=name=<group_name>

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryname=\<group_name\>
    sysparm_fieldssys_id,name

    Sample Response:

    {
      "result": [
        { "sys_id": "019ad92ec7230010393d265c95c260dd", "name": "Analytics Settings Managers" }
      ]
    }

    Create Group

    Endpoint: POST /api/now/table/sys_user_group

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "name": "<group name>" }

    Sample Response:

    {
      "result": {
        "sys_id": "0b22a56a83d28f104f7556a6feaad354",
        "name": "Netskope-CE-Doc-Test-Group-1785236837",
        "active": "true",
        "exclude_manager": "false",
        "include_members": "false"
      }
    }

    Check User group membership

    Endpoint: GET /api/now/table/sys_user_grmember

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryuser=\<uid\>^group=\<gid\>
    sysparm_fieldssys_id
    sysparm_limit1 — omitted on the remove-branch lookup

    Sample Response:

    {
      "result": [
        { "sys_id": "2f22296a83d28f104f7556a6feaad31d" }
      ]
    }

    Add User to group

    Endpoint: POST /api/now/table/sys_user_grmember — add

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "user": "<uid>", "group": "<gid>" }

    Sample Response:

    {
      "result": {
        "sys_id": "2f22296a83d28f104f7556a6feaad31d",
        "user": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user/005d500b536073005e0addeeff7b12f4",
          "value": "005d500b536073005e0addeeff7b12f4"
        },
        "group": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user_group/0b22a56a83d28f104f7556a6feaad354",
          "value": "0b22a56a83d28f104f7556a6feaad354"
        }
      }
    }

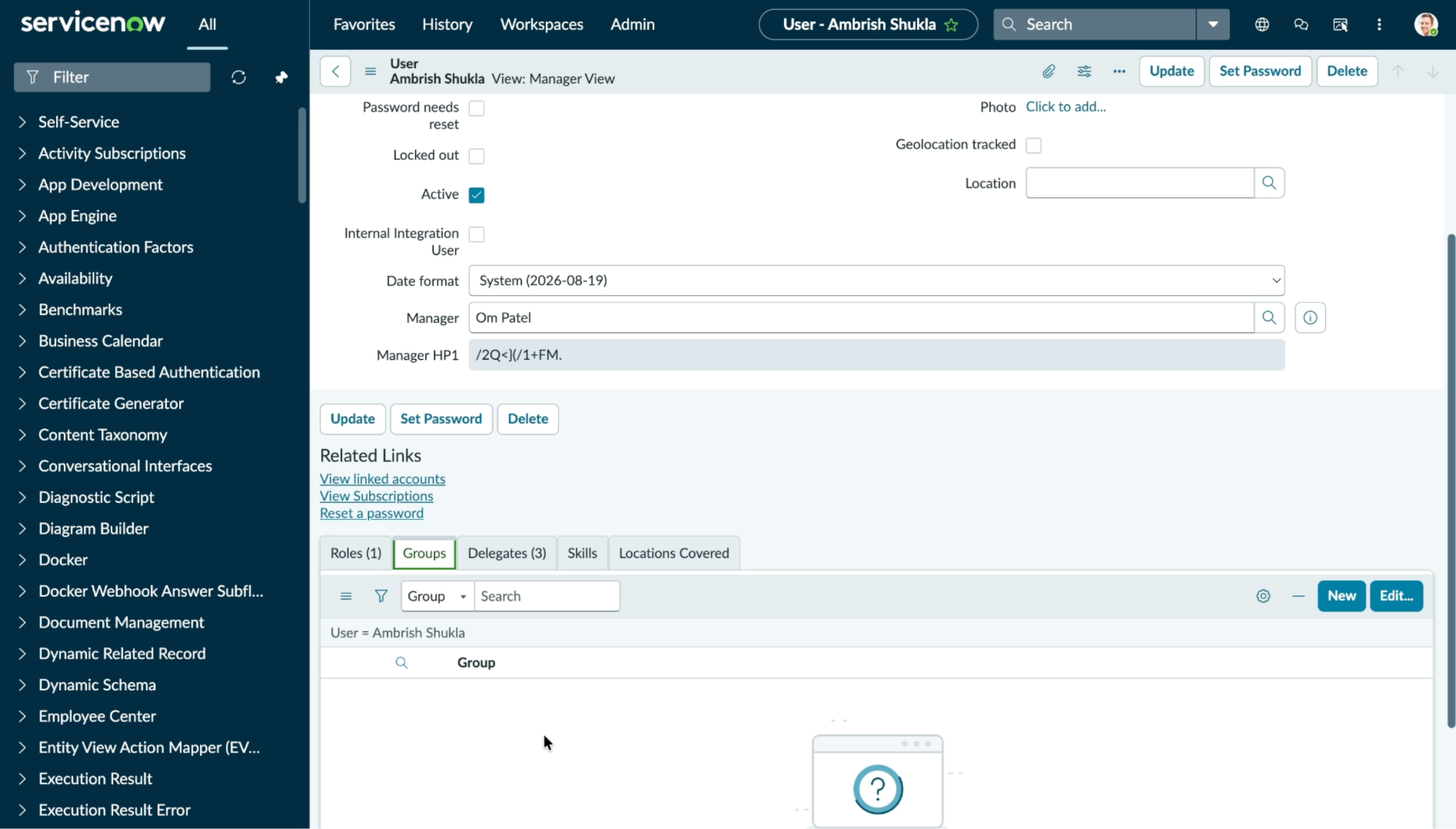

    Remove User from Group

    Endpoint: DELETE /api/now/table/sys_user_grmember/{sys_id} — remove

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Sample Response:

    204 No Content

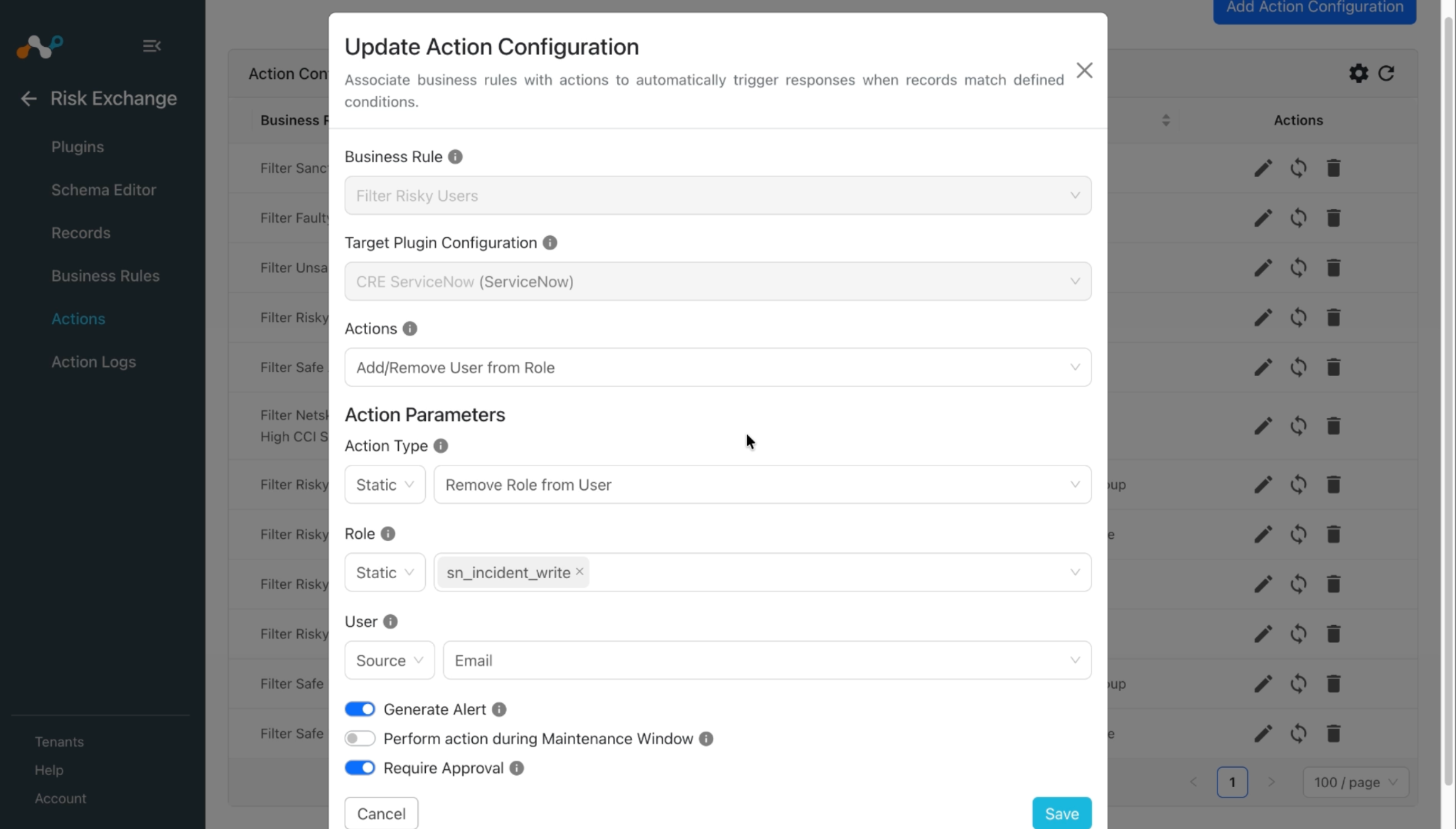

    User Role

    Check if role is assigned to User

    Endpoint: GET /api/now/table/sys_user_has_role

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryuser=\<uid\>^role=\<rid\>
    sysparm_fieldssys_id
    sysparm_limit1 — omitted on the remove-branch lookup

    Sample Response:

    {
      "result": [
        { "sys_id": "e4526d6a83d28f104f7556a6feaad3b9" }
      ]
    }

    Add role to User

    Endpoint: POST /api/now/table/sys_user_has_role — add

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "user": "<uid>", "role": "<rid>" }

    Sample Response:

    {
      "result": {
        "sys_id": "e4526d6a83d28f104f7556a6feaad3b9",
        "state": "active",
        "inherited": "false",
        "user": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user/005d500b536073005e0addeeff7b12f4",
          "value": "005d500b536073005e0addeeff7b12f4"
        },
        "role": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user_role/011ba5aa0a0a0b3001a439c580549134",
          "value": "011ba5aa0a0a0b3001a439c580549134"
        },
        "granted_by": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user_group/not-applicable",
          "value": "not-applicable"
        }
      }
    }

    Remove Role from User

    Endpoint: DELETE /api/now/table/sys_user_has_role/{sys_id} — remove

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Sample Response:

    204 No Content

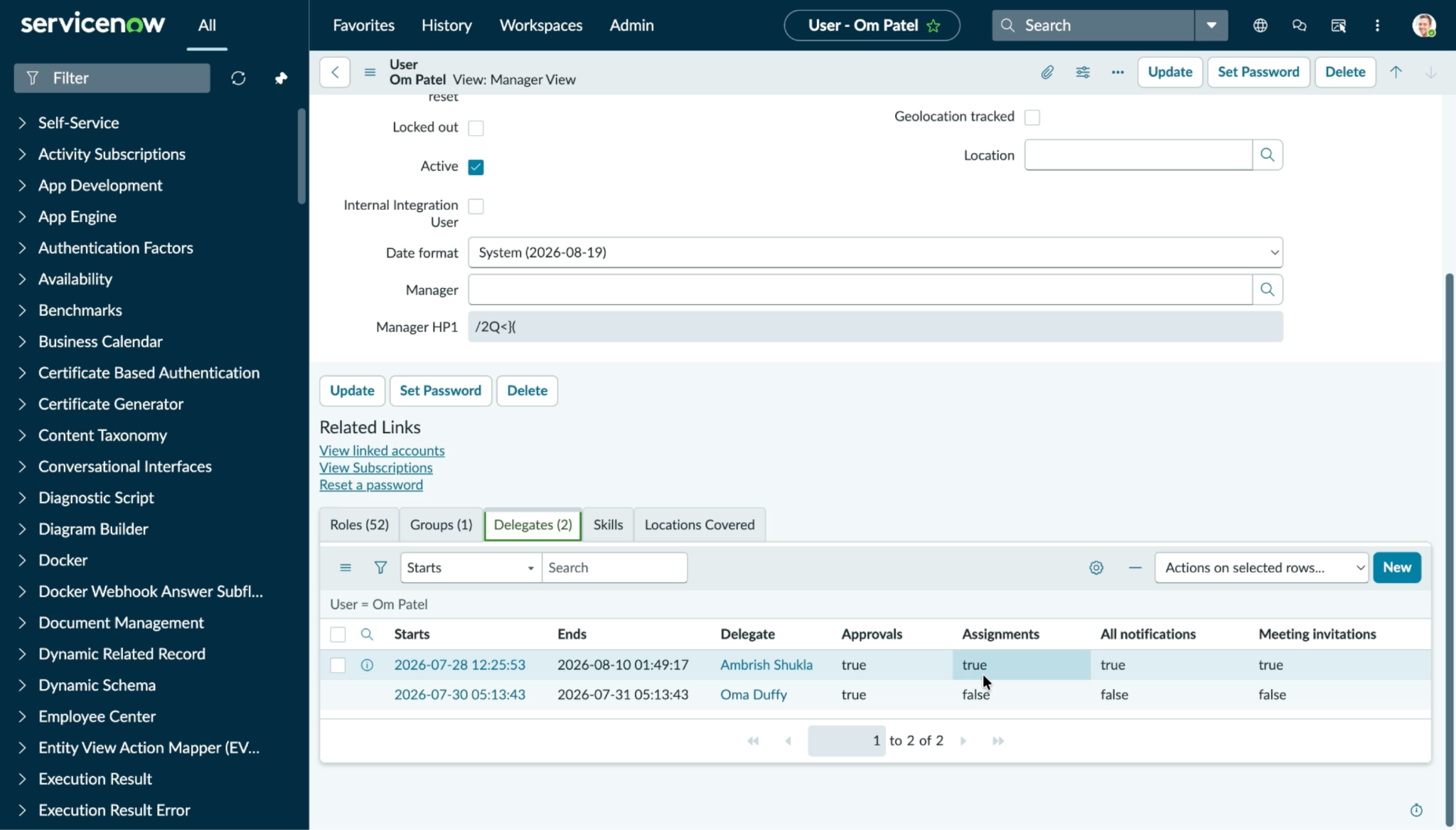

    User Delegation

    Check if user delegation exists

    Endpoint: GET /api/now/table/sys_user_delegate

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryuser=\<uid\>^delegate=\<did\>
    sysparm_fieldssys_id,approvals,assignments,notifications,invitations — reduced to sys_id only on the pre-delete lookup
    sysparm_limit1

    Sample Response:

    {
      "result": [
        { "sys_id": "2462a1aa83d28f104f7556a6feaad31c" }
      ]
    }

    Create user delegation record

    Endpoint: POST /api/now/table/sys_user_delegate — create (no existing row, ≥1 setting selected)

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    {
      "user": "<uid>",
      "delegate": "<did>",
      "starts": "<start date>",
      "ends": "<end date>",
      "approvals": "true",
      "assignments": "true",
      "notifications": "true",
      "invitations": "true"
    }

    Sample Response:

    {
      "result": {
        "sys_id": "2462a1aa83d28f104f7556a6feaad31c",
        "user": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user/005d500b536073005e0addeeff7b12f4",
          "value": "005d500b536073005e0addeeff7b12f4"
        },
        "delegate": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user/02826bf03710200044e0bfc8bcbe5d3f",
          "value": "02826bf03710200044e0bfc8bcbe5d3f"
        },
        "starts": "2026-07-28 00:00:00",
        "ends": "2026-08-27 00:00:00",
        "approvals": "true",
        "assignments": "true",
        "notifications": "true",
        "invitations": "true"
      }
    }

    Update User delegation record

    Endpoint: PATCH /api/now/table/sys_user_delegate/{sys_id}

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    {
      "approvals": "false",
      "assignments": "true",
      "notifications": "false",
      "invitations": "true"
    }

    Sample Response:

    {
      "result": {
        "sys_id": "85ec852f83d687504f7556a6feaad3d3",
        "user": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user/005d500b536073005e0addeeff7b12f4",
          "value": "005d500b536073005e0addeeff7b12f4"
        },
        "delegate": {
          "link": "https://your-instance.service-now.com/api/now/table/sys_user/02826bf03710200044e0bfc8bcbe5d55",
          "value": "02826bf03710200044e0bfc8bcbe5d55"
        },
        "starts": "2026-07-31 00:00:00",
        "ends": "2026-08-30 00:00:00",
        "approvals": "false",
        "assignments": "true",
        "notifications": "false",
        "invitations": "true"
      }
    }

    Delete User delegation record

    Endpoint: DELETE /api/now/table/sys_user_delegate/{sys_id}

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Sample Response:

    204 No Content

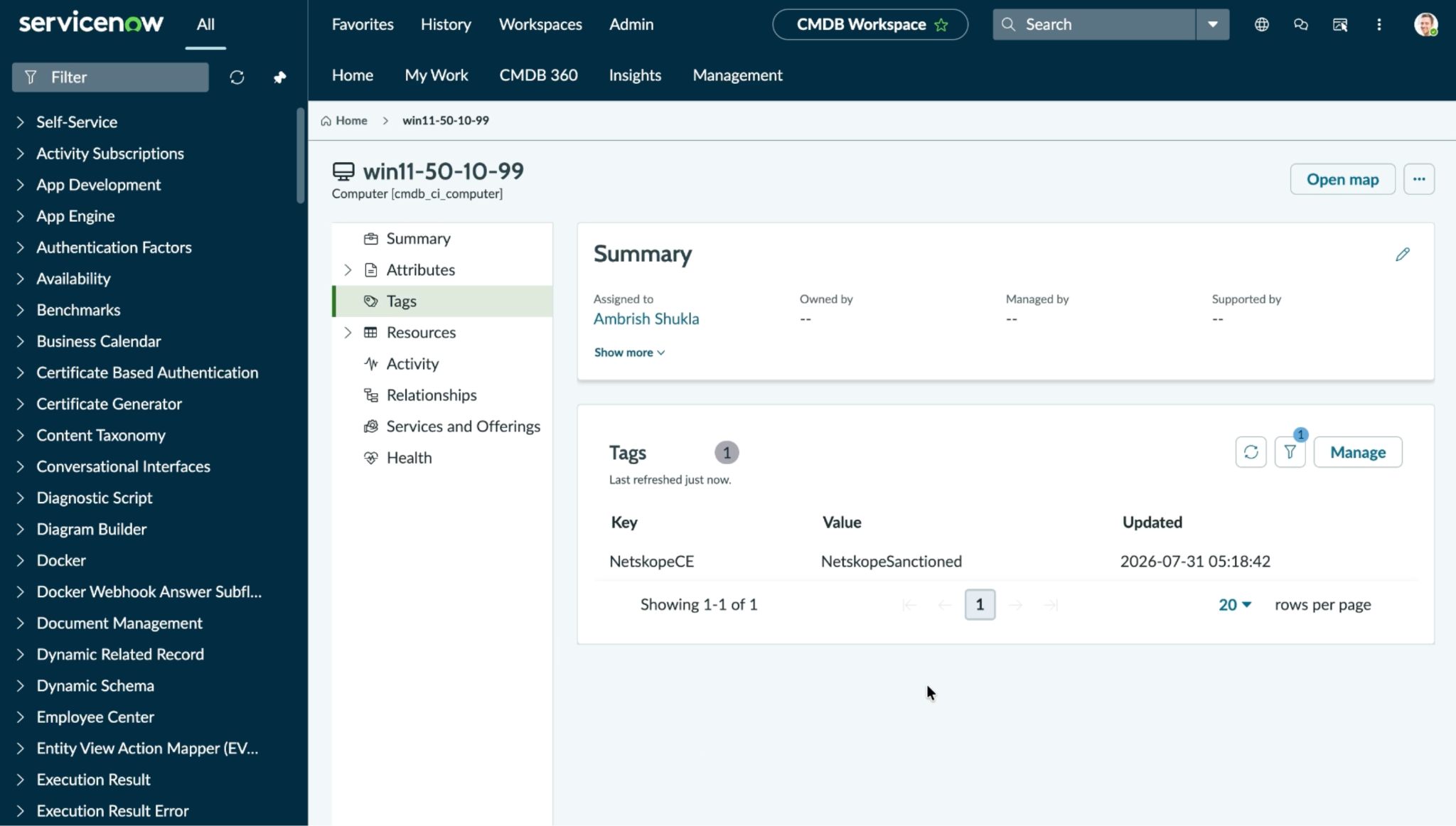

    Manage Device Tags

    Check if device tag already exists

    Endpoint: GET /api/now/table/cmdb_key_value

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryconfiguration_item=\<ci\>^key=\<key\> — a ^value=\<v\> clause is appended for the add-branch existence check
    sysparm_fieldssys_id

    Sample Response:

    {
      "result": [
        { "sys_id": "048265aa83d28f104f7556a6feaad378" }
      ]
    }

    Tag Device

    Endpoint: POST /api/now/table/cmdb_key_value

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "configuration_item": "<ci>", "key": "<key>", "value": "<value>" }

    Sample Response:

    {
      "result": {
        "sys_id": "048265aa83d28f104f7556a6feaad378",
        "configuration_item": {
          "link": "https://your-instance.service-now.com/api/now/table/cmdb_ci/00a96c0d3790200044e0bfc8bcbe5db4",
          "value": "00a96c0d3790200044e0bfc8bcbe5db4"
        },
        "key": "NetskopeCE",
        "value": "Doc-Test-Value"
      }
    }

    Untag Device

    Endpoint: DELETE /api/now/table/cmdb_key_value/{sys_id}

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Sample Response:

    204 No Content

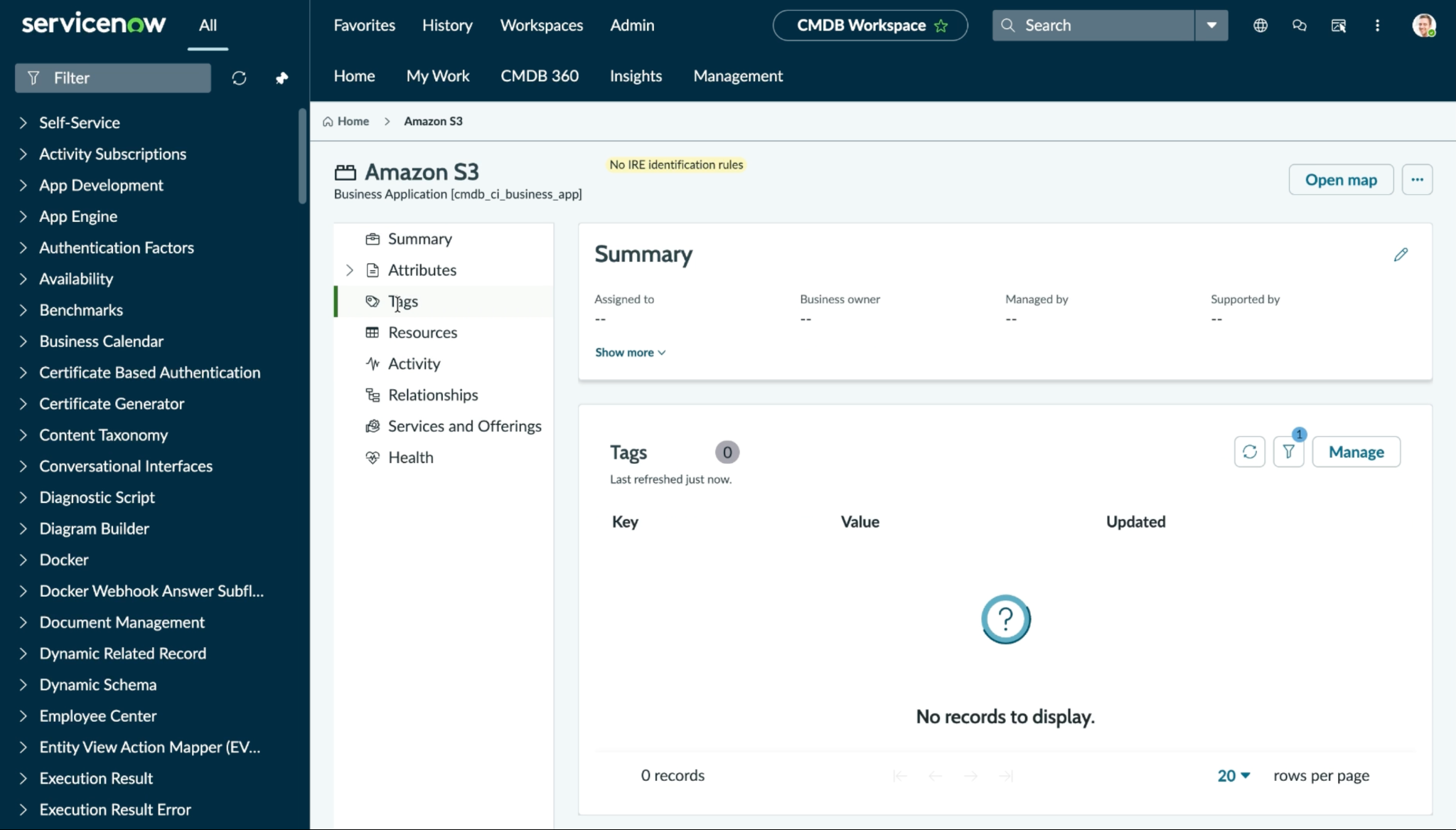

    Manage Application Tags

    Check if application tag exists

    Endpoint: GET /api/now/table/cmdb_key_value

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryconfiguration_item=\<ci\>^key=\<key\>^value=\<v\>
    sysparm_fieldssys_id

    Sample Response:

    {
      "result": [
        { "sys_id": "048265aa83d28f104f7556a6feaad378" }
      ]
    }

    Tag Application

    Endpoint: POST /api/now/table/cmdb_key_value — tag an application CI

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "configuration_item": "<ci>", "key": "<key>", "value": "<value>" }

    Sample Response:

    {
      "result": {
        "sys_id": "cc9265aa83d28f104f7556a6feaad3e0",
        "configuration_item": {
          "link": "https://your-instance.service-now.com/api/now/table/cmdb_ci/5d935f86835e8b104f7556a6feaad35b",
          "value": "5d935f86835e8b104f7556a6feaad35b"
        },
        "key": "NetskopeCE",
        "value": "Doc-Test-Value"
      }
    }

    Untag Application

    Endpoint: DELETE /api/now/table/cmdb_key_value/{sys_id}

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Sample Response:

    204 No Content

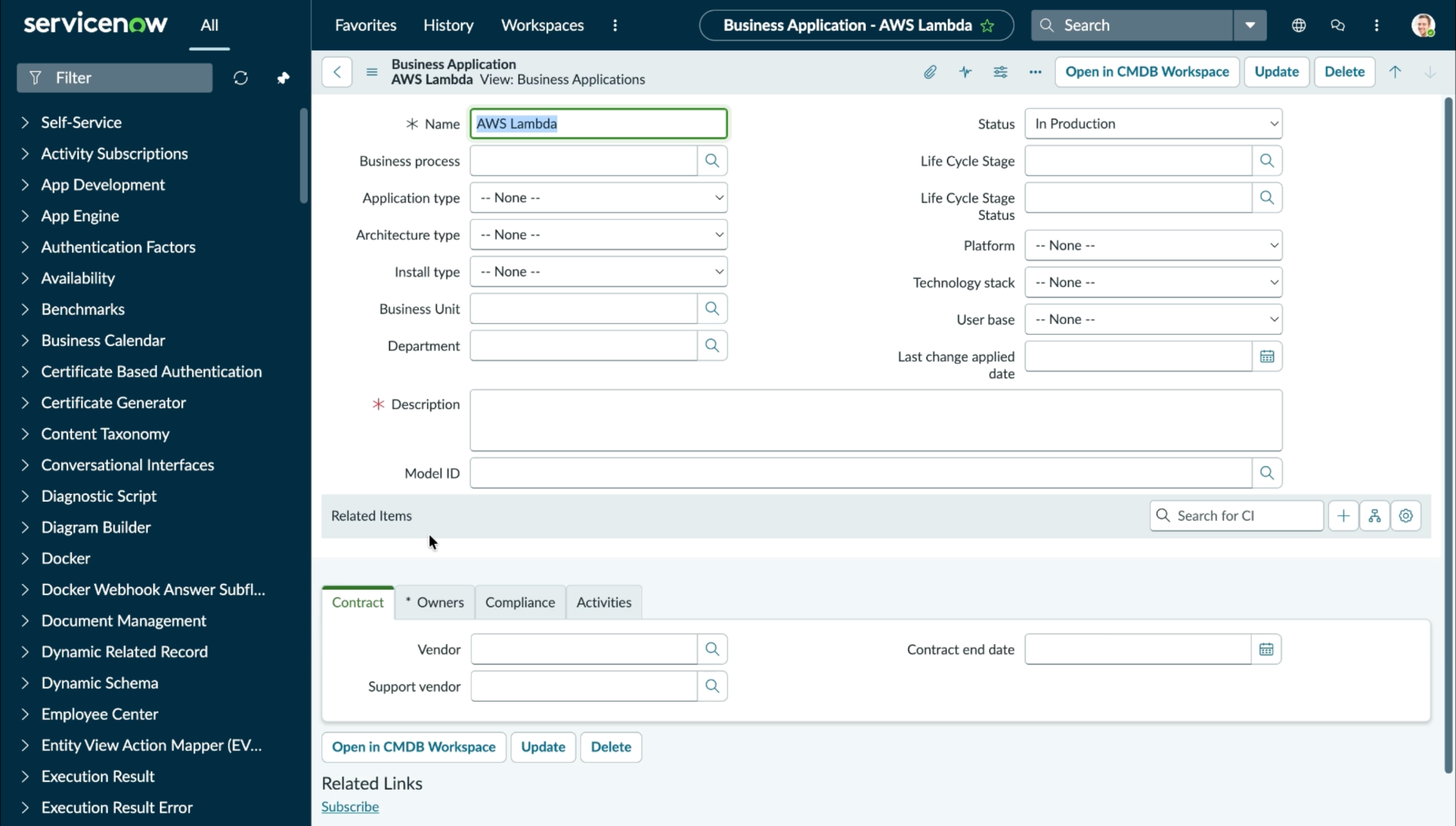

    Share Application Data — CMDB CI Business App Path

    Search Application by Name

    Endpoint: GET /api/now/table/cmdb_ci_business_app

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryname=\<app\>
    sysparm_fieldssys_id,discovery_source

    Sample Response:

    {
      "result": []
    }

    Create Application Record

    Endpoint: POST /api/now/table/cmdb_ci_business_app — create (no existing match)

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    {
      "name": "<app name>",
      "comments": "<summary block>",
      "discovery_source": "NetskopeCloudExchange"
    }

    Sample Response:

    {
      "result": {
        "sys_id": "94a269aa83d28f104f7556a6feaad3f3",
        "name": "Netskope-CE-Doc-Test-App-1785236955",
        "discovery_source": "NetskopeCloudExchange",
        "comments": "[Netskope CE] Last shared at: 2026-07-28 11:00:00Z\nApplication Name: Netskope-CE-Doc-Test-App-1785236955, Cloud Confidence Index: 32, CCL: Poor, Category Name: Cloud Storage, Deep Link: https://example.com/app\n",
        "active": "true",
        "install_status": "1",
        "operational_status": "1"
      }
    }

    Update Application Record

    Endpoint: PATCH /api/now/table/cmdb_ci_business_app/{sys_id} — update (existing match — replaces comments)

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "comments": "<summary block>" }

    Sample Response:

    {
      "result": {
        "sys_id": "94a269aa83d28f104f7556a6feaad3f3",
        "name": "Netskope-CE-Doc-Test-App-1785236955",
        "discovery_source": "NetskopeCloudExchange",
        "comments": "[Netskope CE] Last shared at: 2026-07-28 12:00:00Z\nApplication Name: Netskope-CE-Doc-Test-App, Cloud Confidence Index: 45, CCL: Fair, Category Name: Cloud Storage, Deep Link: https://example.com/app\n",
        "sys_mod_count": "1"
      }
    }
    Share Application Data — Core Company

    Fetch Company details

    Endpoint: GET /api/now/table/core_company

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Query Parameters:

    ParameterDescription
    sysparm_queryBuilt from the Company / Parent Company / Operator values configured for the action
    sysparm_fieldssys_id,name,notes
    sysparm_limit10000

    Sample Response:

    {
      "result": {
        "sys_id": "0c43b088c6112275011a4bd46a4e6cc4",
        "name": "GenuineIntel",
        "notes": ""
      }
    }

    Update Company details

    Endpoint: PATCH /api/now/table/core_company/{sys_id}

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    { "notes": "<block(s)>\n\n<existing notes>" }

    Sample Response:

    {
      "result": {
        "sys_id": "0c43b088c6112275011a4bd46a4e6cc4",
        "name": "GenuineIntel",
        "notes": "[Netskope CE] Last shared at: 2026-07-28 12:00:00Z\nApplication Name: Netskope-CE-Doc-Test-App, Cloud Confidence Index: 45, CCL: Fair, Category Name: Cloud Storage, Deep Link: https://example.com/app\n"
      }
    }
    Batch API

    Endpoint: POST /api/now/v1/batch

    Request Headers:

    KeyValue
    AuthorizationBasic base64(username:password)
    User-Agentnetskope-ce-6.1.0-cre-servicenow-v2.0.0

    Request Body:

    {
      "batch_request_id": "netskope-ce-<tag>-<chunk_index>",
      "rest_requests": [
        {
          "id": "1",
          "method": "GET",
          "url": "/api/now/table/sys_user_grmember?sysparm_query=user%3D...&sysparm_fields=sys_id&sysparm_limit=1",
          "exclude_response_headers": true,
          "headers": [
            { "name": "Content-Type", "value": "application/json" },
            { "name": "Accept", "value": "application/json" }
          ],
          "body": "<base64 of the JSON body>"
        }
      ]
    }

    Sample Response:

    {
      "batch_request_id": "netskope-ce-group-add-1",
      "serviced_requests": [
        { "id": "1", "status_code": 201, "body": "<base64 of the JSON body>" }
      ],
      "unserviced_requests": ["7", "8"]
    }

    Example — Add Users to Groups (`sys_user_grmember`):

    Request:

    {
      "batch_request_id": "netskope-ce-group-add-1",
      "rest_requests": [
        {
          "id": "1",
          "method": "POST",
          "url": "/api/now/table/sys_user_grmember",
          "headers": [
            { "name": "Content-Type", "value": "application/json" },
            { "name": "Accept", "value": "application/json" }
          ],
          "body": "eyJ1c2VyIjogIjAwNWQ1MDBiNTM2MDczMDA1ZTBhZGRlZWZmN2IxMmY0IiwgImdyb3VwIjogImU1ZDI2MWVhODNkMjhmMTA0Zjc1NTZhNmZlYWFkMzc4In0="
        }
      ]
    }

    Sub-response body (base64-decoded):

    {
      “result”: {
        “sys_id”: “9ed2a1ea83d28f104f7556a6feaad332”,
        “user”: {
          “link”: “https://your-instance.service-now.com/api/now/table/sys_user/005d500b536073005e0addeeff7b12f4”,
          “value”: “005d500b536073005e0addeeff7b12f4”
        },
        “group”: {
          “link”: “https://your-instance.service-now.com/api/now/table/sys_user_group/e5d261ea83d28f104f7556a6feaad378”,
          “value”: “e5d261ea83d28f104f7556a6feaad378”
        }
      }
    }

    Example — Tag Applications/Devices (`cmdb_key_value`):

    Request:

    {
      "batch_request_id": "netskope-ce-tag-add-1",
      "rest_requests": [
        {
          "id": "1",
          "method": "POST",
          "url": "/api/now/table/cmdb_key_value",
          "headers": [
            { "name": "Content-Type", "value": "application/json" },
            { "name": "Accept", "value": "application/json" }
          ],
          "body": "eyJjb25maWd1cmF0aW9uX2l0ZW0iOiAiMDBhOTZjMGQzNzkwMjAwMDQ0ZTBiZmM4YmNiZTVkYjQiLCAia2V5IjogIk5ldHNrb3BlQ0UiLCAidmFsdWUiOiAiRG9jLVRlc3QtVmFsdWUifQ=="
        }
      ]
    }

    Sub-response body (base64-decoded):

    {
      "result": {
        "sys_id": "43e2a1ea83d28f104f7556a6feaad346",
        "configuration_item": {
          "link": "https://your-instance.service-now.com/api/now/table/cmdb_ci/00a96c0d3790200044e0bfc8bcbe5db4",
          "value": "00a96c0d3790200044e0bfc8bcbe5db4"
        },
        "key": "NetskopeCE",
        "value": "Doc-Test-Value"
      }
    }

    Example — Share Applications (`cmdb_ci_business_app`):

    Request:

    {
      "batch_request_id": "netskope-ce-share-app-share-1",
      "rest_requests": [
        {
          "id": "1",
          "method": "POST",
          "url": "/api/now/table/cmdb_ci_business_app",
          "headers": [
            { "name": "Content-Type", "value": "application/json" },
            { "name": "Accept", "value": "application/json" }
          ],
          "body": "<base64 of {\"name\": \"...\", \"comments\": \"...\", \"discovery_source\": \"NetskopeCloudExchange\"}>"
        }
      ]
    }

    Sub-response body (base64-decoded, trimmed to non-empty fields — ServiceNow returns the full ~113-column row):

    {
      "result": {
        "sys_id": "56f265ea83d28f104f7556a6feaad357",
        "name": "Netskope-CE-Doc-Test-BatchApp-1785237047",
        "discovery_source": "NetskopeCloudExchange",
        "comments": "[Netskope CE] Last shared at: 2026-07-28 11:00:00Z\nApplication Name: Netskope-CE-Doc-Test-BatchApp-1785237047, Cloud Confidence Index: 32, CCL: Poor, Category Name: Cloud Storage, Deep Link: https://example.com/app\n",
        "active": "true",
        "install_status": "1",
        "operational_status": "1"
      }
    }

    Example — Core Company path (`core_company`):

    Request (GET lookup):

    GET /api/now/table/core_company?sysparm_query=<query>&sysparm_fields=sys_id,name,notes

    Response:

    {
      "result": {
        "sys_id": "0c43b088c6112275011a4bd46a4e6cc4",
        "name": "GenuineIntel",
        "notes": ""
      }
    }

    Request (PATCH update):

    { "notes": "<block(s)>\n\n<existing notes>" }

    Response:

    {
      "result": {
        "sys_id": "0c43b088c6112275011a4bd46a4e6cc4",
        "name": "GenuineIntel",
        "notes": "[Netskope CE] Last shared at: 2026-07-28 12:00:00Z\nApplication Name: Netskope-CE-Doc-Test-App, Cloud Confidence Index: 45, CCL: Fair, Category Name: Cloud Storage, Deep Link: https://example.com/app\n"
      }
    }

    Performance Matrix

    Below performance readings are conducted on a Large CE Stack with below-mentioned VM specifications:

    DescriptionSpecifications
    Stack detailsSize: Large
    RAM: 32 GB
    CPU: 16 Cores
    Users fetched and updated from Servicenow ~26.5 minutes
    Devices fetched and updated from Servicenow~26.5 minutes
    Applications fetched and updated from Servicenow~26.5 minutes
    User Agent

    netskope-ce-6.1.0-cre-servicenow-v2.0.0

    Workflow

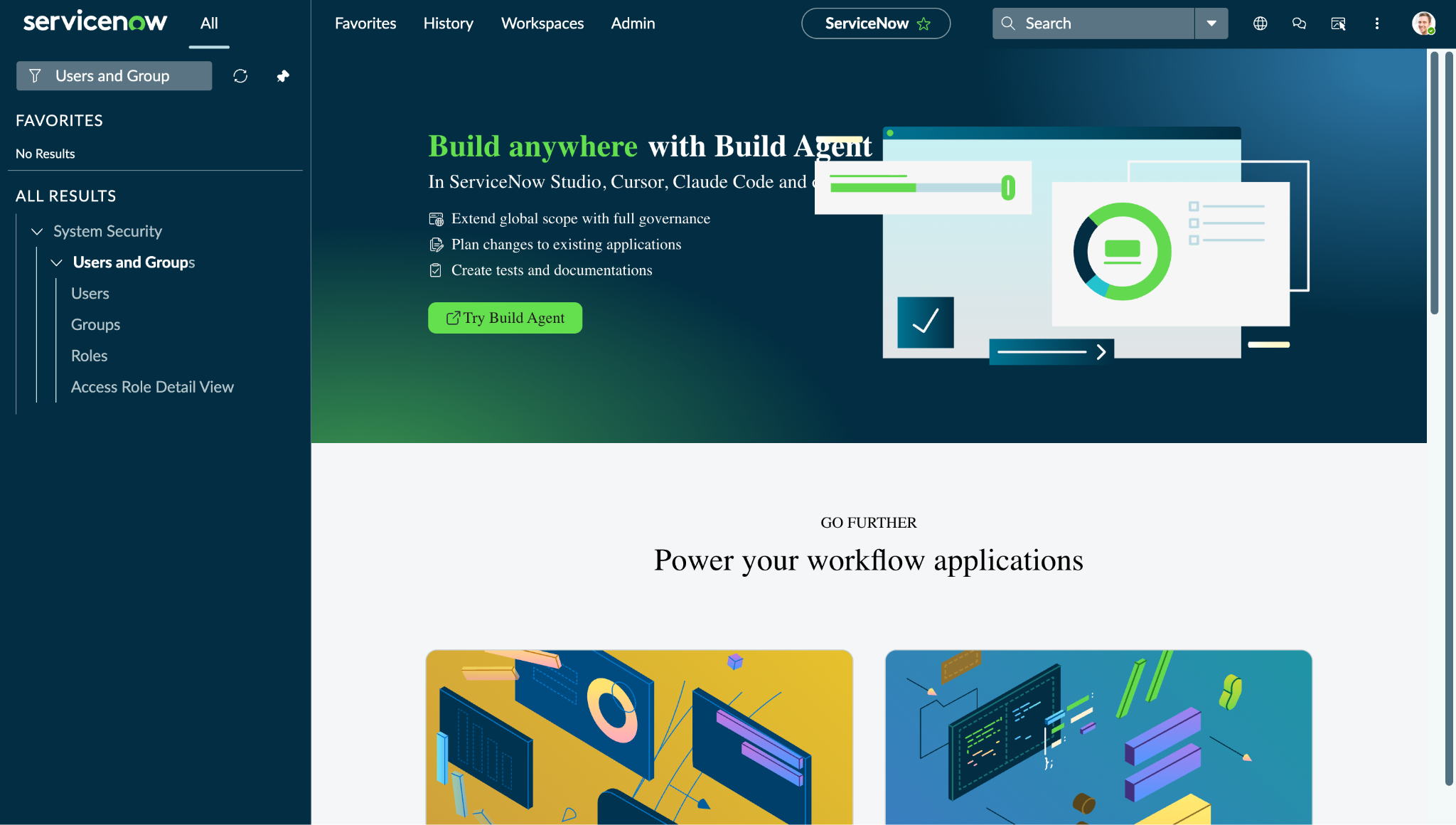

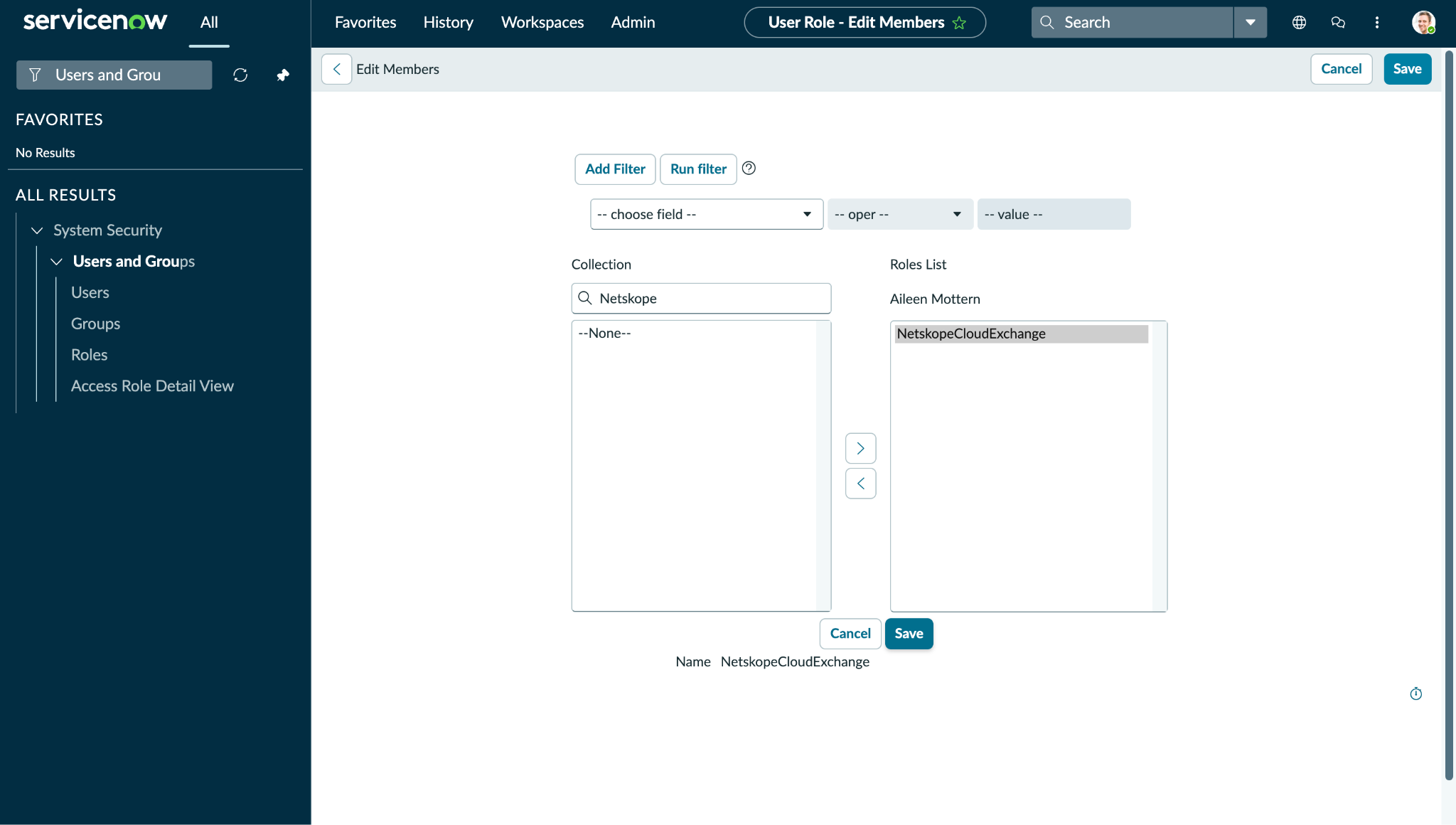

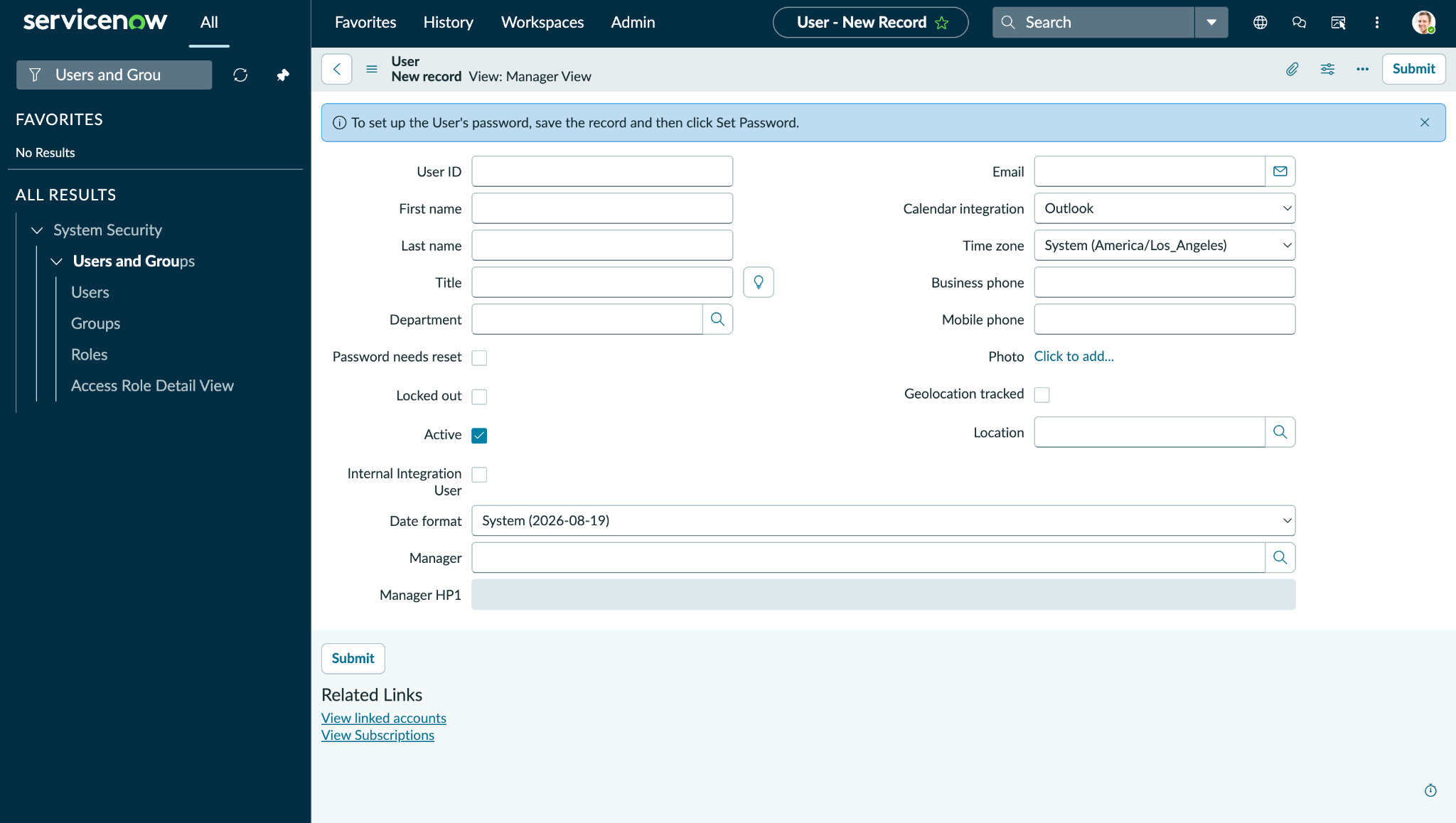

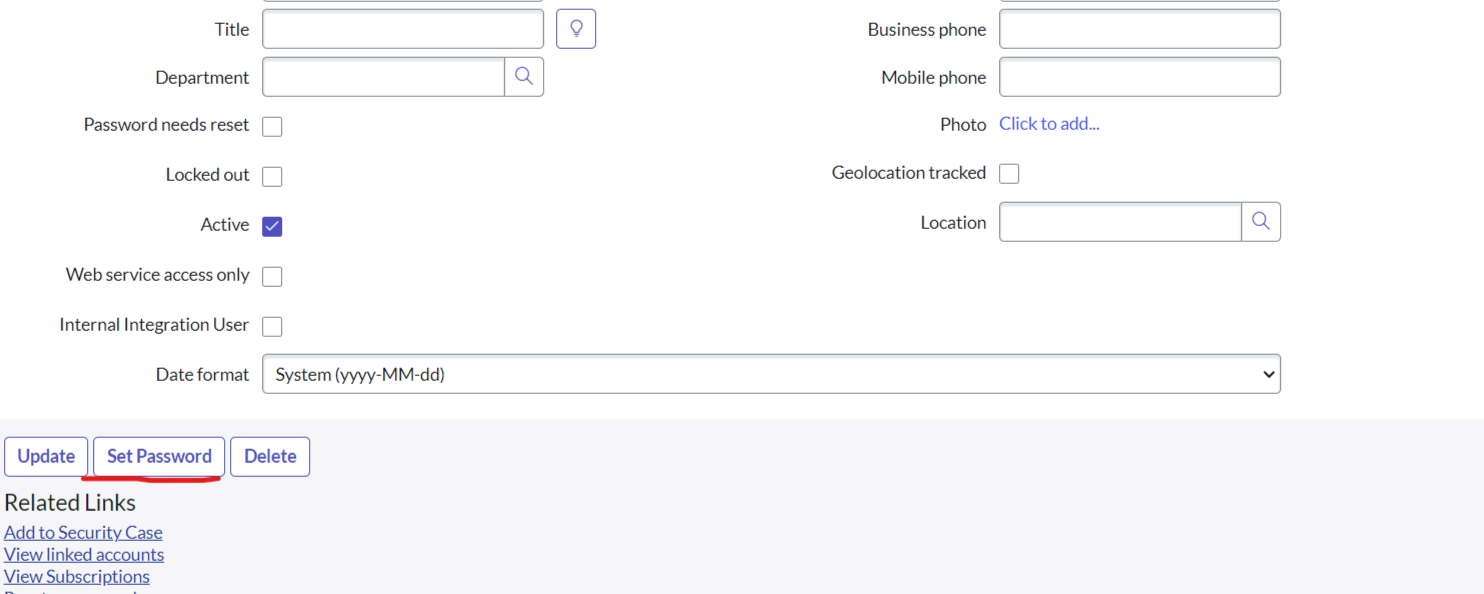

    1. Create a User and Role on the ServiceNow platform.
    2. Add Permissions for the created user.
    3. Create a Discovery Source.

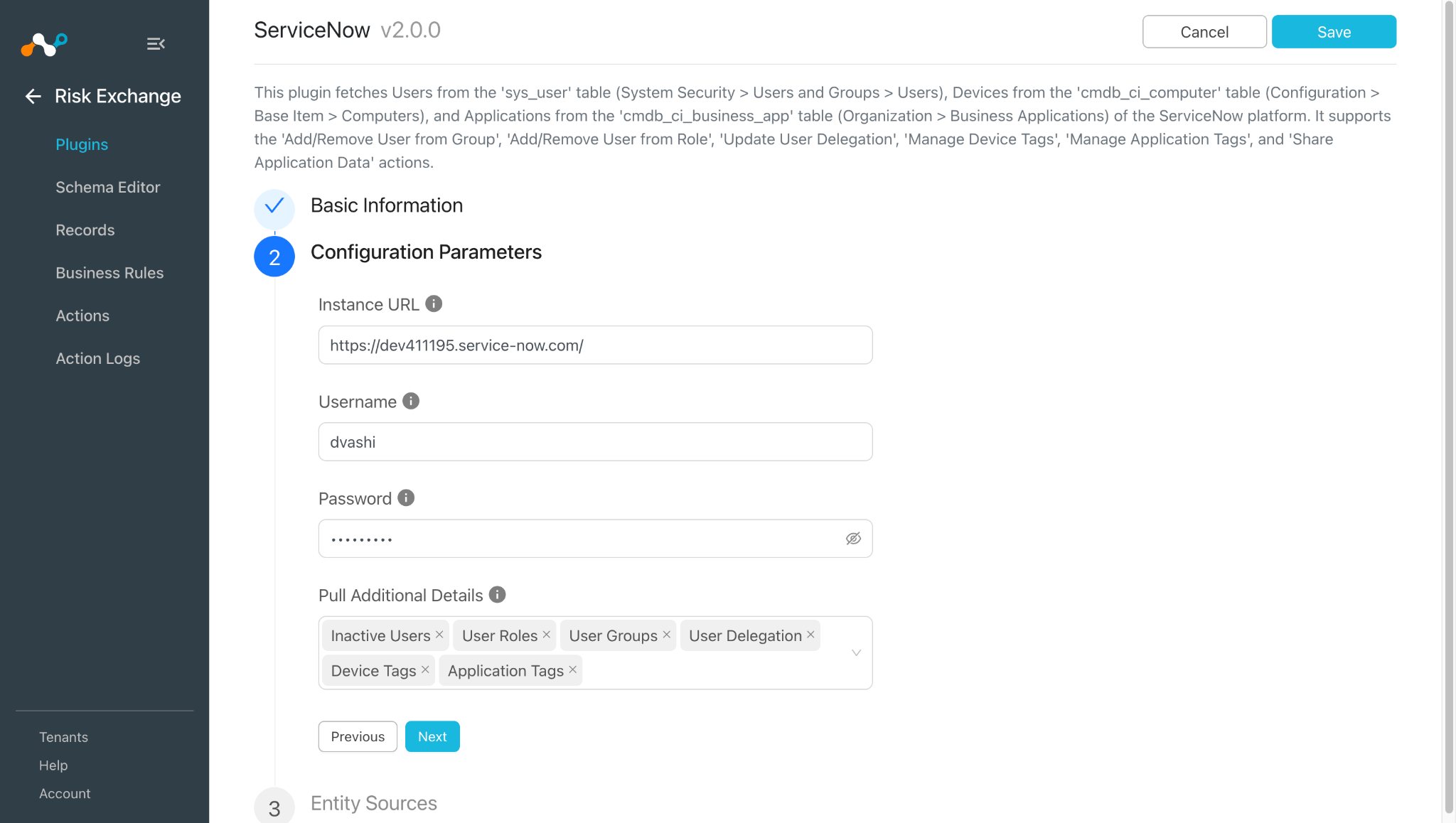

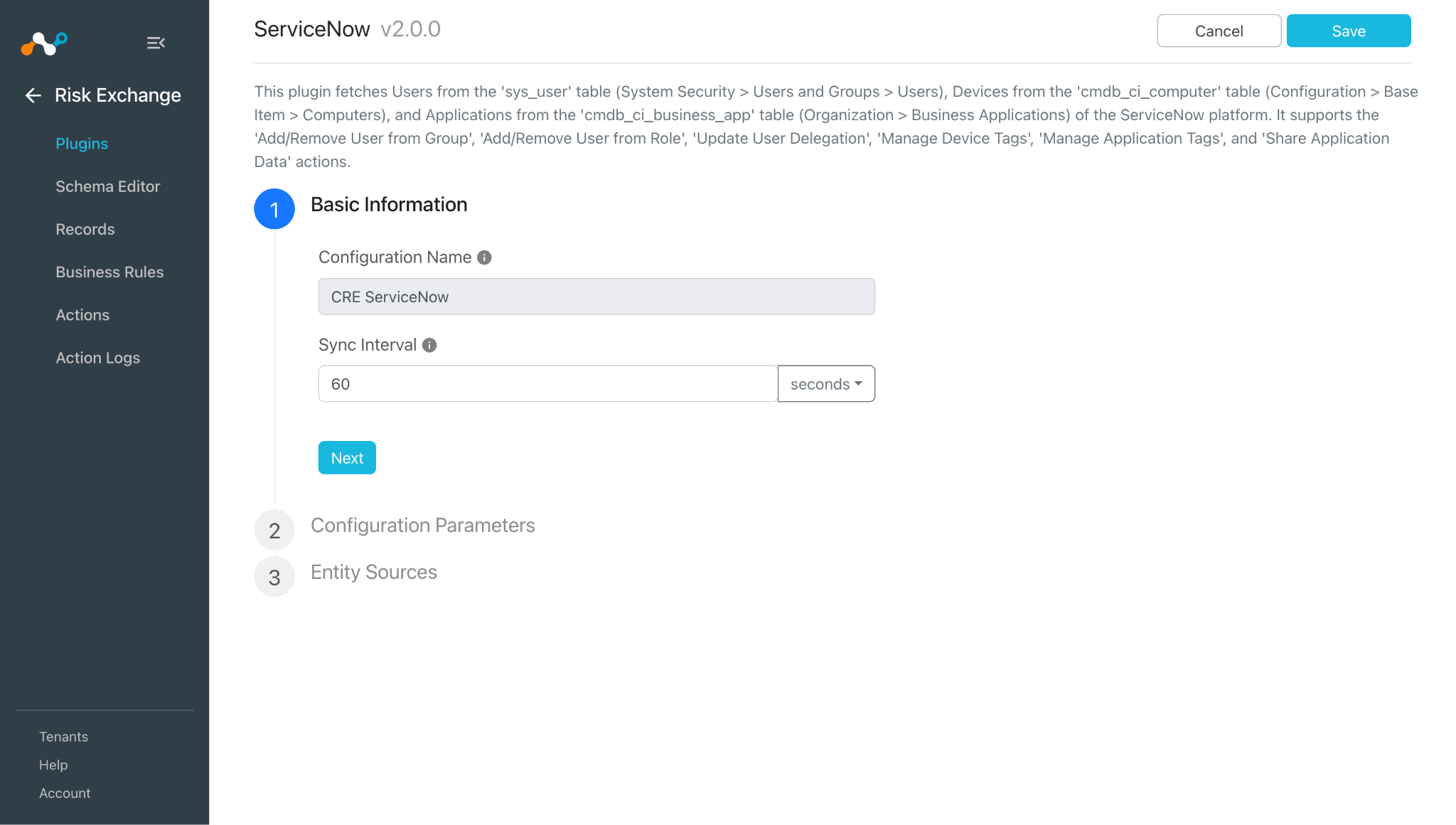

    4. Configure the ServiceNow plugin.

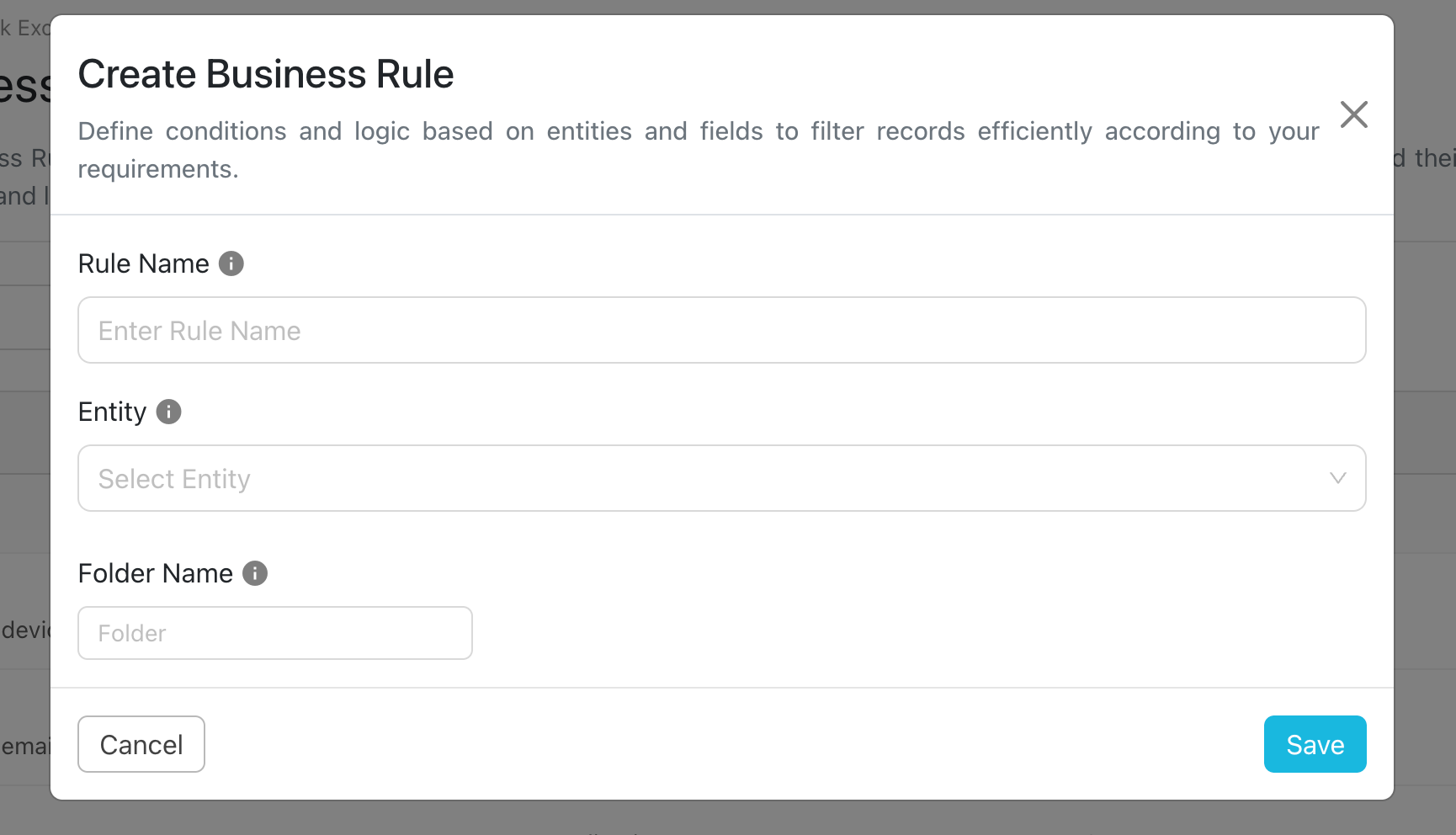

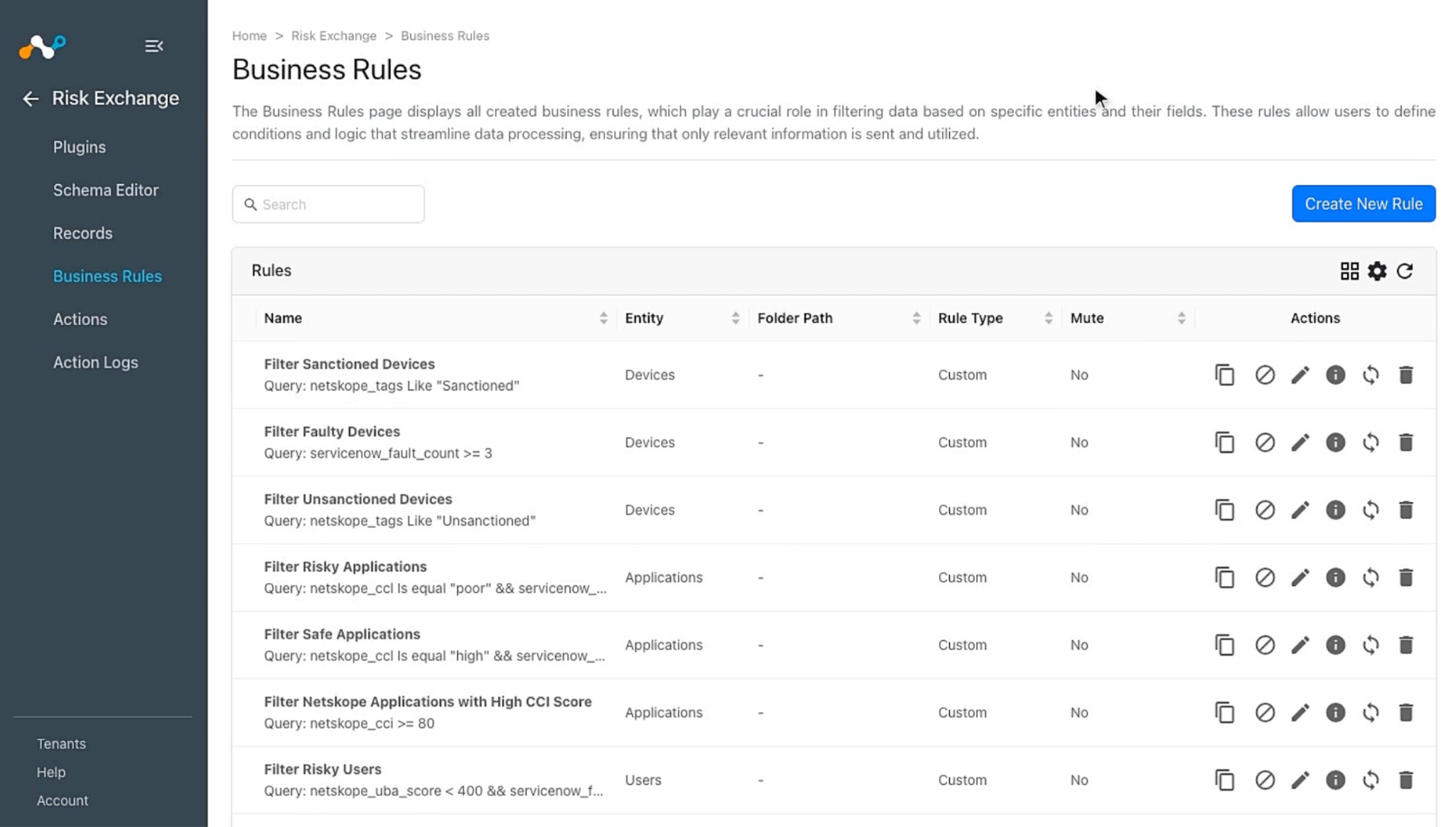

    5. Configure a Risk Exchange Business Rule for ServiceNow.

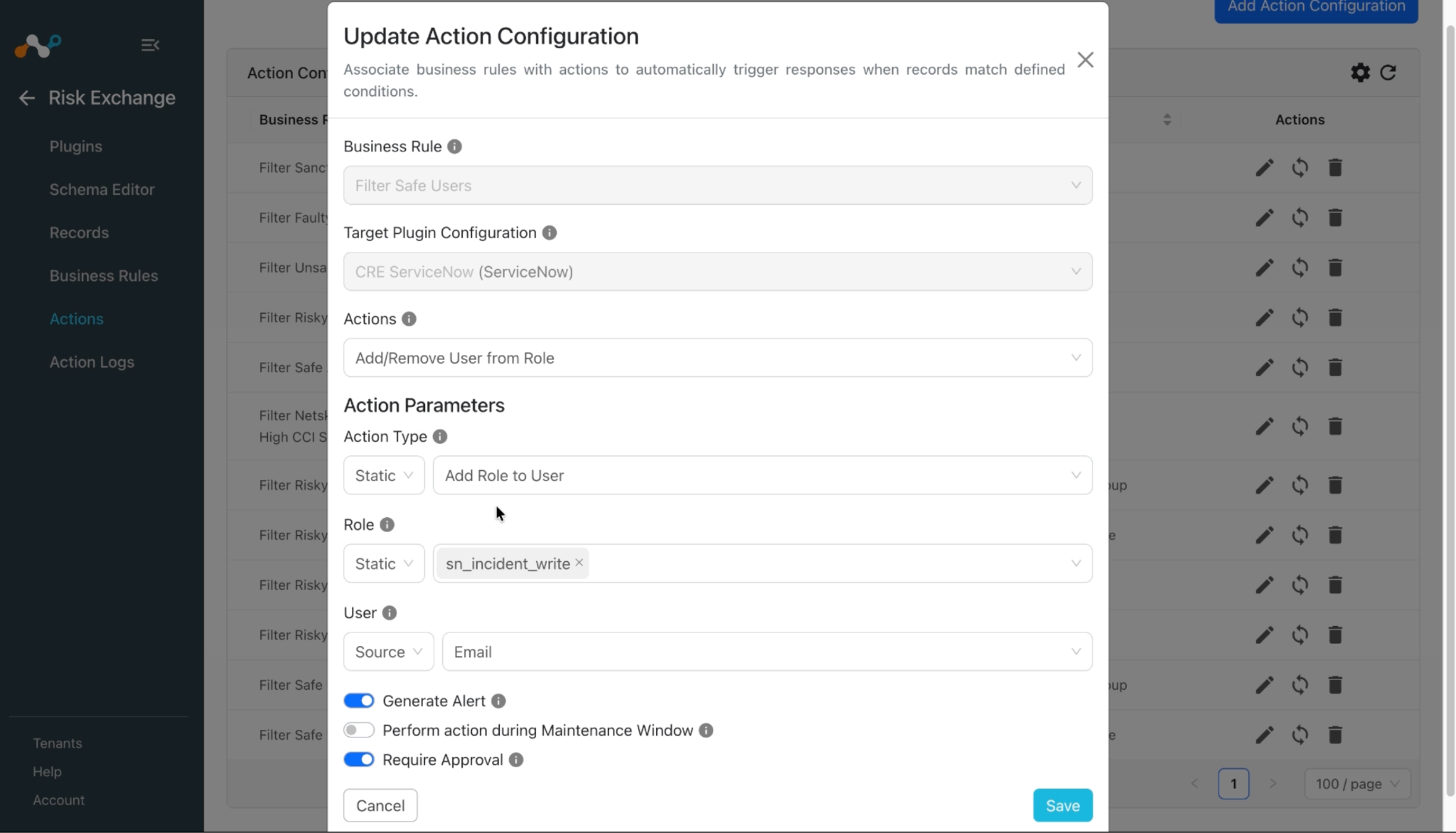

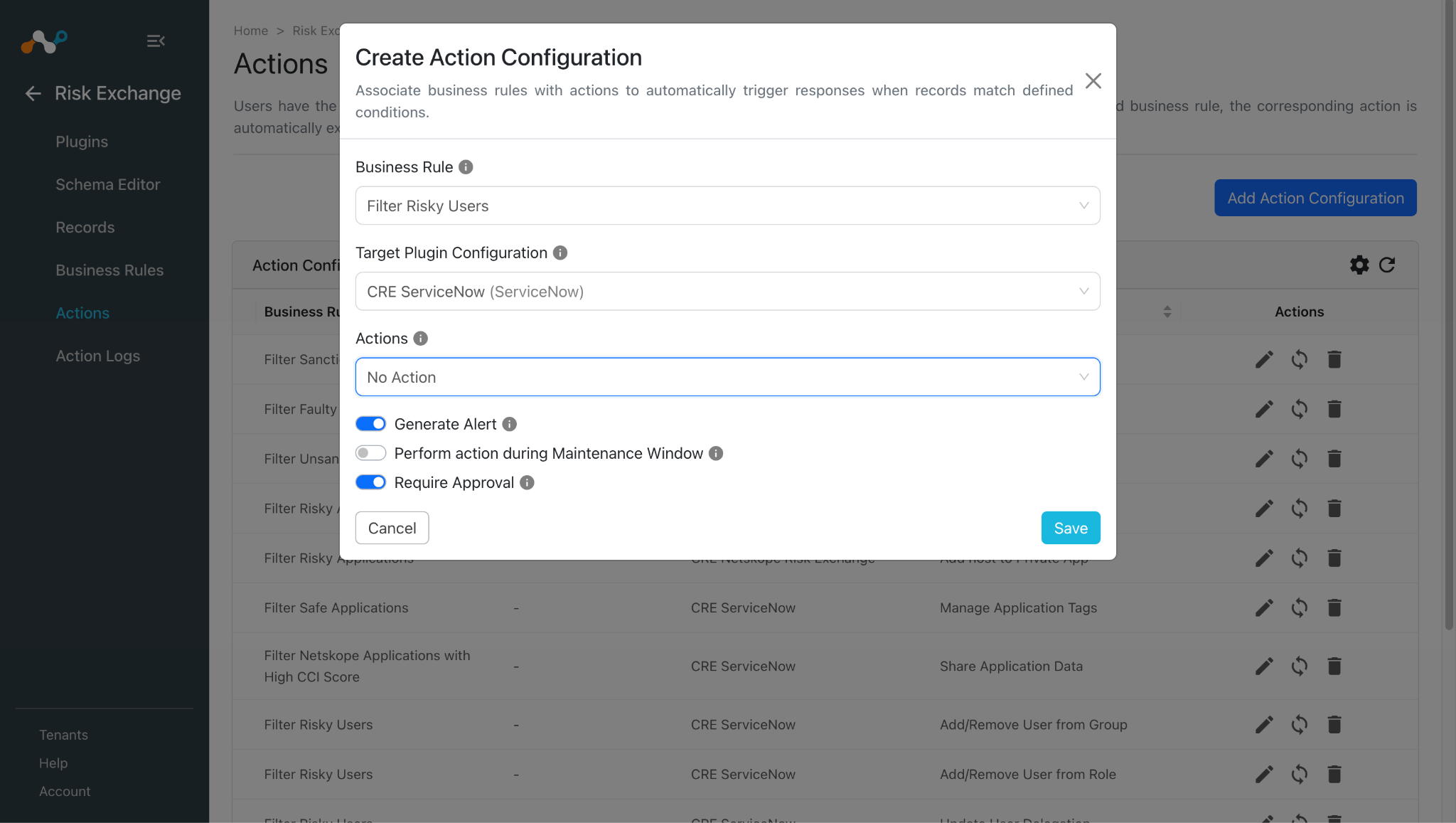

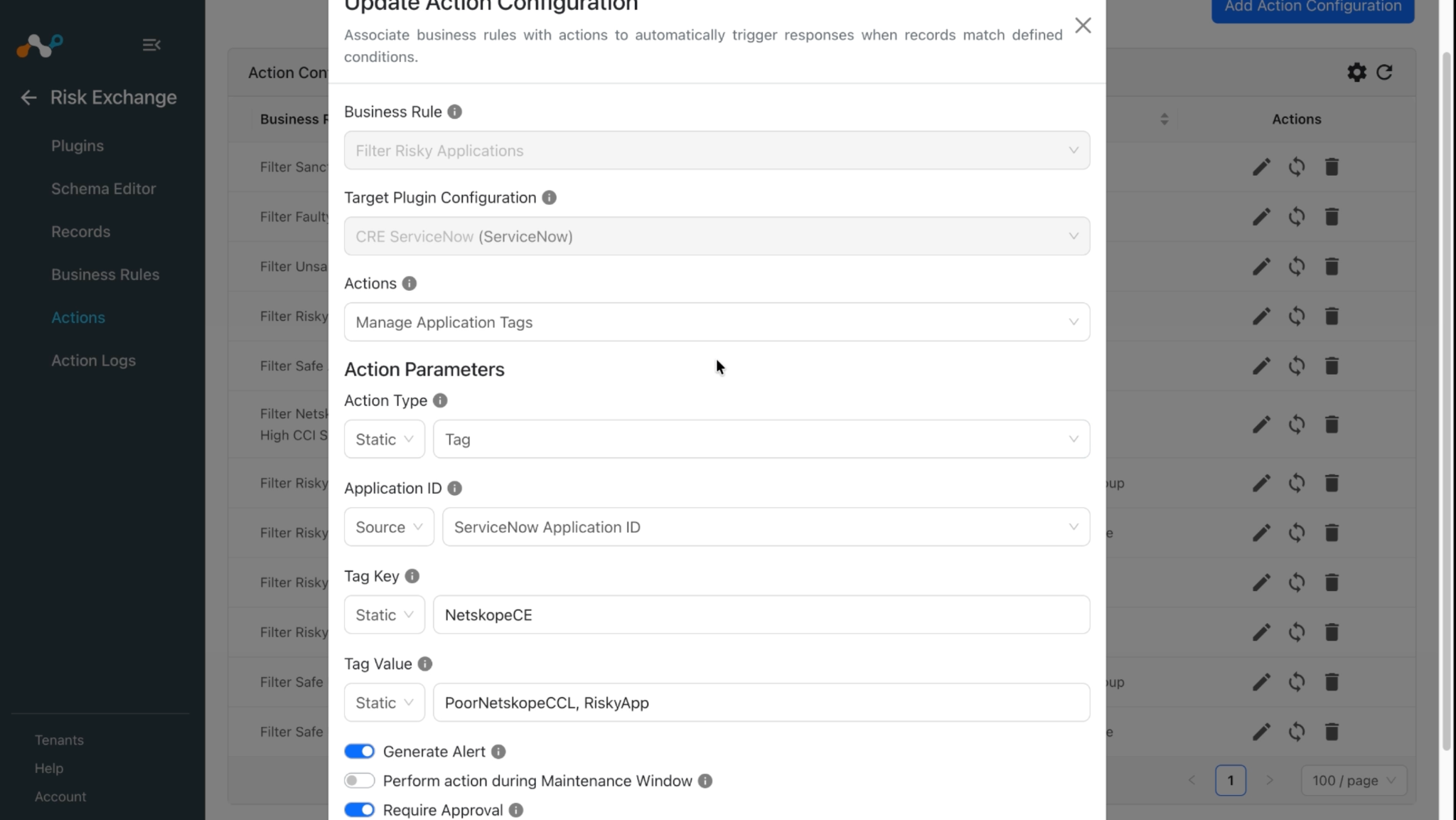

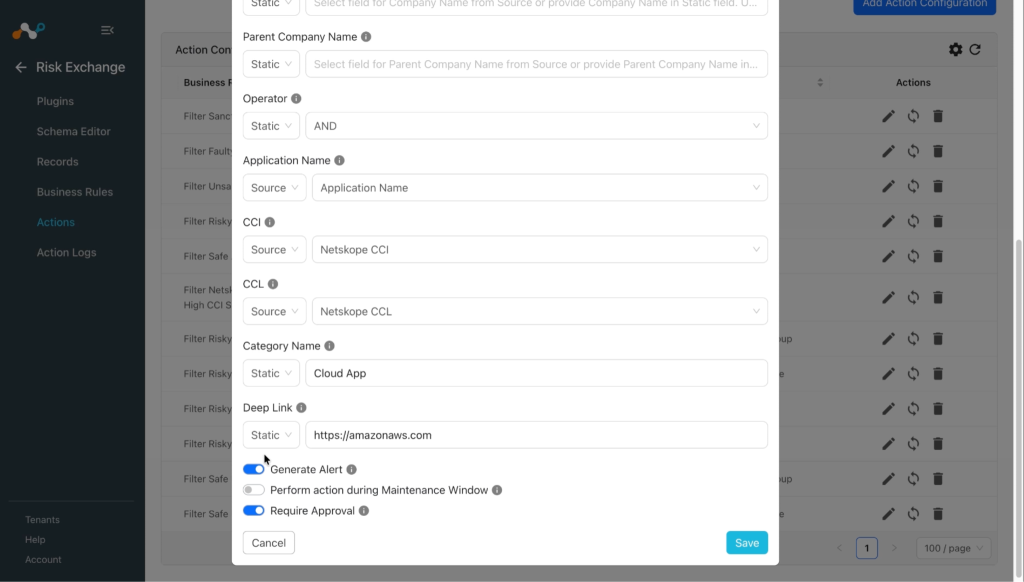

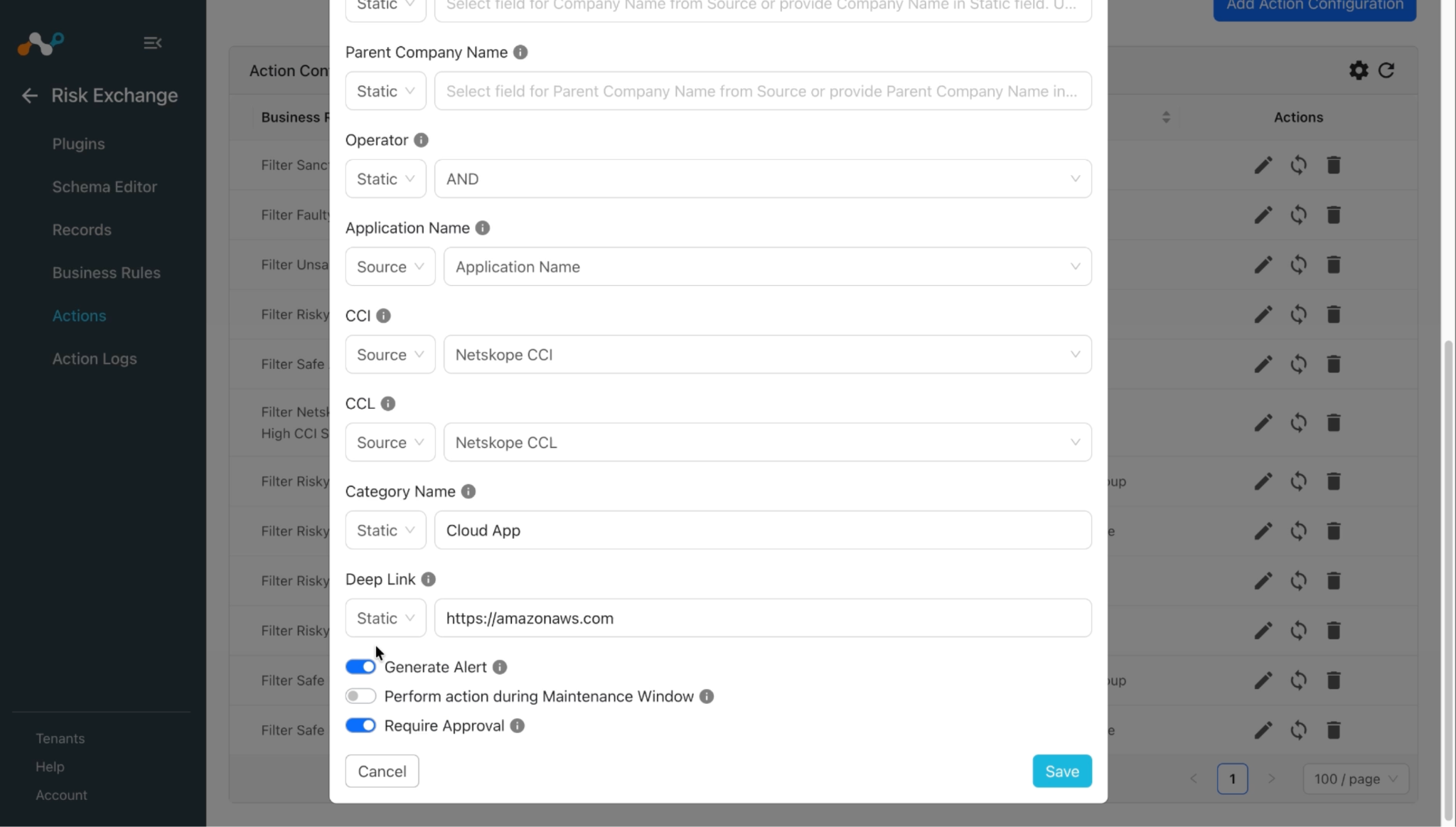

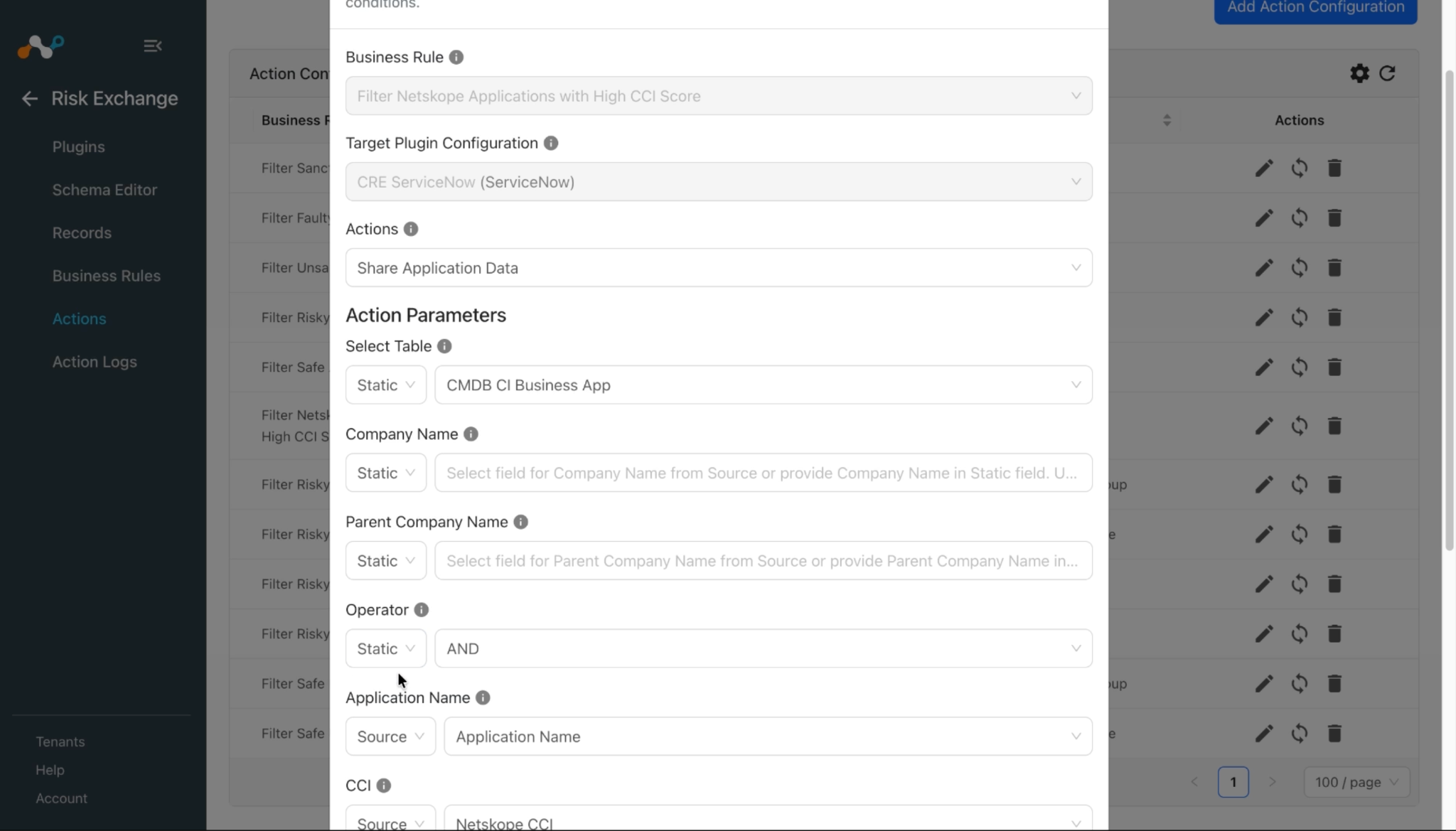

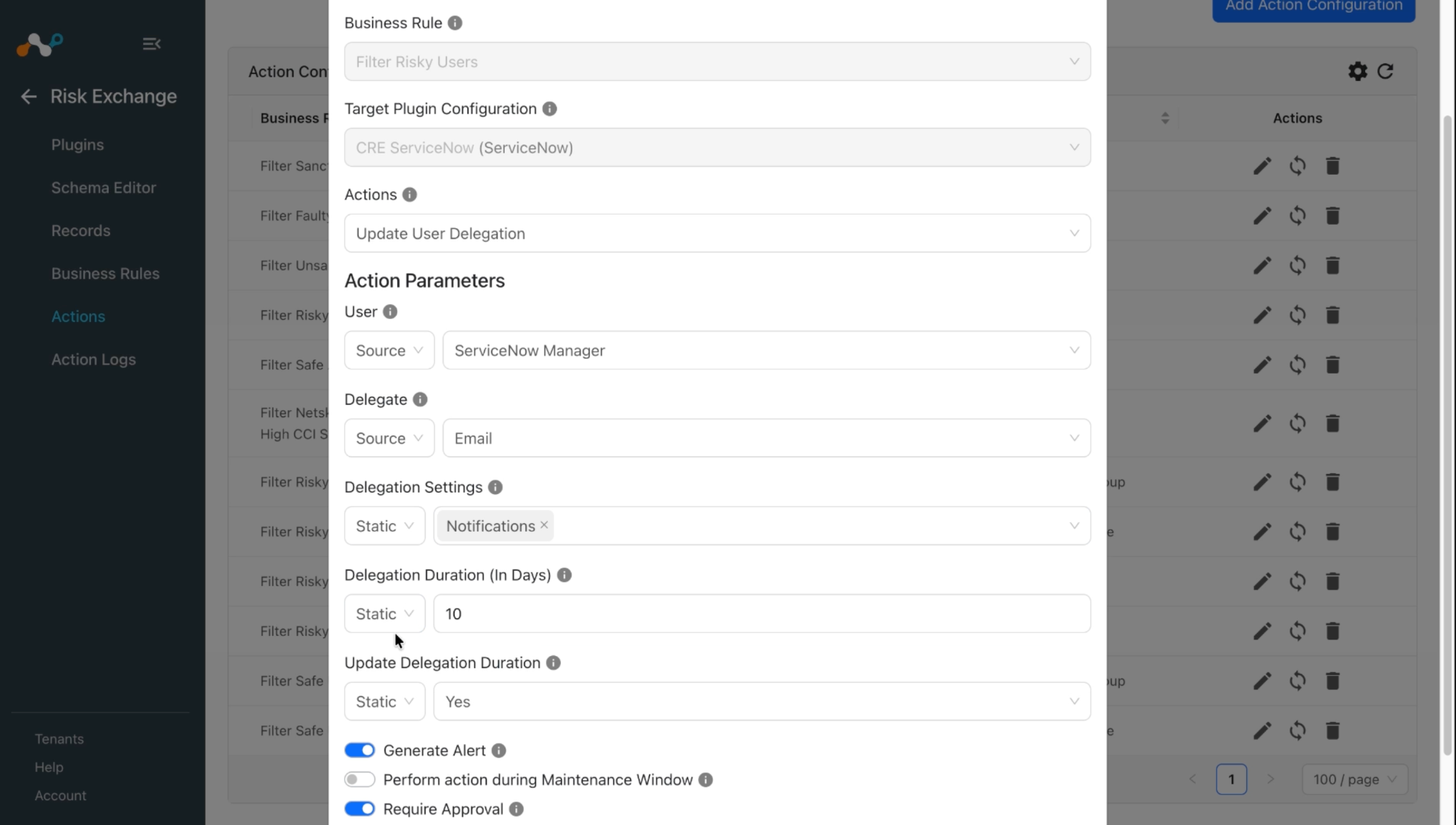

    6. Configure Risk Exchange Actions for ServiceNow.

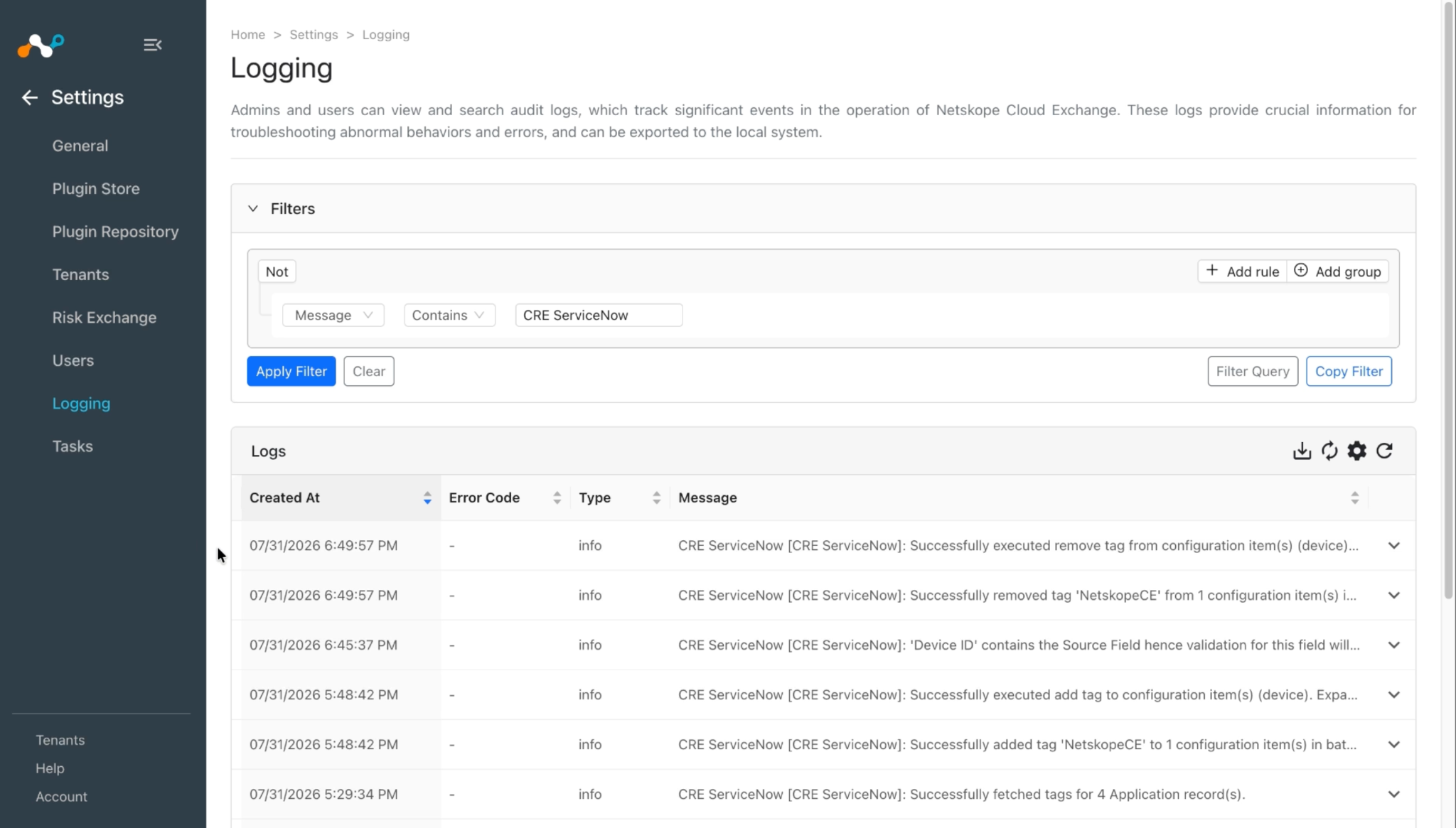

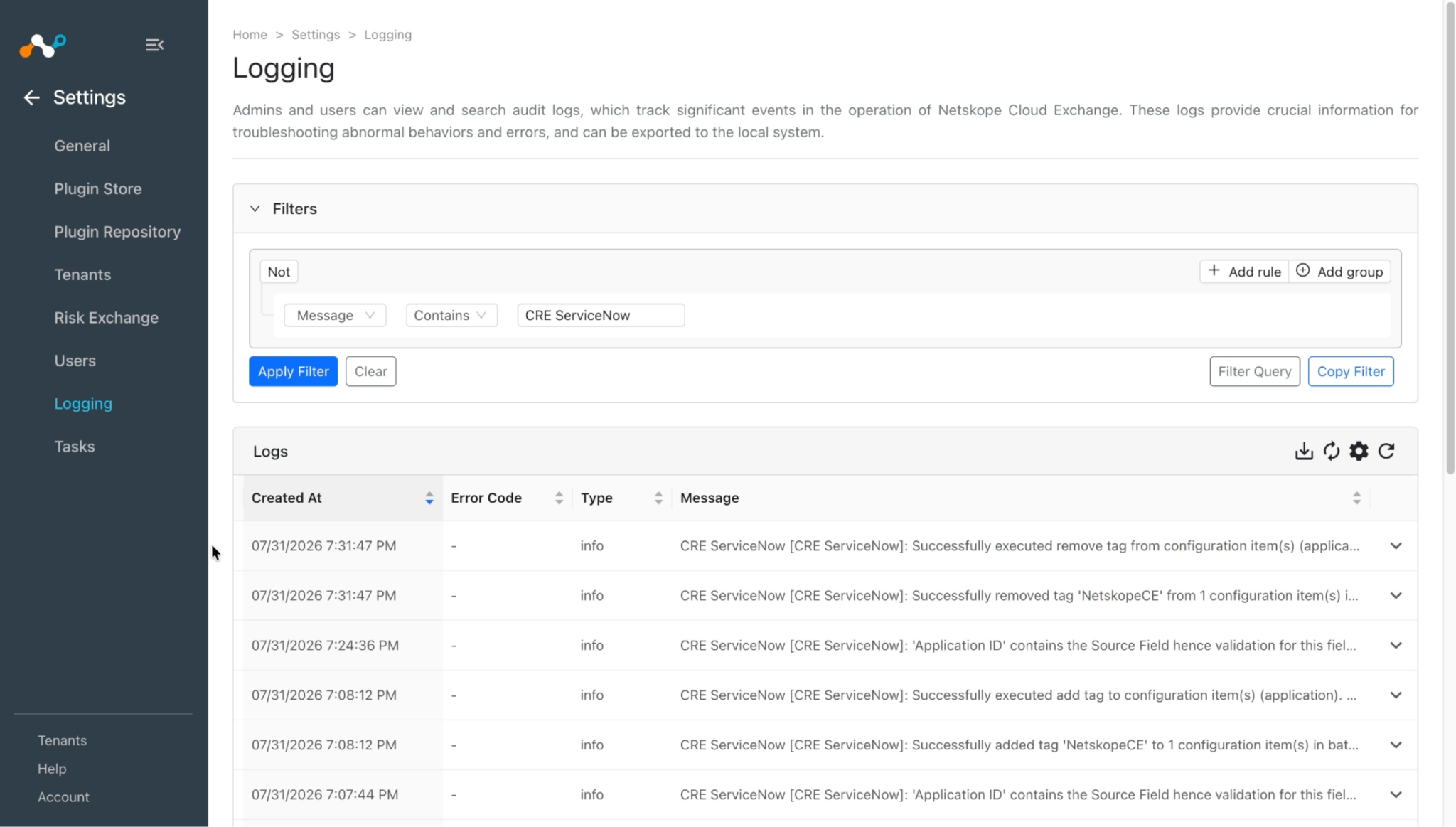

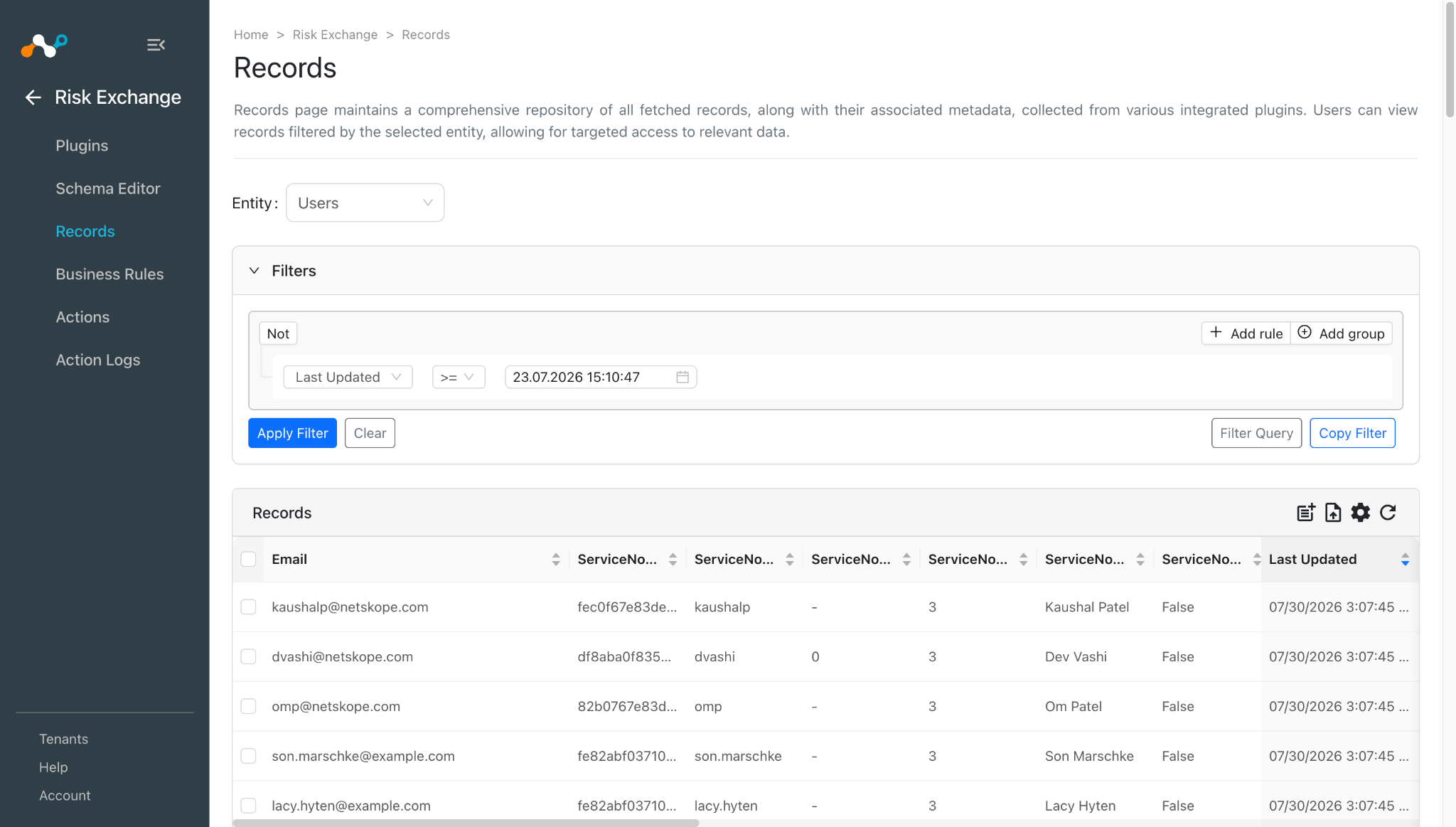

    7. Validate the plugin.

    Watch a Video

    Click play to watch a video.



    Create a User on the ServiceNow Platform

    1. Log in to ServiceNow.

    2. Go to System Security > Users and Groups > Users.

    3. Click New.

    4. Enter the required information, copy the User ID, and click Submit.

    5. After submitting the user, open the user record to set the password and roles, and click Set Password.

    6. Click Generate to create a new password, and copy the password.

    7. Click Save Password.

    Create a Role on the ServiceNow Platform

    1. Search for Users and Groups on your ServiceNow instance and click Roles.

    2. On the Roles page, click New.

    3. Enter a name and description for the role and click Submit.

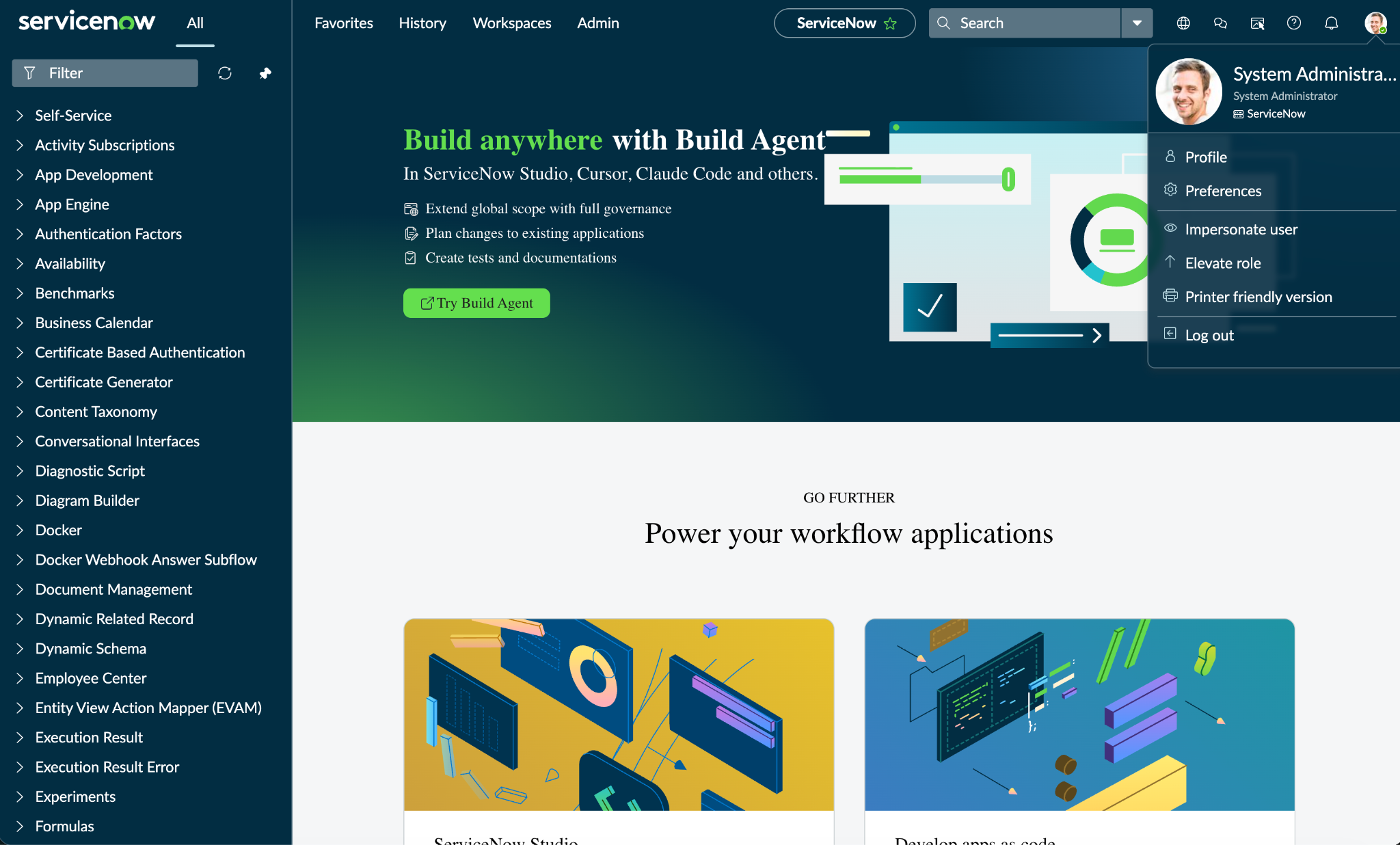

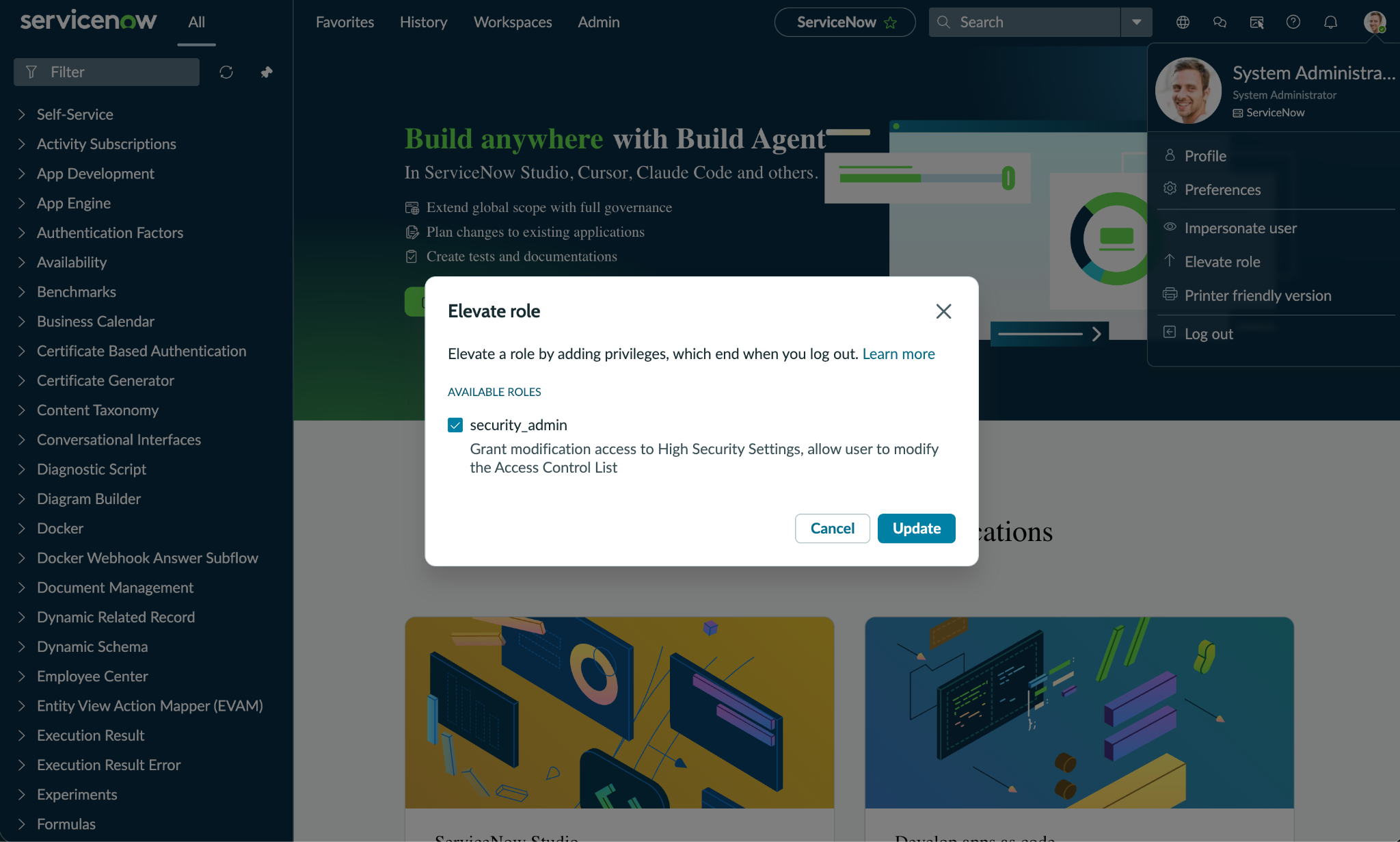

    4. Create an ACL. Creating an ACL might require elevated roles. To enable elevated roles, click on the user icon on the top right, then click Elevate Role.

    5. Select security_admin and click Update.

    6. Search for Access Control (ACL).

    7. Click New to create a new ACL.

    8. For Type, select Record, then enter the operation (like read, create, write ,or delete). For Name, add the table. Provide a description for the ACL based on your requirements. For Requires role, add the name of the role you created above. When finished, click Submit.

    9. Similarly, create ACLs based on the table provided in the permissions section. Then, assign that Role to the user you want to use for the CRE ServiceNow plugin.

    Add Permissions to the User

    1. Go to Users and open the user’s details, and then on the Roles tab, click Edit.

    2. Add the role that you created in the Create a role on the Servicenow Platform section, and these roles (Refer to Permissions Section):

      • cmdb_read
      • snc_internal
      • sn_cmdb_editor
      • user_admin
    3. Click Save.

    Create a Discovery Source

    If you want to pull and share application data to the cmdb_ci_business_app table, then you will need to create a Discovery Source on your ServiceNow instance. This discovery source ensures that the application you shared from Cloud Exchange is not pulled back into Cloud Exchange. In some cases, this may cause an infinite cyclic pulling and sharing of the same application.

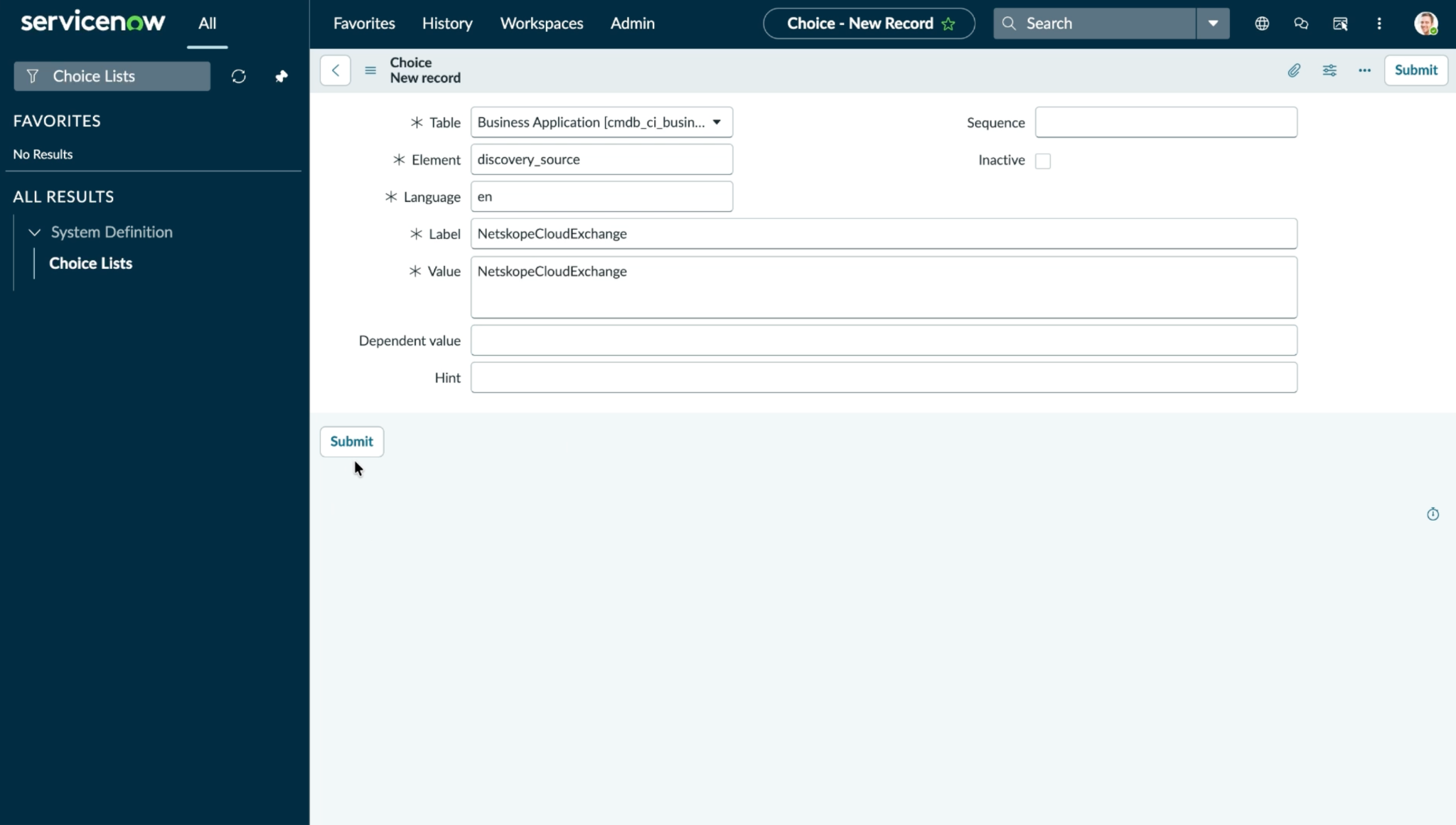

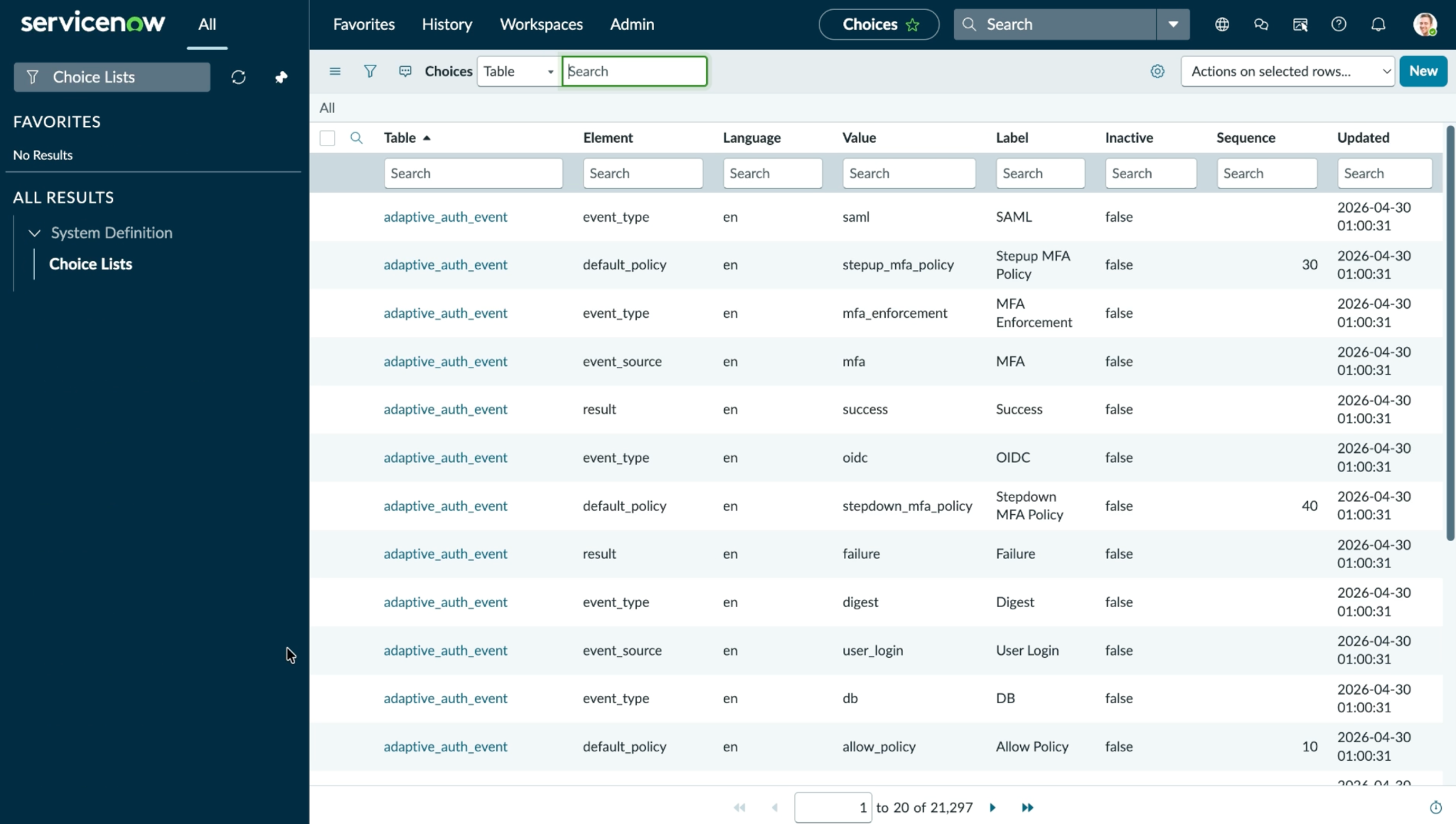

    Search for Choice Lists, open the Choice Lists page, and click New.

    To create a new discovery source, add the table cmdb_ci_business_app, then in the element add discovery_source. For Label and Value, enter NetskopeCloudExchange.

    Click Submit. This discovery source field’s NetskopeCloudExchange value is used to prevent re-pulling of the applications shared from Netskope Cloud Exchange.

    Configure the ServiceNow Plugin

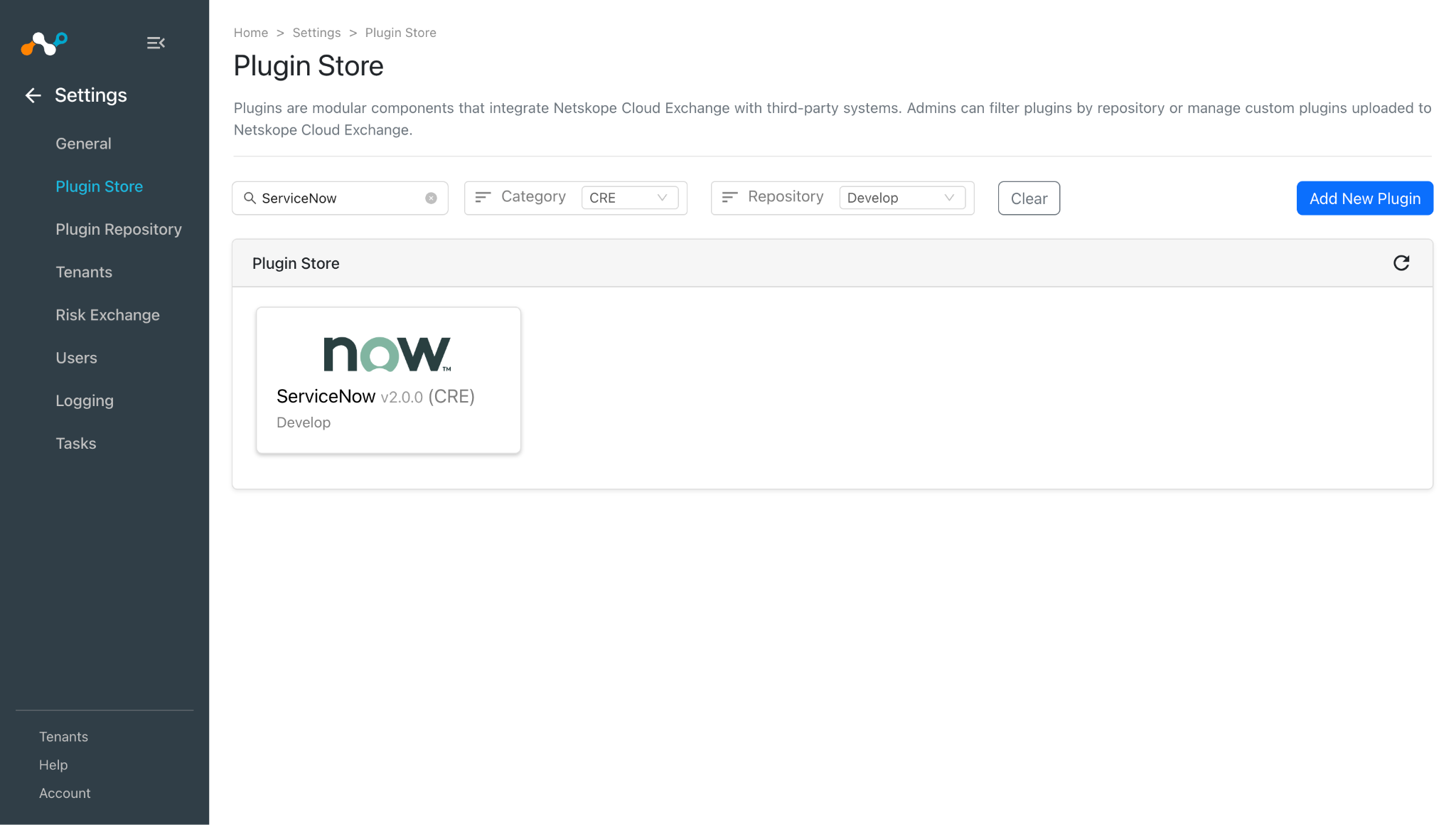

    1. In Cloud Exchange, go to Settings > Plugin Store. Search for and select the ServiceNow v2.0.0 (CRE) plugin.

    2. Enter a Configuration Name and select a Sync Interval.

    3. Click Next and enter the Configuration Parameters:

      • Instance URL: ServiceNow instance URL (like https://<your-instance>.service-now.com.
      • Username: Username of your ServiceNow instance.
      • Password: Password of your ServiceNow instance.
      • Pull Additional Details: Select the optional data to pull. The selected options expose additional fields. Unselected options are skipped and their fields are not exposed. Note that for all the selected options in the parameter, additional API calls are made to fetch data from ServiceNow.
    4. Click Next and select the required Entity from the Entity dropdown. Provide the field mapping per your requirements. You can create a new by clicking Add New Entity.

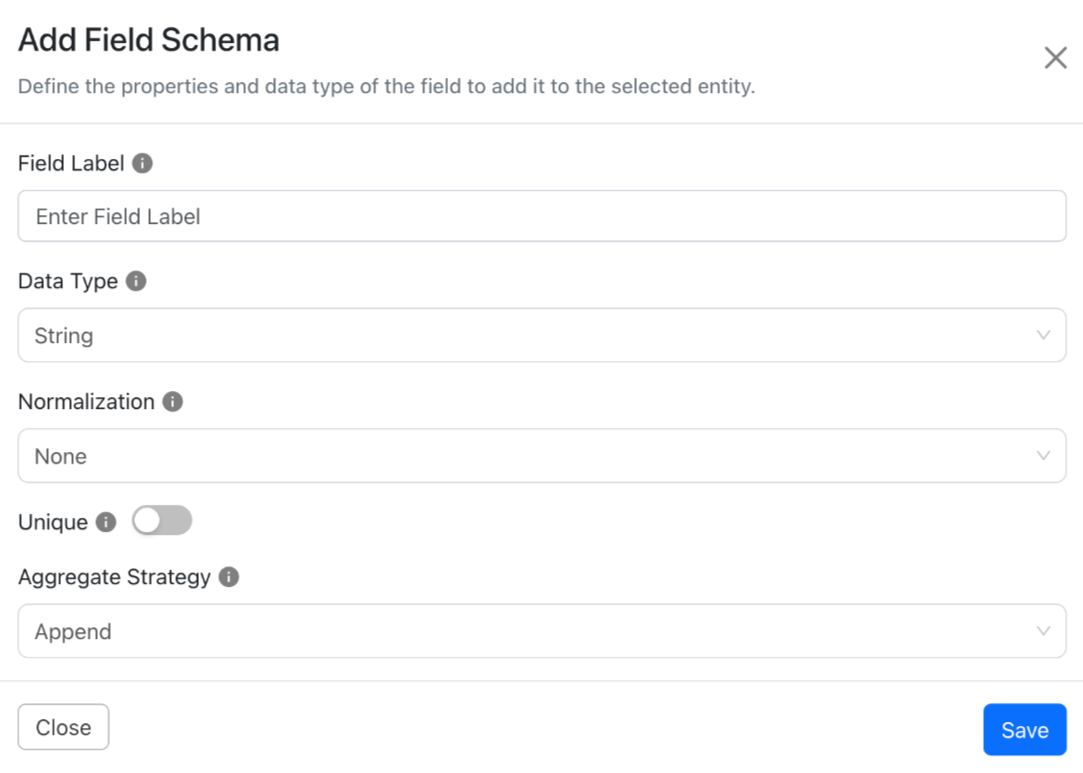

      To create a new field, click Add field.

      Provide the Field Label, Data Type, Normalization, and Aggregate Strategy per your requirements, and then click Save.

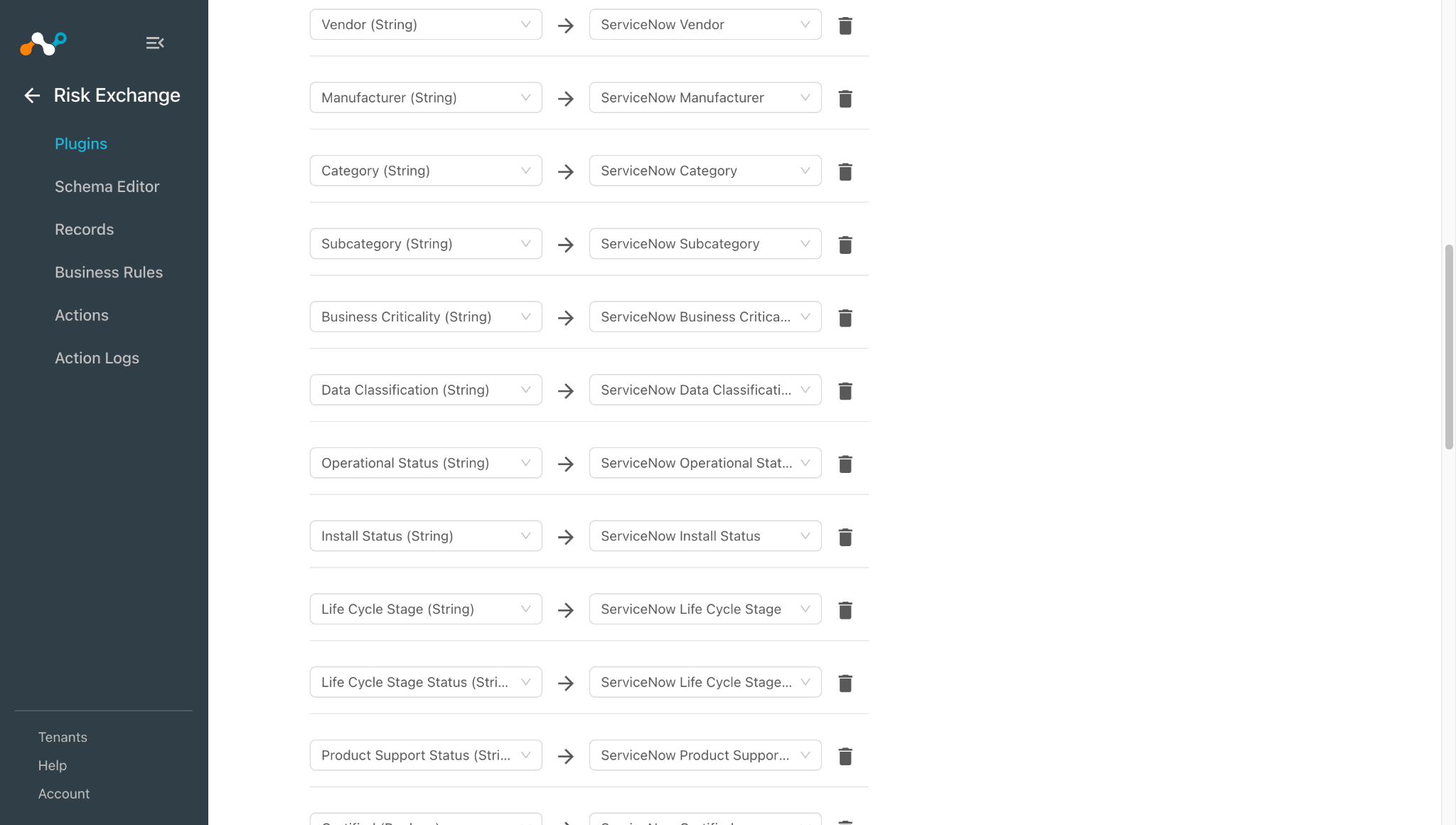

      Map the created fields:

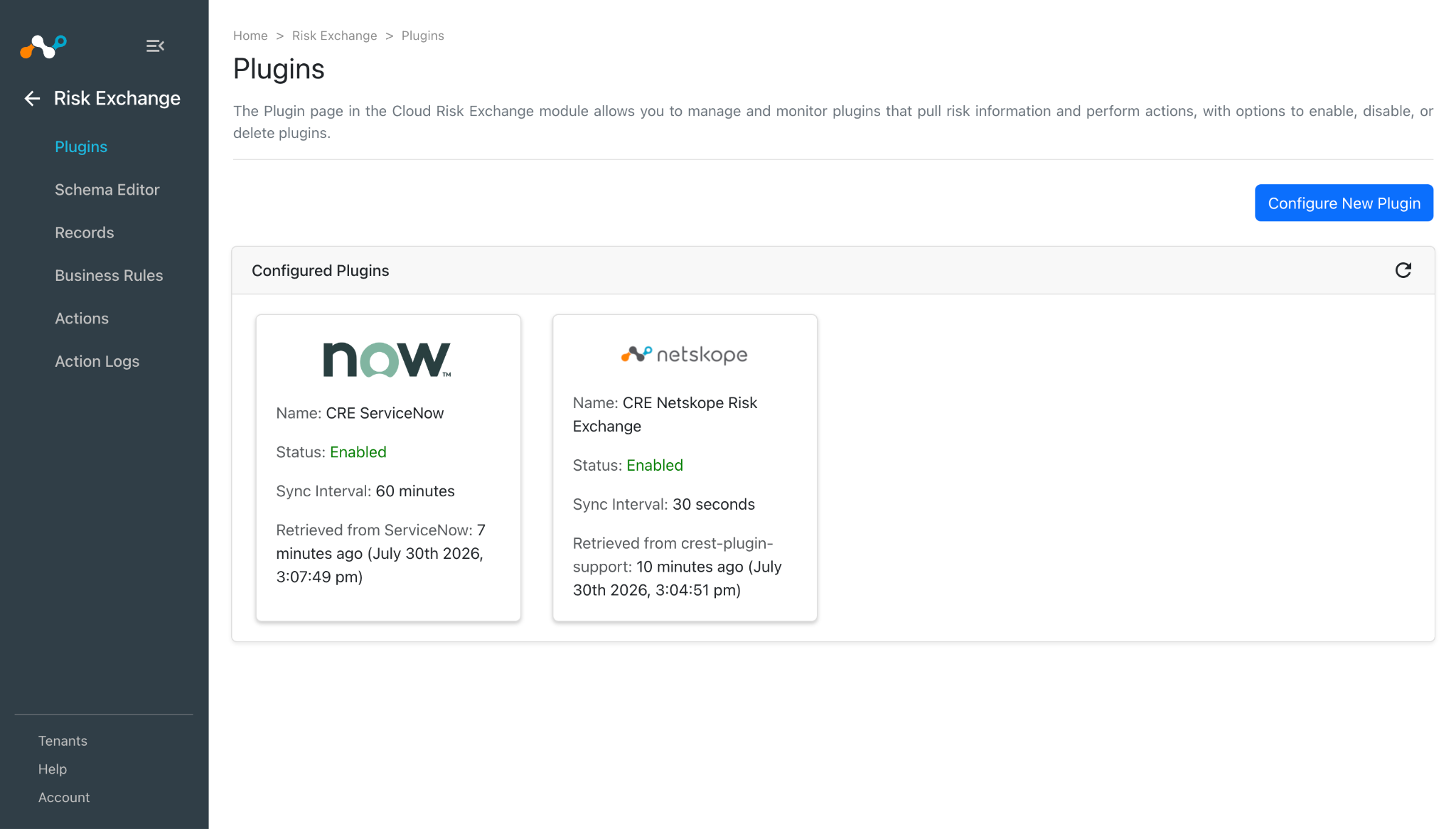

    5. Click Save. Your new plugin configuration appears on the Plugins page.

    Configure a Risk Exchange Business Rule for ServiceNow

    1. In Risk Exchange, go to Business Rules and click Create New Rule in the top right corner.
    2. Enter a Rule Name. Select the Entity for the Fields configured for the Applications that you need to perform the action, and configure the query based on your requirements. Click Save.

    Configure Risk Exchange Actions for ServiceNow

    The ServiceNow plugin supports these actions:

    • Add/Remove User from Group: This action can be used to Add or Remove Users from a group on the ServiceNow platform.
    • Add/Remove User from Role:  This action can be used to Add or Remove roles for a User on the ServiceNow platform.
    • Update User Delegation: This action can be used to Update User Delegation on the ServiceNow platform. Note that this action does not deal with multiple Delegations.
    • Manage Device Tags: This action can be used to Add or Remove Tags from a Device on the ServiceNow platform.
    • Manage Application Tags: This action can be used to Add or Remove Tags from an Application on the ServiceNow platform.
    • Share Application Data: This action can be used to Share Applications to the ServiceNow platform.
    • No Action: No action will be performed for this action. Users can generate UBA alerts in Ticket Orchestrator by using this action and enabling the Generate Alerts toggle.
    You can perform multiple actions on the pulled records from ServiceNow on the Netskope Tenant. For performing the related actions on Netskope, refer to the Netskope Risk Exchange plugin guide.

    Add/Remove User from Group

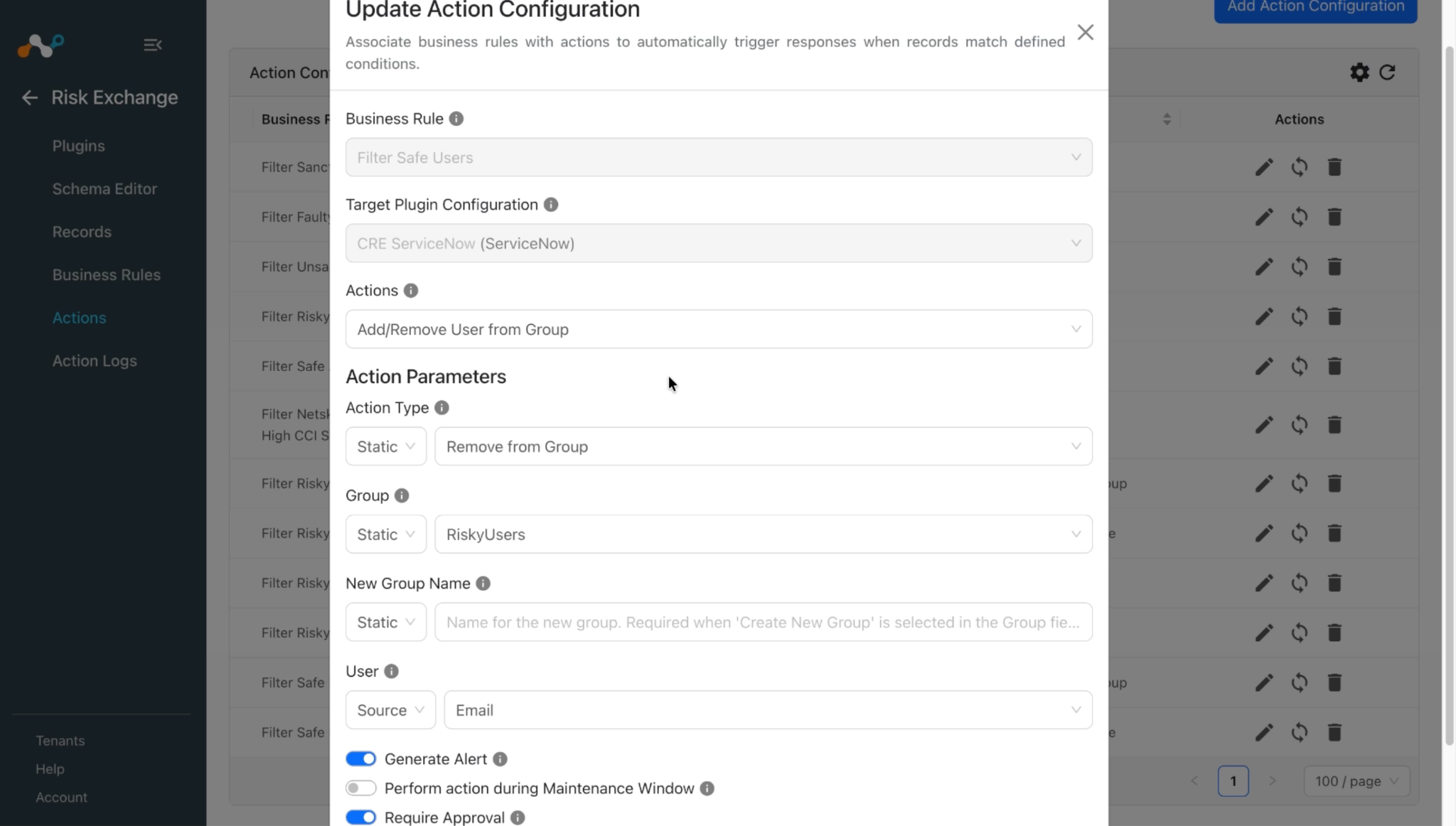

    Follow these steps to configure the Add/Remove User from Group action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdown.
    3. Provide the following action actions parameters:
      • Action Type: Choose whether to add the user to the group or remove the user from it. Select from the Static field dropdown.
      • Group: Select the ServiceNow group to add the user to or remove the user from, or click Create New Group to create one. Creating a new group is only supported when the Action Type is Add to Group.
      • New Group Name: Name for the new group. Required when Create New Group is selected in the Group field; it is ignored otherwise. Provide the name in the Static field only. Source fields are not supported.
      • User: Select the User ID or Email source field or provide comma separated user sys_id, email, or user name in the Static field.
    4. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    5. Click Save.

    Add/Remove User from Role

    Follow these steps to configure the Add/Remove User from Role action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdowns.
    3. Provide the following action actions parameters:
      • Action Type: Whether to add the user to the role or remove the user from it. Select from the Static field dropdown.
      • Role: Select one or more ServiceNow roles to add the user to or remove the user from. Every selected role is applied to every user named by the User field. Creating a new role is not supported by this action.
      • User: Select the User ID or Email source field or provide comma separated user sys_id, email or user name in the Static field.
    4. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    5. Click Save.

    Update User Delegation

    Follow these steps to configure the Update User Delegation action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdowns.
    3. Provide the following action actions parameters:
      • User: Delegating user. Select the User ID or Email source field or provide comma-separated user sys_id, email or user name in the Static field.
      • Delegate: User who acts on the delegator’s behalf. Select a source field or provide comma separated user sys_id, email or user name in the Static field. Each user is delegated to every delegate.
      • Delegation Settings: Select which settings to delegate under a static dropdown list. The delegation on ServiceNow is replaced with exactly this selection. Selected settings are delegated (true) and unselected settings are not (false). Note that leaving all settings unselected deletes the delegation. If the deletion does not exist, and the action is triggered, then it will create the delegation with this value even if Update Delegation Duration is set to No.
      • Update Delegation Duration: Only applies when a delegation already exists for the user and delegate (like its settings are being replaced, not created, or deleted). Select Yes to also move the delegation’s end time to now. For Delegation Duration, its start time is left as is. Select No (default) to leave the existing delegation’s start and end time untouched.
    4. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    5. Click Save.

    Manage Device Tags

    Follow these steps to configure the Manage Device Tags action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdowns.
    3. Provide the following action actions parameters:
      • Action Type: Whether to add (tag) or remove (untag). Select from the Static field dropdown.
      • Device ID: Select the ServiceNow Device ID source field or provide comma-separated Device ID (sys_id) in the Static field.
      • Tag Key: Single tag key to add or remove, shared by every Tag Value. Provide in the Static field only, with a maximum of 254 characters.
      • Tag Value: Tag value(s) for Tag Key. Provide a single value or comma-separated values in the Static field, or select a source field (a List field resolves to multiple values). Each value becomes its own tag sharing the same key. When removing, only tags whose key/value pair exists are deleted.
    4. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    5. Click Save.


    Manage Application Tags

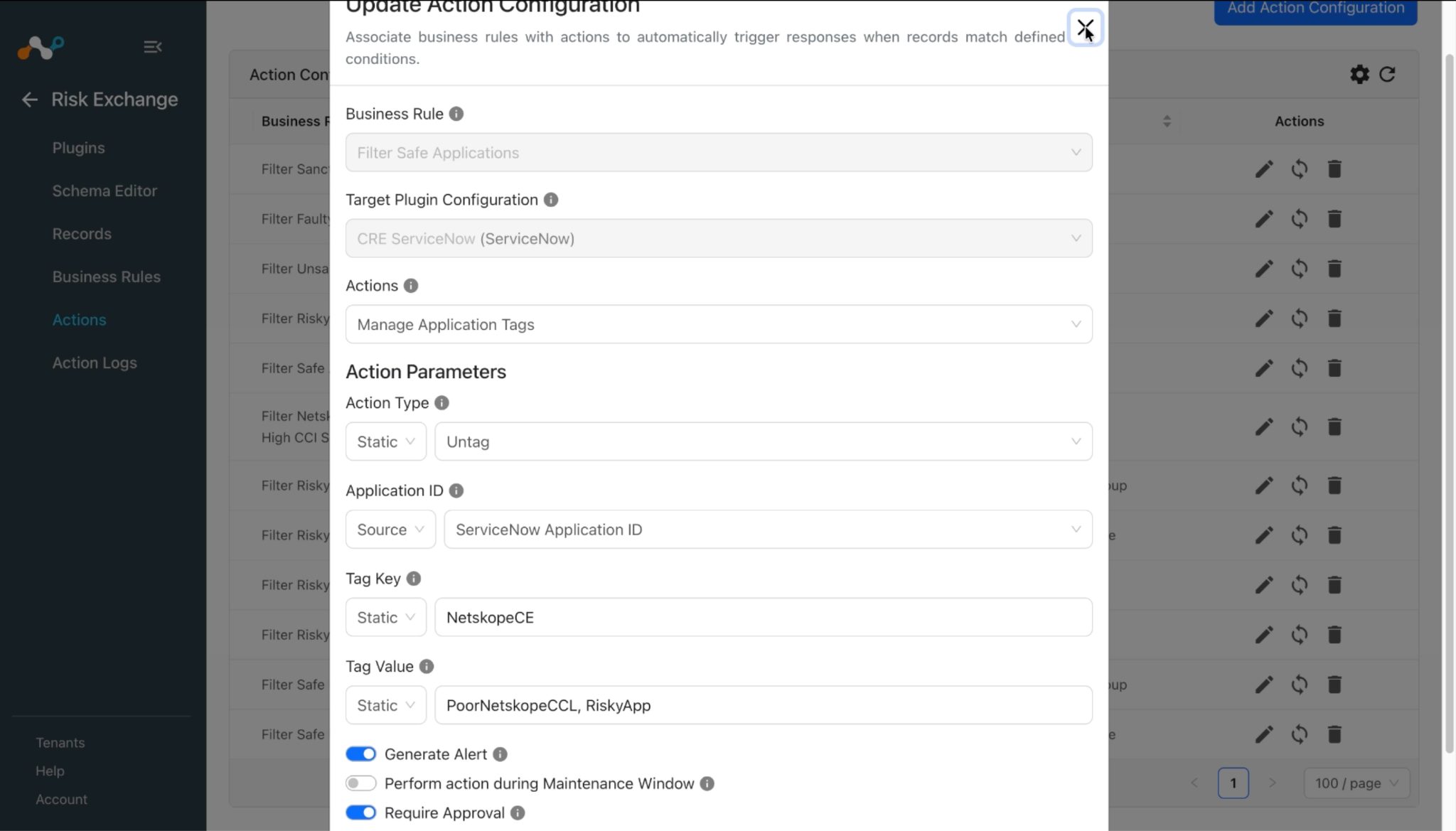

    Follow these steps to configure the Manage Application Tags action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdowns.
    3. Provide the following action actions parameters:
      • Action Type: Whether to add (tag) or remove (untag). Select from the Static field dropdown.
      • Application ID: Select the Application ID source field or provide comma-separated Application ID (sys_id) in the Static field.
      • Tag Key: Single tag key to add or remove, shared by every Tag Value. Provide in the Static field only, with a maximum of 254 characters.
      • Tag Value: Tag value(s) for Tag Key. Provide a single value or comma-separated values in the Static field, or select a source field (a List field resolves to multiple values). Each value becomes its own tag sharing the same key. When removing, only tags whose key/value pair exists are deleted.
    4. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    5. Click Save.

    Share Application Data

    This action is used to share the application data pulled from Netskope or other third-party plugins to the ServiceNow instance.

    Note

    • If you want to pull and share application data to the cmdb_ci_business_app table via the ServiceNow plugin, then you will need to create a Discovery Source on your ServiceNow instance. This discovery source ensures that the application you shared from Cloud Exchange is not pulled back into Cloud Exchange. Since in some cases this can cause an infinite cyclic pulling and sharing of the same application. Refer to the Create Discovery Source section.
    • Companies (Company Name) available on ServiceNow can be identified by the Vendor field pulled from Risk Exchange.
    • The Parent Company Name should be mapped considering that it will match the Parent on ServiceNow.

    Follow these steps to configure the Share Application Data action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdowns.
    3. Provide the following action actions parameters:
      • Select Table: Select the ServiceNow table to share the application data to. Core Company matches Company / Parent Company records. CMDB CI Business App matches or creates a Business Application record by Application Name.
      • Company Name: Select field for Company Name from Source or provide Company Name in Static field. Used only when Select Table is Core Company, for fetching Vendor details from ServiceNow platform.
      • Parent Company Name: Select field for Parent Company Name from Source or provide Parent Company Name in Static field. Used only when Select Table is Core Company, for fetching Vendor details from ServiceNow platform.
      • Operator: Select operator from Static field drop down to perform operation between Company Name and Parent Company Name. Used only when Select Table is Core Company, and required when both Company Name and Parent Company Name are provided, like name=ABC^ORparent.name=XYZ.
    4. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    5. Click Save.

    No Action

    Follow these steps to configure the No Action action:

    1. In Risk Exchange, go to Actions and click Add Action Configuration.
    2. Select the required Business Rule, Configuration, and Action from their respective dropdowns.
    3. Enable the Require Approval toggle if Approval is needed before performing action on the Applications.
    4. Click Save.

    Validate the ServiceNow Plugin

    Validation on Cloud Exchange

    Pull Validation

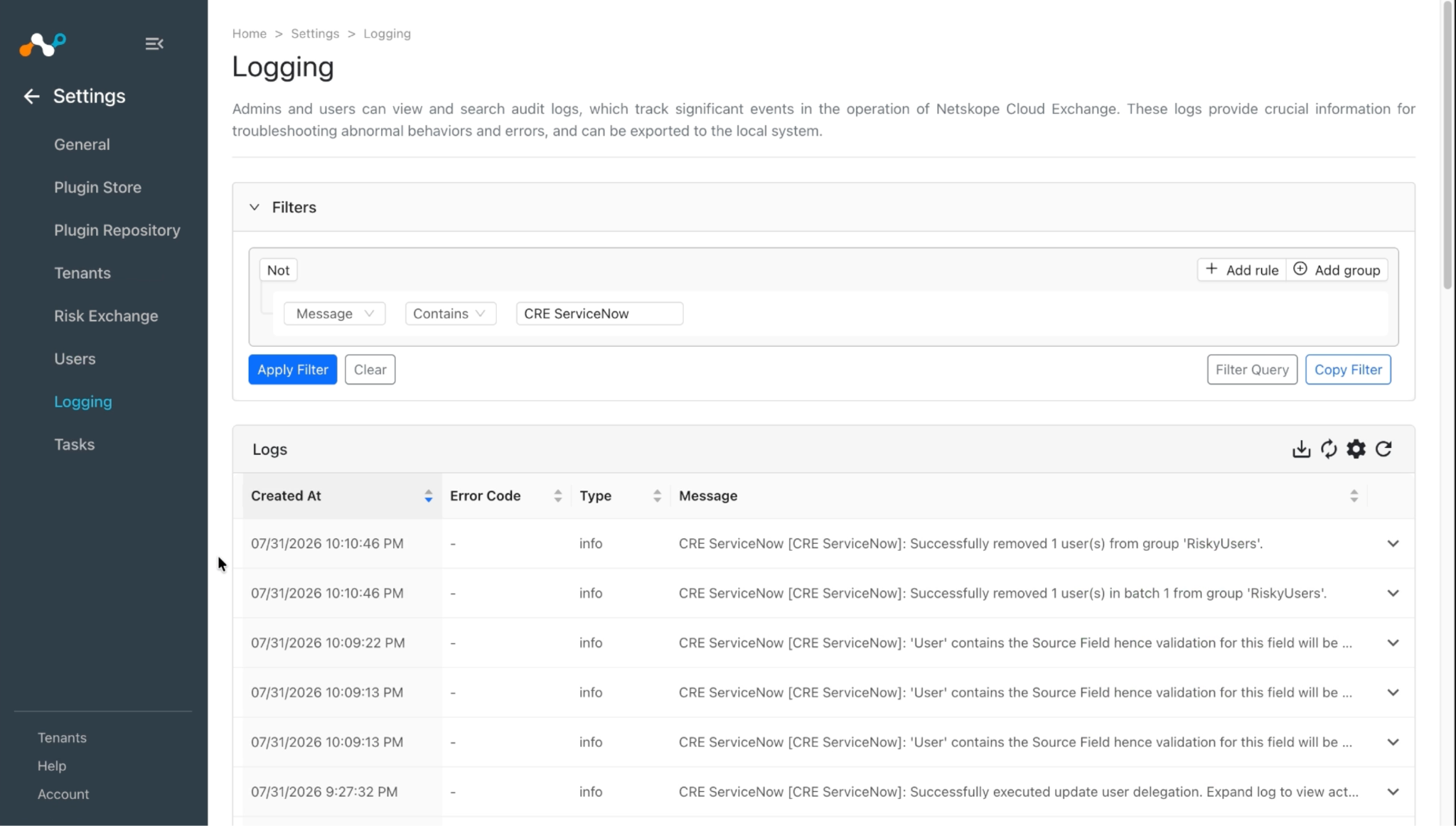

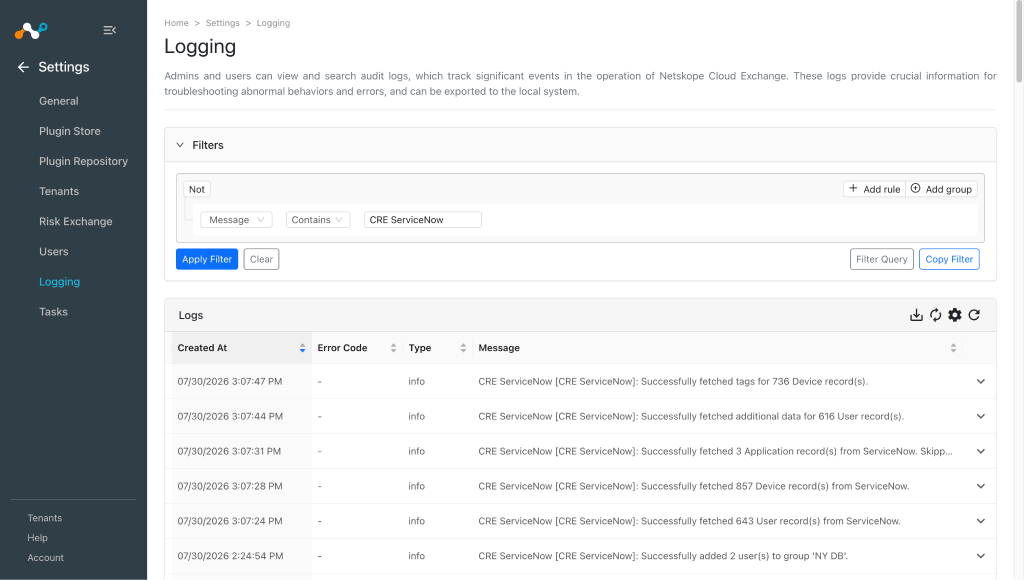

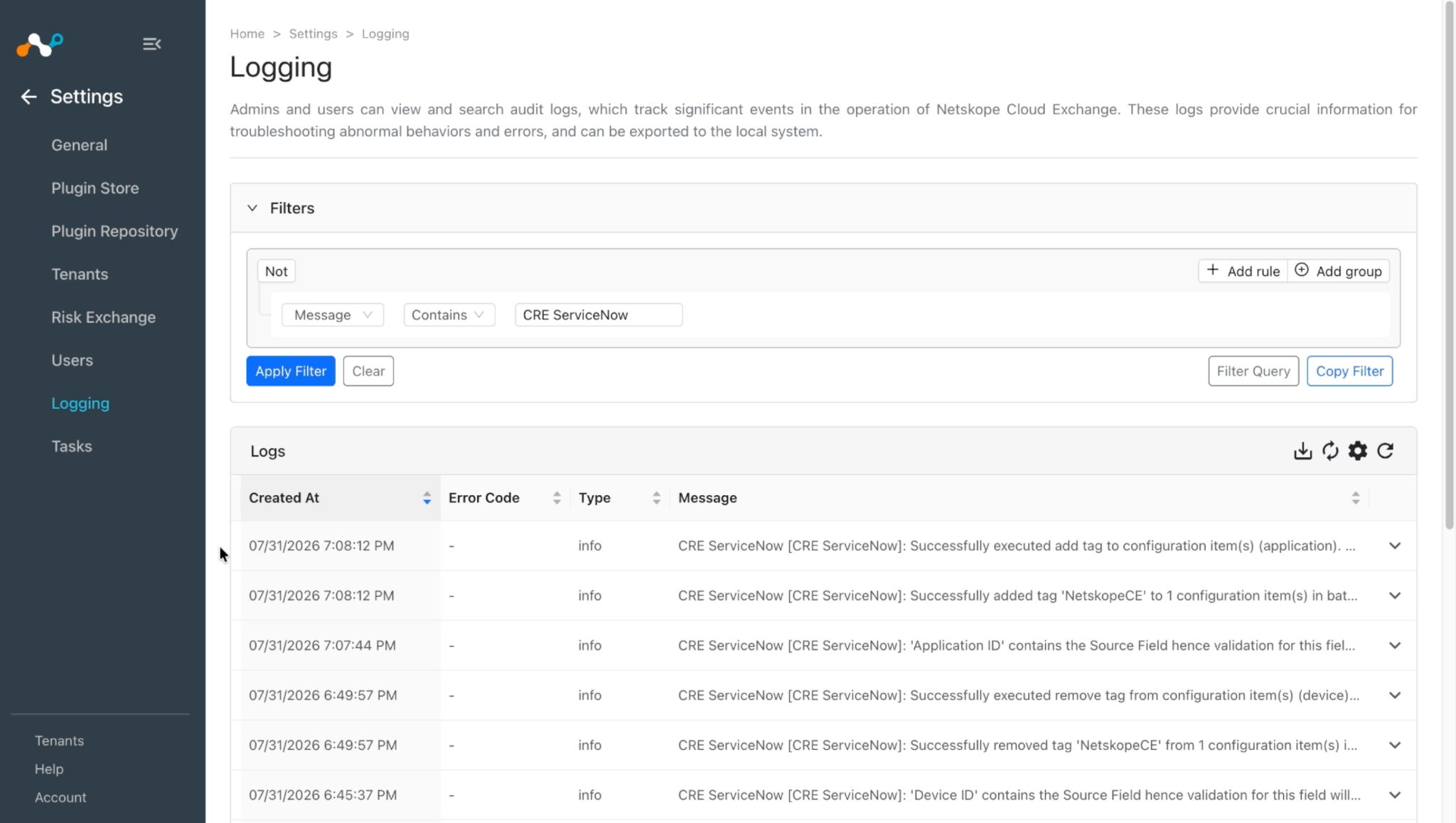

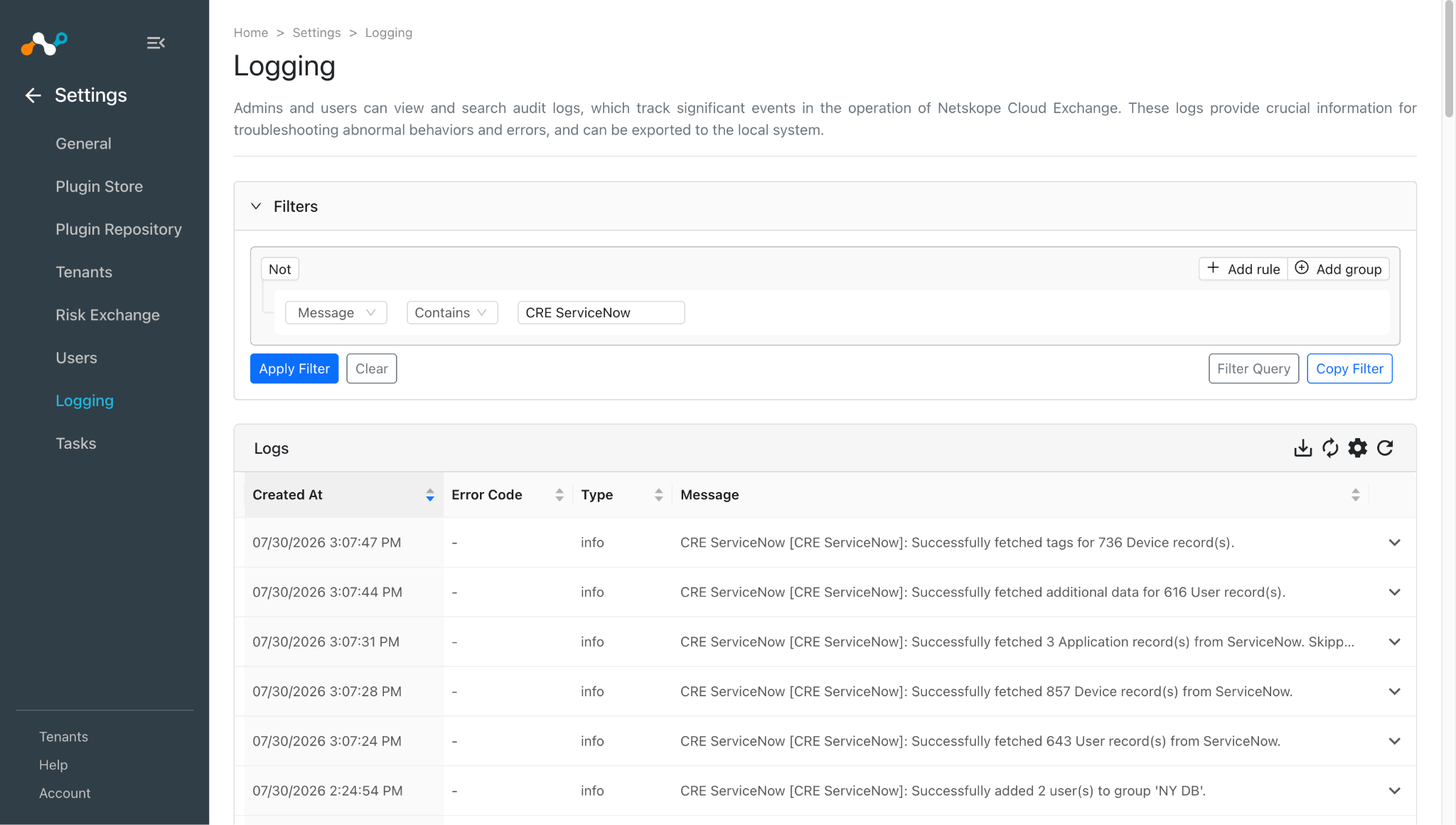

    To verify the logs related to pulled records, go to the Settings > Logging and apply the filter with plugin name or plugin configuration name.

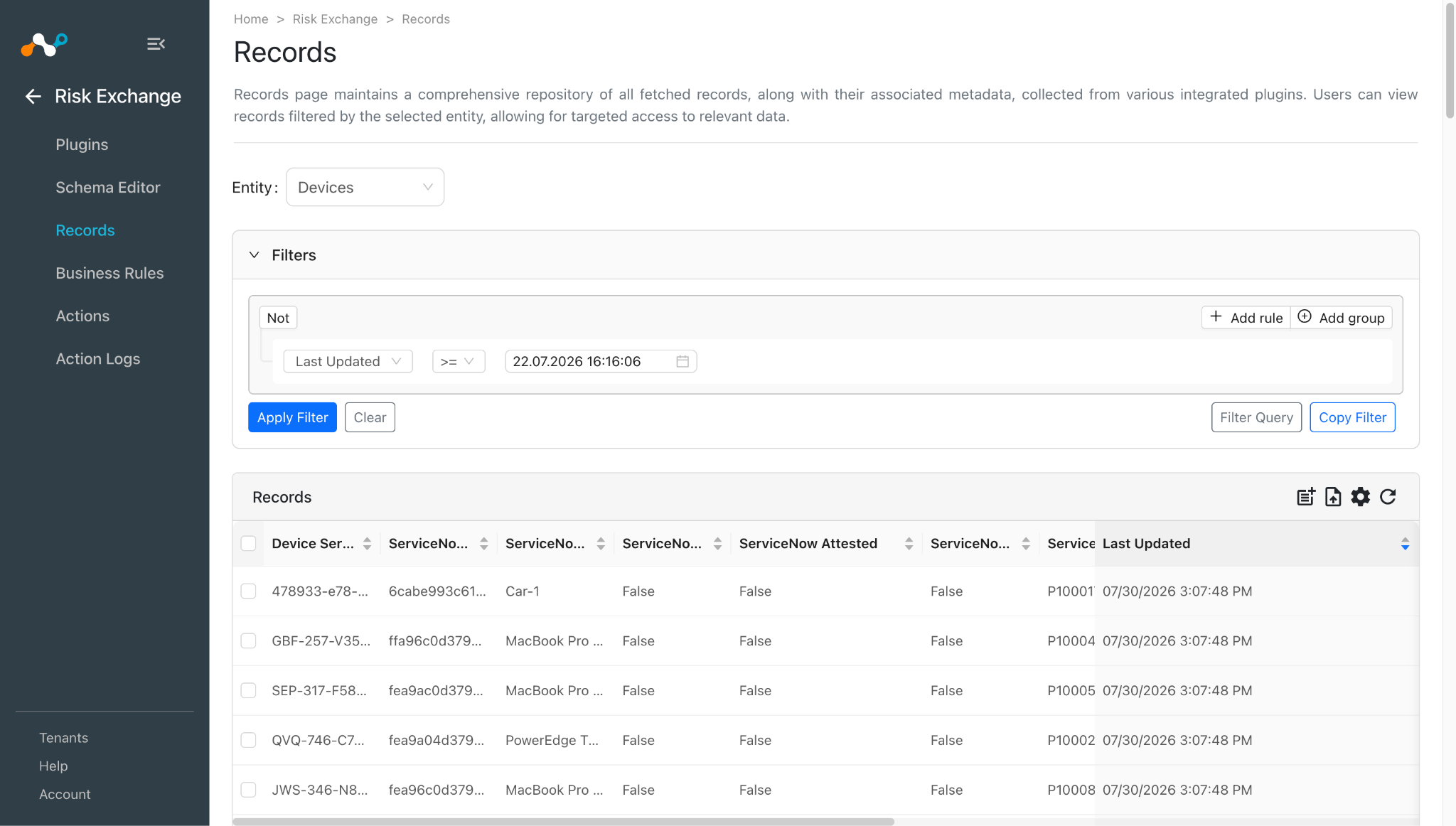

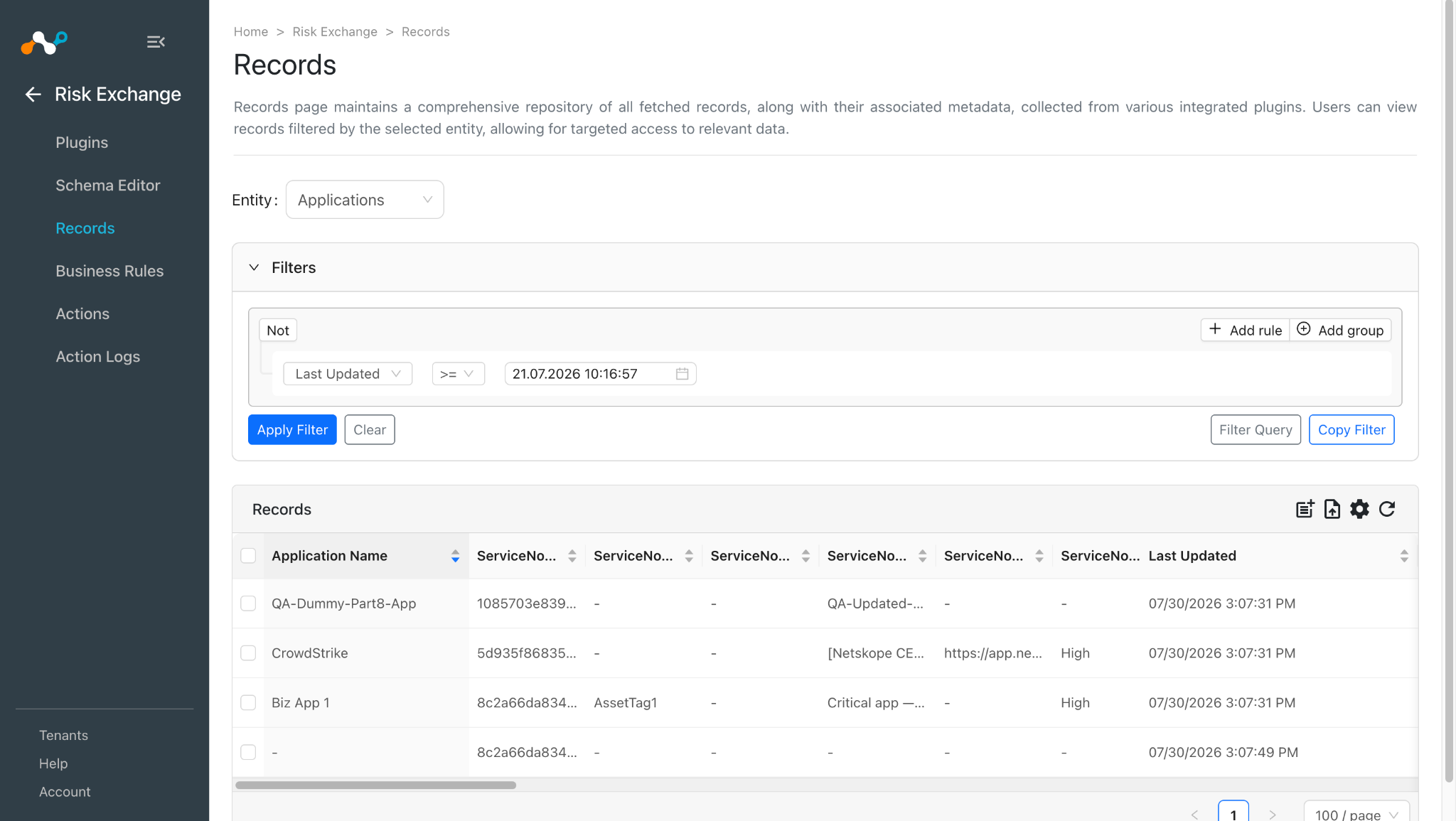

    To validate the pulled records, go to Risk Exchange > Records. Select the Entity that is selected while configuring the field mapping to view the pulled records.

    Action Validation

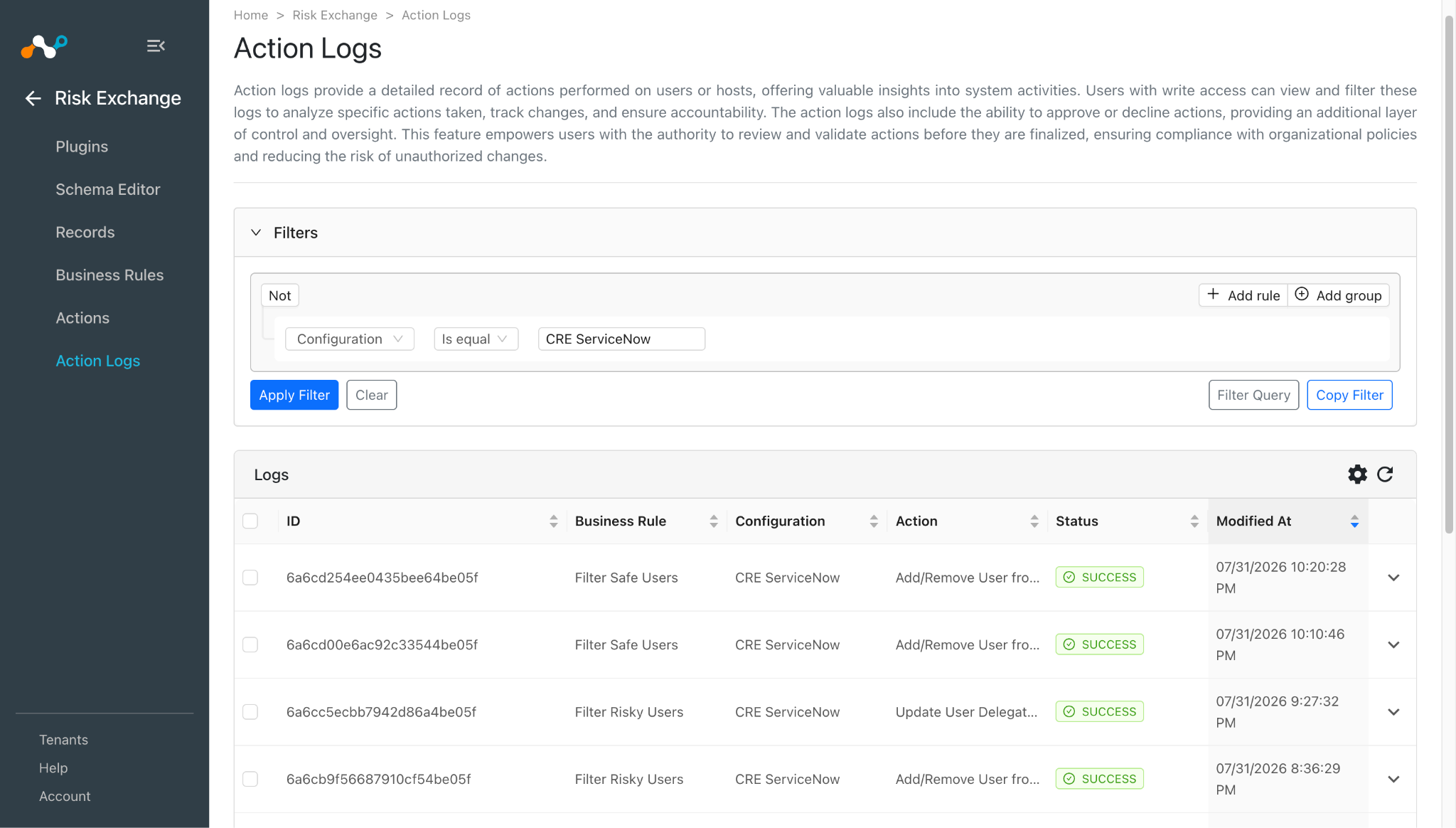

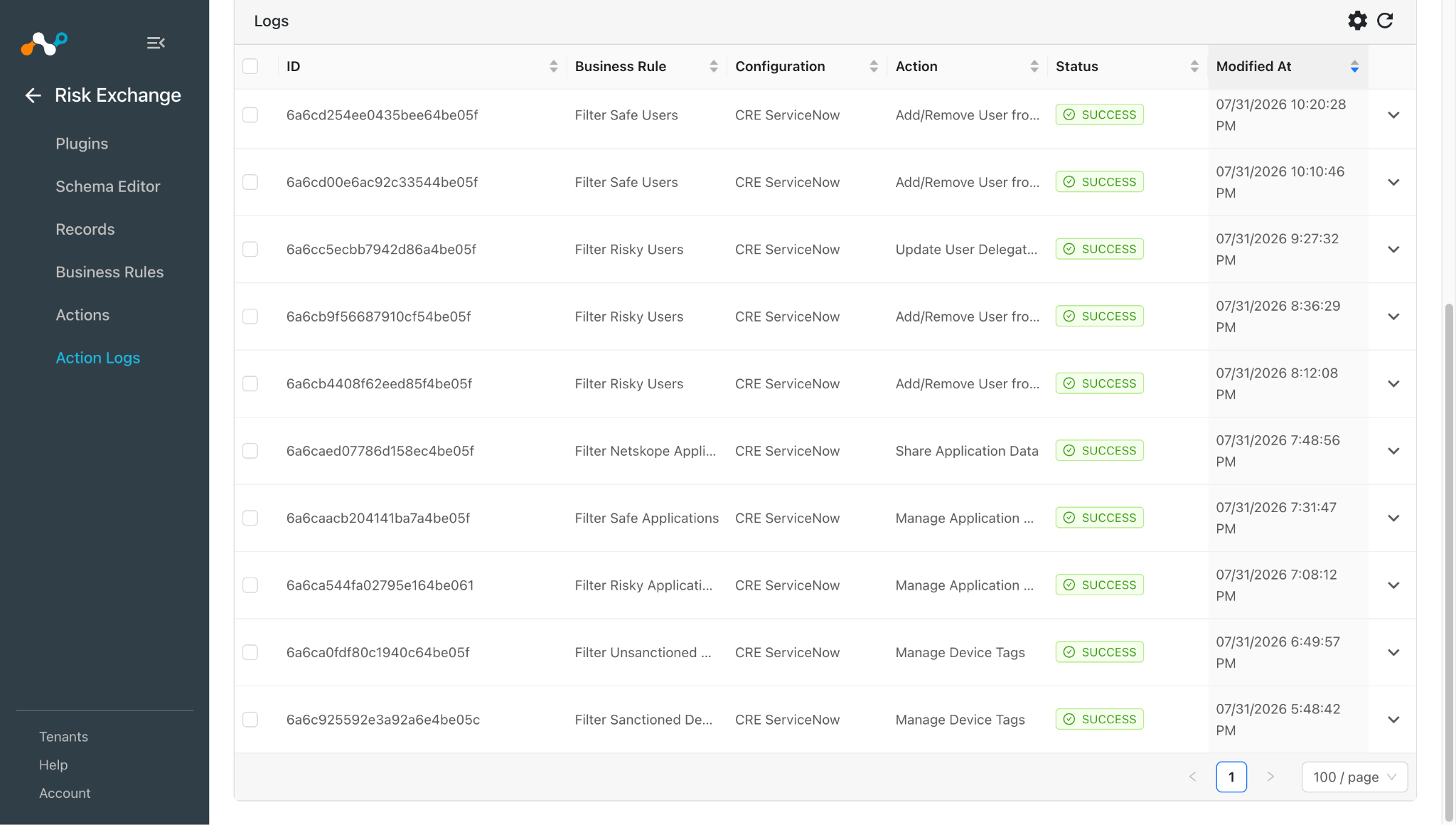

    When a pulled record matches one of the configured business rules, the configured action will be performed on the record. This can be seen at Risk Exchange > Action Logs.

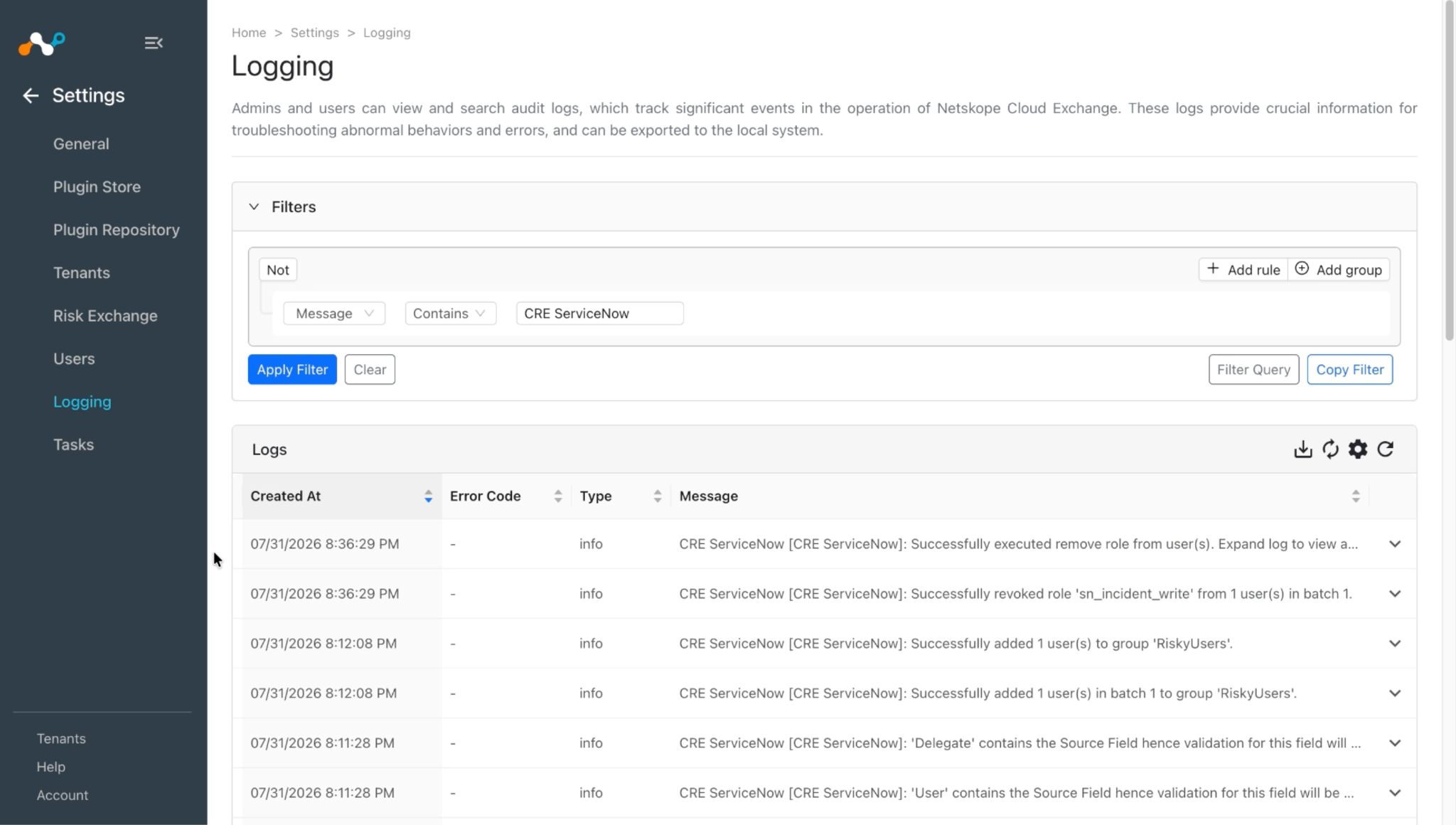

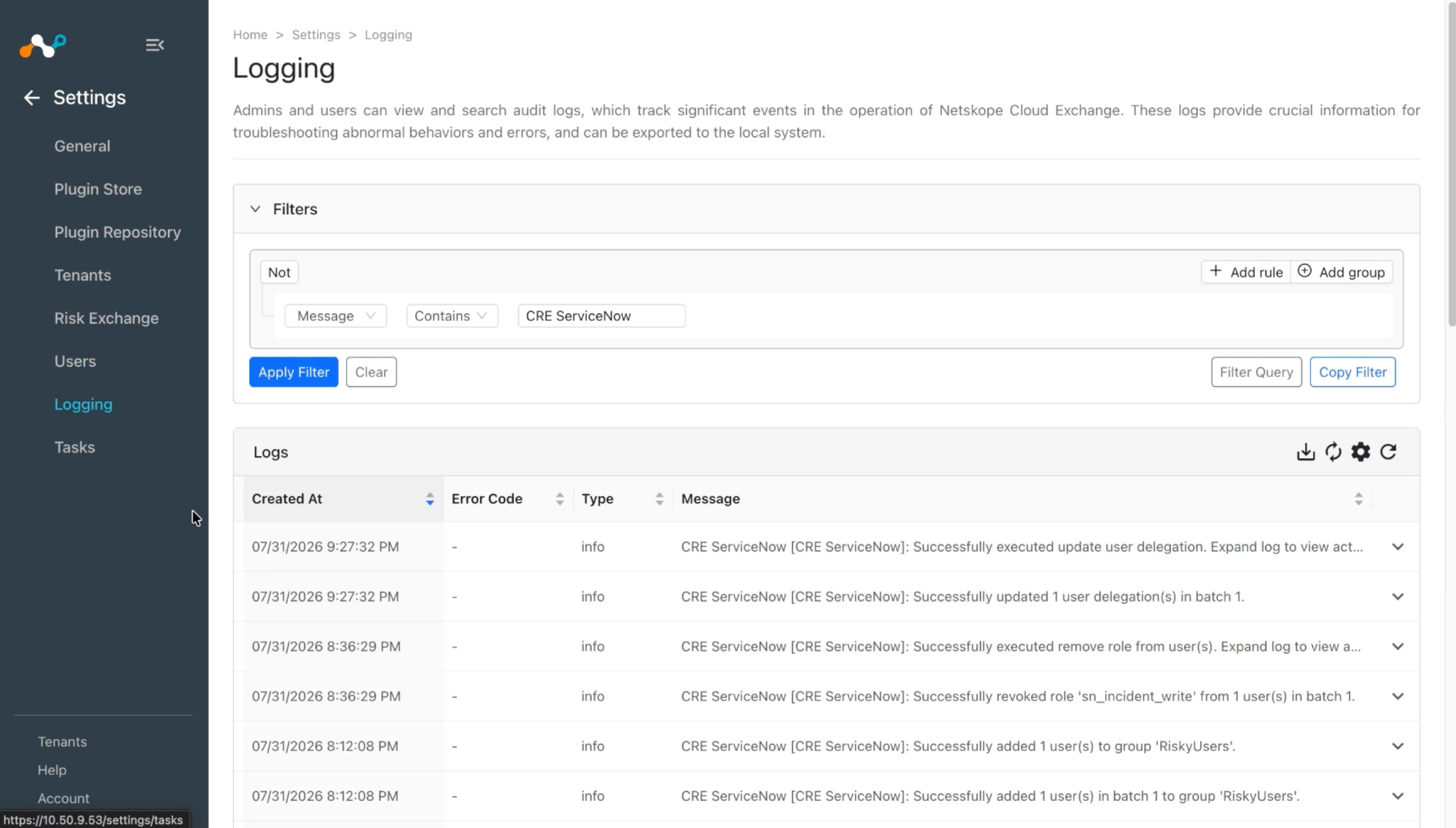

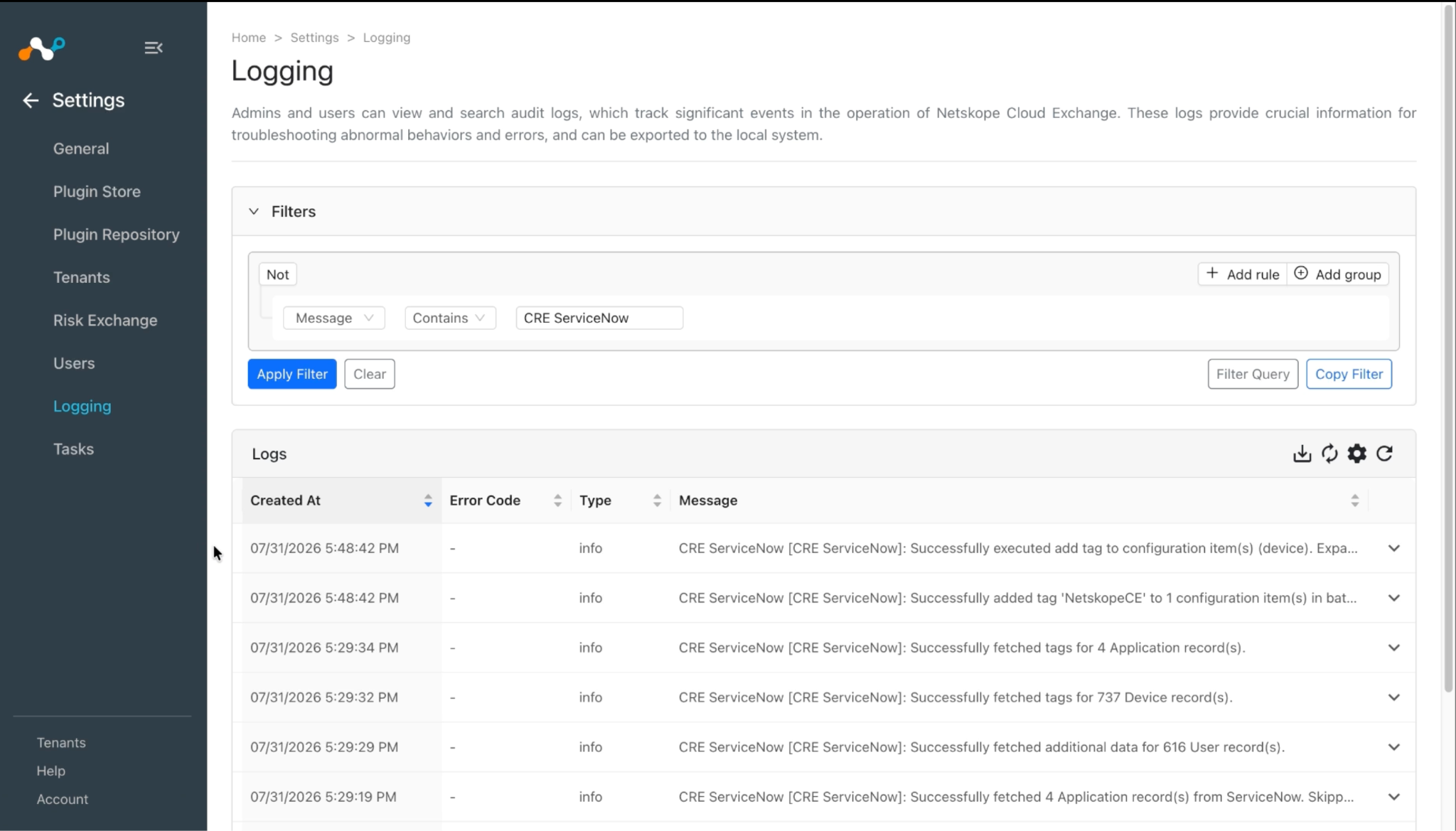

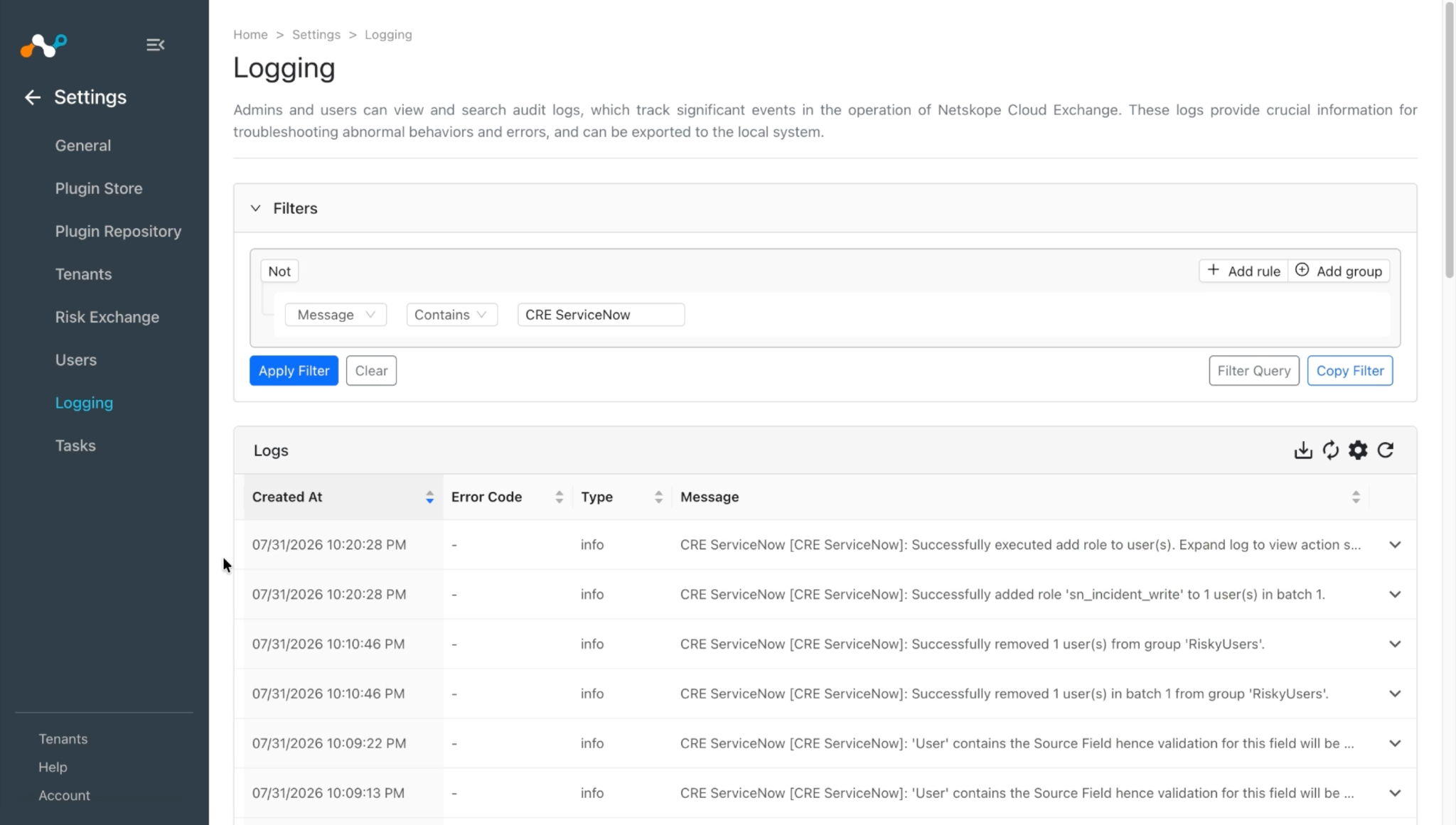

    Logs related to the supported action for ServiceNow plugin:

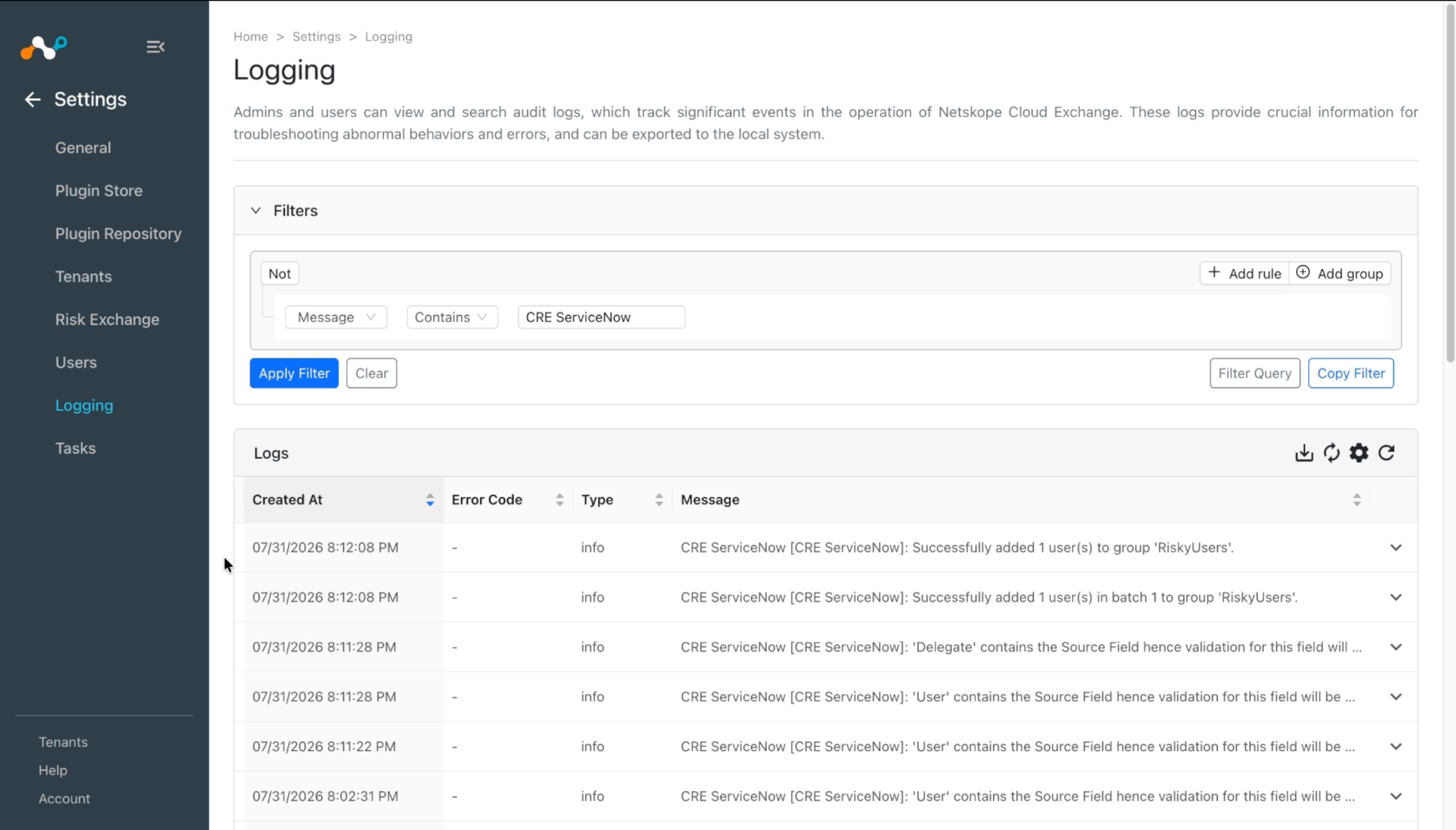

    Add/Remove User from Group
    Update User Delegation
    Manage Device Tags
    Add/Remove User from Role
    Manage Application Tags

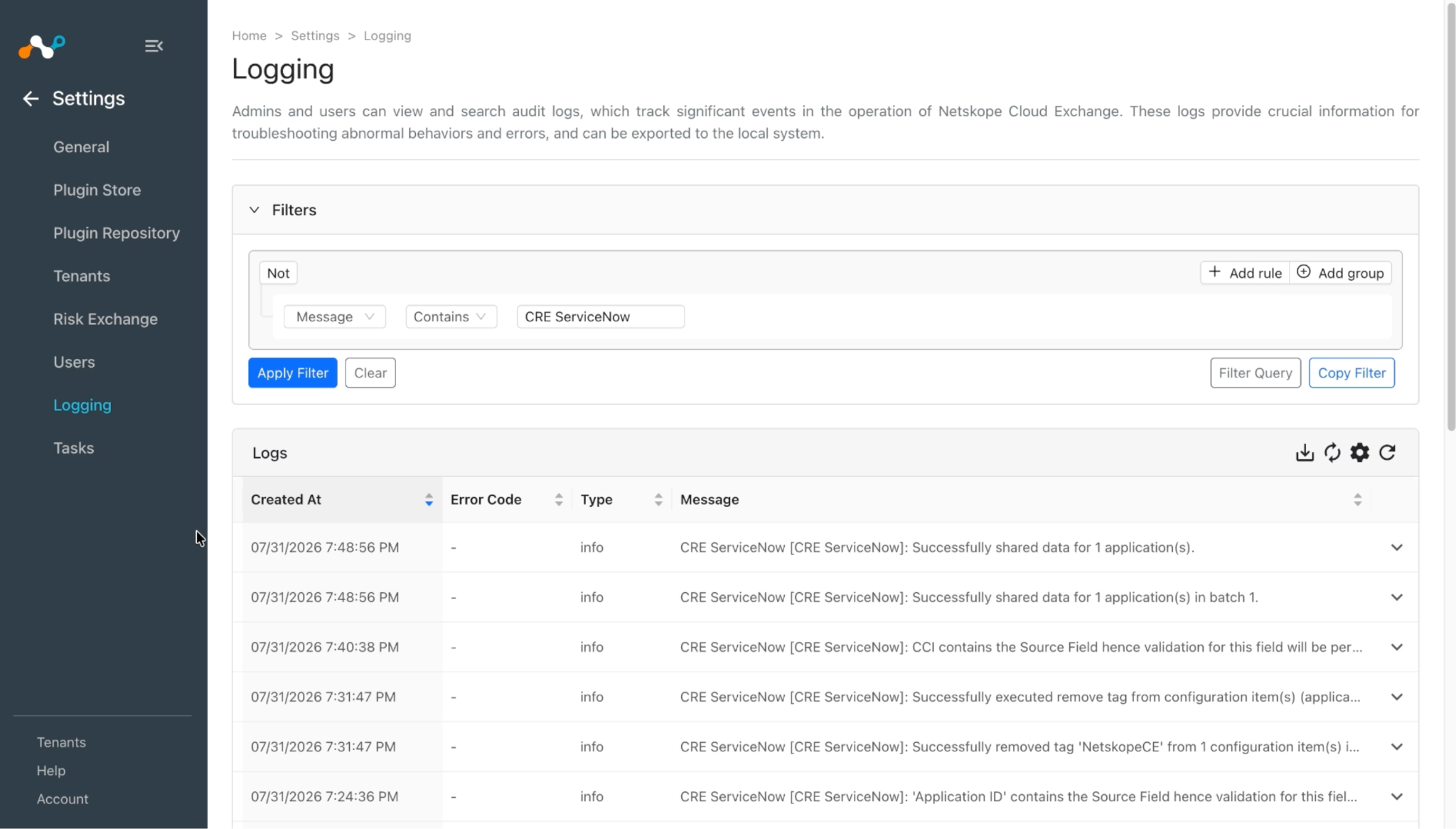

    Share Application Data

    Validate on ServiceNow

    Pull Validation

    This plugin fetches Users from the sys_user table (System Security > Users and Groups > Users), Devices from the cmdb_ci_computer table (Configuration > Base Item > Computers), and Applications from the cmdb_ci_business_app table (Organization > Business Applications).

    To verify the available user, log in to your ServiceNow instance and search for Users and Group.

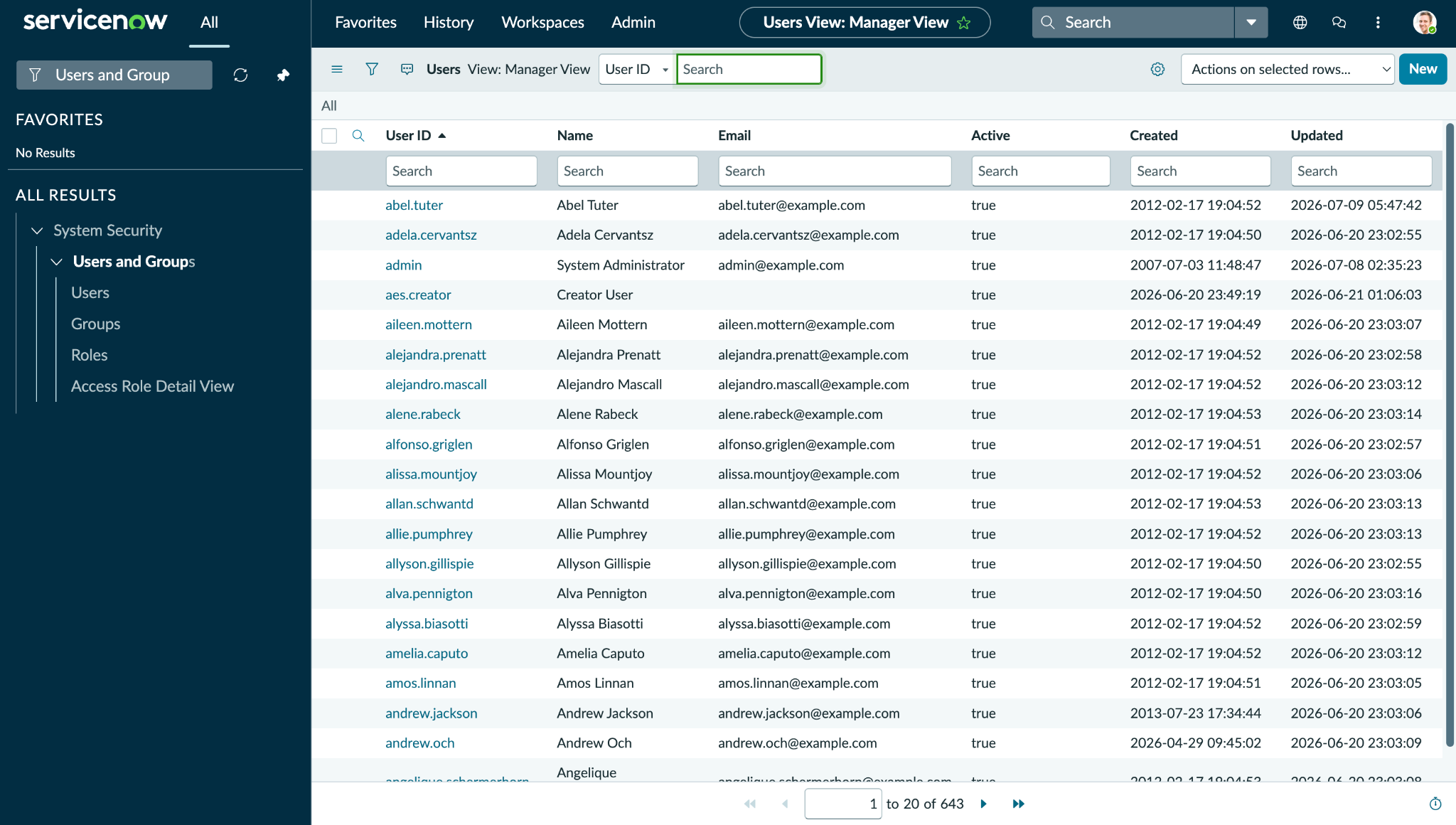

    Click Users to view the available users list.

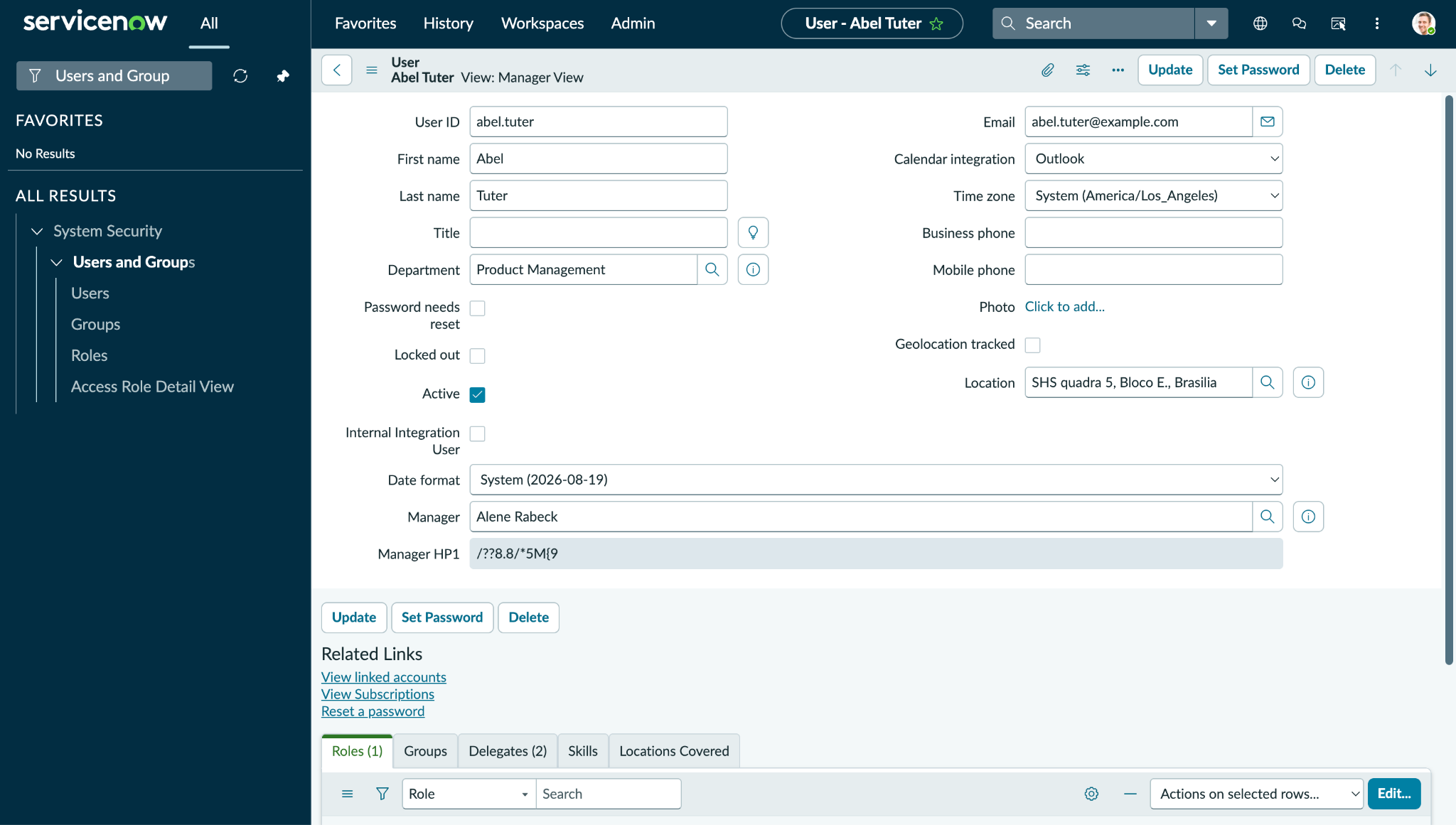

    Click on any of the users to open its details.

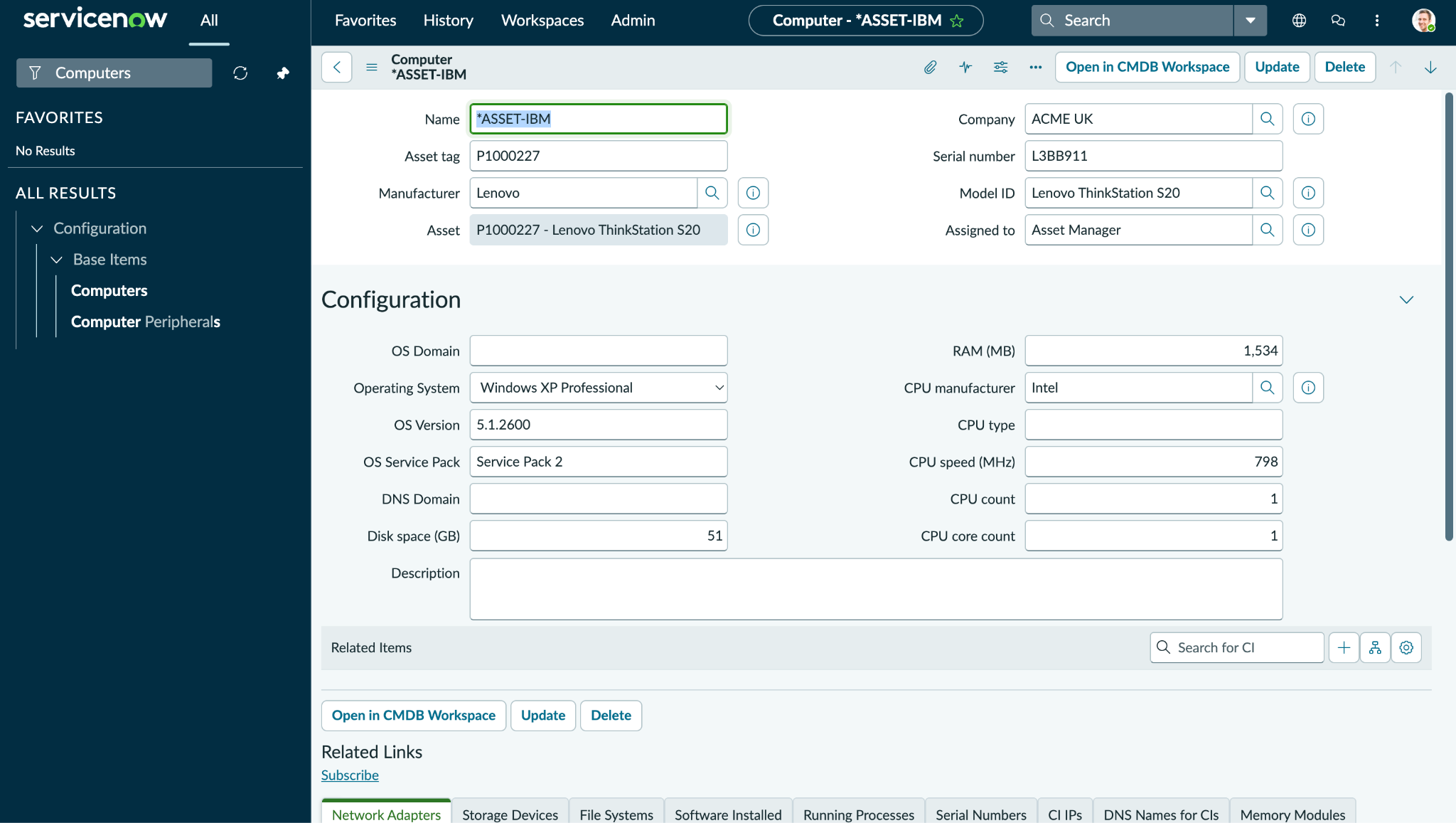

    To verify the available Devices, log in to your ServiceNow instance and search for Computers.

    Click Computers under Configuration to view available Devices.

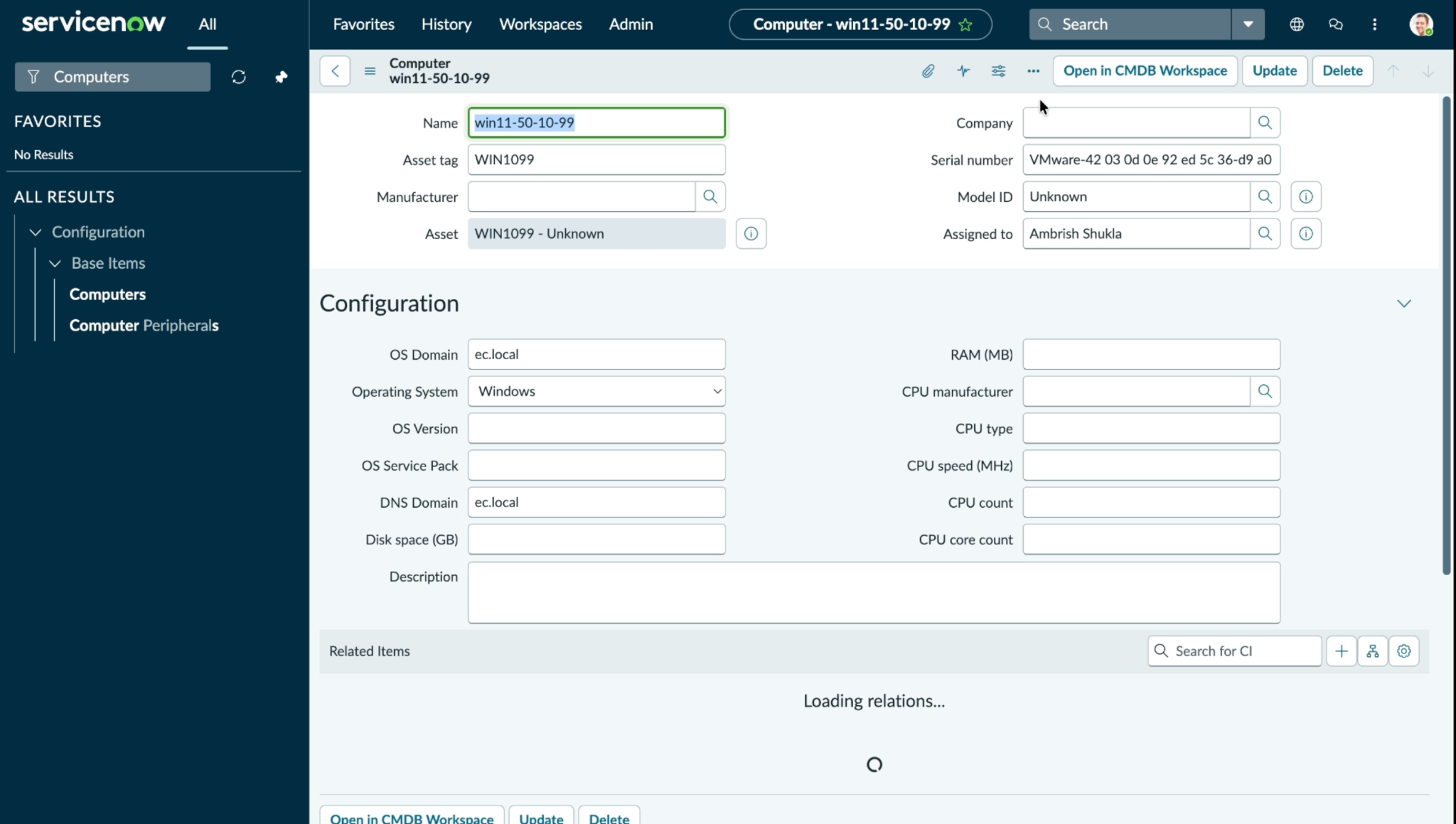

    Click on any of the devices to open its details.

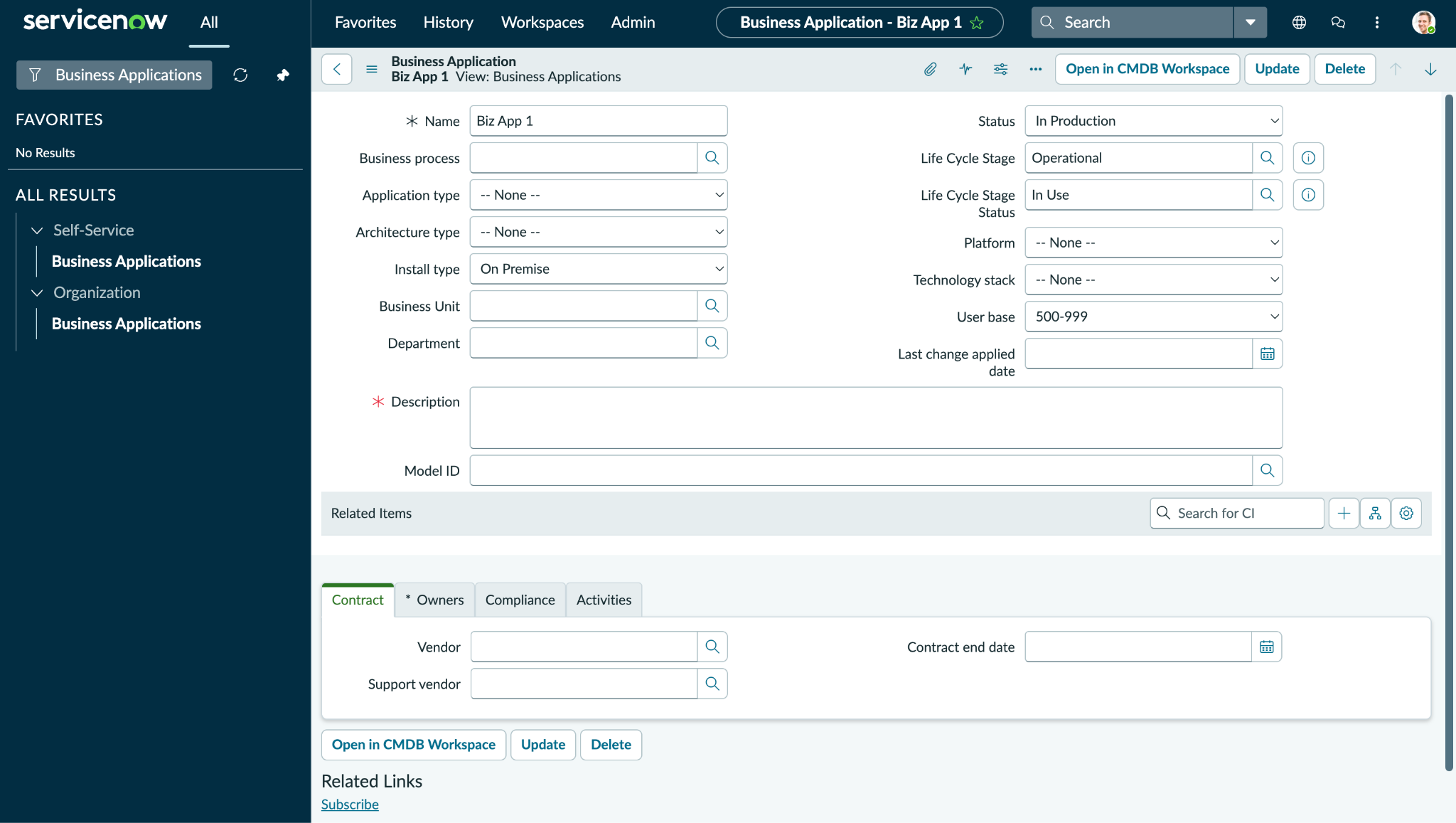

    To verify the available Applications, log in to your ServiceNow instance and search for Business Applications.

    Click Business Applications under Organization to view all the available applications on ServiceNow.

    Click on any applications to open its details.

    Action Validation

    Validation for performed actions on ServiceNow platform:

    Add/Remove User from Group

    Log in to your ServiceNow instance and search for Users and Group.

    Click Users to view the available users list.

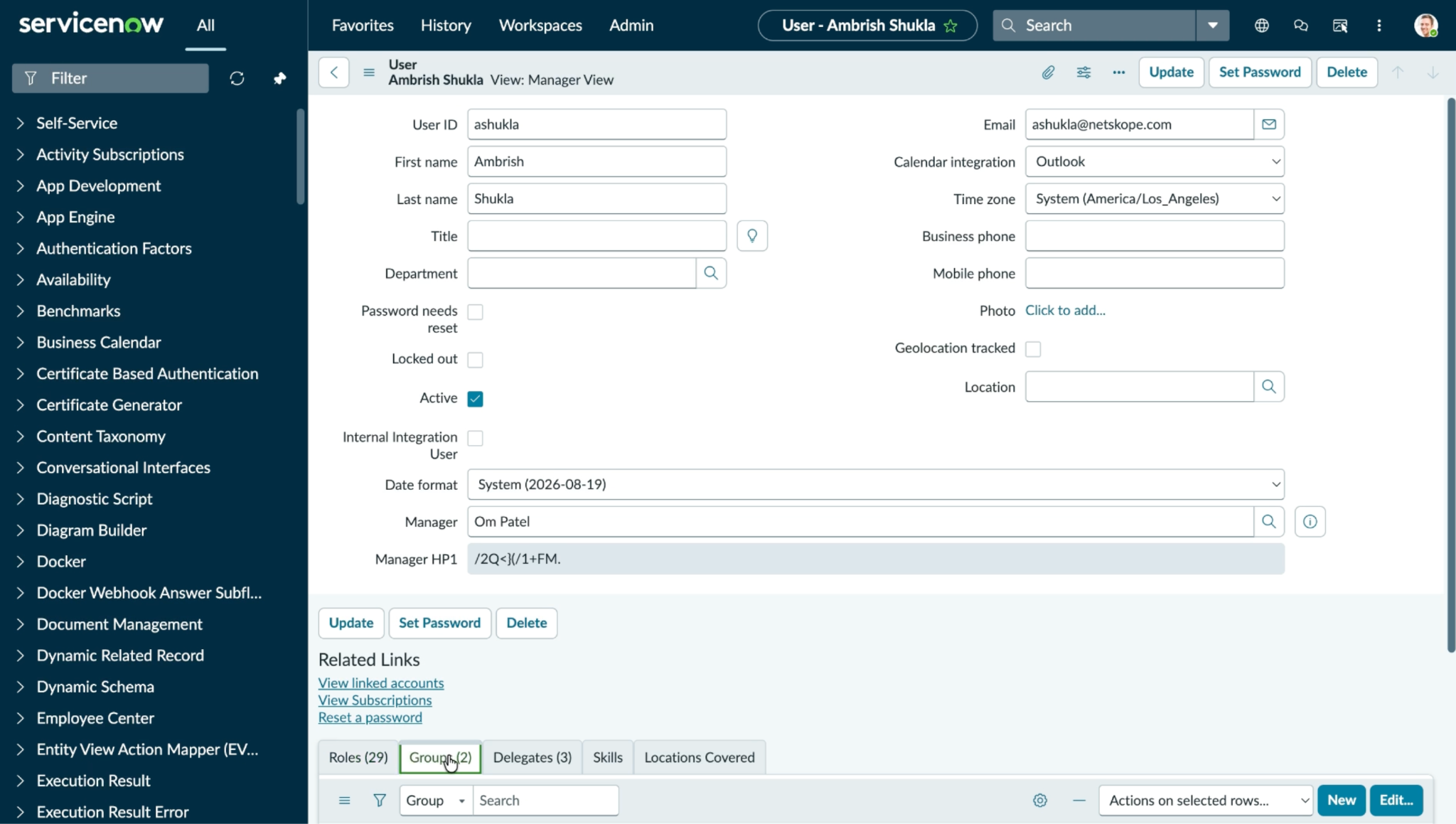

    Click on any of the users to open its details and navigate to groups tab.

    Update User Delegation

    Delegation settings before update user delegation action execution:

    Delegation settings after update user delegation action execution:

    Manage Device Tags

    Log in to your ServiceNow instance and search for Computers.

    Click Computers under Configuration to view available Devices.

    Search for the device on which action was performed and click on it to open its details.

    Click Open in CMDB Workspace and go to Tags.

    Add/Remove User from Role

    Log in to your ServiceNow instance and search for Users and Group.

    Click Users to view the available users list.

    Click on any of the users to open its details and go to Roles.

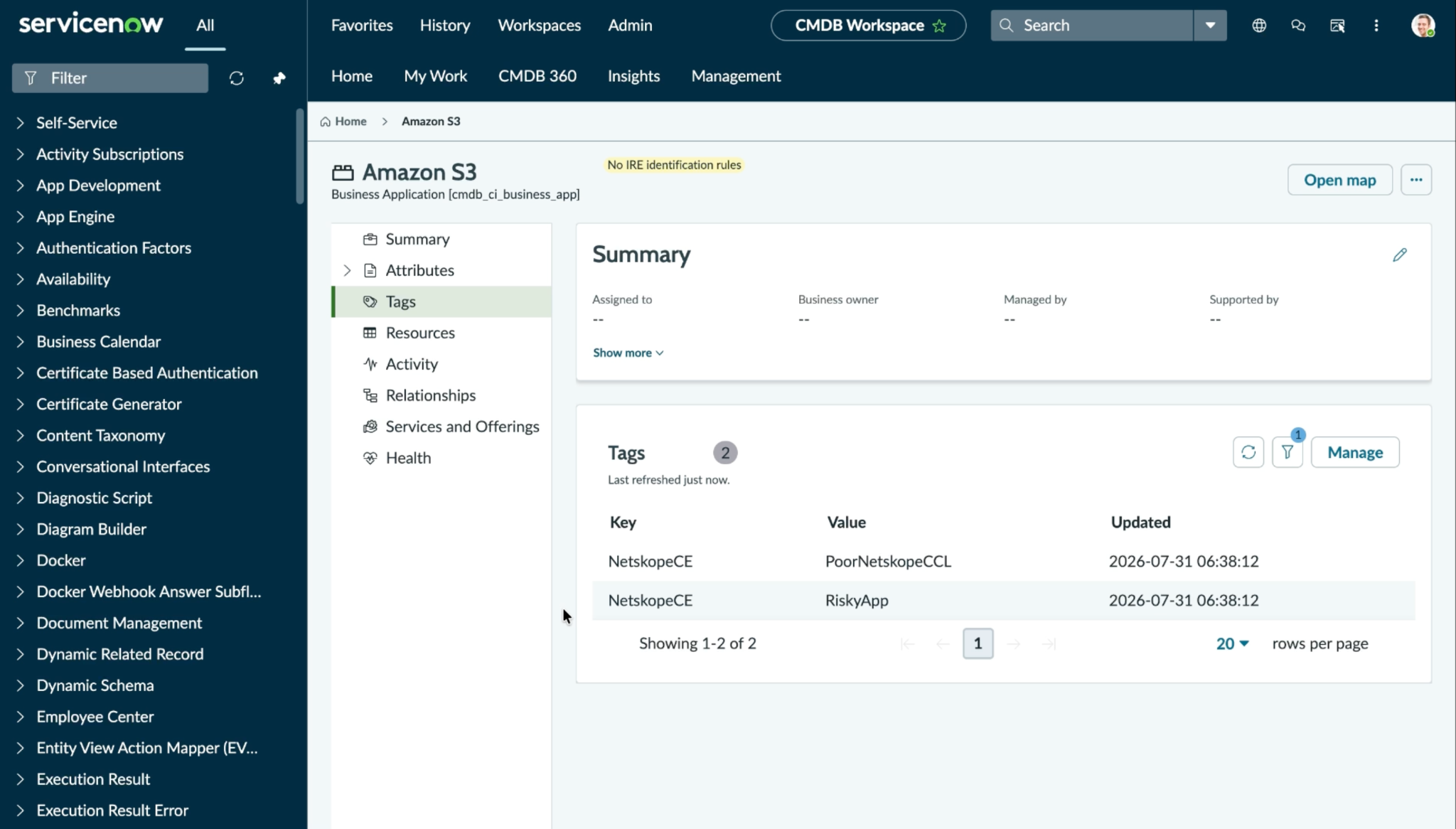

    Manage Application Tags

    Log in to your ServiceNow instance and search for Business Applications.

    Click Business Applications under Organization to view all the available applications on ServiceNow.

    Click on any applications to open its details.

    Click Open in CMDB Workspace and go to Tags.

    Share Application Data

    For Business Applications

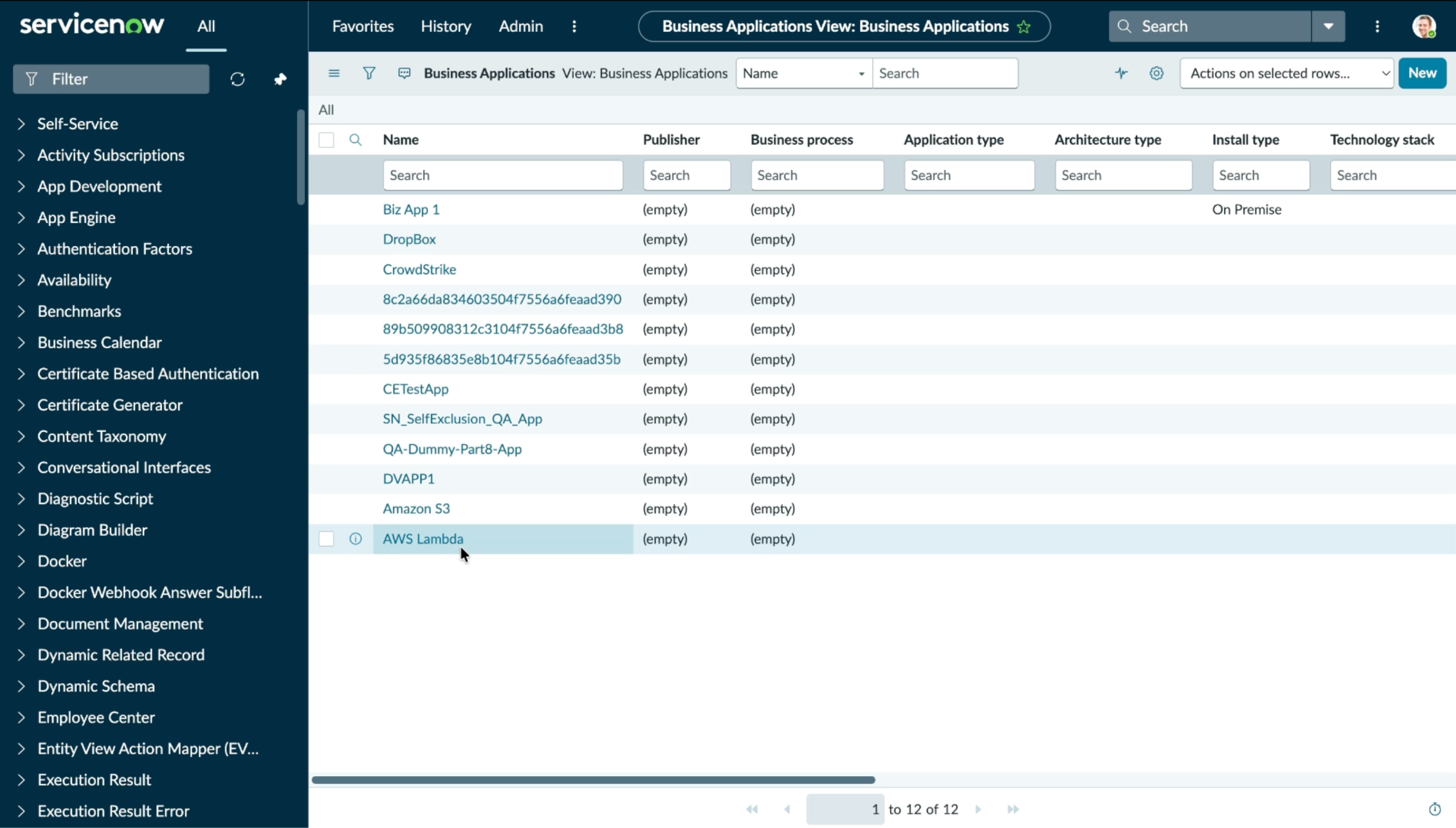

    Log in to your ServiceNow instance and search for Business Applications.

    Click Business Applications under Organization to view all the available applications on ServiceNow.

    Click on the shared applications to open its details.

    For Core Company

    Go to User Administration > Companies. Select the Company shared from CE by searching its name and check the Notes added for the company to check the shared applications data.

    Troubleshooting the ServiceNow Plugin

    Unable to configure the CRE ServiceNow plugin

    If user is unable to configure the CRE ServiceNow plugin, it could be due to one of the following reason:

    • Incorrect credentials provided.
    • The user does not have required permissions.
    • Incorrect instance URL provided.

    What to Do:

    1. Make sure to provide correct credentials. Follow these steps in the configuration on serviceNow section.
    2. Make sure that the user has the required permissions. Follow these steps in the configuration on serviceNow section.
    3. Make sure that the correct instance URL is provided.
    Applications shared via ServiceNow plugin are getting pulled back to Cloud Exchange

    It may be due to missing discovery source or discovery source not configured properly.

    To solve the above mentioned issue, configure the discovery source properly. Refer to the Create Discovery Source section.

    Unable to share application on the ServiceNow platform

    If applications are not getting shared to the CRE ServiceNow plugin, it could be due to one of the following reason:

    • The condition provided while configuring the action is not matching.
    • User does not have required permissions.

    What to Do:

    1. Make sure to provide the correct condition that matches on the ServiceNow platform.
    2. Make sure that the user has the required permissions. Follow these steps to provide a role to the user.
    403 “Operation Failed” despite correct ACL configuration

    All ACLs are configured correctly per the permissions matrix, but writes to a table still return HTTP 403 with a detail message like: “Operation Failed” — “Operation against file ‘table_name’ was aborted by Business Rule ‘RuleName^sys_id'”, it could be because the table has a stock ServiceNow Business Rule that gates writes by role, beyond table-level ACLs. Re-provisioning ACLs will not fix this — the Business Rule’s role check must be extended.

    What to Do:

    1. Open the Business Rule provided in the error message

    2. Review the rule’s condition. It likely includes a role check like gs.hasRole('admin') or a similar exemption list.

    3. If the custom role you created x_netskope_integration is not in that exemption list, add it.

    In this Topic
    • ServiceNow Plugin for Risk Exchange
