リリースノート
1.0.0
Added
- 初回リリース。
- Forescoutプラグインは、Forescoutの「すべてのホスト」ページからホストとそのリスク情報を取得します。Forescoutに対するアクションはサポートしていません。OT セキュリティリスクスコアおよび CYSIV リスクスコアの Netskope 正規化スコア計算 => ((Forescout スコア – Min Forescout) / (Max Forescout – Min Forescout)) * (Max Netskope – Min Netskope) + Min Netskope
このドキュメントでは、Forescout v1.0.0プラグインをNetskope Cloud ExchangeプラットフォームのRisk Exchangeモジュールで構成する方法について説明します。Forescoutプラグインは、Forescoutの「すべてのホスト」ページからホストとそのリスク情報を取得します。Forescoutでのアクションはサポートしていません。
前提条件
この統合を完了するには、以下が必要です。
- Netskopeテナント（または、例えば本番環境と開発／テスト環境など、複数のテナント）。
- Netskope Cloud Exchangeテナントには、テナントプラグインとリスクエクスチェンジプラグインが既に設定済みです。
- Forescoutのユーザー名とパスワード。
- Forescout プラットフォームへの接続性:
https://<Instance IP\>
Forescoutプラグインサポート
Forescoutプラグインは、Forescoutの「すべてのホスト」ページからホストとそのリスク情報を取得します。Forescoutに対するアクションはサポートしていません。OT セキュリティリスクスコアおよび CYSIV リスクスコアの Netskope 正規化スコア計算 => ((Forescout スコア – Min Forescout) / (Max Forescout – Min Forescout)) * (Max Netskope – Min Netskope) + Min Netskope
| 取得したデータの種類 | サポートされているアクション |
|---|---|
| 主催者 | サポートされていません |
マッピング

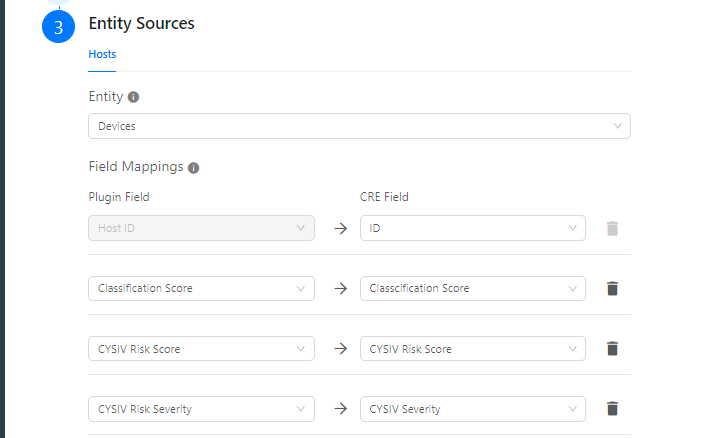

以下のマッピングを使うして、ホストとその詳細を取得できます。プラグインの設定中にマッピングされたフィールドは、データが取得されると [レコード] ページに表示されます。以下に、プラグインの設定中に使う必要がある推奨マッピングを示します。
プルマッピング
| プラグインフィールドラベル | 想定されるデータ型 | 推奨フィールドラベル | 提案された集約戦略 |
|---|---|---|---|
| ホストID | String | ホストID | Unique |
| 分類スコア | String | 分類スコア | Overwrite |
| CYSIVリスクデバイスの重要度 | String | CYSIVデバイスの重要度 | Overwrite |
| CYSIVリスクスコア | String | CYSIVスコア | Overwrite |
| CYSIVのリスク重大度 | String | CYSIVの重大度 | Overwrite |
| 検出スコア | String | 検出スコア | Overwrite |
| ファームウェア分類スコア | String | ファームウェア分類スコア | Overwrite |
| ホストMACアドレス | String | ホストMACアドレス | Overwrite |
| モデル分類スコア | String | モデル分類スコア | Overwrite |
| OS検出スコア | String | OS検出スコア | Overwrite |
| OTの重要度 | String | OTの重要度 | Overwrite |
| OTオペレーショナルリスク | String | OTオペレーショナルリスク | Overwrite |
| OT セキュリティリスク | String | OT セキュリティリスク | Overwrite |
| PrimディスカDiscoveryスコア | String | PrimディスカDiscoveryスコア | Overwrite |
| ベンダー分類スコア | String | ベンダー分類スコア | Overwrite |
| Netskope正規化スコア | String | Netskope正規化スコア | Overwrite |
APIの詳細
使うAPI一覧
| APIエンドポイント | 方法 | 使うケース |
|---|---|---|
| /api/login | 役職 | 認証トークンを取得する |
| /api/hosts | 得る | ホストIDを取得する |
| /api/hosts/<Host ID> | 得る | ホストのリスクの詳細をプルする |
認証トークンを取得する
Endpoint: /api/login
Method: 役職
Headers
| 鍵 | Value |
|---|---|
| ユーザーエージェント | netskope-ce-5.1.0-cre-forescout-v1.0.0 |
| Content-Type | application/x-www-form-urlencoded |
Parameters
| 鍵 | Value |
|---|---|
| ユーザー名 | <UserName\> |
| password | <パスワード\> |
Sample API Response
eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiLim6TpurPlpZXpgJvmv6fotJ3njJ7iiLLqi7zuspPkl6Lnj7npkb3vvJvktpjrl7Hsv6npgorquITqrr3hhrjku4vjoZHptbLugYDsp4Tni5HnvpHph4zug5_sg5rinpzit4XQq-6jgs2K65yB5Lym5ZiD5qGg6LSy4oyg6ZWy44yl642w6J2F6qag4KW57qev45C-75Wc46KL6qOE7YW86amH7Iyu4qeZ6Kib5Kaf7Z7J-X5aaR27rtm6LuroDmmY7nhZXtgKfmtprskorioobkkaIiLCJleHAiOjE3MjU1Mjg5NTF9.AeuUS69vof-Iq9kpaEdJMol5EQNadbw_zW4EcBJa088
ホストIDの取得
Endpoint: /api/hosts
Method: 役職
Headers
| 鍵 | Value |
|---|---|
| ユーザーエージェント | netskope-ce-5.1.0-cre-forescout-v1.0.0 |
| Content-Type | application/x-www-form-urlencoded |
| If-None-Match | 最初は設定されていませんが、2回目以降のリクエストでは、レスポンスヘッダーから受信した<Response Headers.ETag> ETagが追加されます。 |
Sample API Response
{
"hosts": [
{
"hostId": 167838209,
"ip": "10.1.2.1",
"mac": null,
"links": [
{
"rel": "self",
"href": "https://10.0.1.15/api/hosts/167838209"
}
]
},
]
}
ホストリスクの詳細をプル
Endpoint: /api/hosts/<Host ID>
Method: 得る
Headers
| 鍵 | Value |
|---|---|
| ユーザーエージェント | netskope-ce-5.1.0-cre-forescout-v1.0.0 |
| Authorization | <認証トークン\> |
Sample API Response
{
"host": {
"ip": "10.5.0.22",
"mac": "0022e51f9018",
"fields": {
"rem_category": {
"timestamp": 1724755548,
"value": "OT"
},
"model_classification_source": {
"timestamp": 1724839679,
"value": "otsm"
},
"is_behind_nat": {
"timestamp": 1724753946,
"value": "false"
},
"cysiv_risk_severity": {
"timestamp": 1724755548,
"value": "low"
},
"onsite": {
"timestamp": 1724395424,
"value": "true"
},
"classification_source_os": {
"timestamp": 1724839679,
"value": "dpl"
},
"linux_manage": {
"timestamp": 1724753946,
"value": "false"
},
"access_ip": {
"timestamp": 1724839650,
"value": "10.5.0.22"
},
"openports": [
{
"timestamp": 1724398100,
"value": "18507/UDP"
}
],
"cc_last_saved_value": {
"timestamp": 1724395455,
"value": "{\"raw_data_value\":\"{\\\"db_creation_date\\\":\\\"2024-07-30 10:41:16.407\\\",\\\"os\\\":\\\"NA\\\",\\\"os_version\\\":\\\"NA\\\",\\\"caption\\\":\\\"NA\\\",\\\"type\\\":\\\"NA\\\",\\\"db_version\\\":\\\"2.0\\\",\\\"has_data\\\":\\\"false\\\",\\\"os_build\\\":\\\"NA\\\",\\\"vendor\\\":\\\"NA\\\",\\\"rank\\\":\\\"NA\\\",\\\"model\\\":\\\"NA\\\",\\\"make\\\":\\\"NA\\\",\\\"group\\\":\\\"NA\\\"}\",\"request_parameters\":[{\"property_value\":\"0022e51f9018\",\"property_name\":\"mac\"}]}"
},
"otsm_details_firmware_version": {
"timestamp": 1724826201,
"value": "12.3.0.4972.xr"
},
"segment_path_calculated": [
{
"timestamp": 1724395424,
"value": "5305124740861699347/-8087060916317949182/-2438220170031211496/"
}
],
"otsm_details_server_protos": [
{
"timestamp": 1724826201,
"value": "DELTAV_IO (UDP 18507)"
},
{
"timestamp": 1724826201,
"value": "DELTAV_MGMT (TCP 18519)"
}
],
"agent_install_mode": {
"timestamp": 1724839650,
"value": "None"
},
"otsm_details_manufacturer": {
"timestamp": 1724826201,
"value": "Emerson"
},
"in-group": [
{
"timestamp": 0,
"value": "Purdue0HostVulnerability"
},
{
"timestamp": 0,
"value": "Purdue0Host"
},
{
"timestamp": 0,
"value": "HostCriticality4"
},
{
"timestamp": 0,
"value": "ICS Client Protocols"
},
{
"timestamp": 0,
"value": "HighHostwithVulnerability"
},
{
"timestamp": 0,
"value": "CVSS-8andHigher"
},
{
"timestamp": 0,
"value": "IoT Devices"
},
{
"timestamp": 0,
"value": "Properties - Passive Learning"
},
{
"timestamp": 0,
"value": "IOOffline"
},
{
"timestamp": 0,
"value": "CVSS-High Matching Confidence"
},
{
"timestamp": 0,
"value": "ICS Server Protocols"
},
{
"timestamp": 0,
"value": "Campus Network"
}
],
"rem_firmware": {
"timestamp": 1724755548,
"value": "12.3.0.4972.xr"
},
"agent_visible_mode": {
"timestamp": 1724839650,
"value": "None"
},
"classification_source_func": {
"timestamp": 1724839679,
"value": "otsm"
},
"otsm_details_cves": [
{
"timestamp": 1724826201,
"value": {
"cvss_score": "7.5",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "Emerson DeltaV 10.3.1, 11.3, 11.3.1, and 12.3 uses hardcoded credentials for diagnostic services",
"matching_confidence": "product",
"cvss_access_complexity": "LOW",
"cvss_exploitability": "UNDEFINED",
"cvss_remediation_level": "OFFICIAL_FIX",
"cvss_authentication": "NONE",
"icsa_id": "ICSA-14-133-02",
"cvss_confidentiality_impact": "PARTIAL",
"cve_id": "CVE-2014-2350",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "PARTIAL",
"id": "CVE-2014-2350",
"suppressed": "false",
"cvss_access_vector": "NETWORK",
"cvss_integrity_impact": "PARTIAL"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "4.2",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Use of hard-coded credentials vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "LOW",
"cve_id": "CVE-2022-29962",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "LOW",
"id": "CVE-2022-29962",
"suppressed": "false",
"cvss_integrity_impact": "LOW"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "6.8",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Missing authentication for critical function vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "NONE",
"cve_id": "CVE-2022-29957",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "HIGH",
"id": "CVE-2022-29957",
"suppressed": "false",
"cvss_integrity_impact": "HIGH"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "6.3",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Insufficient verification of data authenticity vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "HIGH",
"cve_id": "CVE-2022-30620",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "HIGH",
"id": "CVE-2022-30620",
"suppressed": "false",
"cvss_integrity_impact": "HIGH"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "8.8",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Broken cryptographic algorithm vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "UNAVAILABLE",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "HIGH",
"cve_id": "CVE-2022-29965",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "HIGH",
"id": "CVE-2022-29965",
"suppressed": "false",
"cvss_integrity_impact": "HIGH"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "4.2",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Use of hard-coded credentials vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "LOW",
"cve_id": "CVE-2022-29964",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "LOW",
"id": "CVE-2022-29964",
"suppressed": "false",
"cvss_integrity_impact": "LOW"
}
},
{
"timestamp": 1724826201,
"value": {
"cvss_score": "1.8",
"vendor_specific_id": "",
"cvss_temporal_score": "0.0",
"title": "OT:ICEFALL: Use of hard-coded credentials vulnerability in Emerson DeltaV",
"matching_confidence": "productVersion",
"cvss_remediation_level": "OFFICIAL_FIX",
"icsa_id": "ICSA-22-181-03",
"cvss_confidentiality_impact": "LOW",
"cve_id": "CVE-2022-29963",
"cvss_reporting_confidence": "CONFIRMED",
"cvss_availability_impact": "NONE",
"id": "CVE-2022-29963",
"suppressed": "false",
"cvss_integrity_impact": "NONE"
}
}
],
"mac_prefix32": {
"timestamp": 1724839643,
"value": "0022e51f"
},
"samba_open_ports": {
"timestamp": 1724753951,
"value": "0"
},
"model_classification_score": {
"timestamp": 1724839679,
"value": "95"
},
"otsm_details_last_seen": {
"timestamp": 1724826201,
"value": "1724826194"
},
"model_classification": {
"timestamp": 1724839679,
"value": "Wireless I/O Card"
},
"otsm_details_host_name": {
"timestamp": 1724826201,
"value": "wioc-1f903a"
},
"macs": [
{
"timestamp": 1724839650,
"value": "0022e51f9018"
}
],
"dpl_model_classification": {
"timestamp": 1724839679,
"value": ""
},
"cysiv_risk_device_criticality": {
"timestamp": 1724755548,
"value": "high"
},
"os_discovery_score": {
"timestamp": 1724839675,
"value": "64"
},
"prim_discovery_score": {
"timestamp": 1724839675,
"value": "83"
},
"otsm_details_host_mac_addresses": [
{
"timestamp": 1724826201,
"value": "00:22:E5:1F:90:18"
}
],
"mediator_otsm_prim_classification": {
"timestamp": 1724839649,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"vendor_classification_score": {
"timestamp": 1724839675,
"value": "46"
},
"rem_equipment_function": {
"timestamp": 1724755548,
"value": "Unknown"
},
"mac": {
"timestamp": 1724839650,
"value": "0022e51f9018"
},
"otsm_details_security_risk": {
"timestamp": 1724839643,
"value": "8.2"
},
"manufacturer_classification": {
"timestamp": 1724839679,
"value": "Emerson"
},
"vendor": {
"timestamp": 1724839643,
"value": "fisher-rosemount systems inc."
},
"segment_name_calculated": {
"timestamp": 1724395424,
"value": "Operational Technology"
},
"hostname_calculated": {
"timestamp": 1724395424,
"value": "wioc-1f903a"
},
"mediator_otsm_vendor_classification": {
"timestamp": 1724839649,
"value": "Emerson"
},
"dex_Forescout_Risk_Score": {
"timestamp": 1724839648,
"value": "0"
},
"gst_signed_in_stat": {
"timestamp": 1724753946,
"value": "na"
},
"vendor_discovery_score": {
"timestamp": 1724839675,
"value": "93"
},
"vpn_login": {
"timestamp": 1724821286,
"value": "false"
},
"groups_path_calculated": [
{
"timestamp": 1724818528,
"value": "5483371701762015725/"
},
{
"timestamp": 1724818528,
"value": "5006884535761276673/6881123241563699922/-774523594407371799/-7432780537313919341/"
},
{
"timestamp": 1724818528,
"value": "5006884535761276673/6881123241563699922/-774523594407371799/8677054046804567500/"
}
],
"eds_empty_results": [
{
"timestamp": 1724839648,
"value": "dex_Forescout_Risk_Score"
}
],
"cysiv_risk_score_last_updated": {
"timestamp": 1724755548,
"value": "1724755324"
},
"mac_calculated": {
"timestamp": 1724395424,
"value": "0022e51f9018"
},
"dpl_vendor_classification": {
"timestamp": 1724839675,
"value": "Emerson"
},
"cysiv_risk_cve_list": [
{
"timestamp": 1724755548,
"value": {
"cysiv_cve_reported_time": "1400792106",
"cysiv_cve_cisa": "false",
"cysiv_cve_cvss_score": "7.5",
"cysiv_cve_exploitability_level": "Low",
"cysiv_cve_id": "CVE-2014-2350",
"cysiv_cve_exploitability_percentile": "0.754"
}
},
{
"timestamp": 1724755548,
"value": {
"cysiv_cve_reported_time": "1672035310",
"cysiv_cve_cisa": "false",
"cysiv_cve_cvss_score": "7.8",
"cysiv_cve_exploitability_level": "Low",
"cysiv_cve_id": "CVE-2022-30260",
"cysiv_cve_exploitability_percentile": "0.268"
}
}
],
"classification_score": {
"timestamp": 1724839675,
"value": "32"
},
"firmware_classification": {
"timestamp": 1724839651,
"value": "12.3.0.4972.xr"
},
"otsm_details_module_identities": [
{
"timestamp": 1724826201,
"value": {
"vendor": "Rosemount",
"name": "",
"model": "781 RL",
"serial_number": "",
"firmware_version": "",
"state": "UNDEFINED",
"type": "Wireless Access Point",
"hardware_version": "",
"slot_number": "WAP01"
}
},
{
"timestamp": 1724826201,
"value": {
"vendor": "Emerson",
"name": "WIOC-1F903A",
"model": "12P5030X032",
"serial_number": "",
"firmware_version": "12.3.0.4972.xr",
"state": "UNDEFINED",
"type": "Wireless I/O Card",
"hardware_version": "9.3",
"slot_number": "0"
}
}
],
"manage_agent": {
"timestamp": 1724839650,
"value": "false"
},
"dpl_os_classification": {
"timestamp": 1724839675,
"value": "Unknown"
},
"ipv4_report_time": {
"timestamp": 1724826081,
"value": "true"
},
"manufacturer_classification_score": {
"timestamp": 1724839679,
"value": "-1"
},
"otsm_details_first_seen": {
"timestamp": 1724826201,
"value": "1635282777"
},
"firmware_classification_source": {
"timestamp": 1724839651,
"value": "otsm"
},
"otsm_details_cc_ip": {
"timestamp": 1724826201,
"value": "10.0.1.60"
},
"otsm_details_hardware_version": {
"timestamp": 1724826201,
"value": "9.3"
},
"classification_source_vendor": {
"timestamp": 1724839679,
"value": "dpl"
},
"mac_vendor_string": {
"timestamp": 1724839643,
"value": "FISHER-ROSEMOUNT SYSTEMS INC."
},
"rem_function": {
"timestamp": 1724755548,
"value": "IO Module"
},
"mediator_otsm_model_classification": {
"timestamp": 1724839649,
"value": "Wireless I/O Card"
},
"prim_classification_source": {
"timestamp": 1724839679,
"value": "otsm"
},
"otsm_details_client_protos": [
{
"timestamp": 1724826201,
"value": "DELTAV_IO (UDP 18507)"
}
],
"firmware_classification_score": {
"timestamp": 1724839651,
"value": "60"
},
"ccg_prim_classification": {
"timestamp": 1724395455,
"value": "Unknown"
},
"os_classification_score": {
"timestamp": 1724839679,
"value": "-1"
},
"prim_classification_score": {
"timestamp": 1724839679,
"value": "-1"
},
"mediator_otsm_firmware_classification": {
"timestamp": 1724839649,
"value": "12.3.0.4972.xr"
},
"otsm_details_sensor_names": [
{
"timestamp": 1724839643,
"value": "Sensor1 at 10.0.1.60"
}
],
"adm": [
{
"timestamp": 1724395388,
"value": "new"
},
{
"timestamp": 1724839643,
"value": "online_again"
}
],
"snow_mac_exist": {
"timestamp": 1724839650,
"value": "snow_mac_exist_true"
},
"otsm_details_model": {
"timestamp": 1724826201,
"value": "Wireless I/O Card"
},
"wifi_client_login": {
"timestamp": 1724817697,
"value": "false"
},
"rem_vendor": {
"timestamp": 1724755548,
"value": "Emerson"
},
"matched_fingerprints": [
{
"timestamp": 1724839675,
"value": "SM-Vendor-Emerson"
},
{
"timestamp": 1724839675,
"value": "SM-IO module"
}
],
"otsm_details_criticality": {
"timestamp": 1724826201,
"value": "4"
},
"os_classification_source": {
"timestamp": 1724839679,
"value": "dpl"
},
"discovery_score": {
"timestamp": 1724839675,
"value": "80"
},
"compliance_state": {
"timestamp": 1724839680,
"value": "COMPLY"
},
"device_role": {
"timestamp": 1724839675,
"value": "false"
},
"dpl_prim_classification": {
"timestamp": 1724839675,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"manufacturer_classification_source": {
"timestamp": 1724839679,
"value": "dpl"
},
"os_classification": {
"timestamp": 1724839679,
"value": "Unknown"
},
"cc_host_classifier": {
"timestamp": 1724395455,
"value": "{\"db_creation_date\":\"2024-07-30 10:41:16.407\",\"os\":\"NA\",\"os_version\":\"NA\",\"caption\":\"NA\",\"type\":\"NA\",\"db_version\":\"2.0\",\"has_data\":\"false\",\"os_build\":\"NA\",\"vendor\":\"NA\",\"rank\":\"NA\",\"model\":\"NA\",\"make\":\"NA\",\"group\":\"NA\"}"
},
"snow_add_update_status": {
"timestamp": 1724817882,
"value": "2"
},
"cact_script_result.2a1b2d019d0fb891a7c8d7c32d3f8a6c": {
"timestamp": 1724752766,
"value": "Sending ICMP MS_SYNC_REQ\nSending ICMP ECHO"
},
"rem_function_taxonomy": {
"timestamp": 1724755548,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"otsm_details_role": {
"timestamp": 1724826201,
"value": "io_module"
},
"cysiv_risk_score": {
"timestamp": 1724755548,
"value": "2.0"
},
"is_iot": {
"timestamp": 1724839675,
"value": "false"
},
"manage_domain_strict": {
"timestamp": 1724753951,
"value": "false"
},
"ipv4_calculated": {
"timestamp": 1724395424,
"value": "10.5.0.22"
},
"misc": {
"timestamp": 1724839658,
"value": "3* cysiv_risk_internet_exposure_indication 1724755548 mac_manage 1724817902 p2p_running 1724839650 aws_resource_tag 1724817902 nbthost 1724839650 aws_instance_id 1724817808 va_netfunc 1724839650 ad_memberof 1724755633 ad_departmenp 0 1 1724752155 0 0 cloud_application_running 0 1 1724752155 0 0 service 0 1 1724752155 0 0 device_interfaces 0 1 1724752155 0 0 nmap_def_fp7 0 1 1724752155 0 0 p2p_running 0 1 1724752155 0 0 nmap_def_fp5 0 1 1724752155 0 0 va_netfunc 0 1 1724752155 0 0 snmp2 0 1 1724752155 0 0 user 0 1 1724752155 0 0 comp_application 0 1 1724752155 0 0 registry_1 0 1 1724752155 0 0 * cysiv_risk_last_vulnerability_scans 1724755548 suggested_prim_classification 1724817903 suggested_vendor_classification 1724817903 atc_ioc_scan_stats 1724752053 cysiv_risk_exposed_services 1724755548 "
},
"prim_classification": {
"timestamp": 1724839679,
"value": "Operational Technology/Industrial Control Systems/IO Module"
},
"vendor_classification": {
"timestamp": 1724839675,
"value": "Emerson"
},
"rem_model": {
"timestamp": 1724755548,
"value": "Wireless I/O Card"
},
"rem_os": {
"timestamp": 1724755548,
"value": "Unknown"
},
"otsm_details_operational_risk": {
"timestamp": 1724839643,
"value": "0.0"
},
"last_nbt_report_time": {
"timestamp": 1724753947,
"value": "1724753947"
},
"otsm_details_purdue_level": {
"timestamp": 1724826201,
"value": "LEVEL0"
},
"agent_version": {
"timestamp": 1724753946,
"value": "None"
},
"rem_os_taxonomy": {
"timestamp": 1724755548,
"value": "Unknown"
},
"local-credentials-OK": {
"timestamp": 1724753946,
"value": "false"
},
"_times": [
{
"timestamp": 1724839643,
"value": "last_onsite"
}
],
"online": {
"timestamp": 1724839643,
"value": "true"
},
"engine_seen_packet": {
"timestamp": 1724839643,
"value": "true"
}
},
"id": 168099862
},
"links": [
{
"rel": "self",
"href": "https://10.0.1.15/api/hosts/168099862"
}
]
}
ユーザーエージェント
netskope-ce-5.1.0-cre-forescout-v1.0.0
ワークフロー
- ForescoutベースURL、ユーザー名、およびパスワードを取得します。
- Forescoutプラグインを構成します。
Forescoutクレデンシャルの取得
Forescoutドキュメントに記載されている手順に従って、プラグイン構成パラメータを生成します。ユーザー名とパスワードは、設定 > ウェブ API > ユーザー設定ページから生成できます。これらとベースURLは、プラグインを構成するために必要です。
Forescoutプラグインの構成
-

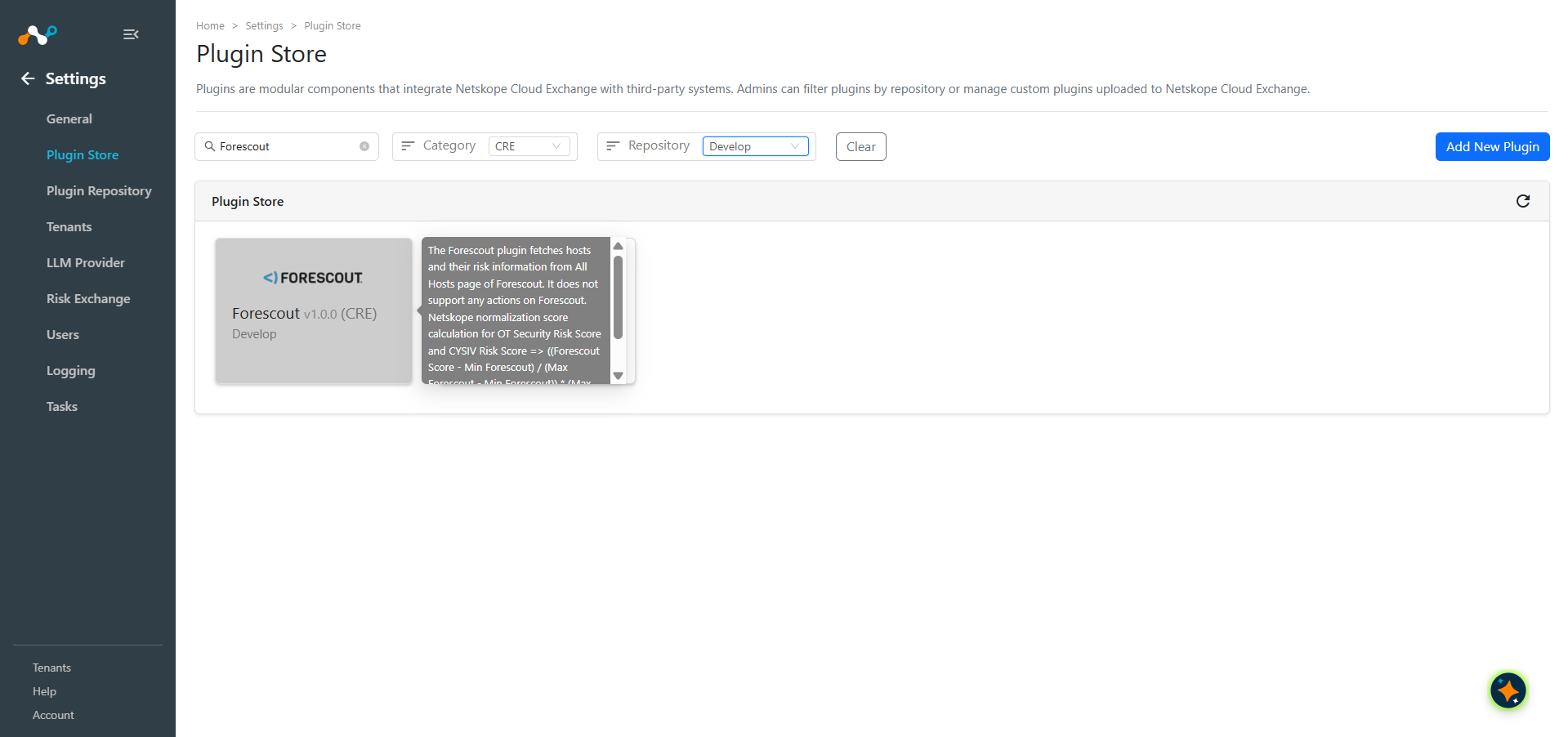

Cloud Exchange で、 Settings > Plugin Storeに移動します。Forescout v1.0.0 (CRE)プラグインを検索して選択してください。
-

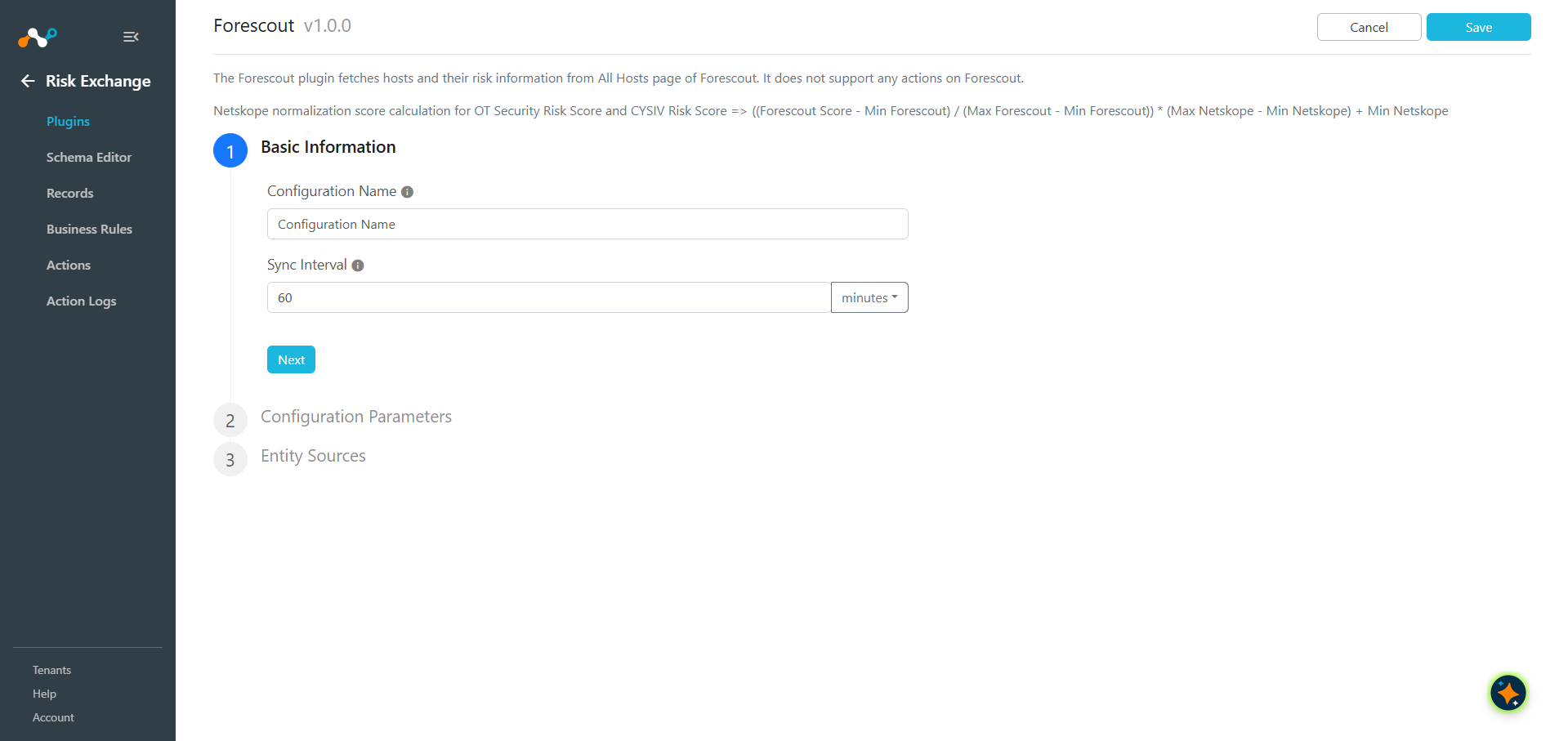

基本情報を入力してください：
- Configuration Name: 設定の一意の名前。
- Sync Interval: デフォルト設定のままにしてください。
-

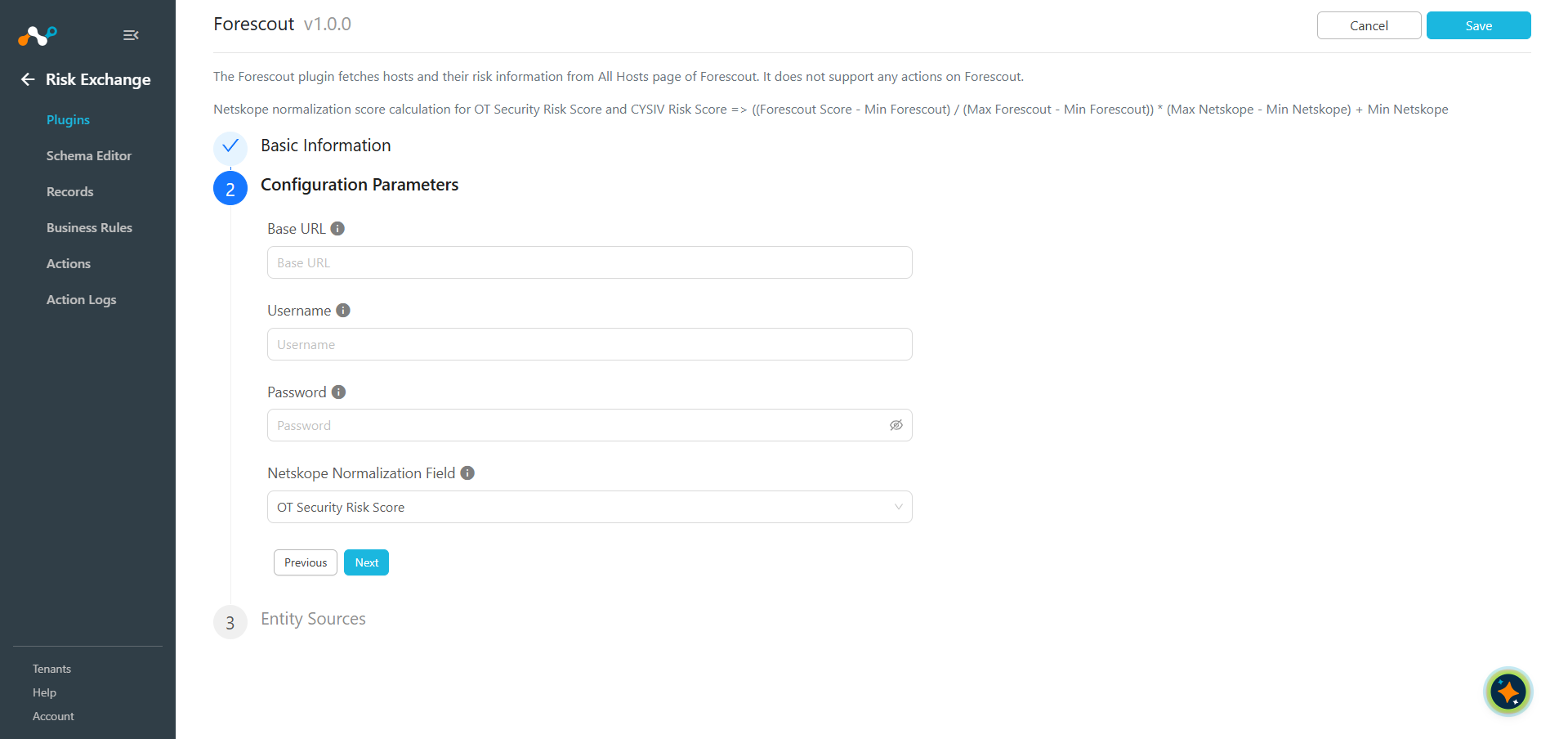

Nextをクリックして、設定パラメータを入力してください。
- Base URL:
https://<Instance IP>のようなForescoutインスタンスのベースURL。 - Username: Forescoutアカウントのユーザー名。
- Password: Forescoutアカウントのパスワード
- Netskope Normalization Field: Netskopeスコア範囲の正規化に使うフィールドをSelectします。
- Base URL:
-
Next をクリックし、[エンティティ] を選択してプラグインのマッピングを指定します。
-
Saveをクリックしてください。
