リスク交換用の Microsoft Defender for エンドポイント プラグイン

使うAPI一覧

認証

このプラグイン 認証トークンを生成するためのPythonライブラリ。

• ライブラリ: Microsoft Authentication Library for Python (msal)
• 使用方法: Microsoft Defender API の認証トークンを取得するために、Python 用 Microsoft 認証ライブラリ (msal) を使用します。

Create a new session with credentials

scope = ["https://api.securitycenter.microsoft.com/.default"]
authority = "https://login.microsoftonline.com/{tenantID}

app = msal.ConfidentialClientApplication(
           client_id={clientID}, authority=authority, client_credential={clientSecret}, proxies=proxy
)
auth_json = app.acquire_token_for_client(scopes=scope)
auth_token = auth_json.get("access_token", "")

デバイスを取得してレコードを更新する

API Endpoint: <Base URL>/api/machines

Method: 得る

Headers

Parameters

Sample API Response

{
    "@odata.context": "https://api.security.microsoft.com/api/$metadata#Machines",
    "value": [
        {
            "id": "1e5bc9d7e413ddd7902c2932e418702b84d0cc07",
            "computerDnsName": "mymachine1.contoso.com",
            "firstSeen": "2018-08-02T14:55:03.7791856Z",
            "lastSeen": "2018-08-02T14:55:03.7791856Z",
            "osPlatform": "Windows10" "Windows11",
            "version": "1709",
            "osProcessor": "x64",
            "lastIpAddress": "172.17.230.209",
            "lastExternalIpAddress": "167.220.196.71",
            "osBuild": 18209,
            "healthStatus": "Active",
            "rbacGroupId": 140,
            "rbacGroupName": "The-A-Team",
            "riskScore": "Low",
            "exposureLevel": "Medium",
            "isAadJoined": true,
            "aadDeviceId": "80fe8ff8-2624-418e-9591-41f0491218f9",
            "machineTags": [ "test tag 1", "test tag 2" ]
        }
        ...
    ]
}

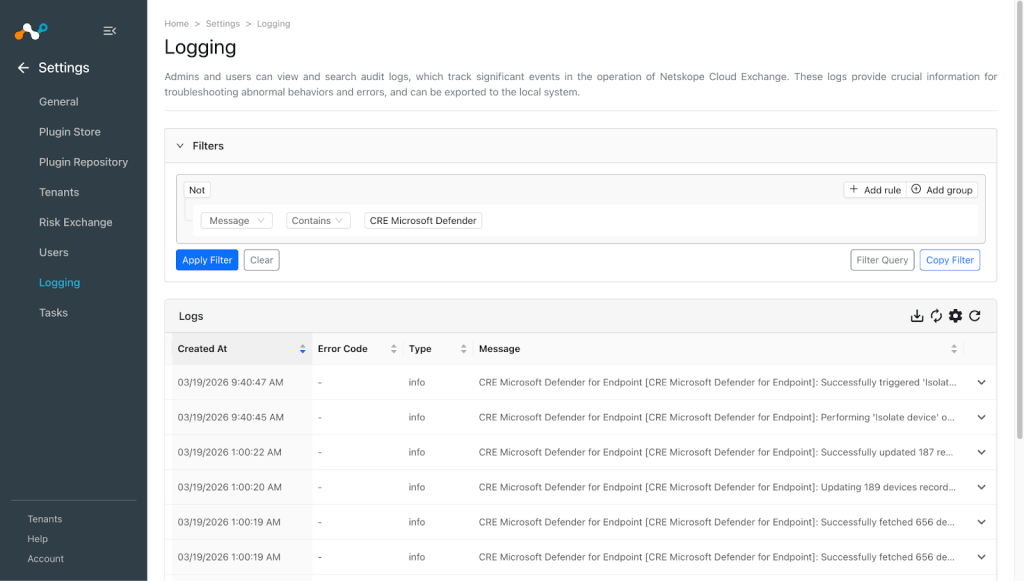

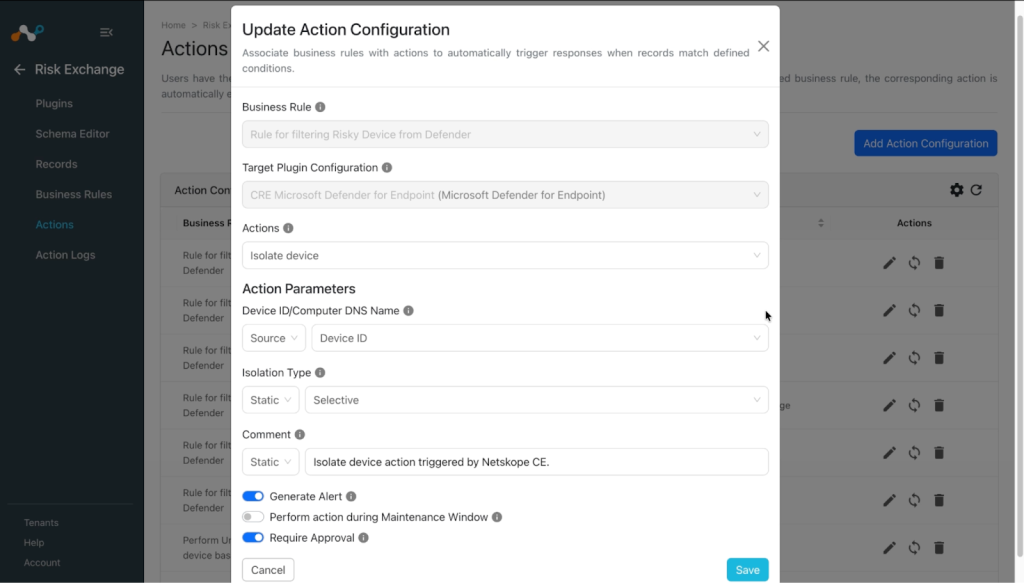

マシンを隔離する

API Endpoint: <Base URL>/api/machines/{deviceID}/isolate

Method: 役職

Headers

Body

{
      "Comment": "Comment to associate with the action",
      "IsolationType": 'Full' or 'Selective'
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "Isolate",
        "scope": "Selective",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

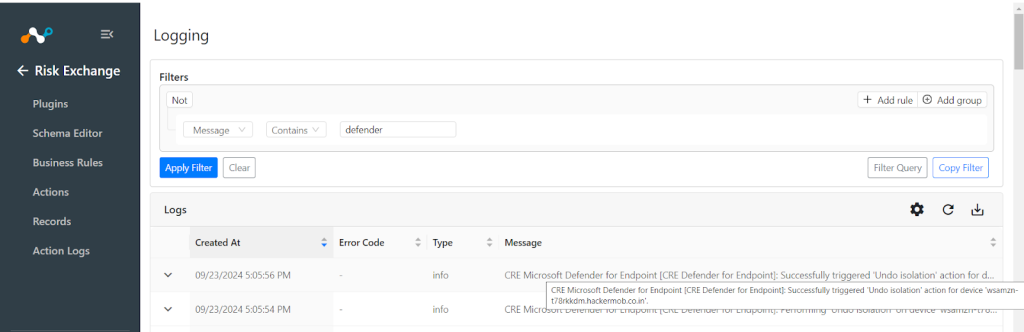

機械を隔離状態から解放する

API endpoint: <Base URL>/api/machines/{deviceID}/unisolate

Method: 役職

Headers

Body

{
      "Comment": "Comment to associate with the action",
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "Unisolate",
        "scope": "Selective",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

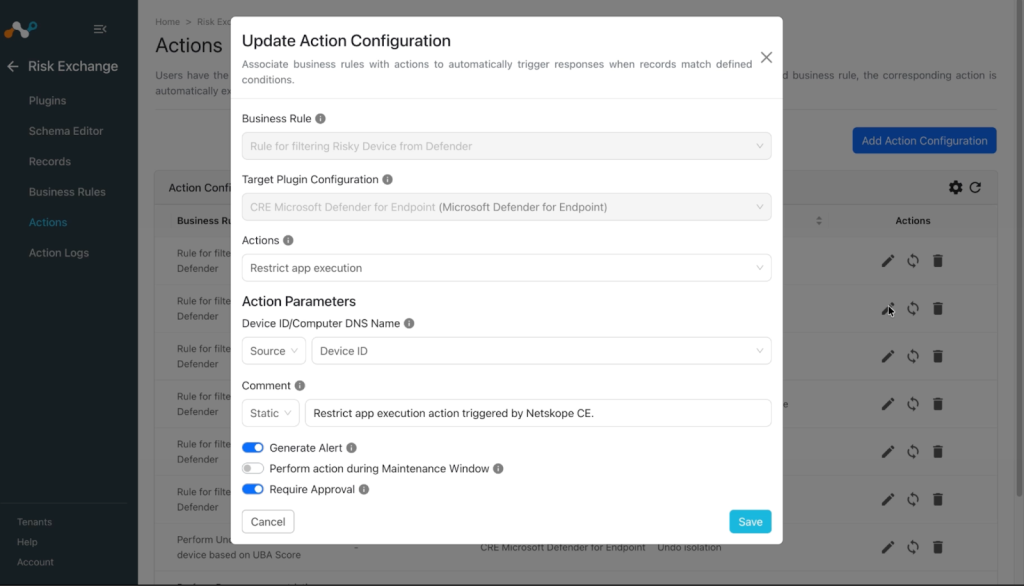

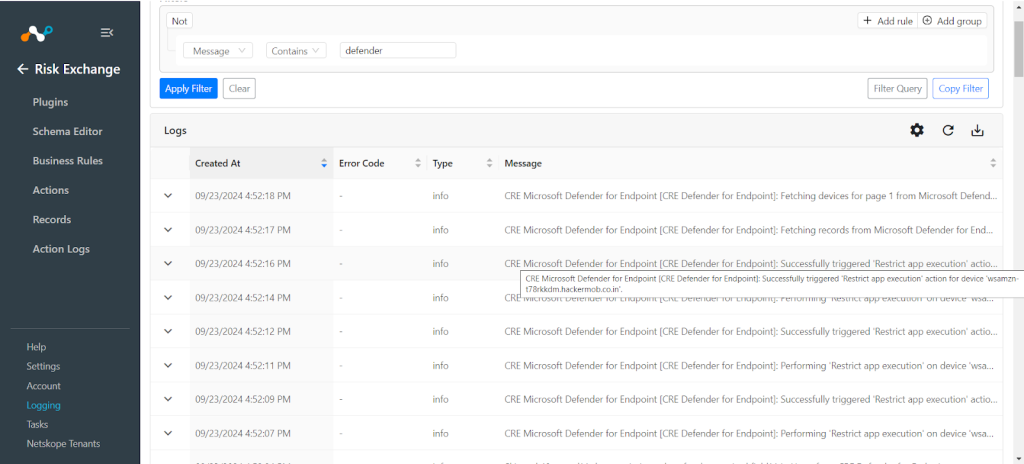

アプリの実行を制限する

API Endpoint: <Base URL>/api/machines/{deviceID}/restrictCodeExecution

Method: 役職

Headers

Body

{
      "Comment": "Comment to associate with the action",
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "RestrictCodeExecution",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

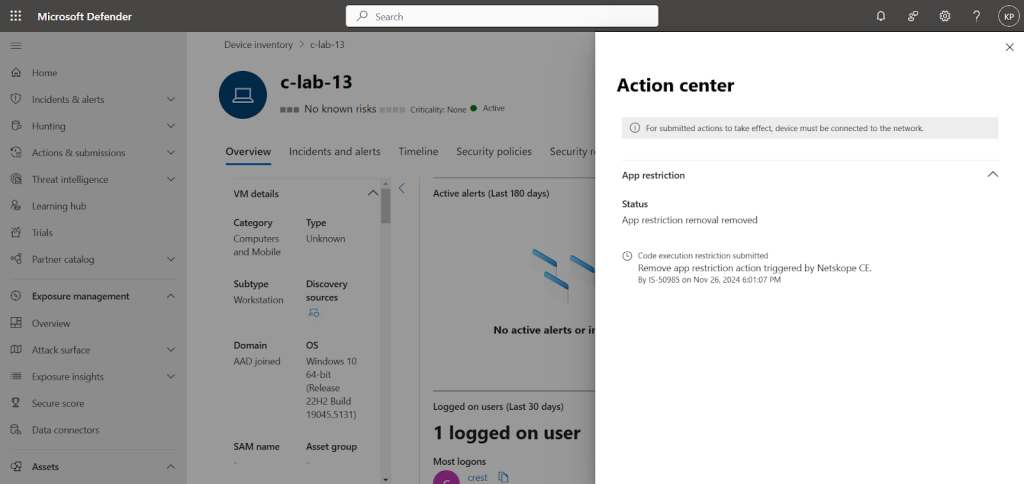

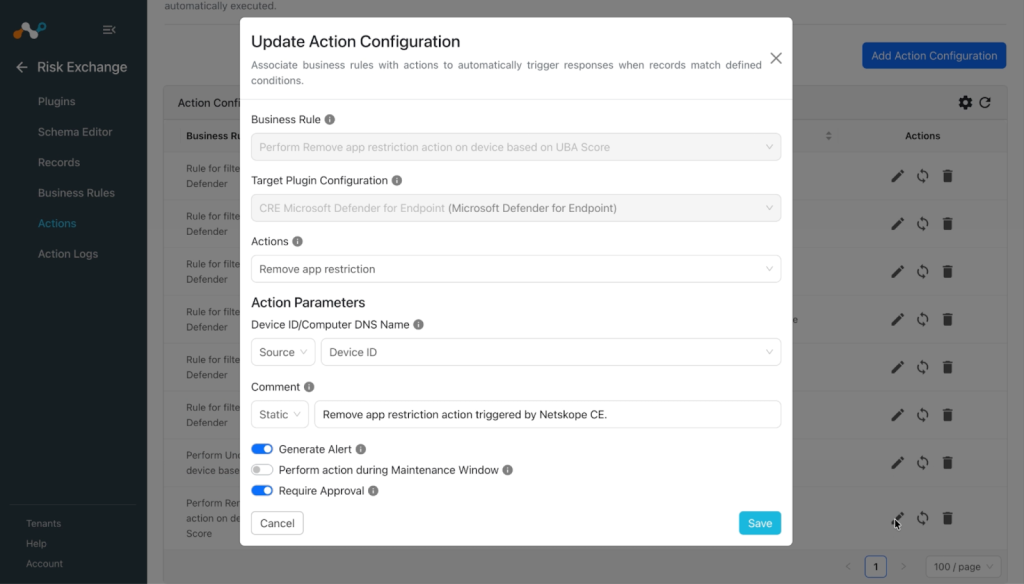

アプリの制限を解除する

API Endpoint: <Base URL>/api/machines/{deviceID}/unrestrictCodeExecution

Method: 役職

Headers

Body

{
      "Comment": "Comment to associate with the action",
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "UnrestrictCodeExecution",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

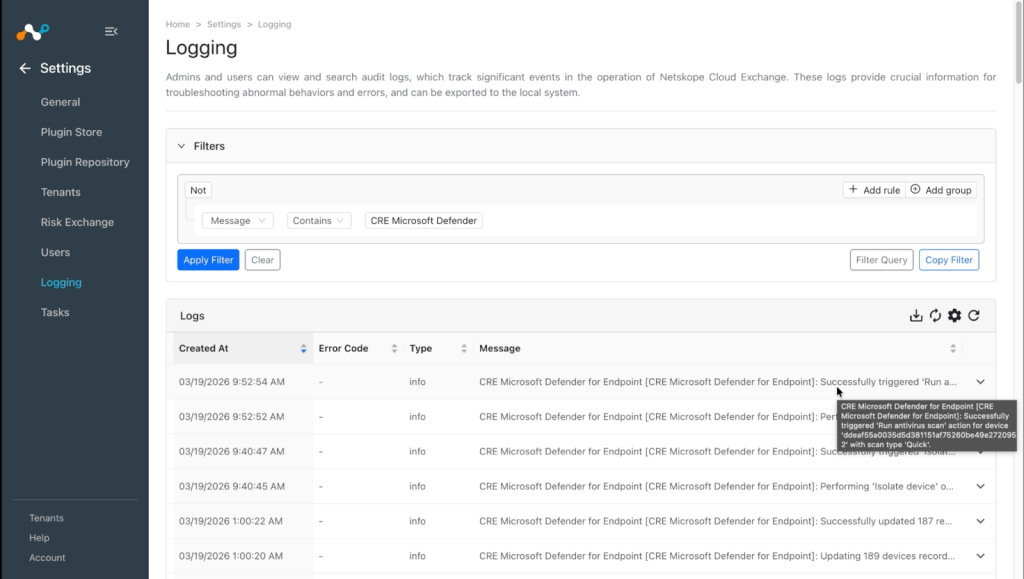

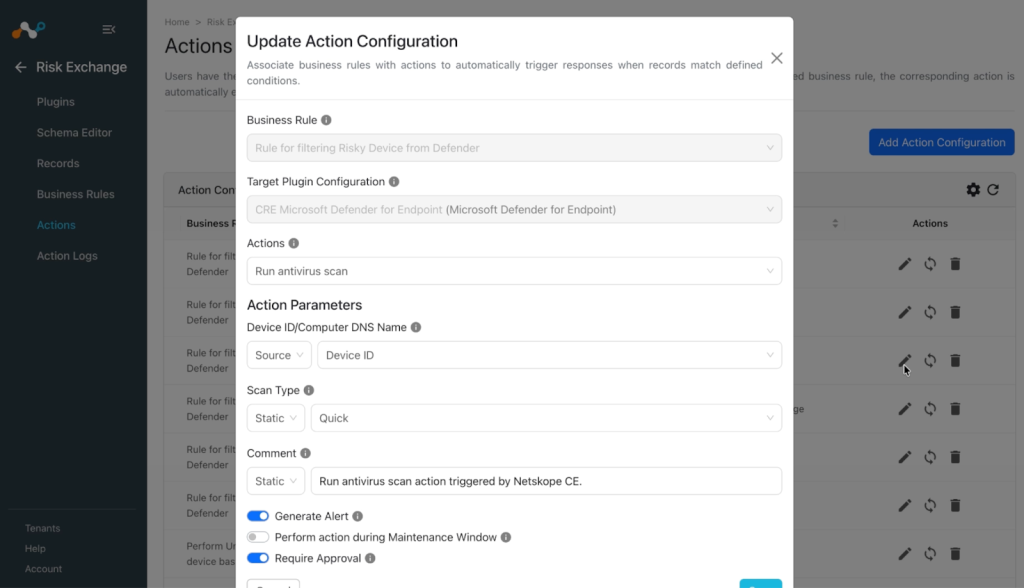

ウイルス対策スキャンを実行

API Endpoint: <Base URL>/api/machines/{deviceID}/runAntiVirusScan

Method: 役職

Headers

Body

{
     "Comment": "Comment to associate with the action",
     "ScanType": "Full" or "Quick"
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "RunAntiVirusScan",
        "scope": "Quick",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

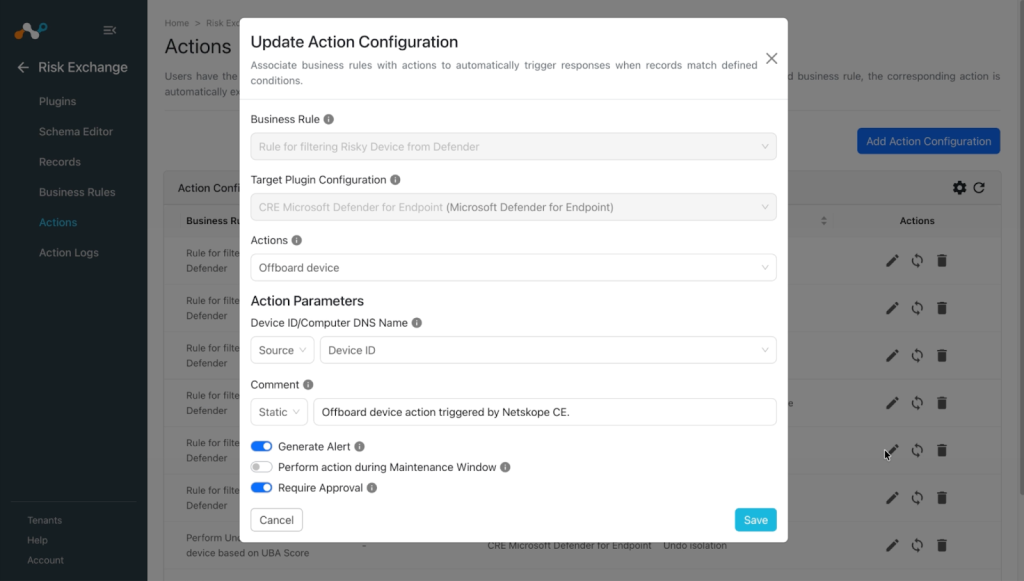

マシンから取り外す

API endpoint: <Base URL>/api/machines/{deviceID}/offboard

Method: 役職

Headers

Body

{
      "Comment": "Comment to associate with the action",
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "Offboard",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

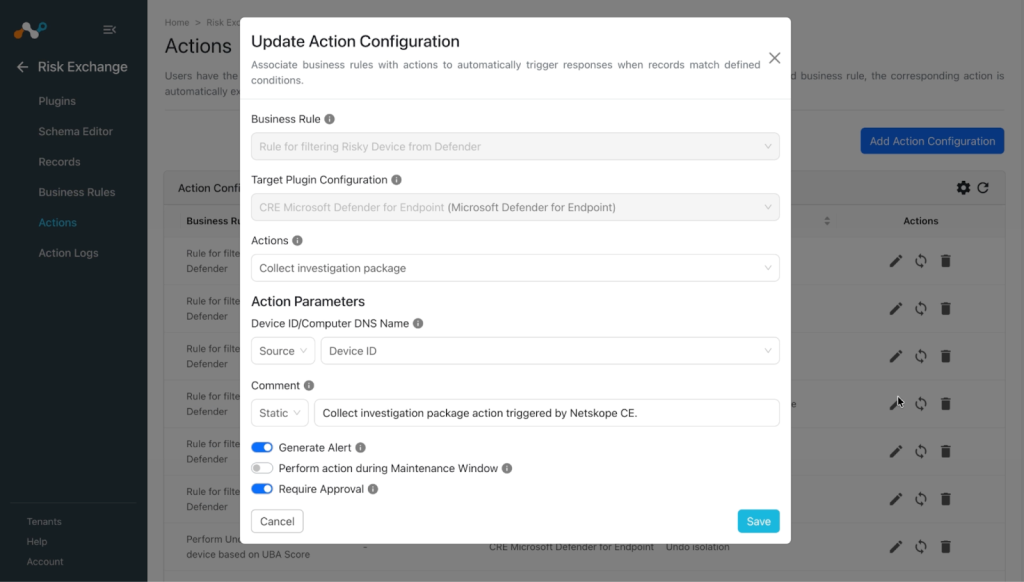

調査資料一式を入手する

API endpoint: <Base URL>/api/machines/{deviceID}/collectInvestigationPackage

Method: 役職

Headers

Body

{
      "Comment": "Comment to associate with the action",
}

Sample API Response (Status Code: 201)

{
        "id": "5382f7ea-7557-4ab7-9782-d50480024a4e",
        "type": "CollectInvestigationPackage",
        "requestor": "Analyst@TestPrd.onmicrosoft.com",
        "requestorComment": "test for docs",
        "status": "Succeeded",
        "machineId": "7b1f4967d9728e5aa3c06a9e617a22a4a5a17378",
        "computerDnsName": "desktop-test",
        "creationDateTimeUtc": "2019-01-02T14:39:38.2262283Z",
        "lastUpdateDateTimeUtc": "2019-01-02T14:40:44.6596267Z",
        "relatedFileInfo": null
}

デバイスの取得 ログオンユーザー

API Endpoint: <Base URL>/api/machines/{deviceID}/logonusers

Method: 得る

Headers

Sample API Response

{
    "@odata.context": "https://api.securitycenter.microsoft.com/api/$metadata#Users",
    "value": [
        {
            "id": "contoso\\user1",
            "accountName": "user1,
            "accountDomain": "contoso",
            "firstSeen": "2019-12-18T08:02:54Z",
            "lastSeen": "2020-01-06T08:01:48Z",
            "logonTypes": "Interactive",
            "isDomainAdmin": true,
            "isOnlyNetworkUser": false
        },
        ...
    ]
}

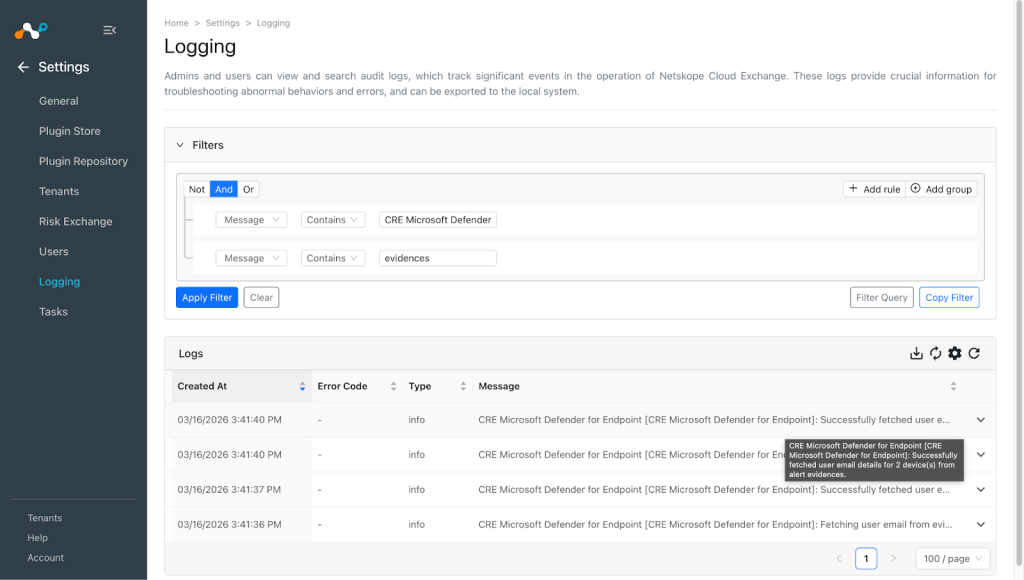

デバイスに関連付けられたユーザーの電子メールをアラート証拠から取得します

API Endpoint: <Base URL>/api/alerts

Method: 得る

Headers

Params

Sample API Response

{
    "@odata.context": "https://api.security.microsoft.com/api/$metadata#Alerts",
    "value": [
        {
            "id": "da637472900382838869_1364969609",
            "incidentId": 1126093,
            "investigationId": null,
            "assignedTo": null,
            "severity": "Low",
            "status": "New",
            "classification": null,
            "determination": null,
            "investigationState": "Queued",
            "detectionSource": "WindowsDefenderAtp",
            "detectorId": "17e10bbc-3a68-474a-8aad-faef14d43952",
            "category": "Execution",
            "threatFamilyName": null,
            "title": "Low-reputation arbitrary code executed by signed executable",
            "description": "Binaries signed by Microsoft can be used to run low-reputation arbitrary code. This technique hides the execution of malicious code within a trusted process. As a result, the trusted process might exhibit suspicious behaviors, such as opening a listening port or connecting to a command-and-control (C&C) server.",
            "alertCreationTime": "2021-01-26T20:33:57.7220239Z",
            "firstEventTime": "2021-01-26T20:31:32.9562661Z",
            "lastEventTime": "2021-01-26T20:31:33.0577322Z",
            "lastUpdateTime": "2021-01-26T20:33:59.2Z",
            "resolvedTime": null,
            "machineId": "111e6dd8c833c8a052ea231ec1b19adaf497b625",
            "computerDnsName": "temp123.middleeast.corp.microsoft.com",
            "rbacGroupName": "A",
            "aadTenantId": "a839b112-1253-6432-9bf6-94542403f21c",
            "threatName": null,
            "mitreTechniques": [
                "T1064",
                "T1085",
                "T1220"
            ],
            "relatedUser": {
                "userName": "temp123",
                "domainName": "DOMAIN"
            },
            "comments": [
                {
                    "comment": "test comment for docs",
                    "createdBy": "secop123@contoso.com",
                    "createdTime": "2021-01-26T01:00:37.8404534Z"
                }
            ],
            "evidence": [
                {
                    "entityType": "User",
                    "evidenceCreationTime": "2021-01-26T20:33:58.42Z",
                    "sha1": null,
                    "sha256": null,
                    "fileName": null,
                    "filePath": null,
                    "processId": null,
                    "processCommandLine": null,
                    "processCreationTime": null,
                    "parentProcessId": null,
                    "parentProcessCreationTime": null,
                    "parentProcessFileName": null,
                    "parentProcessFilePath": null,
                    "ipAddress": null,
                    "url": null,
                    "registryKey": null,
                    "registryHive": null,
                    "registryValueType": null,
                    "registryValue": null,
                    "accountName": "name",
                    "domainName": "DOMAIN",
                    "userSid": "S-1-5-21-11111607-1111760036-109187956-75141",
                    "aadUserId": "11118379-2a59-1111-ac3c-a51eb4a3c627",
                    "userPrincipalName": "temp123@microsoft.com",
                    "detectionStatus": null
                },
                {
                    "entityType": "Process",
                    "evidenceCreationTime": "2021-01-26T20:33:58.6133333Z",
                    "sha1": "ff836cfb1af40252bd2a2ea843032e99a5b262ed",
                    "sha256": "a4752c71d81afd3d5865d24ddb11a6b0c615062fcc448d24050c2172d2cbccd6",
                    "fileName": "rundll32.exe",
                    "filePath": "C:\\Windows\\SysWOW64",
                    "processId": 3276,
                    "processCommandLine": "rundll32.exe  c:\\temp\\suspicious.dll,RepeatAfterMe",
                    "processCreationTime": "2021-01-26T20:31:32.9581596Z",
                    "parentProcessId": 8420,
                    "parentProcessCreationTime": "2021-01-26T20:31:32.9004163Z",
                    "parentProcessFileName": "rundll32.exe",
                    "parentProcessFilePath": "C:\\Windows\\System32",
                    "ipAddress": null,
                    "url": null,
                    "registryKey": null,
                    "registryHive": null,
                    "registryValueType": null,
                    "registryValue": null,
                    "accountName": null,
                    "domainName": null,
                    "userSid": null,
                    "aadUserId": null,
                    "userPrincipalName": null,
                    "detectionStatus": "Detected"
                },
                {
                    "entityType": "File",
                    "evidenceCreationTime": "2021-01-26T20:33:58.42Z",
                    "sha1": "8563f95b2f8a284fc99da44500cd51a77c1ff36c",
                    "sha256": "dc0ade0c95d6db98882bc8fa6707e64353cd6f7767ff48d6a81a6c2aef21c608",
                    "fileName": "suspicious.dll",
                    "filePath": "c:\\temp",
                    "processId": null,
                    "processCommandLine": null,
                    "processCreationTime": null,
                    "parentProcessId": null,
                    "parentProcessCreationTime": null,
                    "parentProcessFileName": null,
                    "parentProcessFilePath": null,
                    "ipAddress": null,
                    "url": null,
                    "registryKey": null,
                    "registryHive": null,
                    "registryValueType": null,
                    "registryValue": null,
                    "accountName": null,
                    "domainName": null,
                    "userSid": null,
                    "aadUserId": null,
                    "userPrincipalName": null,
                    "detectionStatus": "Detected"
                }
            ]
        },
        ...
    ]
}
