ServiceNow 用 Ticket Orchestrator プラグイン

2.3.0 (Required minimum CE version for this is 6.0.0)

Added

• マネージャーへのチケット割り当てのサポートを追加しました。
• エラーログの解決方法を追加しました。

Changed

• 保守性を向上させるために、検証チェックを更新し、コードをリファクタリングしました。

2.2.0

Added

• カスタムステータスおよび重大度フィールドのマッピングのサポートを追加しました（カスタムテーブルモード）。

2.1.0

Added

• カスタムテーブルの宛先のサポートを追加しました。

Changed

• 選択された宛先テーブルに基づいて、構成パラメータのステッパーを動的にするようにしました。

2.0.0

Added

• GRC Issue テーブルのサポートが追加されました。
• エンドポイントおよびインシデントイベントのサポートを追加しました。
• 重大度と担当者の両方の古い値と新しい値を保存するためのサポートを追加しました。

Changed

• 古い値と新しい値の両方を保存するようにストレージ動作を変更しました。

1.1.0

Added

• キュー構成に「No Queue」オプションを追加しました。
• チケットの作成/更新リクエストに対する再試行メカニズムを追加しました。
• ページネーションのサポートを追加しました。

1.0.2

Added

• 元のチケットへのメタデータの追加のサポートを追加しました。

Changed

• デフォルトのフィールドマッピングを変更しました。

1.0.0

Added

• 初回リリース。

ServiceNowでインシデントを作成する際にマッピングできる、デフォルトテーブルのキュー構成でサポートされているフィールドの一覧を以下に示します。

セキュリティインシデント

Incident

GRCに関する課題

List of APIs used

Get Incident or Security Incident or GRC Issue or Custom Table Fields

API Endpoint: <Instance URL>/api/now/table/sys_dictionary

Method: 得る

Parameters

Headers

Sample API Response (Security Incident) (Status Code: 200)

{
    "result": [
        {
            "column_label": "Malware hash",
            "element": "malware_hash"
        },
        {
            "column_label": "MITRE ATT&CK Procedure (Malware)",
            "element": "mitre_malware"
        },
        {
            "column_label": "Last Updated From Source",
            "element": "last_updated_from_src"
        },
        {
            "column_label": "Number",
            "element": "number"
        },
        {
            "column_label": "Platforms(MITRE)",
            "element": "mitre_platform"
        },
        {
            "column_label": "Parent security incident",
            "element": "parent_security_incident"
        },
        {
            "column_label": "Affected user",
            "element": "affected_user"
        },
        {
            "column_label": "Alert Rule",
            "element": "alert_rule"
        },
        {
            "column_label": "New respondents",
            "element": "new_pir_respondents"
        },
        {
            "column_label": "Machine learning Prediction",
            "element": "prediction"
        },
        {
            "column_label": "Destination IP",
            "element": "dest_ip"
        },
        {
            "column_label": "Problem",
            "element": "problem"
        },
        {
            "column_label": "Service",
            "element": "business_service"
        },
        {
            "column_label": "Sys ID",
            "element": "sys_id"
        },
        {
            "column_label": "Effective number",
            "element": "task_effective_number"
        },
        {
            "column_label": "Service offering",
            "element": "service_offering"
        },
        {
            "column_label": "Rejection goto",
            "element": "rejection_goto"
        },
        {
            "column_label": "Malware URL",
            "element": "malware_url"
        },
        {
            "column_label": "Assigned to",
            "element": "assigned_to"
        },
        {
            "column_label": "Escalation",
            "element": "escalation"
        },
        {
            "column_label": "Time worked",
            "element": "time_worked"
        },
        {
            "column_label": "Additional assignee list",
            "element": "additional_assignee_list"
        },
        {
            "column_label": "Correlation ID",
            "element": "correlation_id"
        },
        {
            "column_label": "Updated by",
            "element": "sys_updated_by"
        },
        {
            "column_label": "MITRE ATT&CK Tactic",
            "element": "mitre_tactic"
        },
        {
            "column_label": "Phish Email",
            "element": "phish_email"
        },
        {
            "column_label": "Variables",
            "element": "variables"
        },
        {
            "column_label": "Alert Sensor",
            "element": "alert_sensor"
        },
        {
            "column_label": "Additional comments",
            "element": "comments"
        },
        {
            "column_label": "Urgency",
            "element": "urgency"
        },
        {
            "column_label": "Opened",
            "element": "opened_at"
        },
        {
            "column_label": "Watch list",
            "element": "watch_list"
        },
        {
            "column_label": "SLA due",
            "element": "sla_due"
        },
        {
            "column_label": "Contract",
            "element": "contract"
        },
        {
            "column_label": "Active",
            "element": "active"
        },
        {
            "column_label": "State",
            "element": "state"
        },
        {
            "column_label": "Work notes",
            "element": "work_notes"
        },
        {
            "column_label": "Closed by",
            "element": "closed_by"
        },
        {
            "column_label": "Follow up",
            "element": "follow_up"
        },
        {
            "column_label": "Domain",
            "element": "sys_domain"
        },
        {
            "column_label": "Updates",
            "element": "sys_mod_count"
        },
        {
            "column_label": "Configuration item",
            "element": "cmdb_ci"
        },
        {
            "column_label": "Approval history",
            "element": "approval_history"
        },
        {
            "column_label": "Business duration",
            "element": "business_duration"
        },
        {
            "column_label": "Location",
            "element": "location"
        },
        {
            "column_label": "User input",
            "element": "user_input"
        },
        {
            "column_label": "Created by",
            "element": "sys_created_by"
        },
        {
            "column_label": "Source IP",
            "element": "source_ip"
        },
        {
            "column_label": "Change request",
            "element": "change_request"
        },
        {
            "column_label": "Risk",
            "element": "risk"
        },
        {
            "column_label": "Workflow activity",
            "element": "wf_activity"
        },
        {
            "column_label": "Risk change",
            "element": "risk_change"
        },
        {
            "column_label": "MITRE ATT&CK Data Source",
            "element": "mitre_data_source"
        },
        {
            "column_label": "Work notes list",
            "element": "work_notes_list"
        },
        {
            "column_label": "Skills",
            "element": "skills"
        },
        {
            "column_label": "Attack Vector",
            "element": "attack_vector"
        },
        {
            "column_label": "MITRE ATT&CK Technique",
            "element": "mitre_technique"
        },
        {
            "column_label": "Allowed groups",
            "element": "allowed_groups"
        },
        {
            "column_label": "Automation activity",
            "element": "automation_activity"
        },
        {
            "column_label": "Business impact",
            "element": "business_criticality"
        },
        {
            "column_label": "Close code",
            "element": "close_code"
        },
        {
            "column_label": "Read access",
            "element": "special_access_read"
        },
        {
            "column_label": "Privileged access",
            "element": "special_access_write"
        },
        {
            "column_label": "Risk score",
            "element": "risk_score"
        },
        {
            "column_label": "Security tags",
            "element": "security_tags"
        },
        {
            "column_label": "Severity",
            "element": "severity"
        },
        {
            "column_label": "Security incident self",
            "element": "security_incident_self"
        },
        {
            "column_label": "Incident",
            "element": "incident"
        },
        {
            "column_label": "Comments and Work notes",
            "element": "comments_and_work_notes"
        },
        {
            "column_label": "MITRE ATT&CK Adversary Group",
            "element": "mitre_group"
        },
        {
            "column_label": "Description",
            "element": "description"
        },
        {
            "column_label": "Impact",
            "element": "impact"
        },
        {
            "column_label": "Closed",
            "element": "closed_at"
        },
        {
            "column_label": "Group list",
            "element": "group_list"
        },
        {
            "column_label": "Activity due",
            "element": "activity_due"
        },
        {
            "column_label": "Sys ID",
            "element": "sys_id"
        },
        {
            "column_label": "MITRE ATT&CK Procedure (Tool)",
            "element": "mitre_tool"
        },
        {
            "column_label": "Request assessments",
            "element": "pir_respondents"
        },
        {
            "column_label": "Allowed members",
            "element": "allowed_members"
        },
        {
            "column_label": "Task type",
            "element": "sys_class_name"
        },
        {
            "column_label": "Parent",
            "element": "parent"
        },
        {
            "column_label": "Priority",
            "element": "priority"
        },
        {
            "column_label": "Close notes",
            "element": "close_notes"
        },
        {
            "column_label": "Reassignment count",
            "element": "reassignment_count"
        },
        {
            "column_label": "Due date",
            "element": "due_date"
        },
        {
            "column_label": "Order",
            "element": "order"
        },
        {
            "column_label": "Short description",
            "element": "short_description"
        },
        {
            "column_label": "Company",
            "element": "company"
        },
        {
            "column_label": "Approval set",
            "element": "approval_set"
        },
        {
            "column_label": "Opened by",
            "element": "opened_by"
        },
        {
            "column_label": "Contact type",
            "element": "contact_type"
        },
        {
            "column_label": "Made SLA",
            "element": "made_sla"
        },
        {
            "column_label": "Created",
            "element": "sys_created_on"
        },
        {
            "column_label": "Post incident report",
            "element": "pir"
        },
        {
            "column_label": "Assignment group",
            "element": "assignment_group"
        },
        {
            "column_label": "Approval",
            "element": "approval"
        },
        {
            "column_label": "Duration",
            "element": "calendar_duration"
        },
        {
            "column_label": "Knowledge",
            "element": "knowledge"
        },
        {
            "column_label": "Correlation display",
            "element": "correlation_display"
        },
        {
            "column_label": "Updated",
            "element": "sys_updated_on"
        },
        {
            "column_label": "Other IoC",
            "element": "other_ioc"
        },
        {
            "column_label": "Referrer URL",
            "element": "referrer_url"
        },
        {
            "column_label": "Confidence score",
            "element": "confidence_score"
        },
        {
            "column_label": "Department",
            "element": "department"
        },
        {
            "column_label": "Vulnerability",
            "element": "vulnerability"
        },
        {
            "column_label": "Delivery task",
            "element": "delivery_task"
        },
        {
            "column_label": "Actual end",
            "element": "work_end"
        },
        {
            "column_label": "Domain Path",
            "element": "sys_domain_path"
        },
        {
            "column_label": "Universal Request",
            "element": "universal_request"
        },
        {
            "column_label": "Expected start",
            "element": "expected_start"
        },
        {
            "column_label": "Actual start",
            "element": "work_start"
        },
        {
            "column_label": "Upon approval",
            "element": "upon_approval"
        },
        {
            "column_label": "Transfer reason",
            "element": "route_reason"
        },
        {
            "column_label": "Enforce restriction",
            "element": "enforce_restriction"
        },
        {
            "column_label": "External URL",
            "element": "external_url"
        },
        {
            "column_label": "Delivery plan",
            "element": "delivery_plan"
        },
        {
            "column_label": "Upon reject",
            "element": "upon_reject"
        },
        {
            "column_label": "Override risk score",
            "element": "risk_score_override"
        }
    ]
}

Sample API Response (Incident) (Status Code: 200)

{
    "result": [
        {
            "column_label": "Business impact",
            "element": "business_impact"
        },
        {
            "column_label": "Probable cause",
            "element": "cause"
        },
        {
            "column_label": "Reopen count",
            "element": "reopen_count"
        },
        {
            "column_label": "Number",
            "element": "number"
        },
        {
            "column_label": "Parent Incident",
            "element": "parent_incident"
        },
        {
            "column_label": "Service",
            "element": "business_service"
        },
        {
            "column_label": "Change Request",
            "element": "rfc"
        },
        {
            "column_label": "Effective number",
            "element": "task_effective_number"
        },
        {
            "column_label": "Service offering",
            "element": "service_offering"
        },
        {
            "column_label": "Incident state",
            "element": "incident_state"
        },
        {
            "column_label": "Resolve time",
            "element": "calendar_stc"
        },
        {
            "column_label": "Rejection goto",
            "element": "rejection_goto"
        },
        {
            "column_label": "Origin table",
            "element": "origin_table"
        },
        {
            "column_label": "Resolved by",
            "element": "resolved_by"
        },
        {
            "column_label": "Assigned to",
            "element": "assigned_to"
        },
        {
            "column_label": "Escalation",
            "element": "escalation"
        },
        {
            "column_label": "Time worked",
            "element": "time_worked"
        },
        {
            "column_label": "Additional assignee list",
            "element": "additional_assignee_list"
        },
        {
            "column_label": "Correlation ID",
            "element": "correlation_id"
        },
        {
            "column_label": "Updated by",
            "element": "sys_updated_by"
        },
        {
            "column_label": "Variables",
            "element": "variables"
        },
        {
            "column_label": "Child Incidents",
            "element": "child_incidents"
        },
        {
            "column_label": "Additional comments",
            "element": "comments"
        },
        {
            "column_label": "Urgency",
            "element": "urgency"
        },
        {
            "column_label": "Opened",
            "element": "opened_at"
        },
        {
            "column_label": "Watch list",
            "element": "watch_list"
        },
        {
            "column_label": "SLA due",
            "element": "sla_due"
        },
        {
            "column_label": "Contract",
            "element": "contract"
        },
        {
            "column_label": "Active",
            "element": "active"
        },
        {
            "column_label": "State",
            "element": "state"
        },
        {
            "column_label": "Work notes",
            "element": "work_notes"
        },
        {
            "column_label": "Closed by",
            "element": "closed_by"
        },
        {
            "column_label": "Follow up",
            "element": "follow_up"
        },
        {
            "column_label": "Domain",
            "element": "sys_domain"
        },
        {
            "column_label": "Updates",
            "element": "sys_mod_count"
        },
        {
            "column_label": "Configuration item",
            "element": "cmdb_ci"
        },
        {
            "column_label": "Approval history",
            "element": "approval_history"
        },
        {
            "column_label": "Business duration",
            "element": "business_duration"
        },
        {
            "column_label": "Location",
            "element": "location"
        },
        {
            "column_label": "User input",
            "element": "user_input"
        },
        {
            "column_label": "Created by",
            "element": "sys_created_by"
        },
        {
            "column_label": "Category",
            "element": "category"
        },
        {
            "column_label": "Chronicle Incident",
            "element": "x_cdsp_chroni_itsm_chronicle_incident_ref"
        },
        {
            "column_label": "Business resolve time",
            "element": "business_stc"
        },
        {
            "column_label": "Sys ID",
            "element": "sys_id"
        },
        {
            "column_label": "Origin",
            "element": "origin_id"
        },
        {
            "column_label": "Workflow activity",
            "element": "wf_activity"
        },
        {
            "column_label": "Caused by Change",
            "element": "caused_by"
        },
        {
            "column_label": "Work notes list",
            "element": "work_notes_list"
        },
        {
            "column_label": "Close code",
            "element": "close_code"
        },
        {
            "column_label": "Skills",
            "element": "skills"
        },
        {
            "column_label": "Resolved",
            "element": "resolved_at"
        },
        {
            "column_label": "Splunk URL",
            "element": "x_splu2_splunk_ser_splunk_url"
        },
        {
            "column_label": "Last reopened at",
            "element": "reopened_time"
        },
        {
            "column_label": "Problem",
            "element": "problem_id"
        },
        {
            "column_label": "Caller",
            "element": "caller_id"
        },
        {
            "column_label": "Subcategory",
            "element": "subcategory"
        },
        {
            "column_label": "Comments and Work notes",
            "element": "comments_and_work_notes"
        },
        {
            "column_label": "Description",
            "element": "description"
        },
        {
            "column_label": "Impact",
            "element": "impact"
        },
        {
            "column_label": "Closed",
            "element": "closed_at"
        },
        {
            "column_label": "Group list",
            "element": "group_list"
        },
        {
            "column_label": "Activity due",
            "element": "activity_due"
        },
        {
            "column_label": "Sys ID",
            "element": "sys_id"
        },
        {
            "column_label": "Task type",
            "element": "sys_class_name"
        },
        {
            "column_label": "Parent",
            "element": "parent"
        },
        {
            "column_label": "Priority",
            "element": "priority"
        },
        {
            "column_label": "Close notes",
            "element": "close_notes"
        },
        {
            "column_label": "Reassignment count",
            "element": "reassignment_count"
        },
        {
            "column_label": "Due date",
            "element": "due_date"
        },
        {
            "column_label": "Order",
            "element": "order"
        },
        {
            "column_label": "Short description",
            "element": "short_description"
        },
        {
            "column_label": "Company",
            "element": "company"
        },
        {
            "column_label": "Approval set",
            "element": "approval_set"
        },
        {
            "column_label": "Opened by",
            "element": "opened_by"
        },
        {
            "column_label": "Contact type",
            "element": "contact_type"
        },
        {
            "column_label": "Made SLA",
            "element": "made_sla"
        },
        {
            "column_label": "Created",
            "element": "sys_created_on"
        },
        {
            "column_label": "On hold reason",
            "element": "hold_reason"
        },
        {
            "column_label": "Assignment group",
            "element": "assignment_group"
        },
        {
            "column_label": "Approval",
            "element": "approval"
        },
        {
            "column_label": "Duration",
            "element": "calendar_duration"
        },
        {
            "column_label": "Knowledge",
            "element": "knowledge"
        },
        {
            "column_label": "Correlation display",
            "element": "correlation_display"
        },
        {
            "column_label": "Updated",
            "element": "sys_updated_on"
        },
        {
            "column_label": "Delivery task",
            "element": "delivery_task"
        },
        {
            "column_label": "Actual end",
            "element": "work_end"
        },
        {
            "column_label": "Domain Path",
            "element": "sys_domain_path"
        },
        {
            "column_label": "Universal Request",
            "element": "universal_request"
        },
        {
            "column_label": "Expected start",
            "element": "expected_start"
        },
        {
            "column_label": "Notify",
            "element": "notify"
        },
        {
            "column_label": "Actual start",
            "element": "work_start"
        },
        {
            "column_label": "Upon approval",
            "element": "upon_approval"
        },
        {
            "column_label": "Severity",
            "element": "severity"
        },
        {
            "column_label": "Transfer reason",
            "element": "route_reason"
        },
        {
            "column_label": "Delivery plan",
            "element": "delivery_plan"
        },
        {
            "column_label": "Upon reject",
            "element": "upon_reject"
        },
        {
            "column_label": "Last reopened by",
            "element": "reopened_by"
        }
    ]
}

Sample API Response (GRC Issues) (Status Code: 200)

{
    "result": [
        {
            "column_label": "Is reparenting group",
            "element": "is_reparenting_group"
        },
        {
            "column_label": "Authority document",
            "element": "authority_document"
        },
        {
            "column_label": "Item",
            "element": "item"
        },
        {
            "column_label": "Issue manager",
            "element": "issue_manager"
        },
        {
            "column_label": "Issue rating",
            "element": "issue_rating"
        },
        {
            "column_label": "Management method",
            "element": "management_method"
        },
        {
            "column_label": "Document",
            "element": "document"
        },
        {
            "column_label": "Explanation",
            "element": "explanation"
        },
        {
            "column_label": "Recommendation",
            "element": "recommendation"
        },
        {
            "column_label": "Action plan",
            "element": "action_plan"
        },
        {
            "column_label": "Substate",
            "element": "substate"
        },
        {
            "column_label": "Parent issue",
            "element": "parent_issue"
        },
        {
            "column_label": "Control objective/Risk statement",
            "element": "content"
        },
        {
            "column_label": "Entity",
            "element": "profile"
        },
        {
            "column_label": "Functional domain",
            "element": "functional_domain"
        },
        {
            "column_label": "User hierarchy status",
            "element": "user_hierarchy_status"
        },
        {
            "column_label": "Is group",
            "element": "is_group"
        },
        {
            "column_label": "Issue group rule",
            "element": "issue_group_rule"
        },
        {
            "column_label": "Issue manager group",
            "element": "issue_manager_group"
        },
        {
            "column_label": "Sys ID",
            "element": "sys_id"
        },
        {
            "column_label": "Classification",
            "element": "classification"
        },
        {
            "column_label": "Allowed groups",
            "element": "confidential_user_groups"
        },
        {
            "column_label": "Issue source",
            "element": "issue_source"
        },
        {
            "column_label": "User hierarchy 2",
            "element": "user_hierarchy_2"
        },
        {
            "column_label": "User hierarchy 1",
            "element": "user_hierarchy_1"
        },
        {
            "column_label": "Policy",
            "element": "policy"
        },
        {
            "column_label": "Confidential",
            "element": "is_confidential"
        },
        {
            "column_label": "Response",
            "element": "response"
        },
        {
            "column_label": "Confirmed date",
            "element": "confirmed_date"
        },
        {
            "column_label": "Issue type",
            "element": "issue_type"
        },
        {
            "column_label": "Allowed users",
            "element": "confidential_users"
        },
        {
            "column_label": "Created manually",
            "element": "created_manually"
        },
        {
            "column_label": "Group level",
            "element": "group_level"
        },
        {
            "column_label": "Actual end",
            "element": "work_end"
        },
        {
            "column_label": "Company",
            "element": "company"
        },
        {
            "column_label": "Task type",
            "element": "sys_class_name"
        },
        {
            "column_label": "Number",
            "element": "number"
        },
        {
            "column_label": "Impact",
            "element": "impact"
        },
        {
            "column_label": "Short description",
            "element": "short_description"
        },
        {
            "column_label": "Approval set",
            "element": "approval_set"
        },
        {
            "column_label": "Description",
            "element": "description"
        },
        {
            "column_label": "Closed",
            "element": "closed_at"
        },
        {
            "column_label": "Opened by",
            "element": "opened_by"
        },
        {
            "column_label": "Made SLA",
            "element": "made_sla"
        },
        {
            "column_label": "Group list",
            "element": "group_list"
        },
        {
            "column_label": "Contact type",
            "element": "contact_type"
        },
        {
            "column_label": "Activity due",
            "element": "activity_due"
        },
        {
            "column_label": "Created by",
            "element": "sys_created_by"
        },
        {
            "column_label": "Workflow activity",
            "element": "wf_activity"
        },
        {
            "column_label": "Rejection goto",
            "element": "rejection_goto"
        },
        {
            "column_label": "Upon reject",
            "element": "upon_reject"
        },
        {
            "column_label": "Contract",
            "element": "contract"
        },
        {
            "column_label": "Escalation",
            "element": "escalation"
        },
        {
            "column_label": "Effective number",
            "element": "task_effective_number"
        },
        {
            "column_label": "Active",
            "element": "active"
        },
        {
            "column_label": "Work notes",
            "element": "work_notes"
        },
        {
            "column_label": "Assigned to",
            "element": "assigned_to"
        },
        {
            "column_label": "Time worked",
            "element": "time_worked"
        },
        {
            "column_label": "Business service",
            "element": "business_service"
        },
        {
            "column_label": "Domain Path",
            "element": "sys_domain_path"
        },
        {
            "column_label": "State",
            "element": "state"
        },
        {
            "column_label": "Additional assignee list",
            "element": "additional_assignee_list"
        },
        {
            "column_label": "Follow up",
            "element": "follow_up"
        },
        {
            "column_label": "Sys ID",
            "element": "sys_id"
        },
        {
            "column_label": "Correlation ID",
            "element": "correlation_id"
        },
        {
            "column_label": "Created",
            "element": "sys_created_on"
        },
        {
            "column_label": "Work notes list",
            "element": "work_notes_list"
        },
        {
            "column_label": "Universal Request",
            "element": "universal_request"
        },
        {
            "column_label": "Closed by",
            "element": "closed_by"
        },
        {
            "column_label": "Domain",
            "element": "sys_domain"
        },
        {
            "column_label": "Delivery plan",
            "element": "delivery_plan"
        },
        {
            "column_label": "Upon approval",
            "element": "upon_approval"
        },
        {
            "column_label": "Parent",
            "element": "parent"
        },
        {
            "column_label": "Close notes",
            "element": "close_notes"
        },
        {
            "column_label": "Assignment group",
            "element": "assignment_group"
        },
        {
            "column_label": "Duration",
            "element": "calendar_duration"
        },
        {
            "column_label": "Priority",
            "element": "priority"
        },
        {
            "column_label": "Approval",
            "element": "approval"
        },
        {
            "column_label": "Due date",
            "element": "due_date"
        },
        {
            "column_label": "Updated by",
            "element": "sys_updated_by"
        },
        {
            "column_label": "Correlation display",
            "element": "correlation_display"
        },
        {
            "column_label": "Updates",
            "element": "sys_mod_count"
        },
        {
            "column_label": "Reassignment count",
            "element": "reassignment_count"
        },
        {
            "column_label": "Order",
            "element": "order"
        },
        {
            "column_label": "Knowledge",
            "element": "knowledge"
        },
        {
            "column_label": "Service offering",
            "element": "service_offering"
        },
        {
            "column_label": "Delivery task",
            "element": "delivery_task"
        },
        {
            "column_label": "Configuration item",
            "element": "cmdb_ci"
        },
        {
            "column_label": "Comments and Work notes",
            "element": "comments_and_work_notes"
        },
        {
            "column_label": "Urgency",
            "element": "urgency"
        },
        {
            "column_label": "Approval history",
            "element": "approval_history"
        },
        {
            "column_label": "Additional comments",
            "element": "comments"
        },
        {
            "column_label": "Opened",
            "element": "opened_at"
        },
        {
            "column_label": "Business duration",
            "element": "business_duration"
        },
        {
            "column_label": "User input",
            "element": "user_input"
        },
        {
            "column_label": "Variables",
            "element": "variables"
        },
        {
            "column_label": "Watch list",
            "element": "watch_list"
        },
        {
            "column_label": "Location",
            "element": "location"
        },
        {
            "column_label": "SLA due",
            "element": "sla_due"
        },
        {
            "column_label": "Updated",
            "element": "sys_updated_on"
        },
        {
            "column_label": "Actual start",
            "element": "work_start"
        },
        {
            "column_label": "Expected start",
            "element": "expected_start"
        },
        {
            "column_label": "Transfer reason",
            "element": "route_reason"
        },
        {
            "column_label": "Skills",
            "element": "skills"
        }
    ]
}

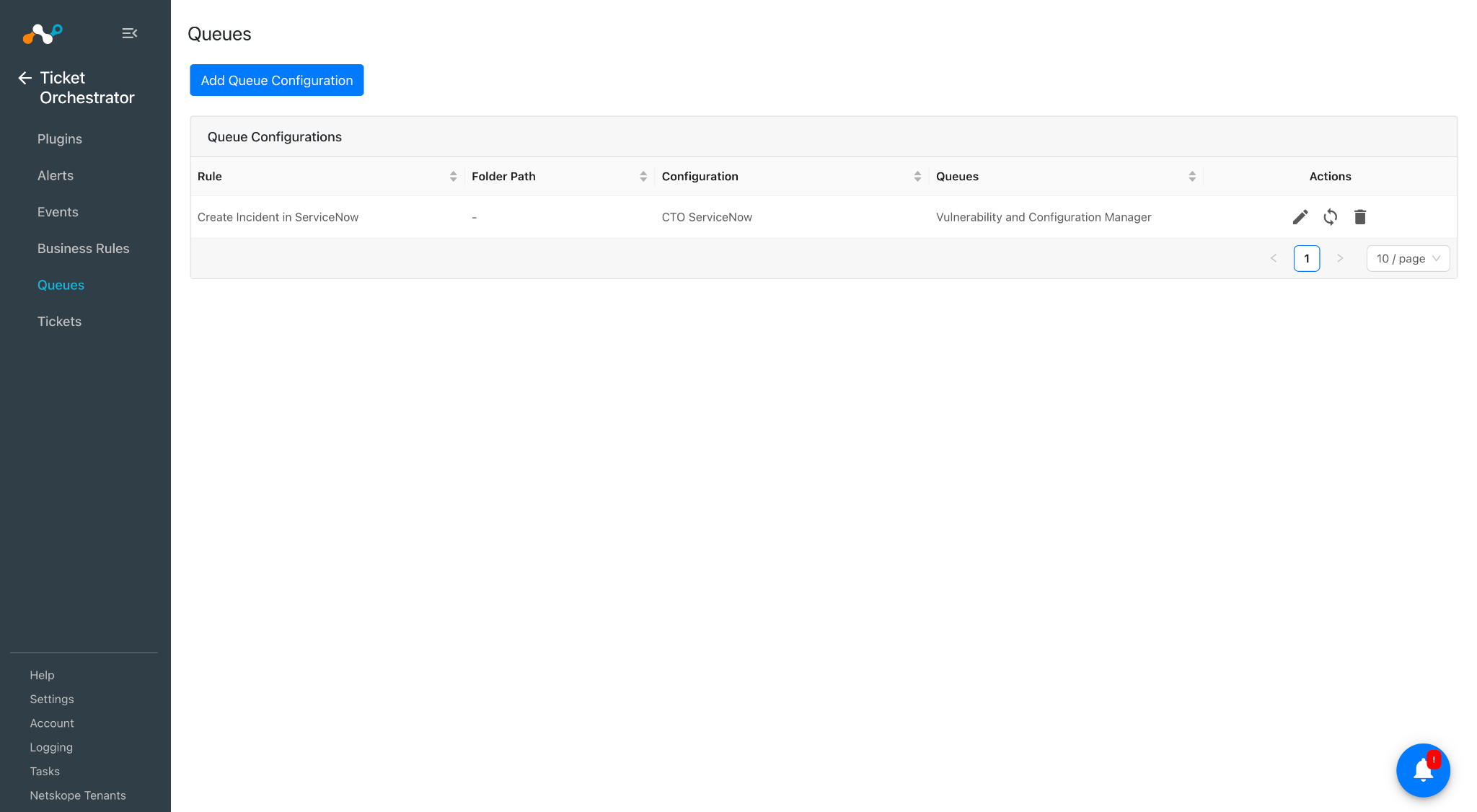

Get ServiceNow groups as Queue

API Endpoint: <Instance URL>/api/now/table/sys_user_group

Method: 得る

Parameters

Headers

Sample API Response (Status Code: 200)

{
    "result": [
        {
            "sys_id": "01336b6347332100158b949b6c9a71b5",
            "name": "Finance Vendors"
        },
        ….
    ]
}

Create Incident or Security Incident or GRC Issue or Custom Table record

API Endpoint: <Instance URL>/api/now/table/<table>

Method: 役職

Path Parameters

Headers

Body

{
    "short_description": "Netskope $appCategory alert name: $alertName, Event Name: $alert_name",
    "description": "Alert/Event ID: $id\nAlert/Event App: $app\nAlert/Event User: $user\n\nAlert Name: $alertName\nAlert Type: $alertType\nAlert App Category: $appCategory\n\nEvent Name: $alert_name\nEvent Type: $eventType",
    "assignment_group": "<group_sys_id>"
}

Sample API Response (Security Incident) (Status Code: 201)

{
    "result": {
        "parent": "",
        "sla_suspended_reason": "",
        "watch_list": "",
        "upon_reject": "cancel",
        "sys_updated_on": "2024-10-25 10:46:39",
        "qualification_group": "",
        "expected_end": "",
        "enforce_restriction": "false",
        "approval_history": "",
        "source_ip": "",
        "skills": "",
        "number": "SIR1083059",
        "problem": "",
        "previous_agent": "",
        "state": "10",
        "sys_created_by": "user1.abc",
        "template_workflow_invoked": "false",
        "knowledge": "false",
        "order": "",
        "phish_email": "",
        "cmdb_ci": "",
        "delivery_plan": "",
        "contract": "",
        "impact": "3",
        "active": "true",
        "work_notes_list": "",
        "vulnerability": "",
        "priority": "4",
        "sys_domain_path": "/",
        "sla_suspended": "false",
        "business_duration": "",
        "group_list": "",
        "special_access_write": "",
        "dest_ip": "",
        "mitre_platform": "",
        "approval_set": "",
        "risk_change": "up",
        "malware_url": "",
        "universal_request": "",
        "last_updated_from_src": "",
        "template": "",
        "short_description": "Netskope $appCategory alert name: $alertName, Event Name: $alert_name",
        "correlation_display": "",
        "delivery_task": "",
        "work_start": "",
        "request_type": "",
        "affected_user": "",
        "other_ioc": "",
        "additional_assignee_list": "",
        "alert_sensor": "",
        "assigned_vendor": "",
        "service_offering": "",
        "sys_class_name": "sn_si_incident",
        "closed_by": "",
        "follow_up": "",
        "mitre_group": "",
        "sla_suspended_on": "",
        "estimated_end": "",
        "vendor_reference": "",
        "reassignment_count": "0",
        "assigned_to": "",
        "request_category": "",
        "requested_due_by": "",
        "mitre_malware": "",
        "sla_suspended_for": "",
        "business_criticality": "3",
        "sla_due": "",
        "opened_for": {
            "link": "https://service-now.com/api/now/table/sys_user/c813b7cb1b8342148f4aedb8b04bcb91",
            "value": "c813b7cb1b8342148f4aedb8b04bcb91"
        },
        "comments_and_work_notes": "",
        "mitre_technique": "",
        "special_access_read": "",
        "substate": "",
        "escalation": "0",
        "upon_approval": "proceed",
        "allowed_groups": "",
        "correlation_id": "",
        "asset": "",
        "mitre_tool": "",
        "spam": "false",
        "referrer_url": "",
        "made_sla": "true",
        "mitre_tactic": "",
        "is_catalog": "false",
        "malware_hash": "",
        "alert_rule": "",
        "task_effective_number": "SIR1083059",
        "external_url": "",
        "sys_updated_by": "user1.abc",
        "opened_by": {
            "link": "https://service-now.com/api/now/table/sys_user/c813b7cb1b8342148f4aedb8b04bcb91",
            "value": "c813b7cb1b8342148f4aedb8b04bcb91"
        },
        "user_input": "",
        "sys_created_on": "2024-10-25 10:46:39",
        "sys_domain": {
            "link": "https://service-now.com/api/now/table/sys_user_group/global",
            "value": "global"
        },
        "pir": "",
        "route_reason": "",
        "closed_at": "",
        "allowed_members": "",
        "business_service": "",
        "attack_vector": "",
        "time_worked": "",
        "expected_start": "",
        "opened_at": "2024-10-25 10:46:39",
        "task_created": "false",
        "x_cdsp_chroni_sir_chronicle_si": "",
        "work_end": "",
        "confidence_score": "",
        "prediction": "",
        "automation_activity": "",
        "subcategory": "",
        "work_notes": "",
        "security_tags": "",
        "risk_score_override": "false",
        "initiated_from": "",
        "close_code": "",
        "assignment_group": {
            "link": "https://service-now.com/api/now/table/sys_user_group/<group_sys_id>",
            "value": "<group_sys_id>"
        },
        "description": "Alert/Event ID: $id\nAlert/Event App: $app\nAlert/Event User: $user\n\nAlert Name: $alertName\nAlert Type: $alertType\nAlert App Category: $appCategory\n\nEvent Name: $alert_name\nEvent Type: $eventType",
        "calendar_duration": "",
        "close_notes": "",
        "pir_respondents": "",
        "sys_id": "f25adc501b255a549f2eeb98b04bcb56",
        "contact_type": "",
        "urgency": "3",
        "secure_notes": "",
        "company": "",
        "new_pir_respondents": "",
        "department": "",
        "activity_due": "",
        "severity": "2",
        "comments": "",
        "risk_score": "40",
        "approval": "not requested",
        "due_date": "",
        "sys_mod_count": "0",
        "parent_security_incident": "",
        "sys_tags": "",
        "billable": "false",
        "mitre_data_source": "",
        "caller": "",
        "location": "",
        "risk": "3",
        "category": "",
        "incident": "",
        "change_request": "",
        "security_incident_self": {
            "link": "https://service-now.com/api/now/table/sn_si_incident/f25adc501b255a549f2eeb98b04bcb56",
            "value": "f25adc501b255a549f2eeb98b04bcb56"
        }
    }
}

Sample API Response (Incident) (Status Code: 201)

{
    "result": {
        "parent": "",
        "made_sla": "true",
        "caused_by": "",
        "watch_list": "",
        "upon_reject": "cancel",
        "sys_updated_on": "2024-10-25 10:44:54",
        "child_incidents": "0",
        "hold_reason": "",
        "origin_table": "",
        "task_effective_number": "INC0923990",
        "approval_history": "",
        "skills": "",
        "number": "INC0923990",
        "resolved_by": "",
        "sys_updated_by": "user1.abc",
        "opened_by": {
            "link": "https://service-now.com/api/now/table/sys_user/c813b7cb1b8342148f4aedb8b04bcb91",
            "value": "c813b7cb1b8342148f4aedb8b04bcb91"
        },
        "user_input": "",
        "sys_created_on": "2024-10-25 10:44:54",
        "sys_domain": {
            "link": "https://service-now.com/api/now/table/sys_user_group/global",
            "value": "global"
        },
        "state": "1",
        "route_reason": "",
        "sys_created_by": "user1.abc",
        "knowledge": "false",
        "order": "",
        "calendar_stc": "",
        "x_cdsp_chroni_itsm_chronicle_incident_ref": "",
        "closed_at": "",
        "cmdb_ci": "",
        "delivery_plan": "",
        "contract": "",
        "impact": "3",
        "active": "true",
        "work_notes_list": "",
        "business_service": "",
        "business_impact": "",
        "priority": "5",
        "sys_domain_path": "/",
        "rfc": "",
        "time_worked": "",
        "expected_start": "",
        "opened_at": "2024-10-25 10:44:54",
        "business_duration": "",
        "group_list": "",
        "work_end": "",
        "caller_id": "",
        "reopened_time": "",
        "resolved_at": "",
        "approval_set": "",
        "subcategory": "",
        "work_notes": "",
        "universal_request": "",
        "short_description": "Netskope $appCategory alert name: $alertName, Event Name: $alert_name",
        "close_code": "",
        "correlation_display": "",
        "delivery_task": "",
        "work_start": "",
        "assignment_group": {
            "link": "https://service-now.com/api/now/table/sys_user_group/<group_sys_id>",
            "value": "<group_sys_id>"
        },
        "additional_assignee_list": "",
        "business_stc": "",
        "cause": "",
        "description": "Alert/Event ID: $id\nAlert/Event App: $app\nAlert/Event User: $user\n\nAlert Name: $alertName\nAlert Type: $alertType\nAlert App Category: $appCategory\n\nEvent Name: $alert_name\nEvent Type: $eventType",
        "origin_id": "",
        "calendar_duration": "",
        "close_notes": "",
        "notify": "1",
        "service_offering": "",
        "sys_class_name": "incident",
        "closed_by": "",
        "follow_up": "",
        "parent_incident": "",
        "sys_id": "d1f994dc1be15a549f2eeb98b04bcb71",
        "contact_type": "",
        "reopened_by": "",
        "incident_state": "1",
        "urgency": "3",
        "problem_id": "",
        "company": "",
        "reassignment_count": "0",
        "activity_due": "",
        "assigned_to": "",
        "severity": "3",
        "comments": "",
        "approval": "not requested",
        "sla_due": "",
        "comments_and_work_notes": "",
        "due_date": "",
        "sys_mod_count": "0",
        "reopen_count": "0",
        "sys_tags": "",
        "escalation": "0",
        "upon_approval": "proceed",
        "correlation_id": "",
        "location": "",
        "category": "inquiry"
    }
}

Sample API Response (GRC Issue) (Status Code: 201)

{
    "result": {
        "parent": "",
        "shadow": "false",
        "watch_list": "",
        "authority_document": "",
        "recommendation": "",
        "wbs": "",
        "upon_reject": "cancel",
        "sys_updated_on": "2024-10-25 10:46:11",
        "explanation": "",
        "approval_history": "",
        "rollup": "false",
        "skills": "",
        "number": "IPT0020059",
        "schedule_start_date": "2024-10-25 10:46:11",
        "capex_cost": "0",
        "state": "1",
        "sys_created_by": "user1.abc",
        "knowledge": "false",
        "order": "",
        "work_duration": "",
        "item": "",
        "budget_cost": "0",
        "cmdb_ci": "",
        "dependency": "",
        "contract": "",
        "impact": "3",
        "key_milestone": "false",
        "profile": "",
        "remaining_effort": "",
        "active": "true",
        "work_notes_list": "",
        "functional_domain": "",
        "classification": "",
        "priority": "4",
        "sys_domain_path": "/",
        "version": "",
        "business_duration": "",
        "group_list": "",
        "override_status": "false",
        "approval_set": "",
        "critical_path": "false",
        "status": "green",
        "universal_request": "",
        "end_date": "2024-10-26 10:46:11",
        "short_description": "Netskope $appCategory alert name: $alertName, Event Name: $alert_name",
        "correlation_display": "",
        "work_start": "",
        "top_task": {
            "link": "https://service-now.com/api/now/table/planned_task/444a541847e5161034d5e0d3706d4326",
            "value": "444a541847e5161034d5e0d3706d4326"
        },
        "parent_issue": "",
        "time_constraint": "asap",
        "document": "",
        "additional_assignee_list": "",
        "service_offering": "",
        "sys_class_name": "sn_grc_issue",
        "closed_by": "",
        "follow_up": "",
        "calculation_type": "automatic",
        "confidential_user_groups": "",
        "reassignment_count": "0",
        "schedule_end_date": "2024-10-26 10:46:11",
        "assigned_to": "",
        "policy": "",
        "start_date": "2024-10-25 10:46:11",
        "mpp_task_id": "",
        "sub_tree_root": "",
        "sla_due": "",
        "comments_and_work_notes": "",
        "remaining_duration": "",
        "has_conflict": "false",
        "substate": "",
        "allow_dates_outside_schedule": "false",
        "escalation": "0",
        "upon_approval": "proceed",
        "issue_manager": "",
        "correlation_id": "",
        "group_level": "",
        "made_sla": "true",
        "user_hierarchy_2": "",
        "user_hierarchy_1": "",
        "wbs_order": "",
        "task_effective_number": "IPT0020059",
        "work_effort": "",
        "sys_updated_by": "user1.abc",
        "opened_by": {
            "link": "https://service-now.com/api/now/table/sys_user/dadb5bc43be9d210c71edd6aa5e45a1b",
            "value": "dadb5bc43be9d210c71edd6aa5e45a1b"
        },
        "user_input": "",
        "sys_created_on": "2024-10-25 10:46:11",
        "sys_domain": {
            "link": "https://service-now.com/api/now/table/sys_user_group/global",
            "value": "global"
        },
        "route_reason": "",
        "start_date_derived_from": "",
        "orig_sys_id": "",
        "closed_at": "",
        "is_reparenting_group": "false",
        "level": "",
        "business_service": "",
        "confidential_users": "",
        "is_confidential": "false",
        "relation_applied": "",
        "time_worked": "",
        "expected_start": "",
        "issue_group_rule": "",
        "opened_at": "2024-10-25 10:46:11",
        "task": "Netskope $appCategory alert name: $alertName, Event Name: $alert_name​IPT0020059",
        "work_end": "",
        "run_calc_brs": "true",
        "work_notes": "",
        "work_cost": "0",
        "assignment_group": "",
        "orig_top_task_id": "",
        "user_hierarchy_status": "2",
        "software_model": "",
        "created_manually": "true",
        "description": "Alert/Event ID: $id\nAlert/Event App: $app\nAlert/Event User: $user\n\nAlert Name: $alertName\nAlert Type: $alertType\nAlert App Category: $appCategory\n\nEvent Name: $alert_name\nEvent Type: $eventType",
        "effort": "",
        "calendar_duration": "",
        "end_date_derived_from": "",
        "close_notes": "",
        "content": "",
        "duration": "1970-01-02 00:00:00",
        "issue_manager_group": "",
        "sys_id": "444a541847e5161034d5e0d3706d4326",
        "contact_type": "",
        "urgency": "3",
        "constraint_date": "",
        "company": "",
        "end": "2024-10-25",
        "activity_due": "",
        "comments": "",
        "cost": "0",
        "approval": "not requested",
        "due_date": "",
        "issue_type": "",
        "start": "2024-10-25",
        "sys_mod_count": "0",
        "management_method": "",
        "confirmed_date": "",
        "model_id": "",
        "opex_cost": "0",
        "sys_tags": "",
        "time_zone": "",
        "html_description": "",
        "percent_complete": "0",
        "is_group": "false",
        "milestone": "false",
        "issue_source": "44ab97f6c75200107e299e0703c2602a",
        "action_plan": "",
        "response": "",
        "issue_rating": "",
        "location": ""
    }
}

Get Incident or Security Incidents or GRC Issues or Custom Table Record

API Endpoint: <Instance URL>/api/now/table/<table>

Method: 得る

Path Parameters

Parameters

Headers

Sample API Response (Status Code: 200)

{
    "result": [
        {
            "severity": "2",
            "sys_id": "f25adc501b255a549f2eeb98b04bcb56",
            "state": "10",
            "assigned_to": {
                "link": "https://<Instance URL>/api/now/table/sys_user/324sndm",
                "value": "324sndm"
            }
        }
    ]
}

Sample API Response (GRC Issue) (Status Code: 200)

{
    "result": [
        {
            "sys_id": "444a541847e5161034d5e0d3706d4326",
            "impact": "3",
            "state": "1",
            "assigned_to": ""
        }
    ]
}

Update Incident or Security Incident or GRC Issue or Custom Table record

API Endpoint: <Instance URL>/api/now/table/<table>

Method: パッチ

Path Parameters

Headers

Body

{

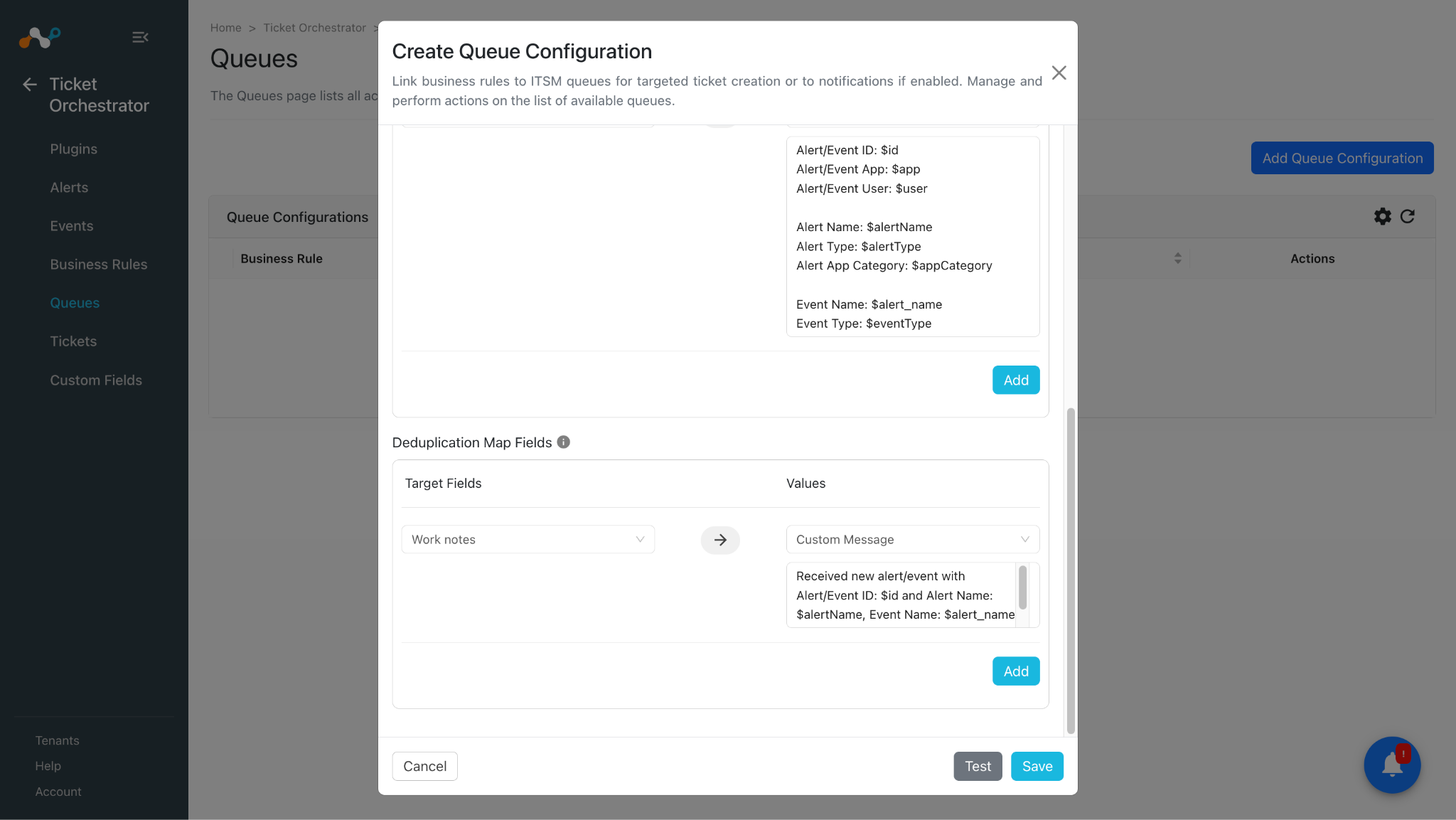

    "work_notes": "Received new alert with Alert ID: $id and Alert Name: $alertName in Cloud Exchange."
}

Sample API Response (Status Code: 200)

{
    "result": {
        "parent": "",
        "sla_suspended_reason": "",
        "watch_list": "",
        "upon_reject": "cancel",
        "sys_updated_on": "2024-10-25 11:56:25",
        "qualification_group": "",
        "expected_end": "",
        "enforce_restriction": "false",
        "approval_history": "",
        "source_ip": "",
        "skills": "",
        "number": "SIR1083059",
        "problem": "",
        "previous_agent": "",
        "state": "10",
        "sys_created_by": "user1.abc",
        "template_workflow_invoked": "false",
        "knowledge": "false",
        "order": "",
        "phish_email": "",
        "cmdb_ci": "",
        "delivery_plan": "",
        "contract": "",
        "impact": "3",
        "active": "true",
        "work_notes_list": "",
        "vulnerability": "",
        "priority": "4",
        "sys_domain_path": "/",
        "sla_suspended": "false",
        "business_duration": "",
        "group_list": "",
        "special_access_write": "",
        "dest_ip": "",
        "mitre_platform": "",
        "approval_set": "",
        "risk_change": "up",
        "malware_url": "",
        "universal_request": "",
        "last_updated_from_src": "automation",
        "template": "",

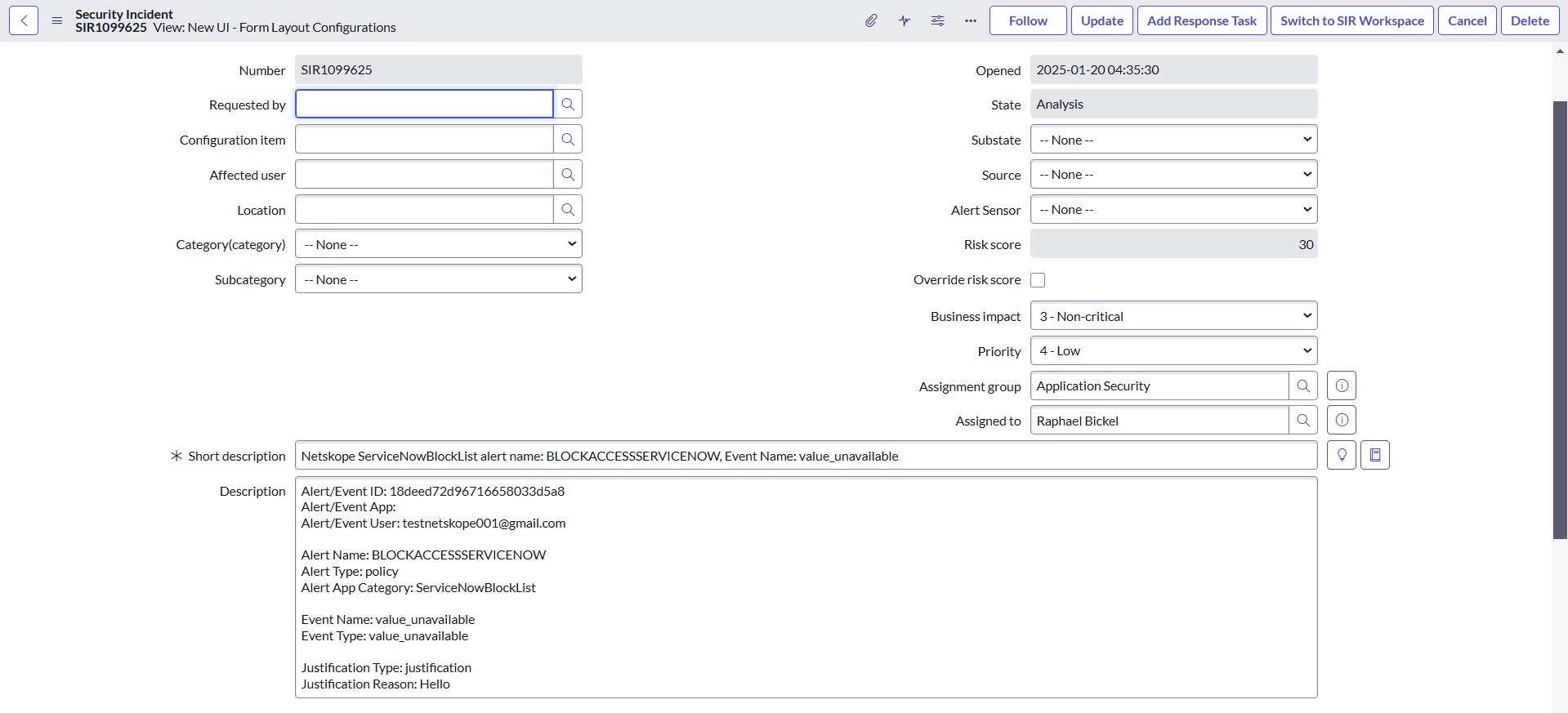

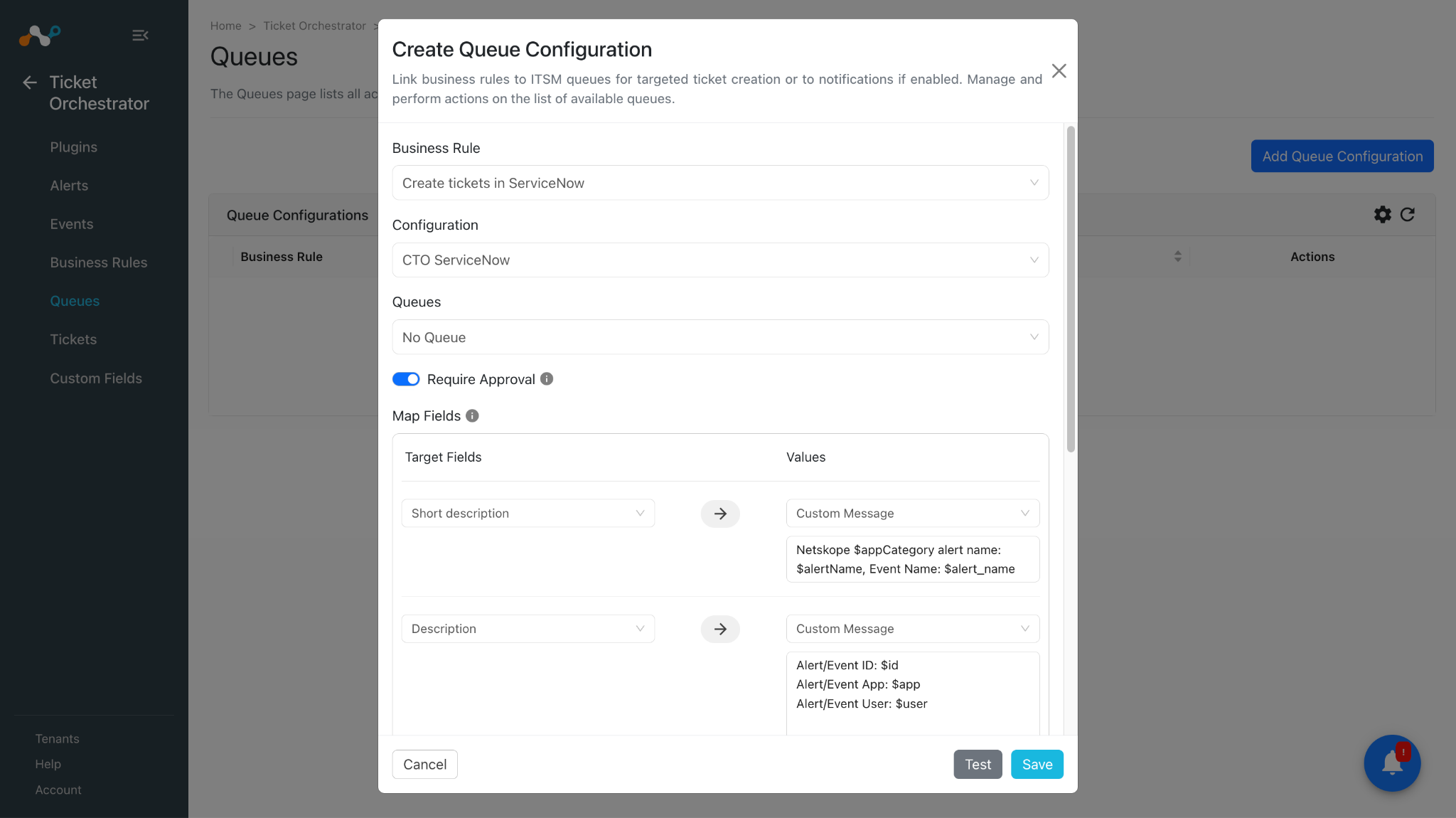

        "short_description": "Netskope $appCategory alert name: $alertName, Event Name: $alert_name",
        "correlation_display": "",
        "delivery_task": "",
        "work_start": "",
        "request_type": "",
        "affected_user": "",
        "other_ioc": "",
        "additional_assignee_list": "",
        "alert_sensor": "",
        "assigned_vendor": "",
        "service_offering": "",
        "sys_class_name": "sn_si_incident",
        "closed_by": "",
        "follow_up": "",
        "mitre_group": "",
        "sla_suspended_on": "",
        "estimated_end": "",
        "vendor_reference": "",
        "reassignment_count": "0",
        "assigned_to": "",
        "request_category": "",
        "requested_due_by": "",
        "mitre_malware": "",
        "sla_suspended_for": "",
        "business_criticality": "3",
        "sla_due": "",
        "opened_for": {
            "link": "https://service-now.com/api/now/table/sys_user/c813b7cb1b8342148f4aedb8b04bcb91",
            "value": "c813b7cb1b8342148f4aedb8b04bcb91"
        },
        "comments_and_work_notes": "",
        "mitre_technique": "",
        "special_access_read": "",
        "substate": "",
        "escalation": "0",
        "upon_approval": "proceed",
        "allowed_groups": "",
        "correlation_id": "",
        "asset": "",
        "mitre_tool": "",
        "spam": "false",
        "referrer_url": "",
        "made_sla": "true",
        "mitre_tactic": "",
        "is_catalog": "false",
        "malware_hash": "",
        "alert_rule": "",
        "task_effective_number": "SIR1083059",
        "external_url": "",
        "sys_updated_by": "user1.abc",
        "opened_by": {
            "link": "https://service-now.com/api/now/table/sys_user/c813b7cb1b8342148f4aedb8b04bcb91",
            "value": "c813b7cb1b8342148f4aedb8b04bcb91"
        },
        "user_input": "",
        "sys_created_on": "2024-10-25 10:46:39",
        "sys_domain": {
            "link": "https://service-now.com/api/now/table/sys_user_group/global",
            "value": "global"
        },
        "pir": "",
        "route_reason": "",
        "closed_at": "",
        "allowed_members": "",
        "business_service": "",
        "attack_vector": "",
        "time_worked": "",
        "expected_start": "",
        "opened_at": "2024-10-25 10:46:39",
        "task_created": "false",
        "x_cdsp_chroni_sir_chronicle_si": "",
        "work_end": "",
        "confidence_score": "",
        "prediction": "",
        "automation_activity": "",
        "subcategory": "",
        "work_notes": "",
        "security_tags": "",
        "risk_score_override": "false",
        "initiated_from": "",
        "close_code": "",
        "assignment_group": {
            "link": "https://service-now.com/api/now/table/sys_user_group/<group_sys_id>",
            "value": "<group_sys_id>"
        },
        "description": "Alert/Event ID: $id\nAlert/Event App: $app\nAlert/Event User: $user\n\nAlert Name: $alertName\nAlert Type: $alertType\nAlert App Category: $appCategory\n\nEvent Name: $alert_name\nEvent Type: $eventType",
        "calendar_duration": "",
        "close_notes": "",
        "pir_respondents": "",
        "sys_id": "f25adc501b255a549f2eeb98b04bcb56",
        "contact_type": "",
        "urgency": "3",
        "secure_notes": "",
        "company": "",
        "new_pir_respondents": "",
        "department": "",
        "activity_due": "",
        "severity": "2",
        "comments": "",
        "risk_score": "40",
        "approval": "not requested",
        "due_date": "",
        "sys_mod_count": "2",
        "parent_security_incident": "",
        "sys_tags": "",
        "billable": "false",
        "mitre_data_source": "",
        "caller": "",
        "location": "",
        "risk": "3",
        "category": "",
        "incident": "",
        "change_request": "",
        "security_incident_self": {
            "link": "https://service-now.com/api/now/table/sn_si_incident/f25adc501b255a549f2eeb98b04bcb56",
            "value": "f25adc501b255a549f2eeb98b04bcb56"
        }
    }
}

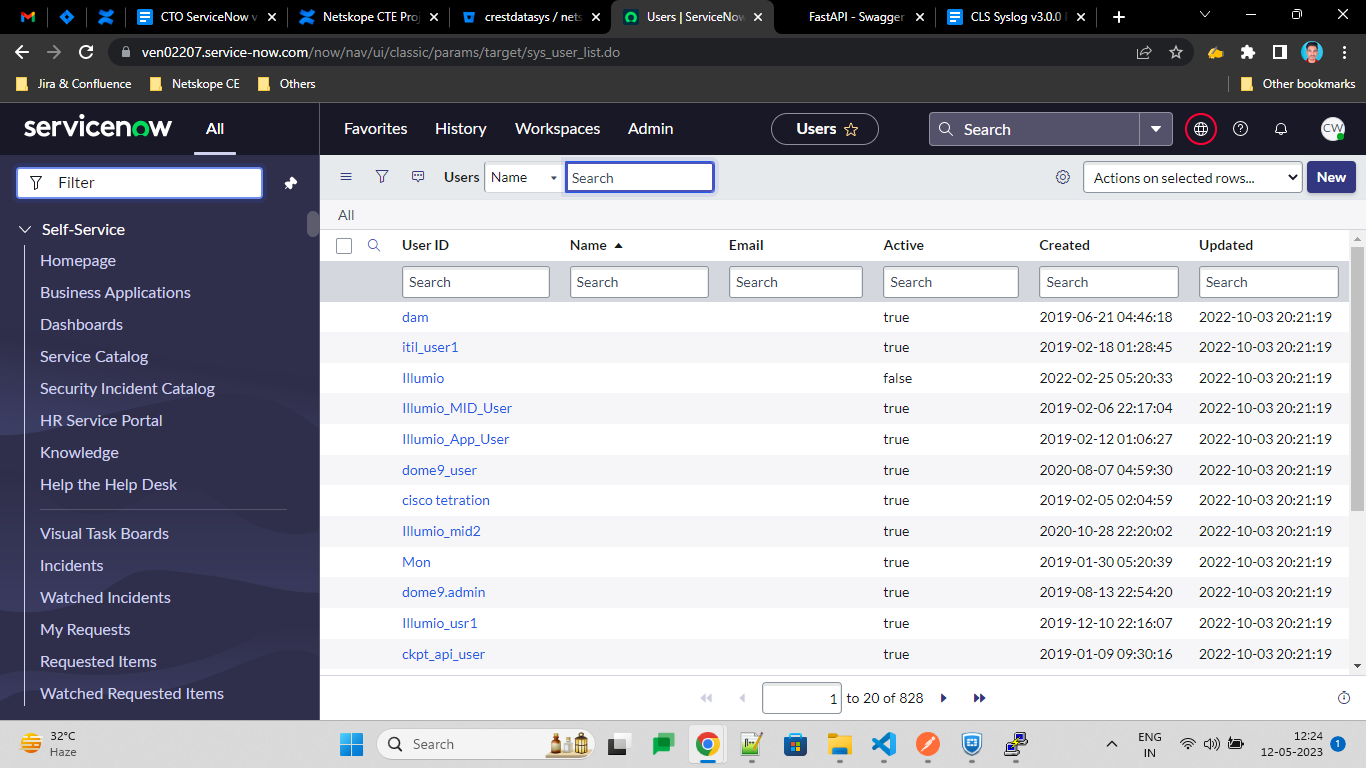

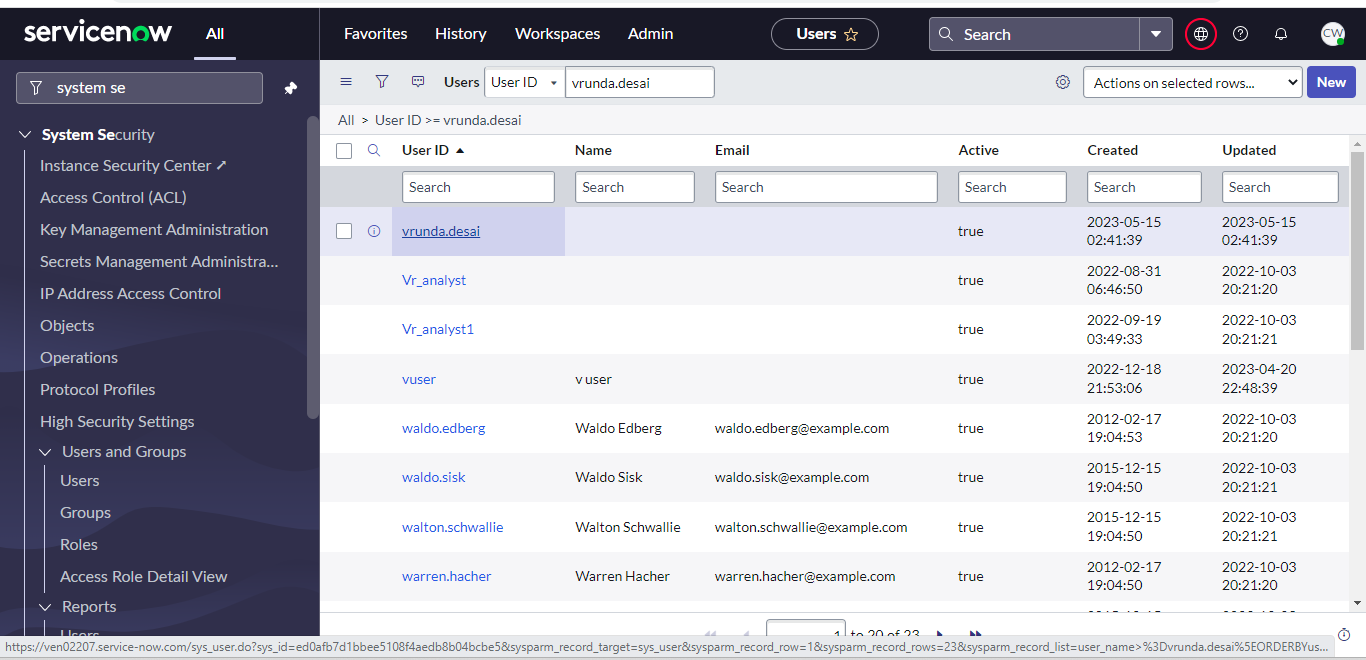

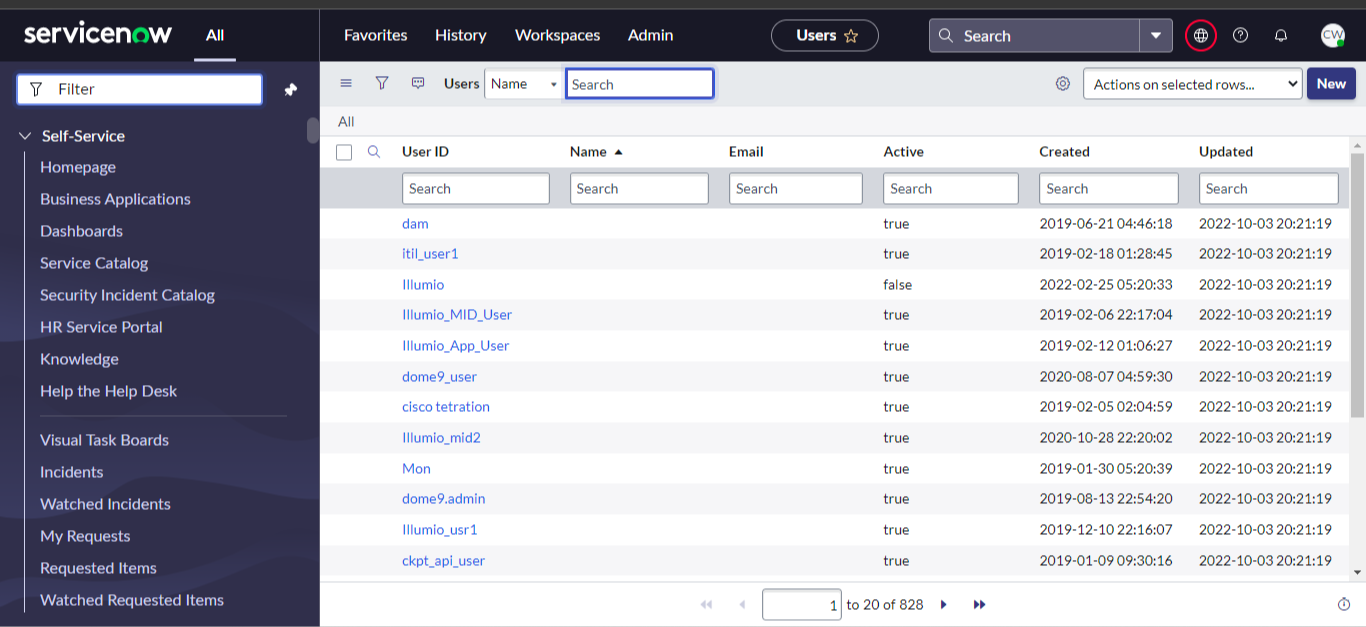

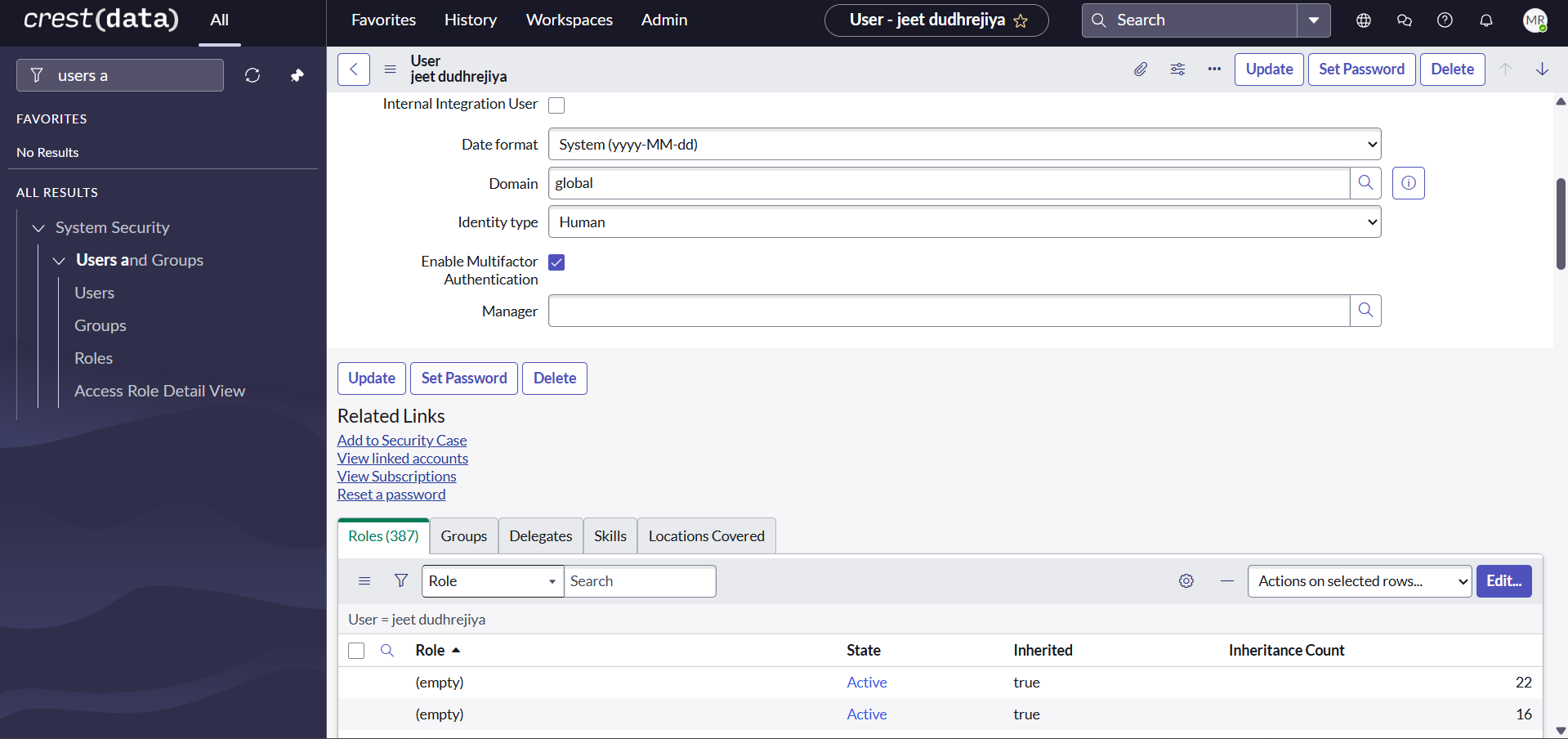

Fetch Assignee Users

API Endpoint: <Instance URL>/api/now/table/sys_user

Method: 得る

Parameters

Headers

Sample API Response (Status Code: 200)

{
    "result": [
        {
            "sys_id": "800b174138d089c868d09de320f9833b",
            "user_name": "user.abc"
        }
    ]
}
